FNIRSI DSO152 Handheld Mini Oscilloscope Type-C Portable Digital Oscilloscope

FNIRSI-DSO 152 Handheld Compact Oscilloscope Portable Digital Oscilloscope Standard (With Normal Probe Without High Voltage Probe)

Introduction：The oscilloscope has a real-time sampling rate of 2.5MS/s, 200KHz bandwidth, and complete trigger functions (single, normal, automatic).

For the cycle of analogue signals and non-periodic digital signals can be used freely, up to ± 400V voltage measurement is equipped with efficient one-button AUTO,

without the need for cumbersome adjustments can be displayed on the measured waveforms. Equipped with a 2.8-inch 320 * 240 resolution high-definition LCD screen,

the internal 1000mAh high-quality lithium battery can be used continuously for about 4 hours after a full charge.

Product features (refer to the link)

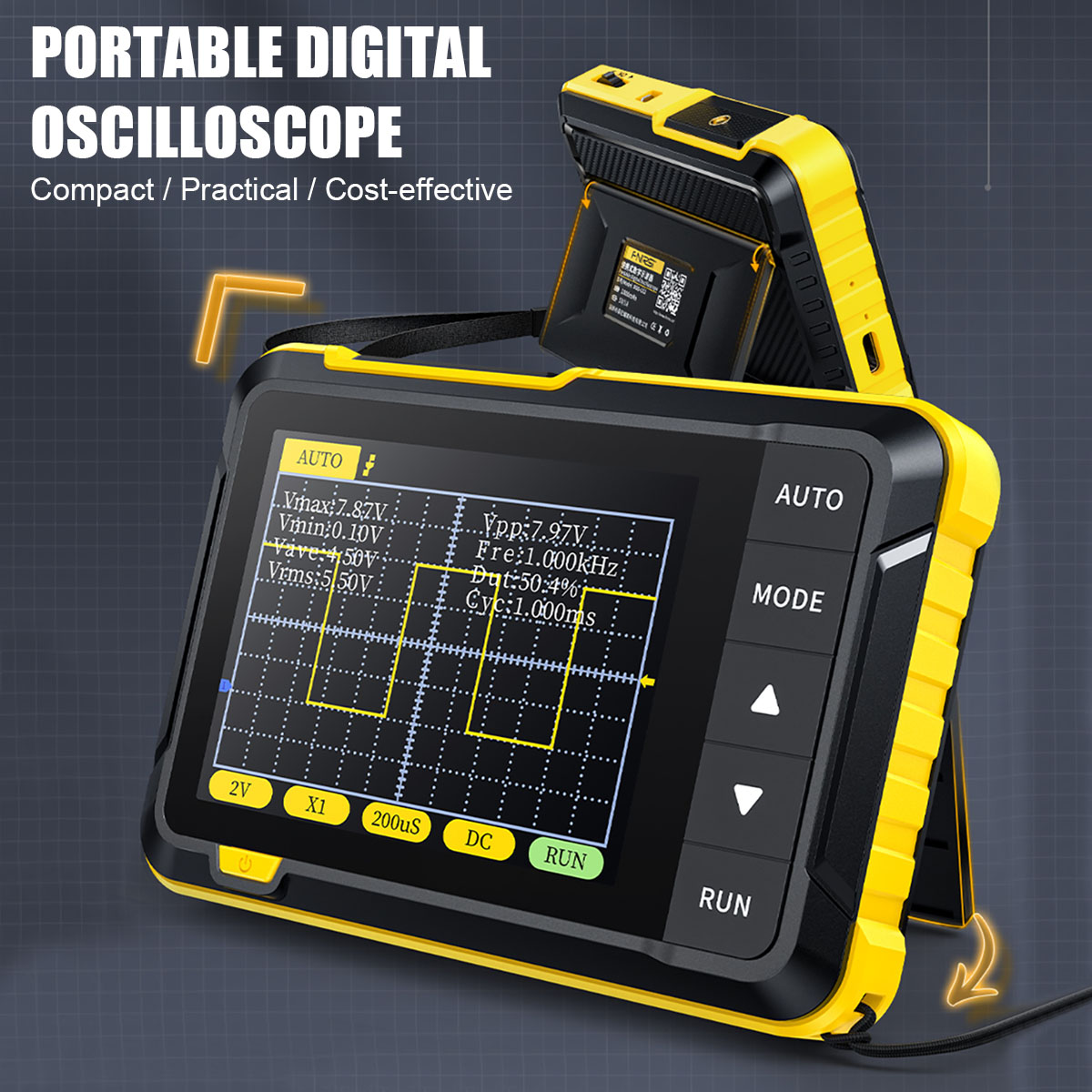

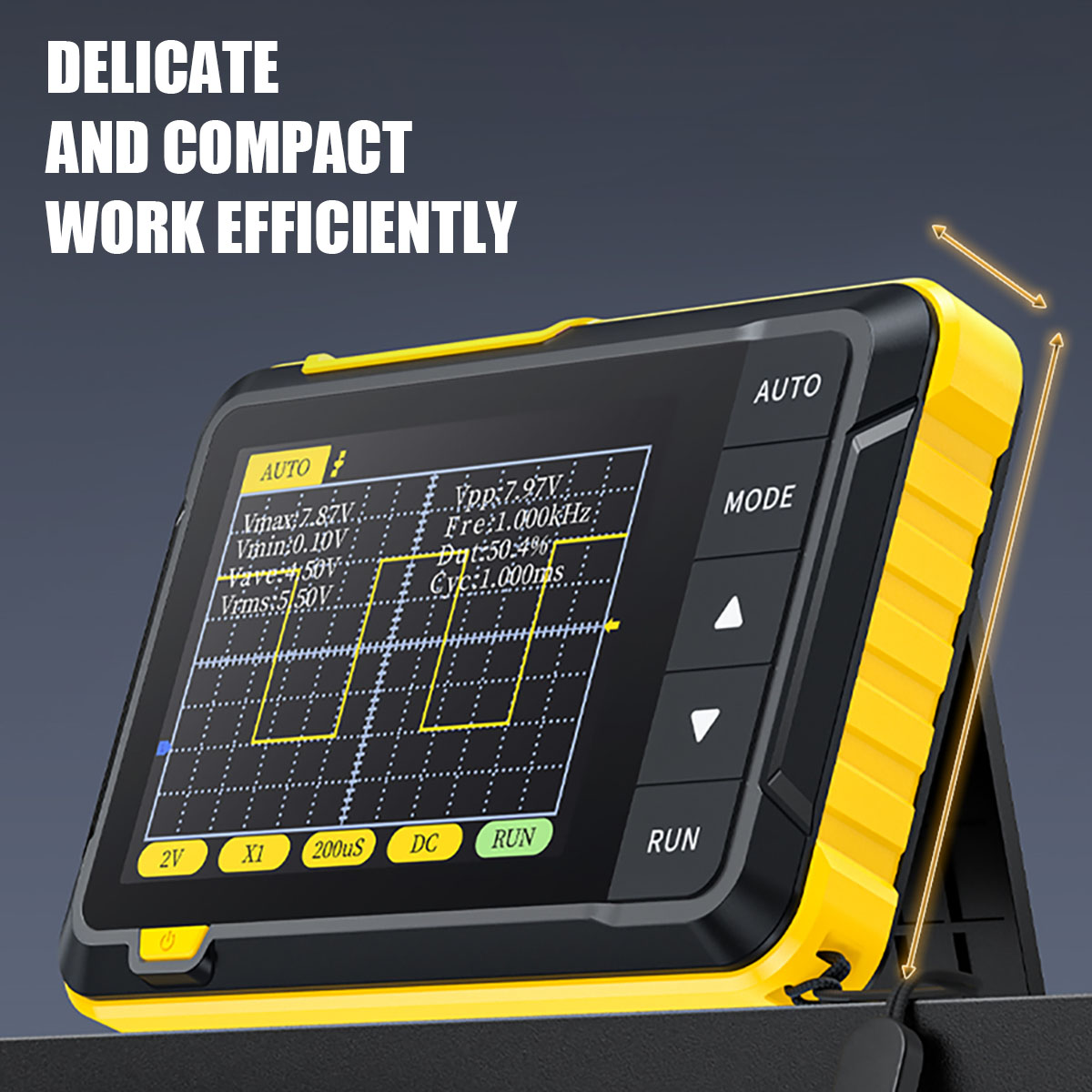

1, small and portable: it is really small, only the size of the palm of your hand, the body is ultra-thin and lightweight, allowing you to get rid of the difficult to take out of the heavy equipment trouble!

2, oscilloscope parameters: oscilloscope real-time sampling rate of 2.5MS / s, bandwidth of 200kHz; with a complete trigger function (single, normal, automatic), can be freely used for periodic analogue signals and non-periodic digital signals; can measure the voltage signal, up to ± 400V; equipped with a highly efficient one-button AUTO, without the need for complex adjustments to display the measured waveforms; equipped with 1KHz calibration Square wave, calibration probe is simple and convenient

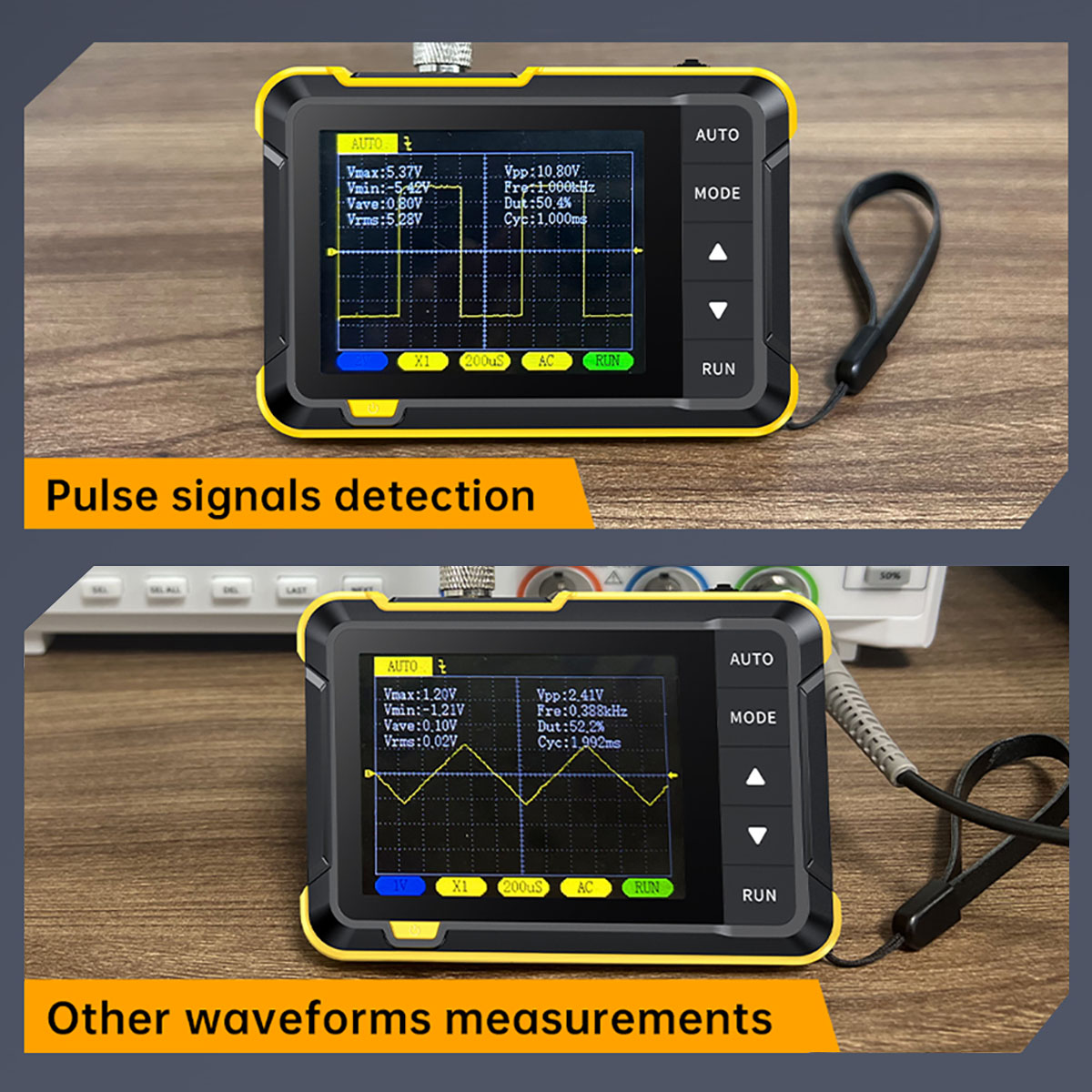

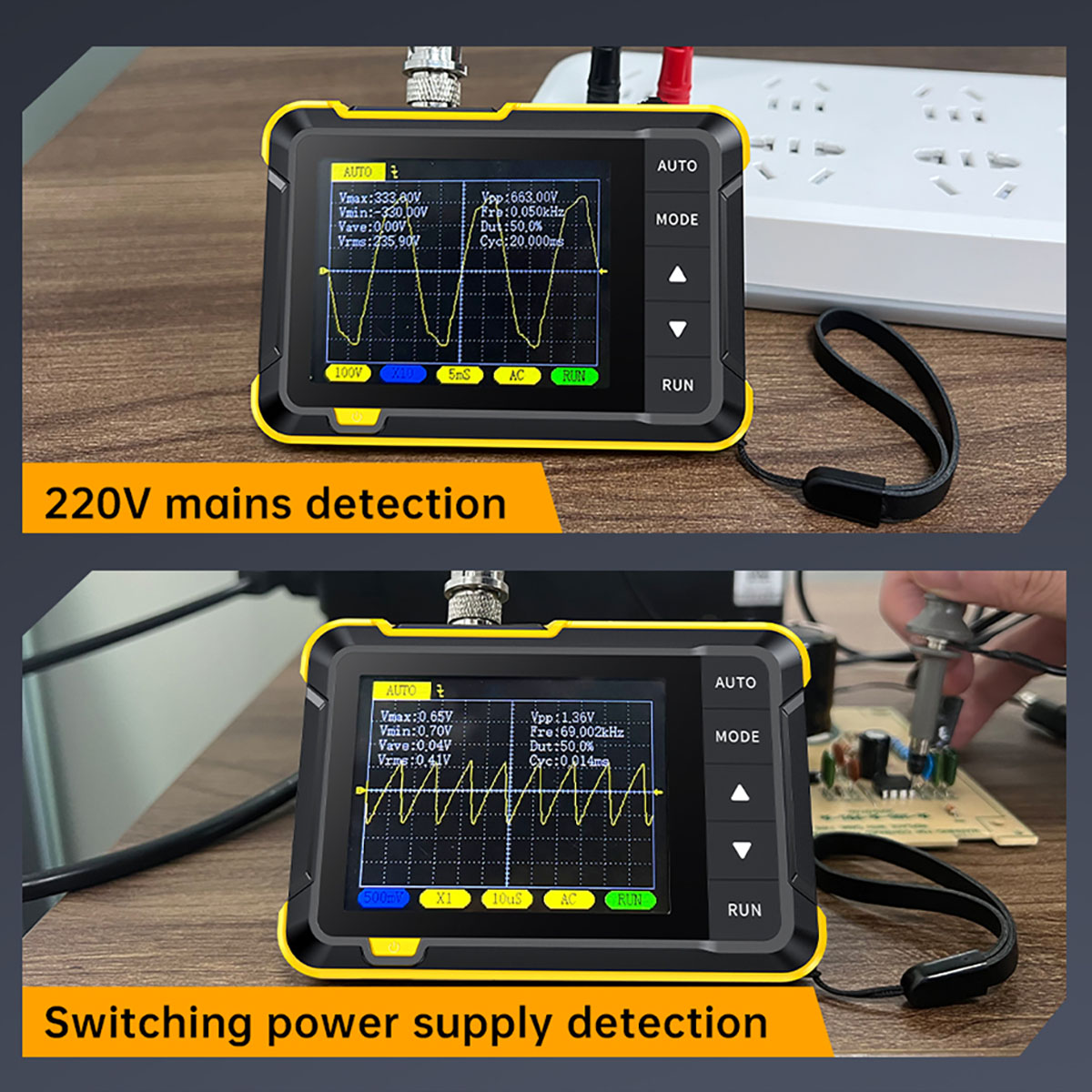

3, waveform measurement display: a variety of waveform measurement (220V mains detection, switching power supply detection, pulse signal detection, other waveform measurement), to meet your daily needs

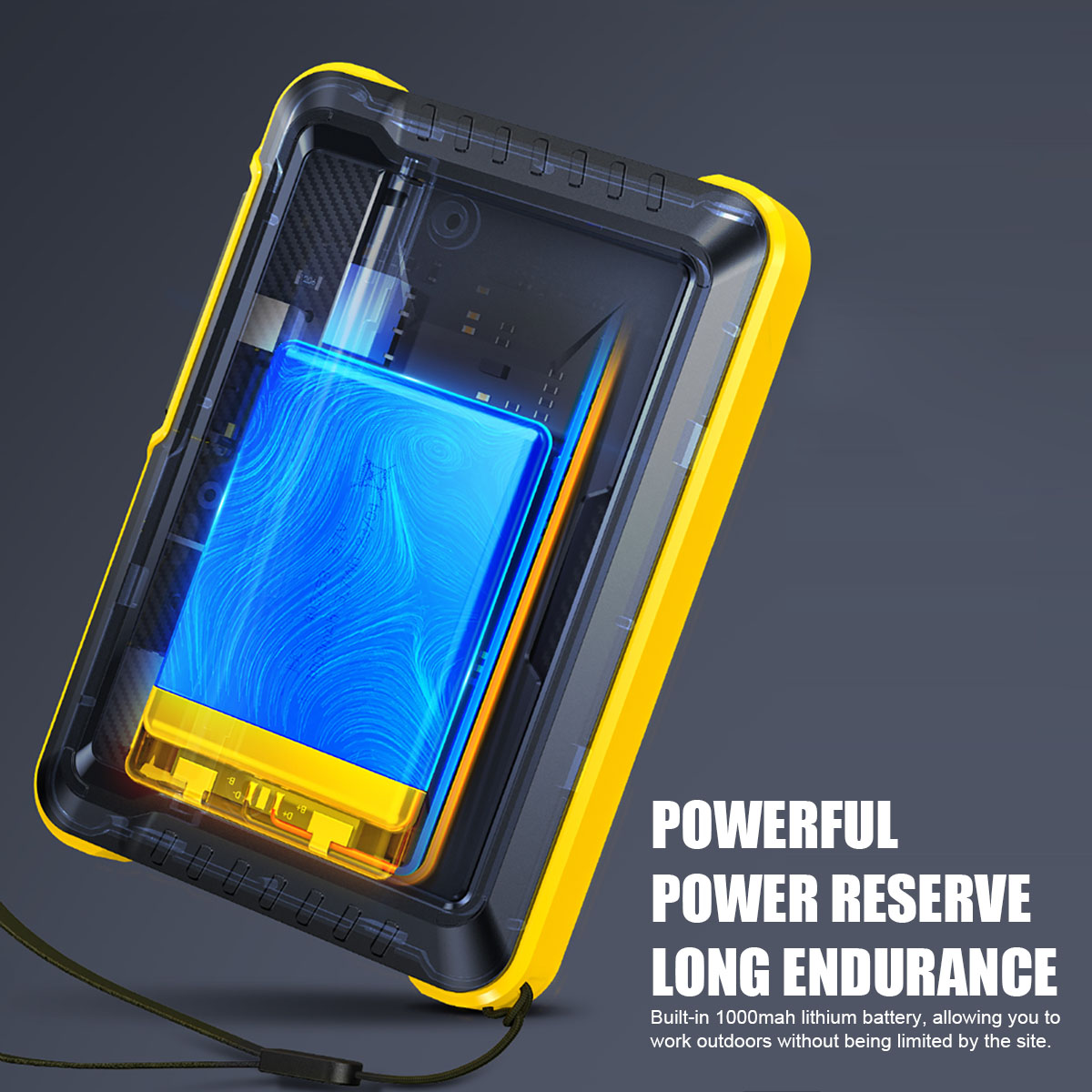

4, powerful power reserves, long-lasting battery life: built-in high-capacity lithium battery power supply, so you can work outdoors, not subject to site constraints

5、Wide range of application: suitable for a variety of occasions, lightweight and space-saving, can work, maintenance and DIY tools

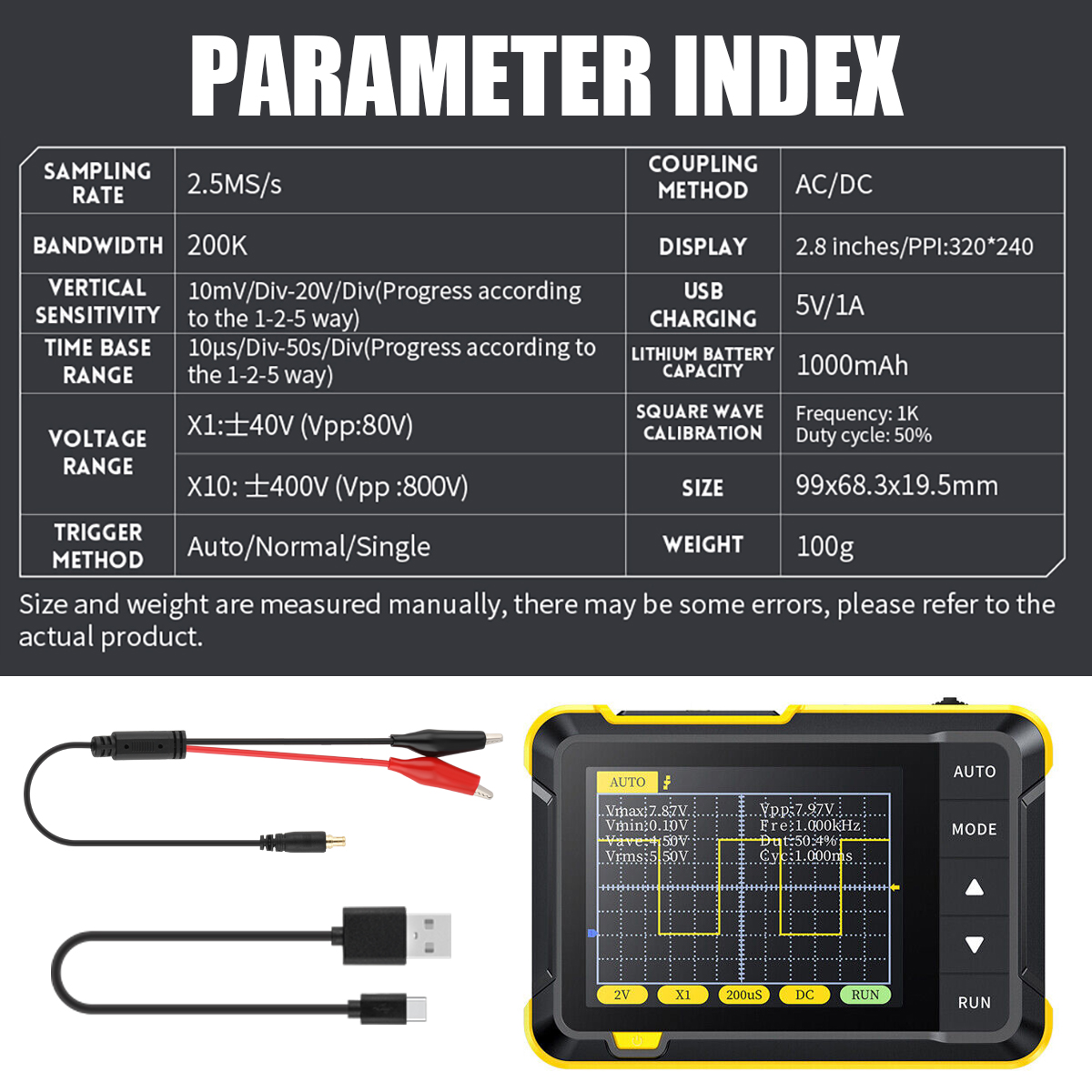

Product Parameters:

Material: plastic

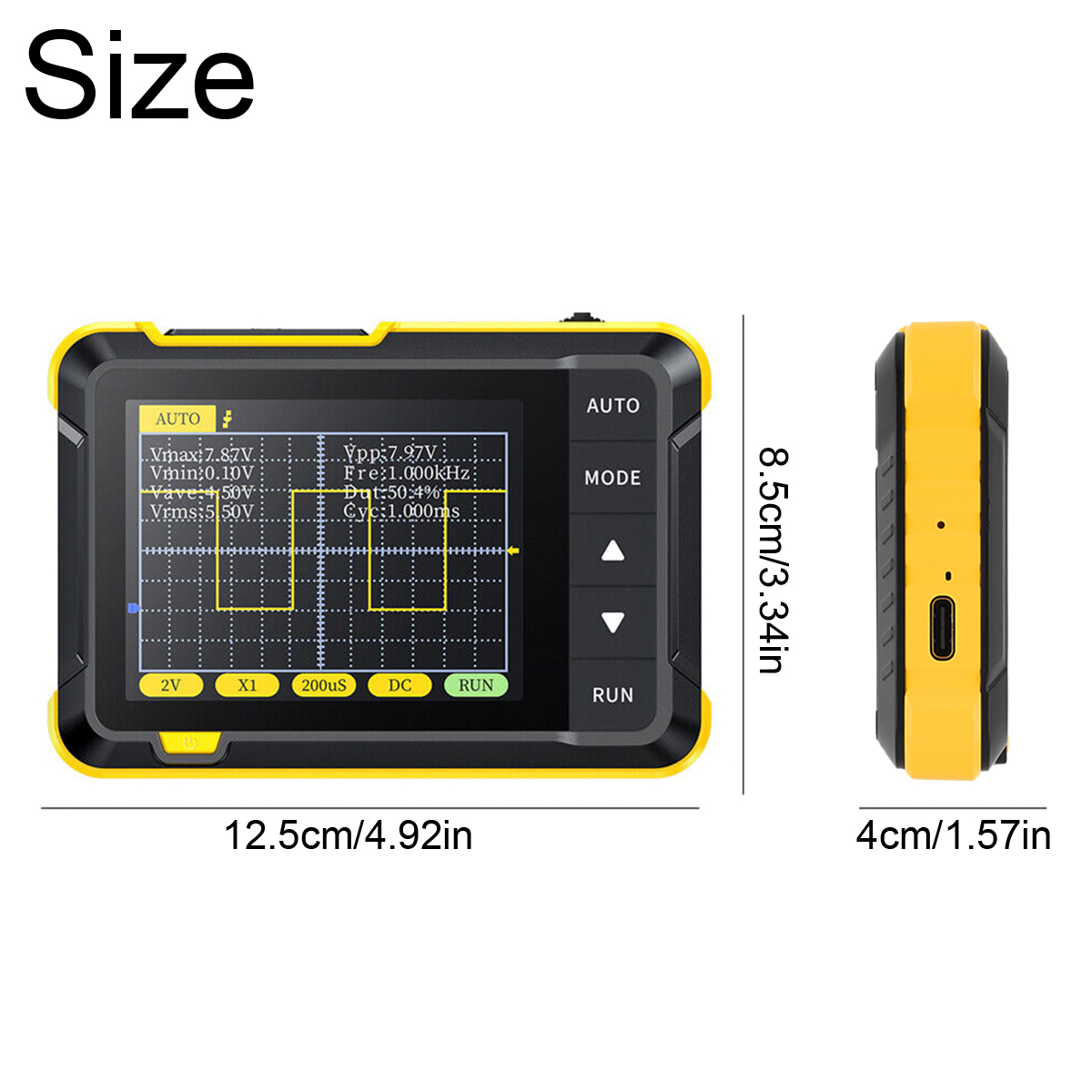

Main body size: 99*68.3*19.5mm

Display: 2.8 inches 320*240 resolution

Sampling rate: 2.5MS/s

Bandwidth: 200K

Vertical sensitivity: 10mV/Div-20V/Div (according to 1-2-5 progressive)

Time base range: 10μs/Div-50s/Div (according to 1-2-5 incremental)

Voltage range: X1:±40V (Vpp:80V); X10:±400V (Vpp:800V)

Trigger mode: automatic/regular/single

Coupling mode: AC/DC

Calibration square wave: Frequency: 1K; Duty cycle: 50%

Li-ion battery capacity: 1000mAh

USB charging: 5V/1A

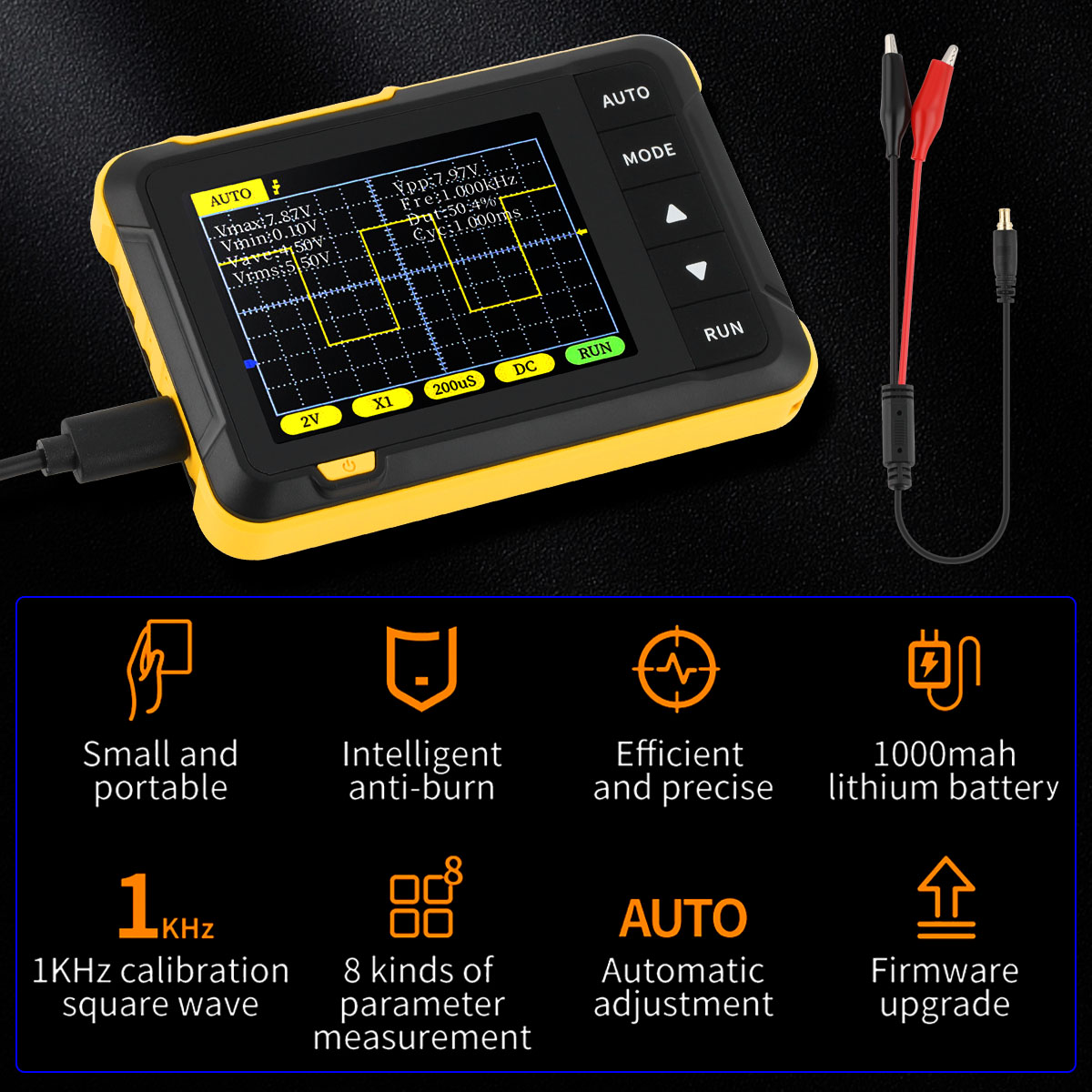

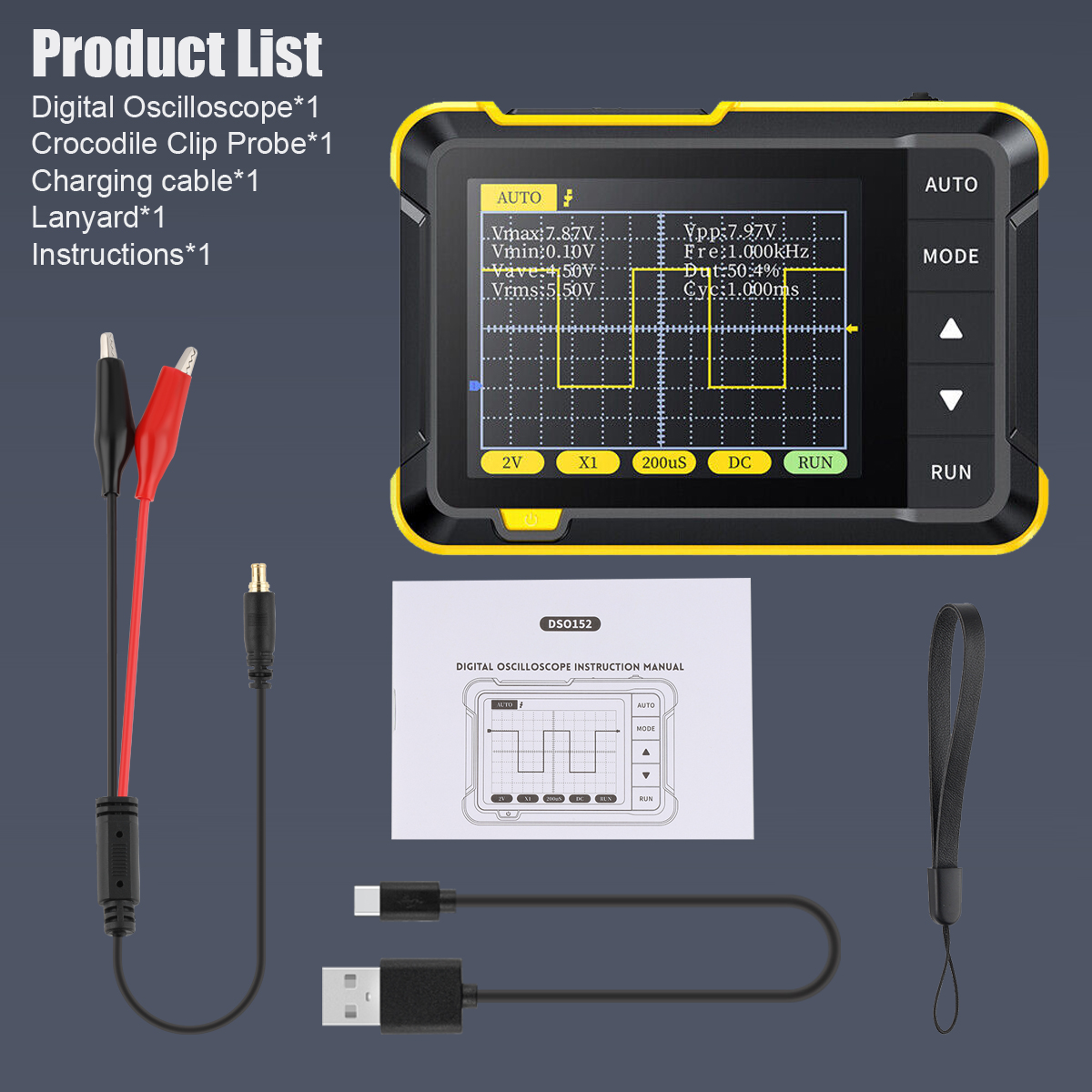

Packing list:

Host x1

Type-C cable x1

Probe x1

Lanyard x1

Instruction manual x1
