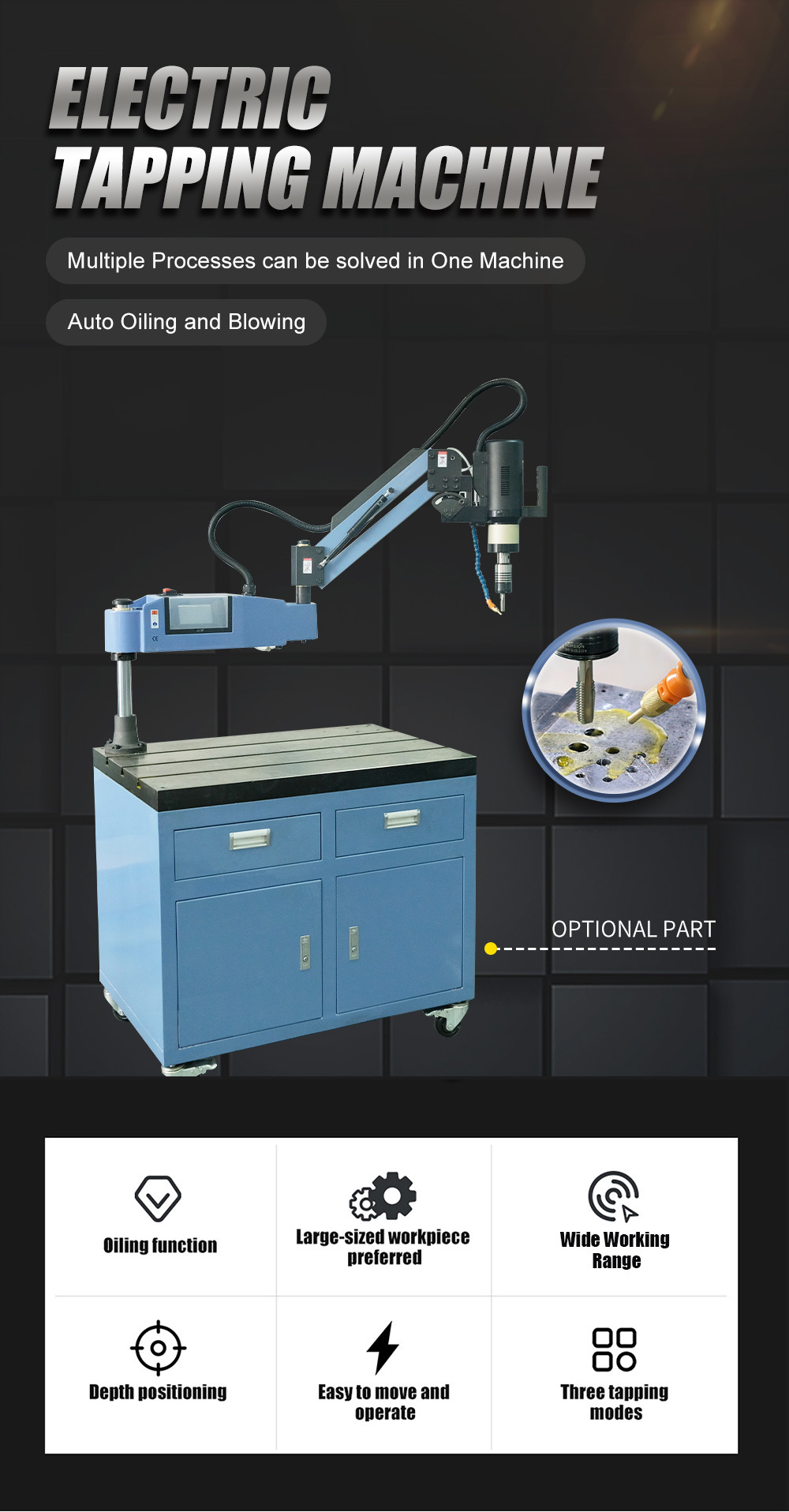

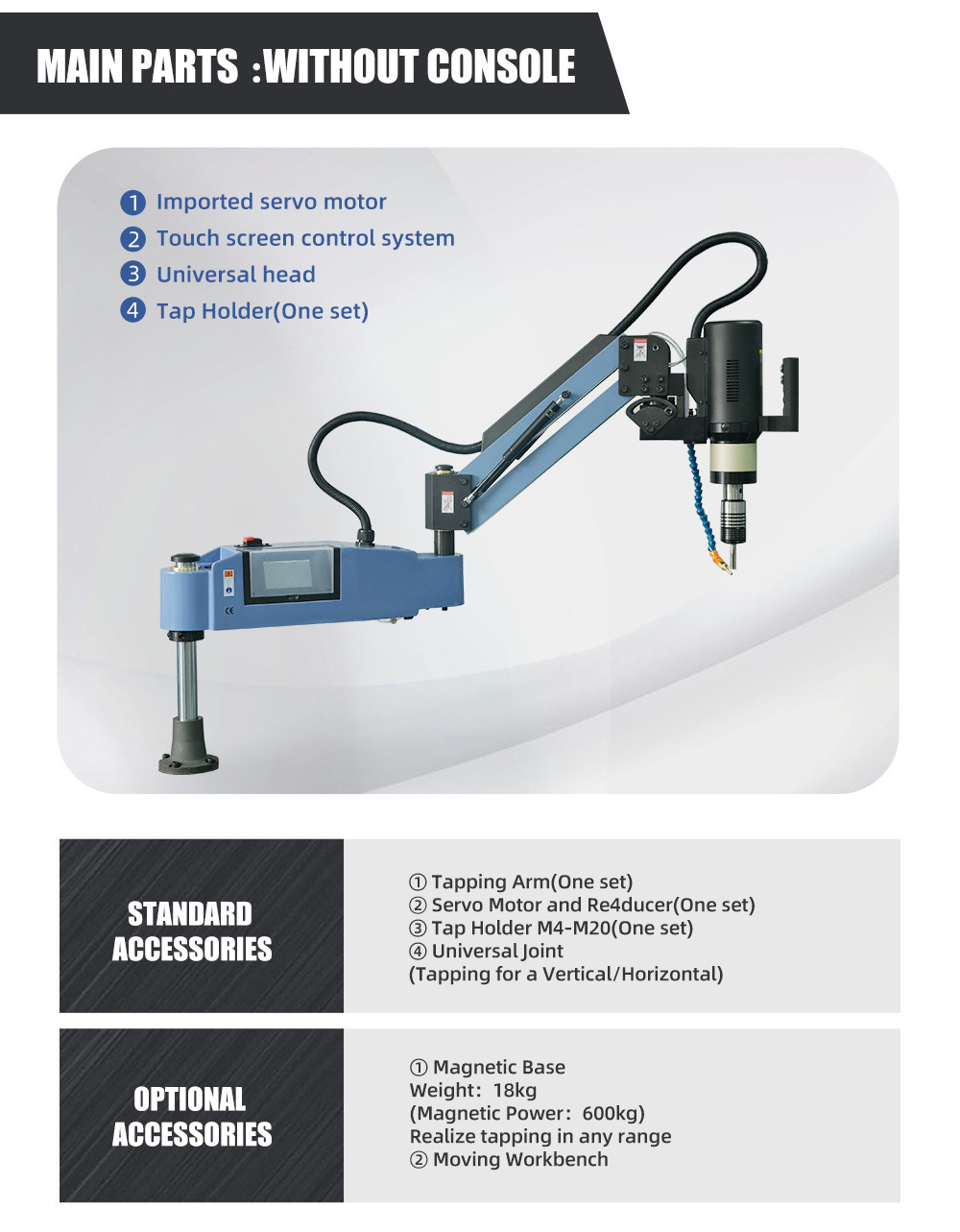

Flex Arm Tapping Machine M4-M24 Electric Tapper 110V with ANSI Chuck Oil Adding

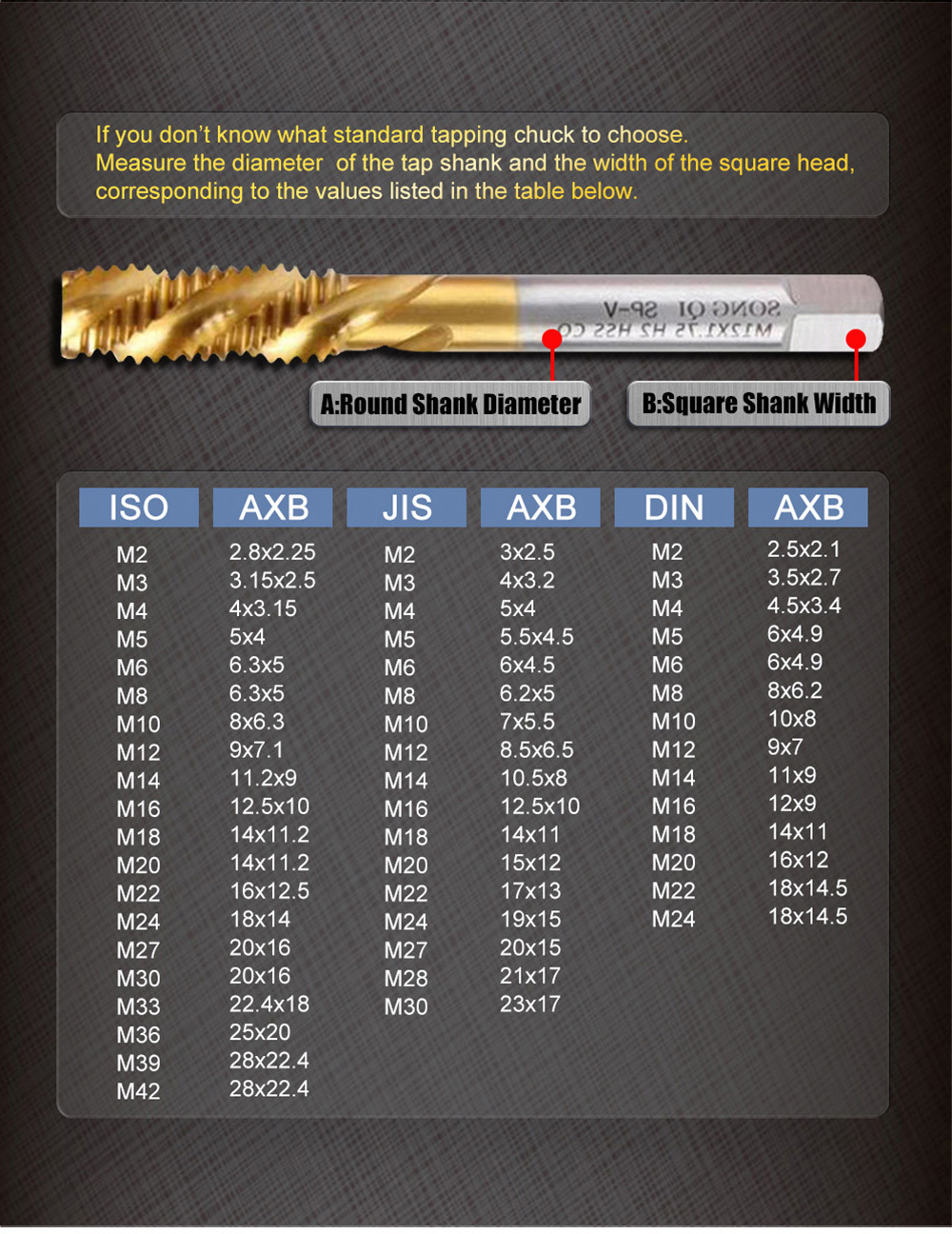

- Please note: One set ANSI Collect chuck is included. If you need ISO, JIS or DIN chuck, please contact us. The working table is not included.Warranty: 1year. We would repair the machine for free if there is any technical problems caused, man-made errors are not included
- Delivery: The machine is in CA warehouse, 3-6 days to your door by UPS/DHL.
- Feature:

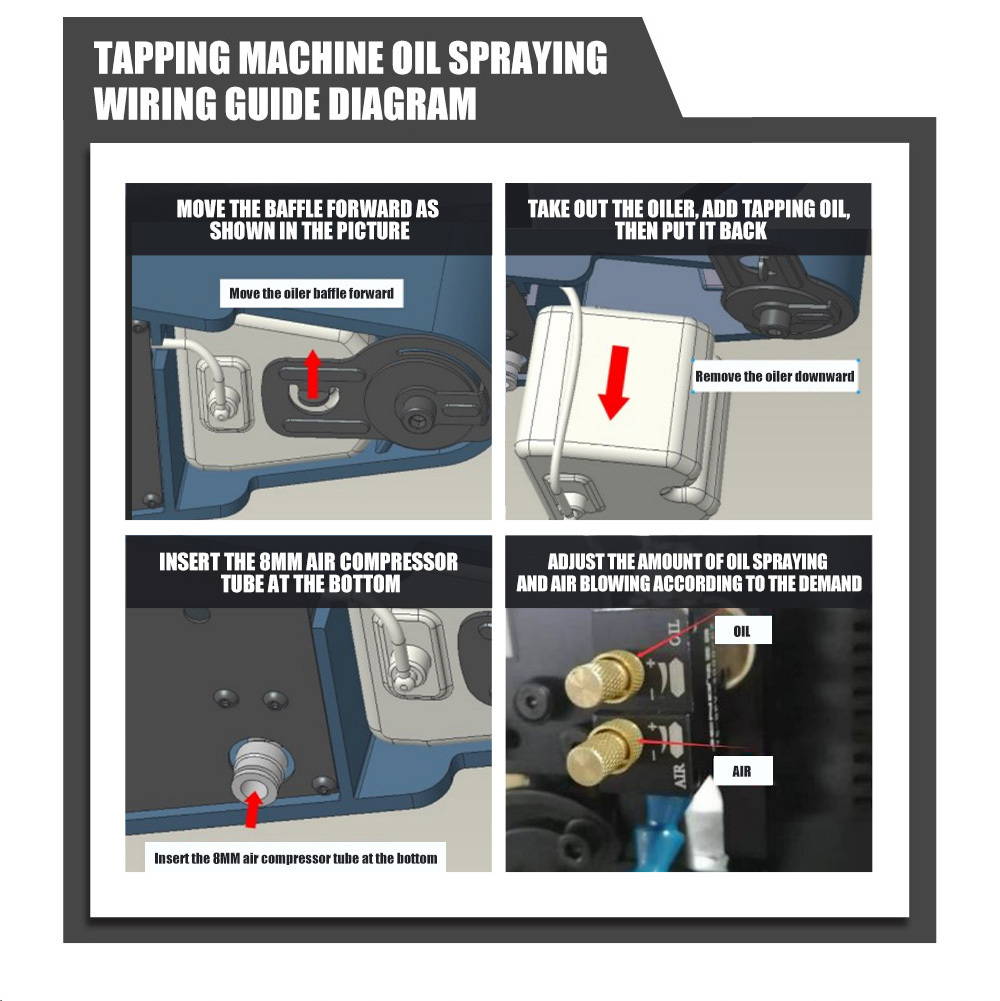

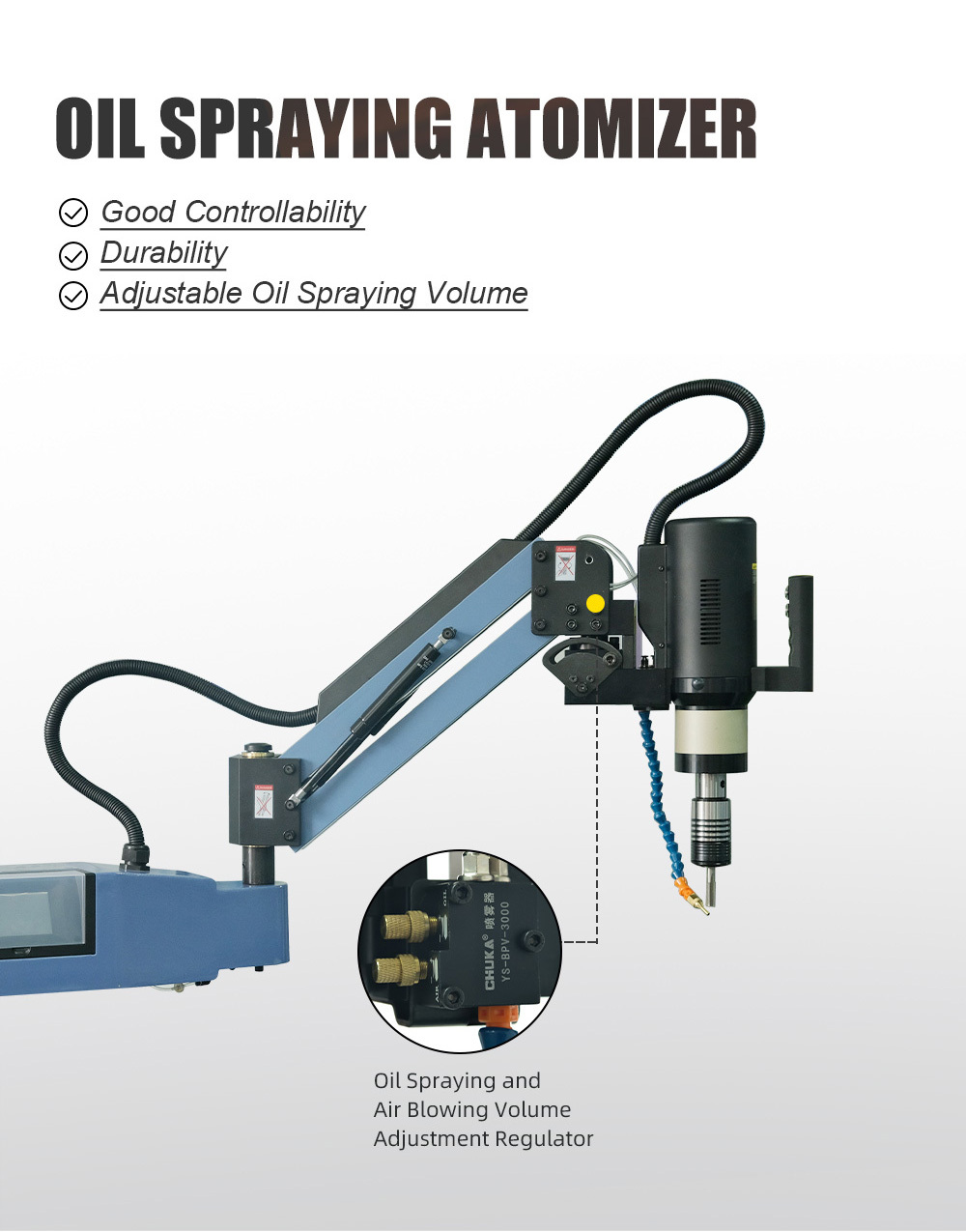

- 1. Oiling function: Oil spraying and air blowing volume adjustable
- 2. Easy to move and operate, large-sized workpieces preferred

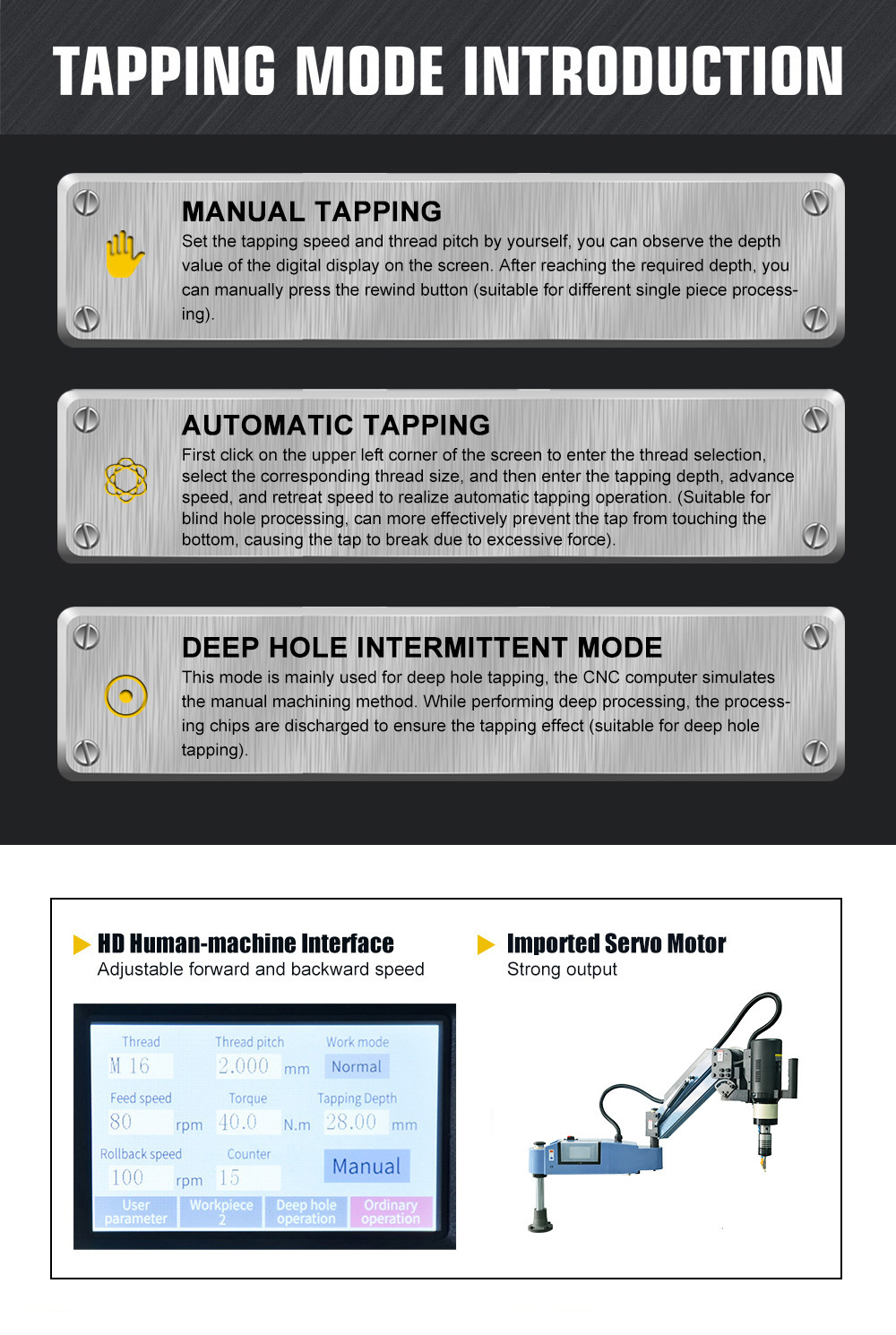

- 3. Three tapping models: Manual tapping model, automatic tapping model with depth setting, deep hole intermittent model.

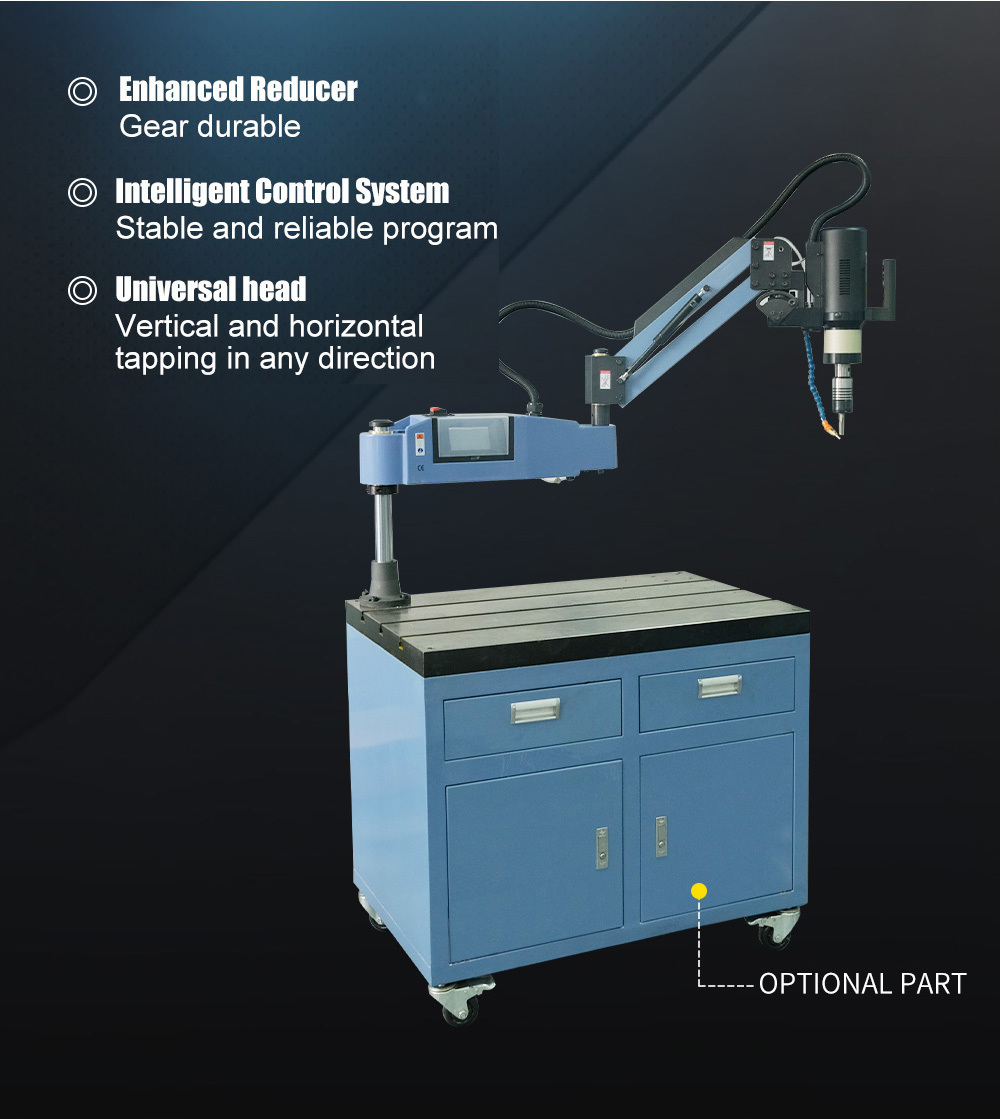

- 4. Enhanced Reducer: Gear durable. Intelligent Control System: Stable and reliable program.
- 5. Universal head: Electric tapping machine with Vertical and horizontal tapping in any direction.

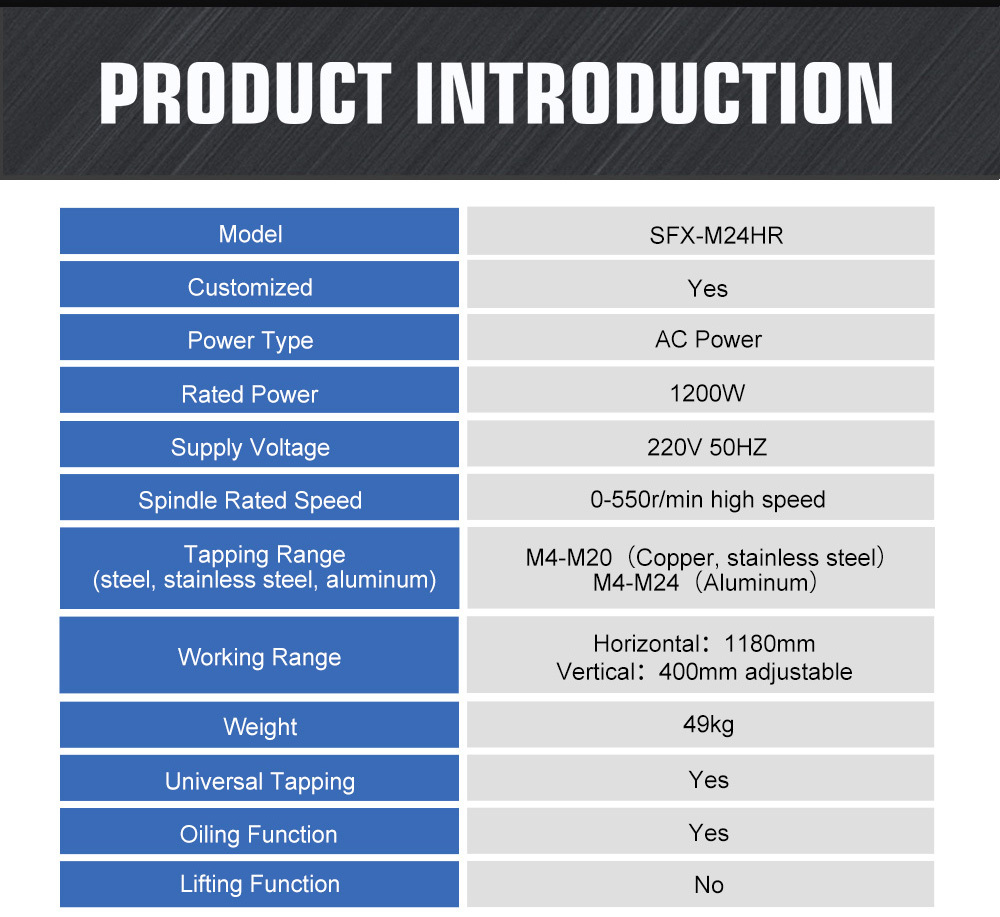

- Technical Parameter:
- Model: SFX-M24HR
- Customized: Yes
- Power Type: AC Power
- Rated Power: 1200W
- Supply Voltage: 110V
- Spindle Rated Speed: 0-550RPM
- Tapping Range: M4-M20 for stainless steel and steel, M4-M24 for aluminum
- Working Range: 1180mm for horizontal, 400mm for vertical, adjustable
- Weight: 49kg
- Universal Tapping: Yes
- Lifting Function: No
- Oiling Function: Yes
