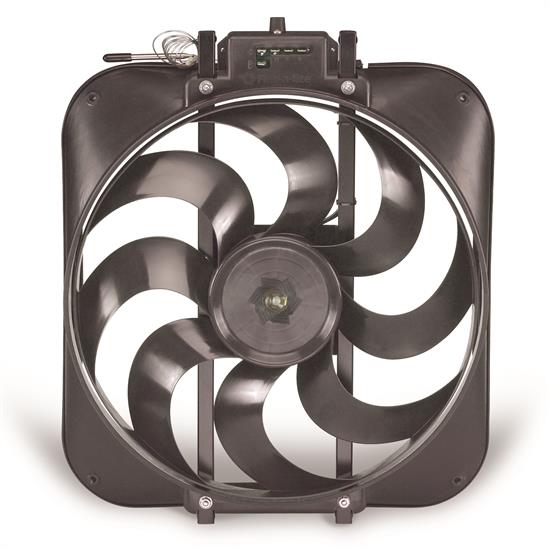

One piece plastic shroud with full contact rubber seal that maximizes air flow (forces all air through the radiator). Highest CFM rating in the industry for this size. High torque, high RPM motor draws 19.5 amps and moves 3000 CFM. Includes adjustable thermostat, A/C relay, and manual switch connections.
- Provides constant cooling, regardless of engine RPM
- Generates cooler A/C output
- Extends water pump life
- Rigid bracket mounting system, no through core mounting
- Entire assembly is only 4-1/4" thick
- Includes 160° adjustable thermostat control
- Amp Draw: 19.5
- Blades: 8
- Controls: 160° adjustable thermostat, A/C relay, and manual switch connection
- Fuse/Breaker: 40 amp fuse
Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. .
(PDF)
It was well worth my money!
Summary: I brought it for my new radiator and it will fit it perfectly! It also had a complete wiring harness, with the thermostat sensor. And a set of instructions how to install it on the radiator. If all fails, read the instructions, lmao!
Pros: I liked that it came with a complete kit.
Yes, I recommend this product.
3000 cfm fan
Summary: The fan fit into the radiator support nicely as the radiator is in the 6 cylinder position on my 1957 Chevy Belair, it allows a 1" gap between the water pump pulley bolts. Easy to install and wire with provided instructions. I used the thru the radiator type zip ties as the shroud already has the four holes to allow them.
Cons: Its not 5000 cfm
Pros: 3000cfm of suction, ease of us and install
Yes, I recommend this product.
