Everlast Everlast Cyclone 253DPi DOUBLE PULSE MIG/ TIG/STICK 250amp

Slide Slide Slide Slide Slide Slide Slide
$3009.0
Non-Domestic Product
No
Welded Material
Steel, Stainless, Aluminum
Custom Bundle
No
Welding Process
Pulsed MIG, MIG, Flux Core
MPN
253DPI
Item Type
MIG Welder, Wire Feed Welder, Flux Core Welder
Processes
MIG, Flux Core, Arc, Stick
Modified Item
No
Brand
Everlast
Multi-Process
Yes
Voltage
220 V
Model
Cyclone 253DPI
Features
Gasless, With Gas
Current
1 Phase
Feed
Semi-Automatic Feed
condition
New
Power i-TIG 200T


   310 579 2075


Store categories









SKU: 253DPI



Product Description

The Cyclone 253DPi is one of the most capable welders in the latest generation of pulse MIG welders from Everlast.  The new Cyclone replaces the older Power i-MIG 253DPi with many major improvements.  First, the new Cyclone model features multiple process ability with MIG, Pulse MIG (Single and Double Pulse), Flux-Cored ( with and without gas), DC Lift Start TIG, and DC Stick capability.  Second, the unit offers a new intuitive LCD screen designed to simplify setup with less toggling and no hidden menus. The bright, HD full color LCD screen is intuitive to use and navigate and allows the user to setup the machine quickly and accurately.  No more toggling or scrolling through endless pages to find your settings.  Everything is on a single page and all settings are visible at the same time and are laid out in a thoughtful, logical manner so that setup flows smoothly from one function to the next. Third, the unit offers the new PowerSet program option which simplifies setup even further for novice users or for professional users who want a quick and easy way to set the machine up by just entering basic operating parameters such as material type, wire diameter and material thickness. This is available in all processes. While it may not be perfect for every situation, the user has plenty of adjustability but is generally prevented from straying too far off a sound or workable setting.

As a Pulse MIG the 253DPi excels by offering single and double (pulse on pulse/twin pulse) function.


PRODUCT EXTRAS

Features & Benefits:
    • Digitally Controlled IGBT Inverter
    • 60% Duty Cycle at 250A
    • Single and Double (Pulse on Pulse/Twin) MIG
    • DC Lift Start TIG Capable with optional gas valve torch
    • Stick function with E6010 capability
    • HD 4 roller driver roll system
    • Hold 8" (10-12 lbs)  or 12" (up to 44 lbs) spools
    • Euro Quick-Connect with 24 series MIG gun
    • Weld Steel, Stainless, Aluminum, or Bronze with Manual and Pulse MIG
    • Self Shielded Flux-Core Capable
    • Generation 2 Power Set mode makes setup easy
    • Aluminum Push/Pull Capable
    • 4.3" HD LCD Color Display
    • Easy to use and navigate screen and controls
    • All settings on single screen
    • Adjustable Inductance (MIG) and Arc Force (Stick)
    • Save and name up to 30 individual programs
    • Can use included U groove drive rolls and PTFE liner to weld aluminum if needed.
    • Low spatter arc while MIG welding

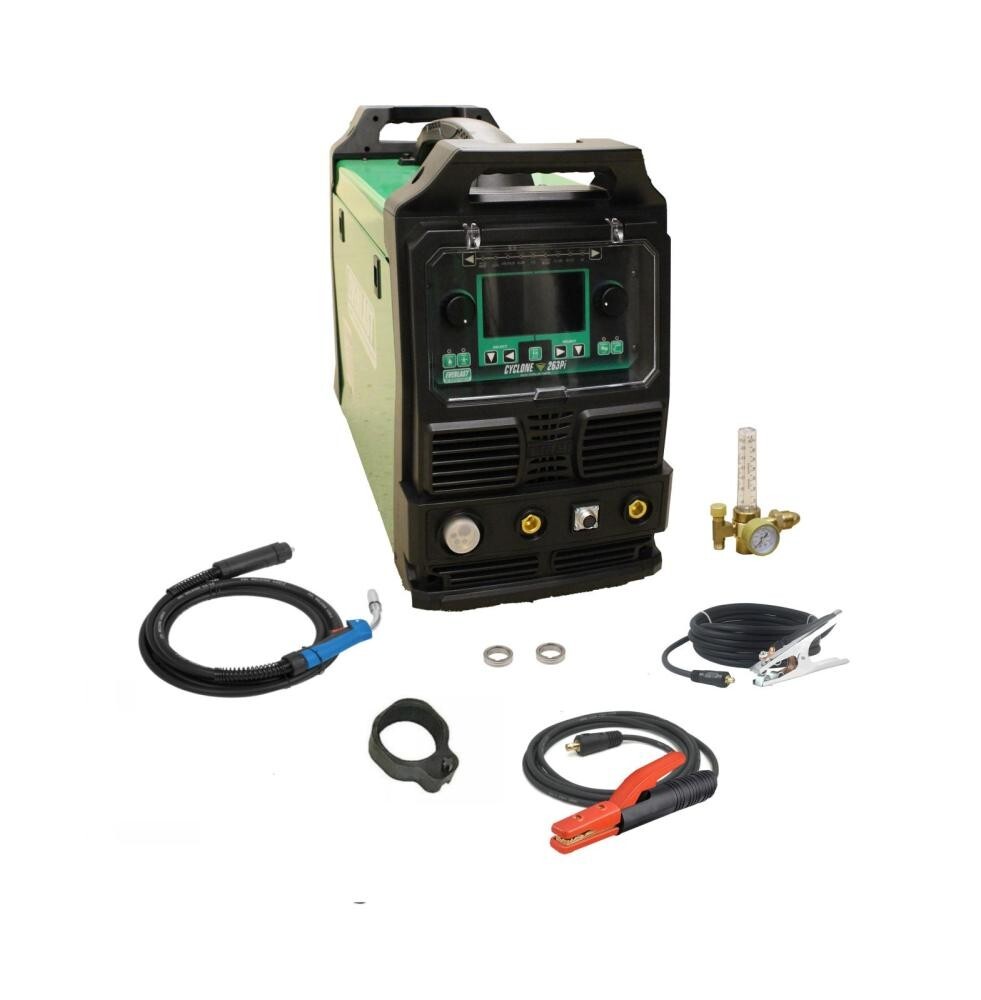

WHAT'S INCLUDED

Standard Equipment:
    • 24 series MIG Gun with 10 ft. cable
    • Ground Clamp with 10 ft. cable and 35 DINSE connector
    • Electrode Stick Holder with 10 ft. cable and 35 DINSE connector
    • RH-191 Ar/CO2 Regulator / Flowmeter with Hose
    • Drive Roll V Groove .035"-.045" (Double) (installed)
    • Spare Drive Rolls V Groove .030"-.040" (Double), U Groove .045"-.062" (Double)
    • Spare MIG Contact Tips .030" and .040"
    • Spare MIG Contact Tips .045" for Aluminum (Double)
    • Red Teflon Liner .035"-.045" for Aluminum wire
    • Spool Adapter 8"
OPTION

Optional Equipment:
RECOMMENDED USES

Recommended Areas of Use:

Recommended Areas of Use:

  • Home shop
  • Auto body and Auto Rebuilders
  • Fabrication/Industrial manufacturing.
  • Boat/ship building where quick laydown of aluminum is needed
  • Farm
  • Motorsports/Speed shops
  • Factory Repair/Maintenance
Recommended Metals:
  • Steel
  • Stainless
  • Chrome Moly
  • Aluminum (With optional spool or push-pull guns
MINIMUM/MAXIMUM

Minimum/Maximum:

Minimum/Maximum:

  • Weld up to a maximum of 7/16" Steel/Stainless single pass
  • Weld over 3/4" Steel/Stainless multi-pass
  • Weld a minimum of 27 gauge Steel/Stainless (Pulse mode)

For MIG welding Aluminum, use the supplied 10 ft MIG gun, U-groove drive rolls and the polymer liner (best choice for shorter distances).  For longer required distances, choose between the Parker SG360A Push-Pull Gun (Recommended for longer distances) or the Parker DSP 360 (Recommended for small weld quantities/longer distances)  For Brazing, follow same recomendations for gun selection.

  • Weld up to a maximum of  3/8" in a single pass weld Aluminum
  • Weld over 3/4" in multiple pass welds Aluminum
  • Weld a minimum of 24 Gauge Aluminum (Pulse mode)

For Brazing with MIG:

  • Braze down to a minimum of .025"
  • Upper practical limit is 3/16"-1/4" for the Brazing Application

Stick:

  • Weld up to a maximum of 5/32" diameter electrode
  • Weld with a minimum of 1/16" diameter electrode
TECH SPECS


Output /Process Type:
MIG, DC TIG, DC Stick
Voltage/phase:
220/240 V 1/3 PHASE
Max Rated MIG Amps:

250A

Max Rated TIG Amps:

250A

Max Rated Stick Amps:

200A

MIG Amps/Volts @ Rated Duty Cycle:

250A/26.5V  @ 60% Duty Cycle @ 104°F (40° C)

TIG Output Amps/Volts @ Rated Duty Cycle:

250A/20V @ 60% Duty Cycle @ 104°F (40° C)

Stick Amps/Volts @ Rated Duty Cycle:

200A/28V @ 60% Duty Cycle @ 104° F (40°C)

Max Inrush ( I1MAX ) Amps:

240V 1 phase: 46A

240V 3 phase: 23A

Maximum Rated (I1EFF ) Input Amps:

240V 1 phase: 36A

240V 3 phase: 18A

OCV:

75 V

MIG Output Range:

30-250A/ 15.5-26.4V

TIG Output Range :

10A-250A/10.4V-20V

Stick Output Range:

10-200A/ 20.4-26.4V

Variable MIG Inductance/Stick Arc Force Control:
Yes
Spool Gun Capable:
Yes
Pulse:
Double/Pulse on Pulse
Pulse Frequency:

Synergically Controlled (MIG only)

Pulse Time On:

Synergically Controlled (MIG only)

Standard Drive Roll wire size:
.035”-.045”
Separate wire feeder:
No, self contained
Number of Drive rollers:
4
Max Wire Feed Speed:

600IPM

Max Wire Roll Diameter:
12” (full size up to 44lb)
Memory:
Yes
Air Carbon Arc:
No
Torch Type:

 24 Series with Euro Connect

Other Features:

PowerSet Mode

Fully synergic MIG





  • Hot Start Intensity 0-100%




Product Notes:

If using with a generator as power source, the generator must provide clean power. Clean power is considered to be anything 5% or less Total Harmonic Distortion (THD).  Also the unit requires at least 12kw of Peak (surge) watts to operate.

Use with generators with more than 5% THD is prohibited and will void the warrant.  Use with generators smaller than 12kw surge watts will void the warranty.

Never run on under sized extension cords.

Power Plug not included due to the unit operating on 240V 1 or 3 phase which have different plugs.

  • MIG Inductance 0-100%
  • Synergic and Manual basic MIG modes
  • Synergic Single Pulse and Double Pulse MIG modes
  • Extra Drive Rolls included .023"-.045" Hard Wire
  • Burn Back Control 0-2 Seconds
  • Synergic Pulse
