This wifi and bluetooth,only can be use for epever brand item,can't be use for other,please note.
Send from USA,2-8 working days delivery with tracking.
WiFi Adapter
EPEVER WiFi 2.4G RJ45 DOverview:

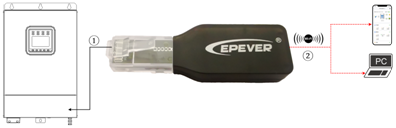

Through a local 2.4G WiFi network, the EPEVER WiFi 2.4G RJ45 D can transmit all operational data from the EPEVER solar controller, inverter, or inverter/charger to the EPEVER cloud server in real time. Users can remotely monitor the connected devices and program parameters via the EPEVER server platform and mobile APP.
Features:
Applicable to EPEVER controllers, inverters, or inverter/charger with RJ45 port
Use immediately after connecting; easy and convenient operation
Directly powered by the communication port
Up to 20 meters of communication distance
Support the Local monitoring and "EPEVER Cloud" working mode.
Specifications：
Model
Parameter
EPEVER WiFi 2.4G RJ45 D
Working voltage
5V± 0.5V(Powered by RS485 com. port)
Power consumption
Peak emission: 150mA; Idle: 310uA
Enclosure
IP30
Communication method
RS485
Communication parameters
115200Bps, 8N1
Interface standard
EPEVER communication standard V1-1.0
Work frequency
2.4 ~ 2.4835GHz
Work temperature range
-40℃~ 85℃
Dimension
63mm x 19mm x 10mm
Net weight
7.7g
EPEVER BLE RJ45 D : Bluetooth
Overview:
Adopting the Bluetooth 5.0 transmission and BLE (Bluetooth Low Energy) technology, EPEVER BLE RJ45 D enables data collection, communication, and wireless monitoring of connected devices.
Features
Support communication via phone APP
Support data encryption
Use immediately after connecting; easy and convenient operation
Feature fast communication and strong anti-interference ability
Directly powered by the communication port
Up to 10 meters of communication distance
Technical Specification
Model Parameter | EPEVER BLE RJ45 D |
Working voltage | 5V± 0.5V (Powered by RJ45 port) |
Power consumption | Average: 5V@10mA; Peak: 5V@60mA |
Communication distance | ≤ 10m |
Serial port baud rate | 115200bps |
Communication method | RS485 to Bluetooth |
Connection port | RJ45 |
Bluetooth protocol | Bluetooth 5.0 |
Dimension (L x W x H) | 63mm x 19mm x 13.8mm |
Work temperature |
|
