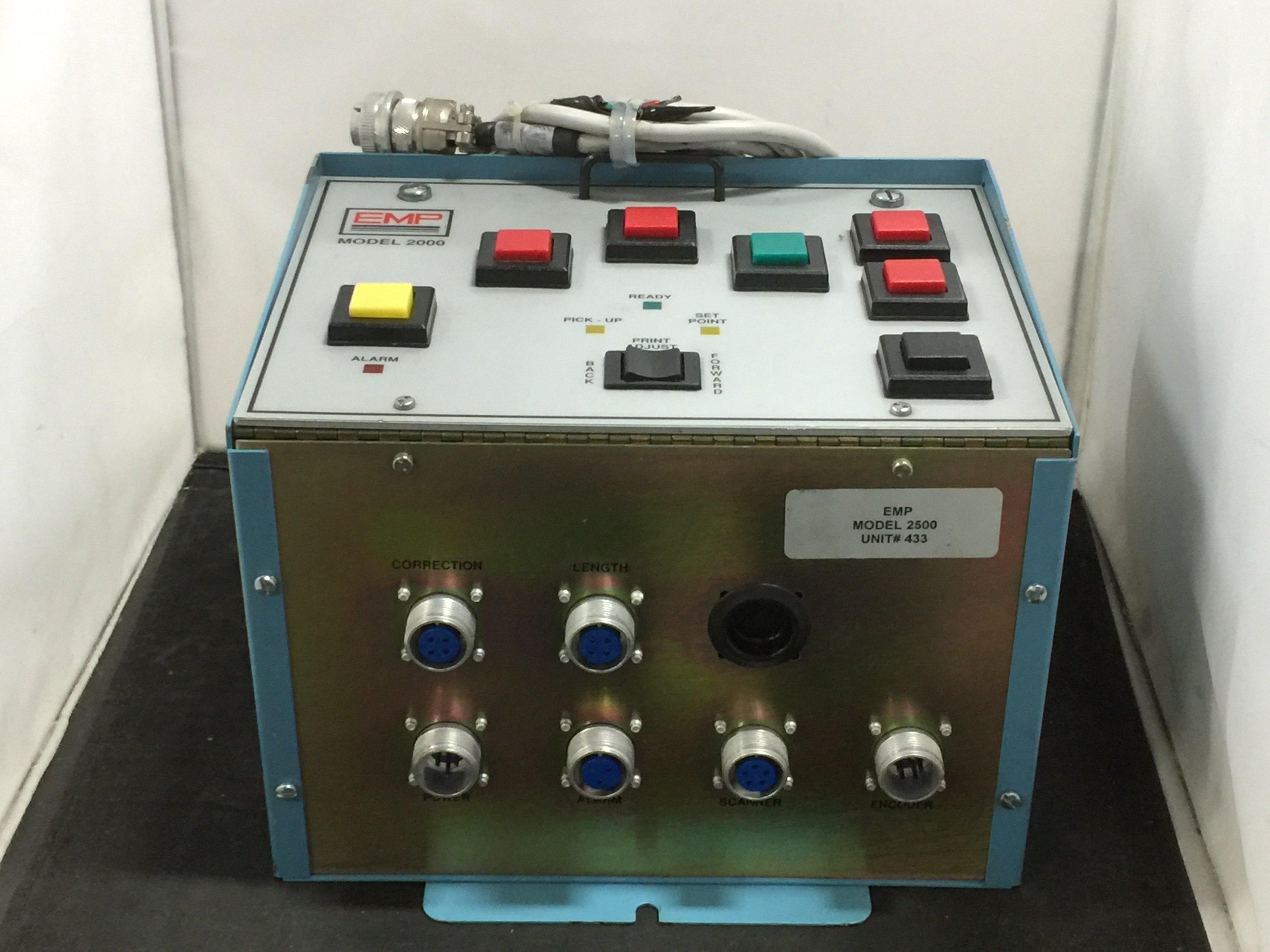

Electronic Machine Part MODEL-2000 Motor Controller

Condition: Used
Dimensions: 12.00 x 12.00 x 12.00 inches (L x W x H)
Weight: 19.00 Lbs.

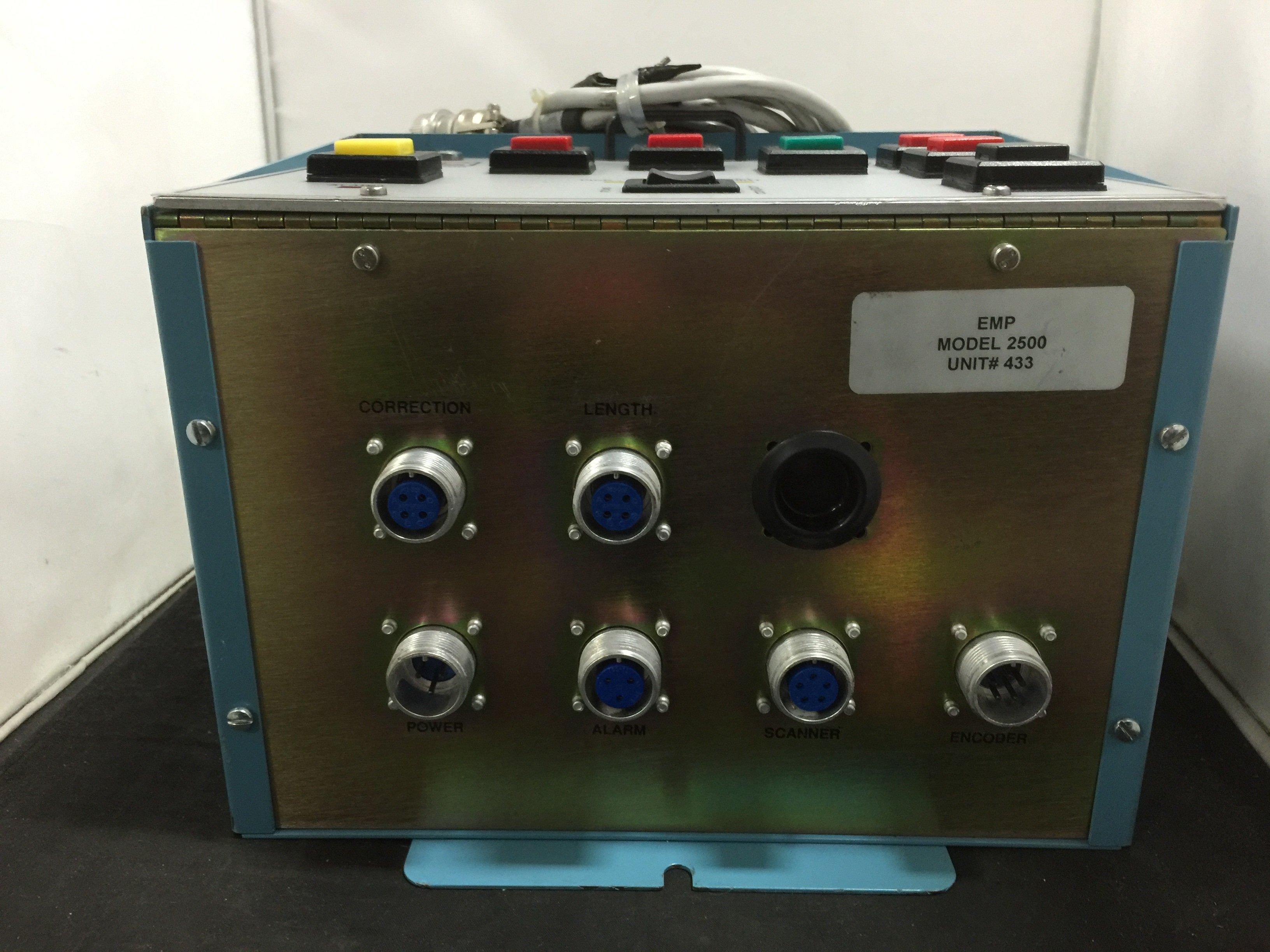

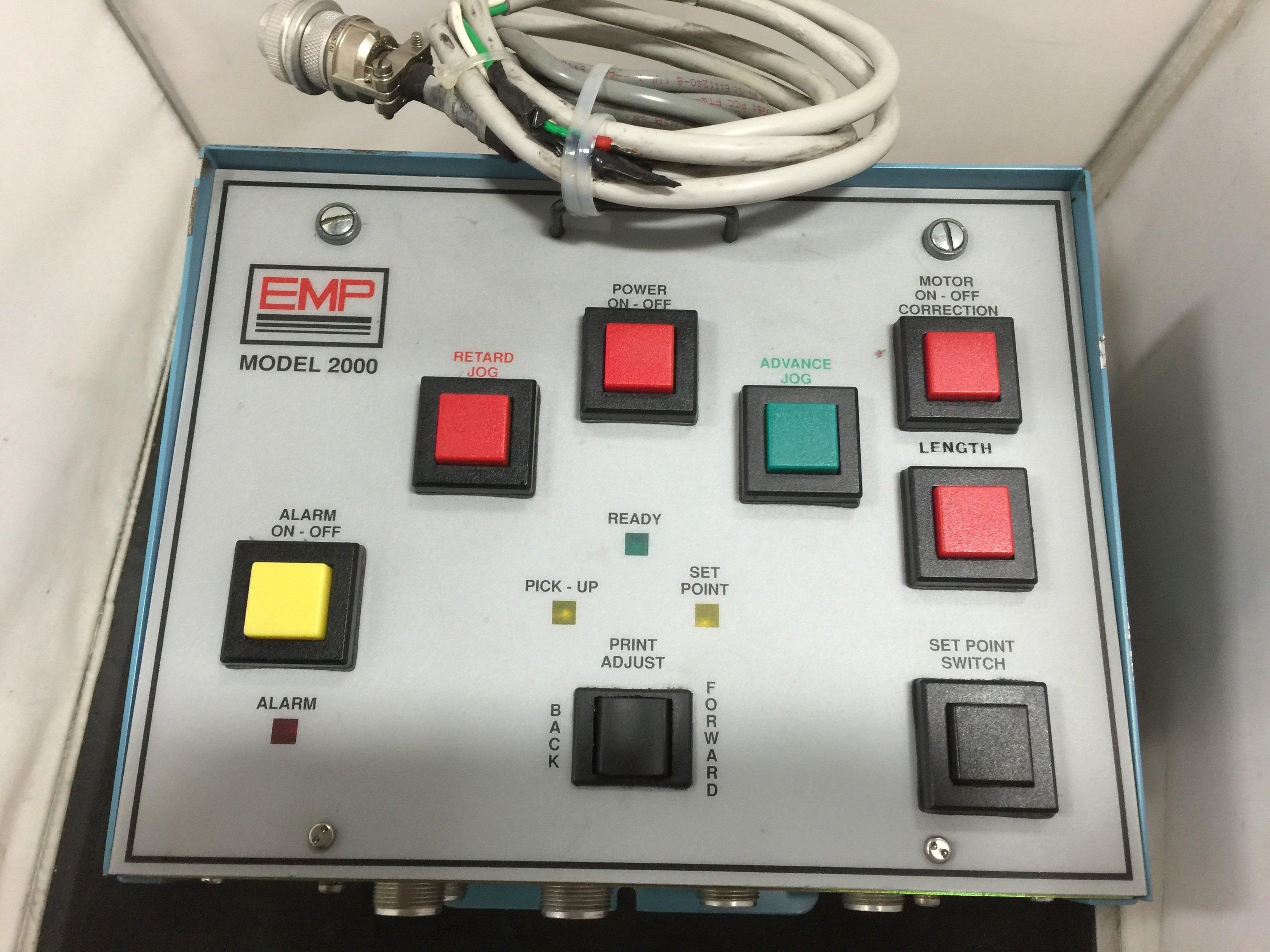

A full-featured, dual-axis web register control system. It controls two independent motors for lateral and/or longitudinal correction of moving materials based on sensor input. Included Components: 1. Model 2500 Controller: Dual-axis register controller Accepts feedback from both encoder and scanner Controls two motors independently (for unwind/rewind or print cylinder alignment) Display and keypad interface for setup and calibration Capable of storing parameters for multiple jobs Works in both automatic and manual correction modes 2. TL-U Scanner (Edge or Line Sensor): Optical scanner for detecting printed marks, lines, or web edges Provides input to the 2500 controller to detect misregistration Can be adjusted for contrast sensitivity Often uses infrared or visible spectrum LED illumination 3. B2369 Encoder: Rotary incremental encoder Provides line speed or rotational feedback Typically mounted on a roll shaft or web to provide real-time position reference Standard output: A/B quadrature with optional index pulse 4. DDT-2 MVC (Motor Drive): DDT-2 MVC stands for Motor Voltage Control (Drive) Powers the correction motors under controller command Provides bidirectional DC motor voltage Can be configured for speed or position mode Rugged industrial mounting enclosure
