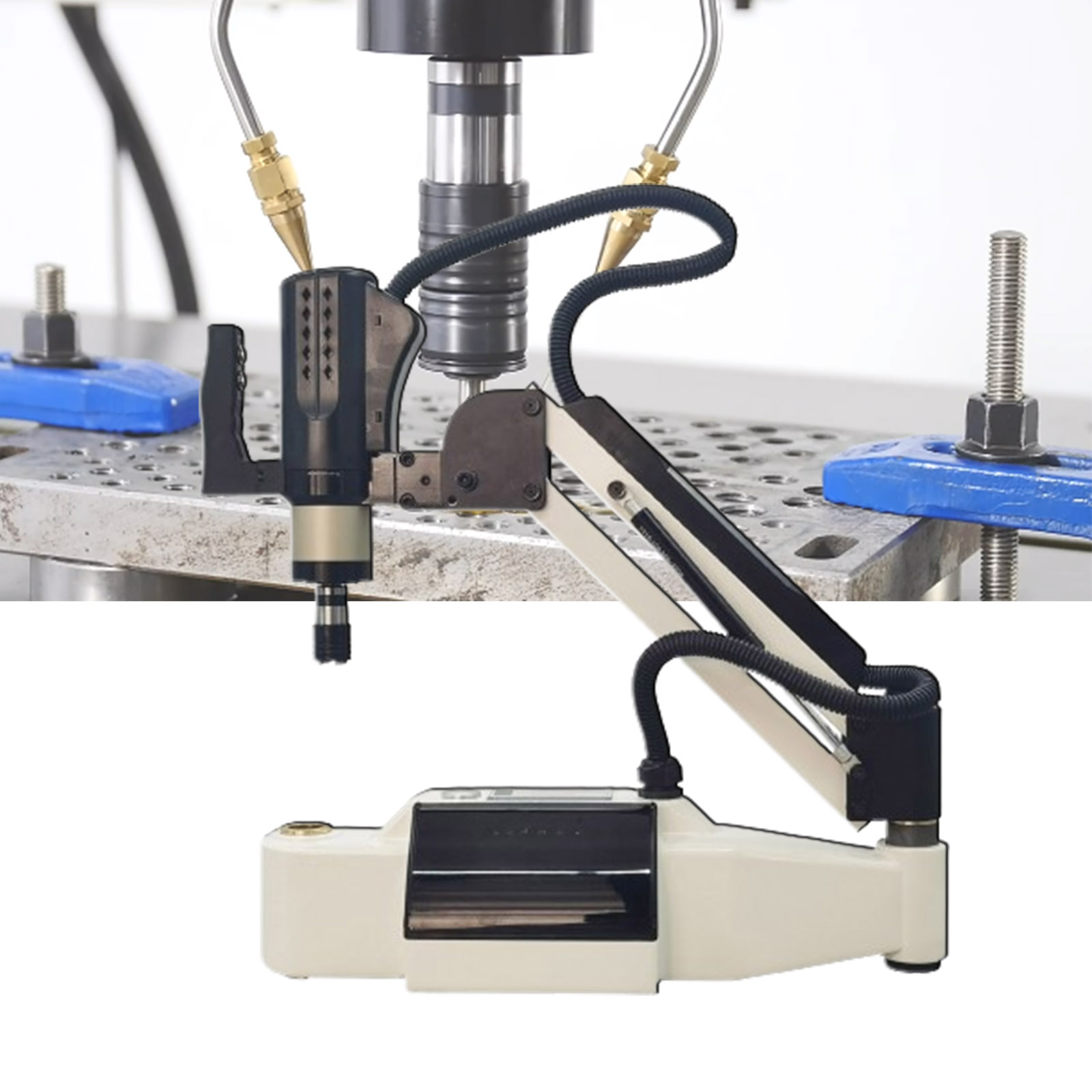

Electric Touch Tapping Machine M6-M36 Universal 360° with Flexible Arm 220V 2kw

$1299.0
Brand
BANFLUXION
Spindle speed
1-156rpm
Machine Type
Electric Tapping Machine
Working angle
360° universal
Voltage
AC220V 50/60Hz
Color
White
Working area
Horizontal:47.24"(1.2m) Vertical:19.68"(0.5m)
Motor Power
2000W(2.7HP)
MPN
056351
Chuck type
GT24
Bearing scope of thread
M6-M36
Maximum torque
256N.m
UPC
198462124720
condition
New

https://topseller365.com/data/prd/056/999/056351.jpg
BANFLUXION
M6-M36 360° Universal Electric Tapping &
Drilling Machine Touch Screen 220V


This product is based on servo motor as power electric tapping machine, widely used in all walks of life all kinds of large and small machine and all kinds of materials, parts of molds and wood tap wire processing, the product is well-made, quality first-class, was deeply loved by the masses of customers and praise, are you tapping processing of choice.
Bearing scope of thread: M6-M36
Voltage: AC220V 50/60Hz
Motor Power: 2000W(2.7HP)
Chuck type: GT24
Working area: Horizontal:47.24"(1.2m)
Vertical:19.68"(0.5m)
Spindle speed: 1-156rpm
Working angle: 360° universal
Maximum torque: 256N.m
Color: White
Packing size: 34.6"*31.1"*9.8"(88cm*79cm*25cm)
Net weight/Gross weight: 86LB(39kg)/109LB(49.5kg)
Chuck Specifications
https://topseller365.com/data/prd/056/351/41.jpg
ISO(Metric) AxB JIS AxB DIN AxB INCH AxB
M2 2.80x2.25 M2 3.0x2.5 M2 2.5x2.1 1/8 4.0x3.15
M3 3.15x2.5 M3 4.0x3.2 M3 3.5x2.7 5/32 5.0x4.0
M4 4.0x3.15 M4 5.0x4.0 M4 4.5x3.4 3/16 5.5x4.5
M5 5.1x4.0 M5 5.5x4.5 M5 6x4.9 1/4 6.0x4.5
M6 6.3x5.0 M6 6.0x4.5 M6 6x4.9 5/16 6.2x5.0
M8 6.3x5.0 M8 6.2x5.0 M8 8x6.2 3/8 7.0x5.5
M10 8.0x6.3 M10 7.0x5.5 M10 10x8 1/2 9.0x7.1
M12 9.0x7.1 M12 8.5x6.5 M12 9x7 9/16 11.2x9.0
M14 11.2x9.0 M14 10.5x8.5 M14 11x9 5/8 12.5x10.0
M16 12.5x10.0 M16 12.5x10.0 M16 12x9 3/4 14.0x11.2
M18 14.0x11.2 M18 14.0x11.0 M18 14x11 7/8 16.0x12.5
M20 14.0x11.2 M20 15.0x12.0 M20 16x12 PT1/8 8.0x6.3
M22 16.0x12.5 M22 13.0x13.0 M22 18x14.5 PT1/4 11.2x9.0
M24 18.0x14.0 M24 19.0x15.0 M24 18x14.5 PT3/8 14.0x11.0
M27 20.0x16.0 M27 20.0x15.0     PT1/2 18.0x14.0
M30 20.0x16.0 M30 23.0x17.0     PT3/4 23.0x17.0
M33 22.4x18.0 M33 25.0x19.0     PT1 26.0x21.0
M36 25.0x20.0 M36 28.0x21.0     PT11/4 28.0x21.0
M39 28.0x22.4 M39 30.0x23.0     PT13/8 35.0x26.0
M42 28.0x22.4 M42 32.0x26.0     PT11/2 38.0x29.0
M45 31.5x25.0 M45 35.0x26.0
M48 31.5x25.0 M48 38.0x29.0
https://topseller365.com/data/prd/056/351/36.jpg
https://topseller365.com/data/prd/056/351/37.jpg
https://topseller365.com/data/prd/056/351/38.jpg
https://topseller365.com/data/prd/056/351/39.jpg
- There are three modes for you to choose: manual, automatic and deep hole machining.
- The preset torque of the machine plus the double protection of the torque chuck can prevent the tap from breaking.
- Newly upgraded 2000W high power, can bring more torque.
- The rotating parts are made of graphite copper sleeves and bearings, which are flexible in rotation, more wear-resistant, and have high tapping accuracy.
- Wide range of processing materials, can process aluminum, copper, A3 steel, 45 steel, cast iron, pig iron, Q235, S136, mold steel, 718H,40Cr, stainless steel and other materials.
https://topseller365.com/data/prd/056/351/32.jpg
https://topseller365.com/data/prd/056/351/25.jpg https://topseller365.com/data/prd/056/351/21.jpg
https://topseller365.com/data/prd/056/351/27.jpg https://topseller365.com/data/prd/056/351/30.jpg
https://topseller365.com/data/prd/056/351/7.jpg https://topseller365.com/data/prd/056/351/4.jpg
https://topseller365.com/data/prd/056/351/10.jpg https://topseller365.com/data/prd/056/351/5.jpg
https://topseller365.com/data/prd/056/351/40.jpg
https://topseller365.com/data/prd/056/351/8.jpg
  Item Included(056351)
Tapping machine *1 Support bar *1 Tap chuck *11
Collet wrench *1 Fixing screw *4 English manual *1
