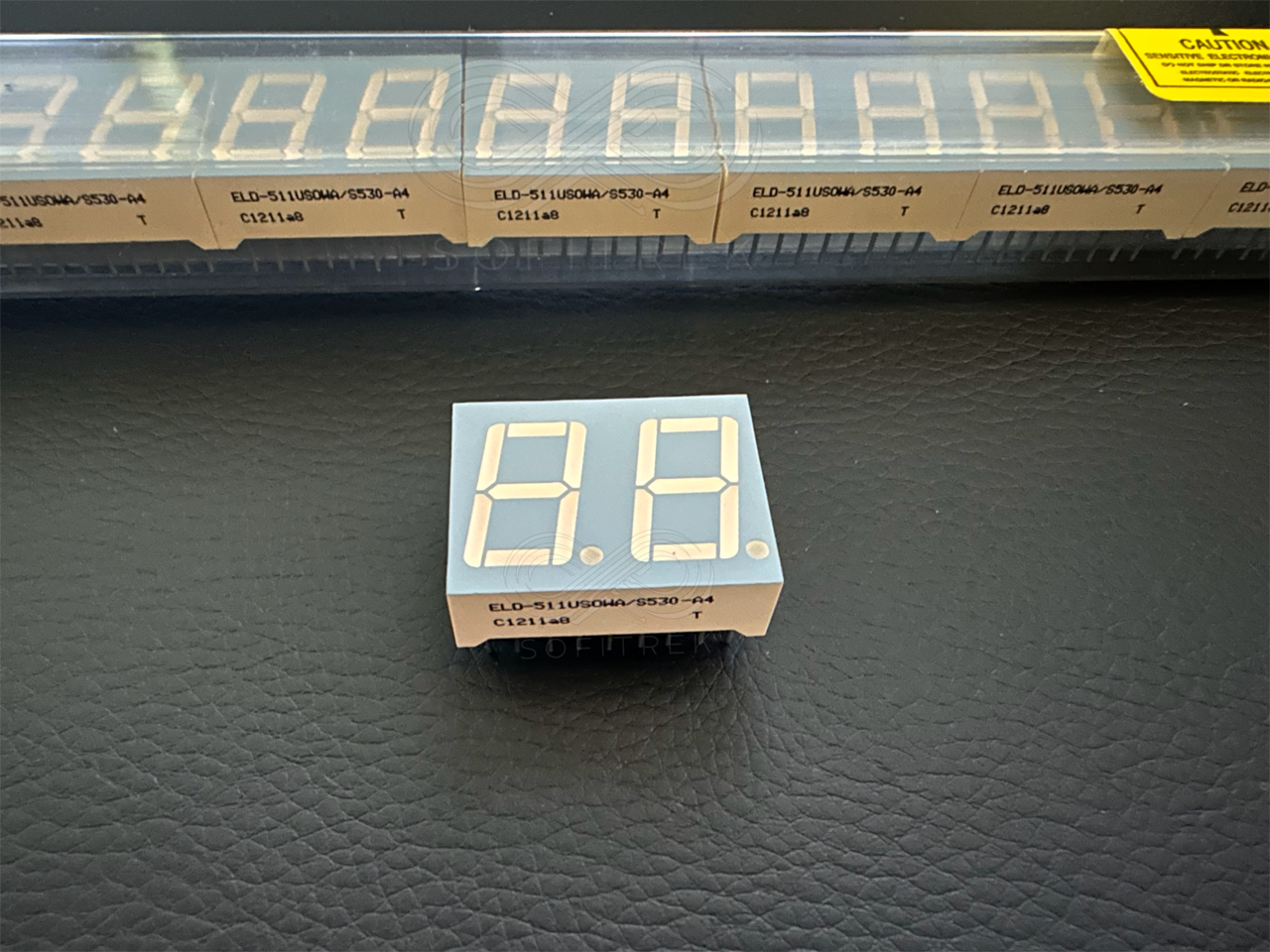

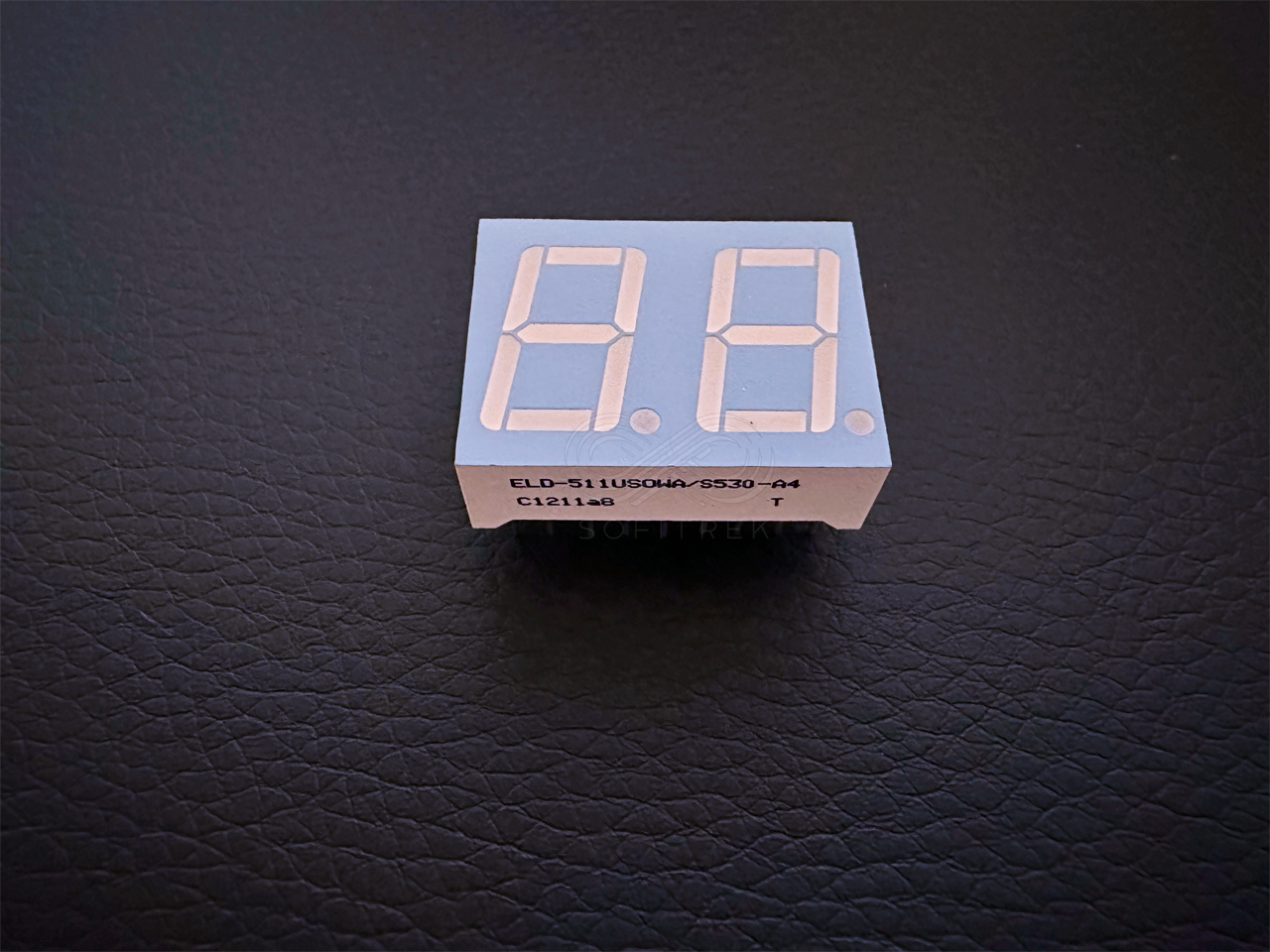

ELD-511USOWA EVERLIGHT 7 Segment 2-Digit LED Display 0.56" Reddish Orange 18-DIP

Slide Slide Slide Slide Slide Slide Slide
$3.95
Brand
EVERLIGHT
Series
ELD-511
LED Material
Aluminum Gallium Indium Phosphide
Configuration
Single
Display Size
0.56
LED Color
Reddish Orange
Number of Pins
18

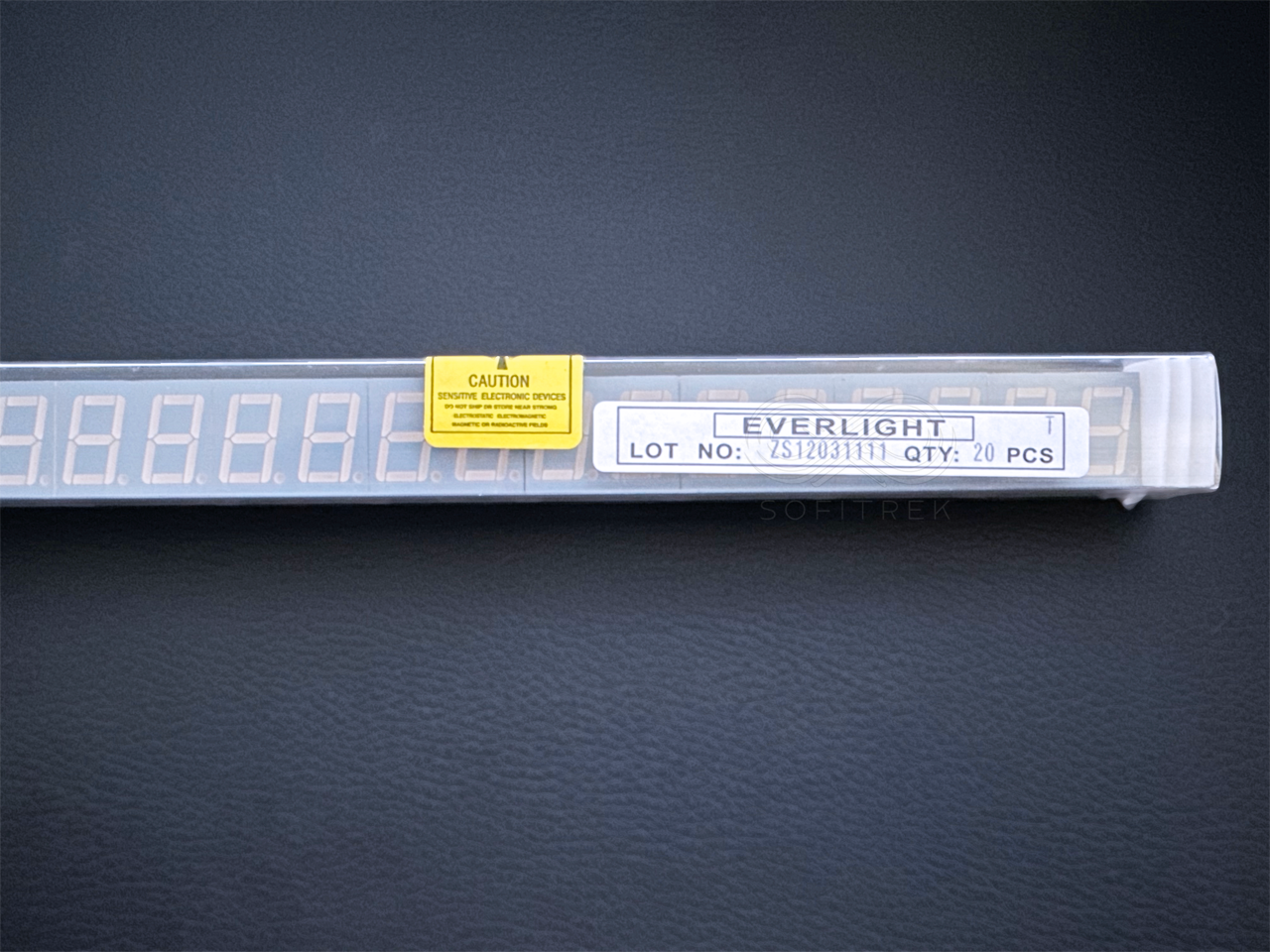

Packaging
Tube
Package/Case
18-DIP
MPN
ELD-511USOWA/S530-A4, D511USOWA/S530-A4, ELD-511USOWA, D511USOWA
Number of LEDs
1
Wavelength
621 nm
condition
New
Store Seller Profile Feedbacks Contact

1Pcs ELD-511USOWA/S530-A4 EVERLIGHT 7 Segment 2-Digit LED Display 0.56" Reddish Orange 18-DIP Common Cathode

Ready to Ship

Ask a Question

30-Day Return

1 Unit of ELD-511USOWA/S530-A4 EVERLIGHT 7 Segment 2-Digit LED Display 0.56" Reddish Orange 18-DIP Common Cathode

Specification
Display Height 14.22 mm
Part Number ELD-511USOWA/S530-A4
Chip Material AlGaInP
Emitted Color Reddish Orange
Reverse Voltage 5V
Forward Current 25mA
Operating Temperature -40 to +85°C
Storage Temperature -40 to +100°C
Soldering Temperature 260±5°C
Electrostatic Discharge 2000V
Power Dissipation 60mW
Luminous Intensity Per Segment Typ 3.0mcd @ IF=2mA
Luminous Intensity Per Segment Typ 15.0mcd @ IF=10mA
Luminous Intensity Per Decimal Point Typ 0.7mcd @ IF=2mA
Luminous Intensity Per Decimal Point Typ 3.5mcd @ IF=10mA
Peak Wavelength Typ 621nm @ IF=20mA
Dominant Wavelength Typ 615nm @ IF=20mA
Spectrum Radiation Bandwidth Typ 18nm @ IF=20mA
Forward Voltage Typ 2.0V, Max 2.4V @ IF=20mA
Reverse Current Max 100µA @ VR=5V
Package Dimensions 14.22mm height, 25.0mm width, 8.13mm depth
Pin Configuration 18 pins with common cathode
