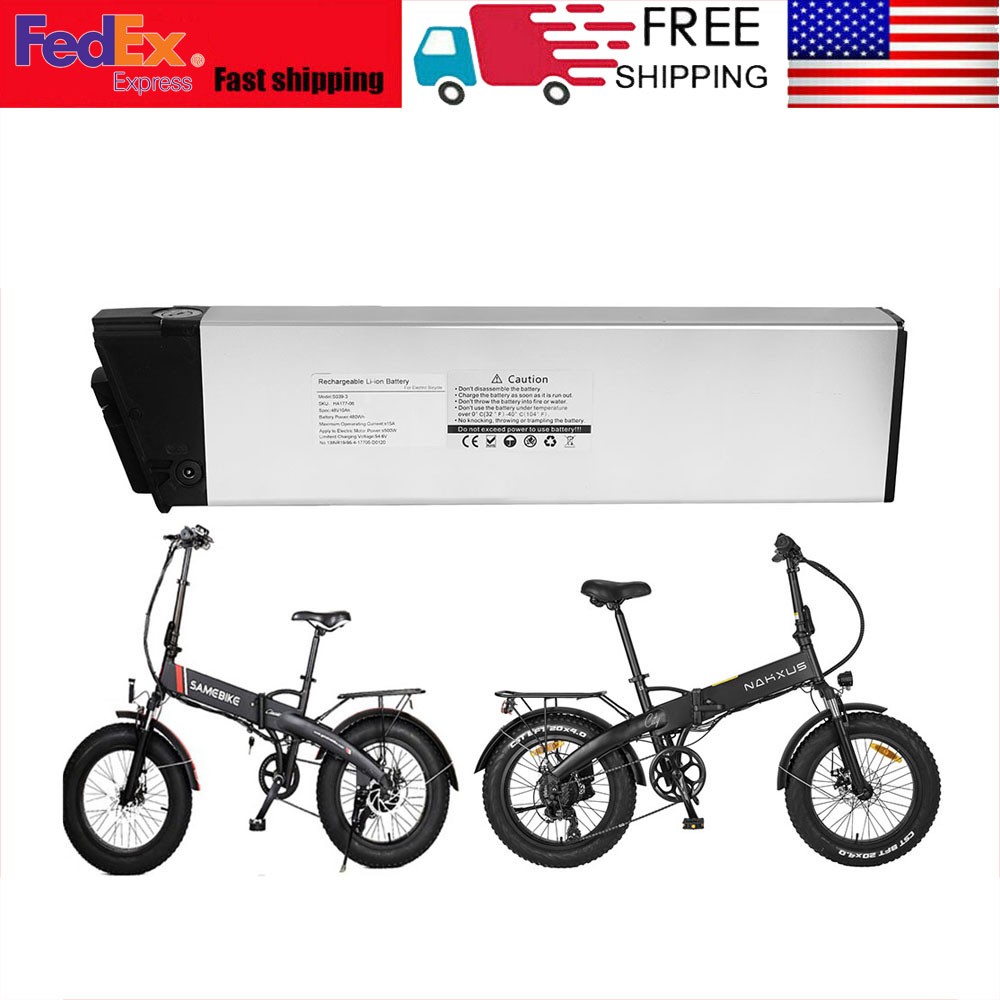

EBike Battery 48V10Ah Replacement Battery for SAMEBIKE 20LVXD30 Electric Bicycle

Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide
$189.41
Part Type
Battery
Compatible Bike Type
E-City Bike, E-Cross Bike, E-Mountain Bike, Universal
Compatible Brand
SAMEBIKE
Color
Silver
Voltage
48 V
Battery Capacity
10 Ah
Set Includes
battery
Battery Type
Lithium Ion (Li-Ion)
Country/Region of Manufacture
China
Item Length
430 mm
Item Width
100 mm
Item Height
45 mm
Item Weight
7 lb
Energy
480Wh
Model
HA177-06
Material
Aluminum
Number of Items
1
Compatible Model
NAKXUS 20F063/SAMEBIKE 20lvxd30/SAMEBIKE XWXL09 etc....
Manufacturer Warranty
1 Year
Custom Bundle
No
e bike batterie 48 v
e bike batterie 48v
e bike battery
bike battery
battery for ebike
bike Batterie
SAMEBIKE battery
SAMEBIKE batterie
NAKXUS battery
NAKXUS batterie
KAISDA battery
KAISDA batterie
20lvxd30
20F063
FOR SAMEBIKE Lo26
FOR SAMEBIKE 20lvxd30
FOR KAISDA K1
FOR KAISDA K2
FOR KAISDA K3
FOR NAKXUS 20F063
Brand
HANIWINNER
condition
New
EBike Battery 48V10Ah Replacement Battery for SAMEBIKE 20LVXD30 Electric Bicycle
HA030


Features and further details

Please note: Some electric vehicles need to be replaced together with the connector when replacing the battery, otherwise it may not be able to charge. This situation is not a product quality problem, please replace the base we matched to solve it. If you do not accept replacement of your old connector, please place your order with caution

Model

HA177-06

Rated Voltage

48V

Rated Capacity

10Ah

Battery Power

480Wh

Max Charge Voltage

54.6V

Discharge Cut-off Voltage

39V

Max. Charge Current

5A

Standard Discharge Current

5A

Max. Discharge Current(BMS)

15A

Over current protection

70±20A

Security lock

YES

Net weight

3.2kg

Gross weight

3.6kg

Battery size

450*50*120mm

Packing size

470*200*175mm







Operating Temperature

Charge

0~45

Discharge

-10~
