Product Description

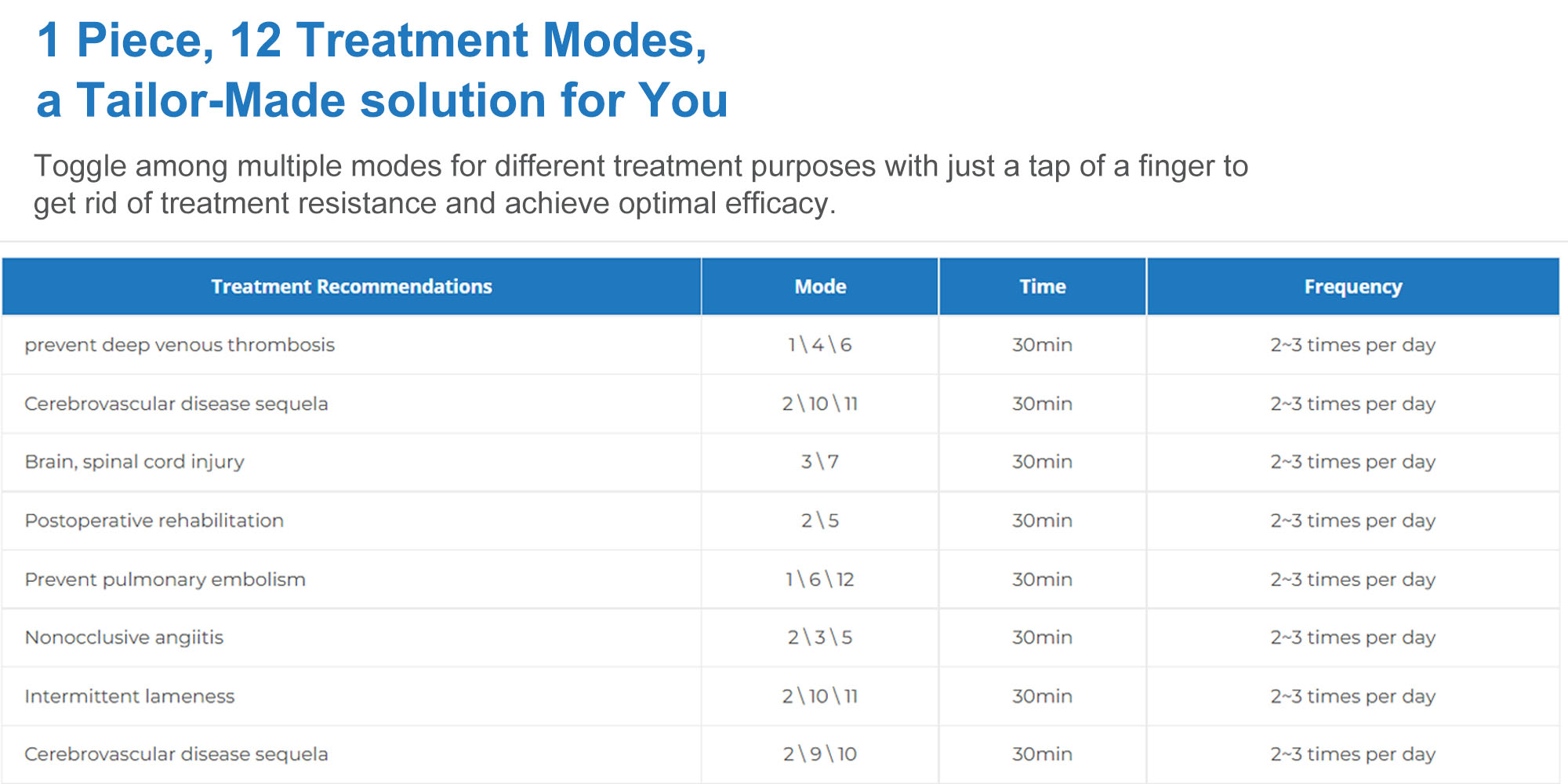

Variety of therapy modes：Unique 12 twelve treatment modes and automatic power off memory.
Two channels, eight airways：Allow separate or simultaneous treatment for upper extremities and lower extremities, for one person and two persons
Smart compression system：Vascular refill detection (VRD) enables cycle times tailored to you.
Adjustable pressure and session：You can set the pressure (0-4 levels) and treatment (0~99min) time on your condition.
Intuitive, easy operation：Graphic user interface, 5-inch large color LCD touch screen, all information at a glance.
Lightweight, greater mobility：Weighs only 3.3 lb., easy to carry; battery-powered design for easier portability.
The main unit
- Interface : 5-inch color LCD touch screen
- Bed Hook : yes
- Number of Channels : 2
- Compression modes : 12
- Falling Gradient Pressure : Available
- Sequential Compression : Available
- Pressure Range : 4 levels adjustable (Min:40 mmHg；Max: 200 mmHg )
- Minimum Inflation time : 6 seconds
- Depression Time : based upon Vascular Refill Detection measurement
- Session Time : 0～99minutes
- Power Cord Storage : yes
- Audible/Visual Alarms : Low Pressure, High Pressure, Low battery
- Power Cord : Hospital Grade Plug
- Power Supply : 100-240 VAC, 50VA, 50/60 Hz
- Power Consumption : 42W
- Power Consumption : 7.4 V, 2600mAh, Lithium Ion (Optional); Run Time: 4 hours ; Charge Time: 4 hours (charging only)
- Controller Dimensions : Height: 18.0cm; Width: 19.0cm; Depth: 19.0cm;
- Power Supply : 100-240 VAC, 50VA, 50/60 Hz
- Controller Weight : 1.5kg (3.3lb)

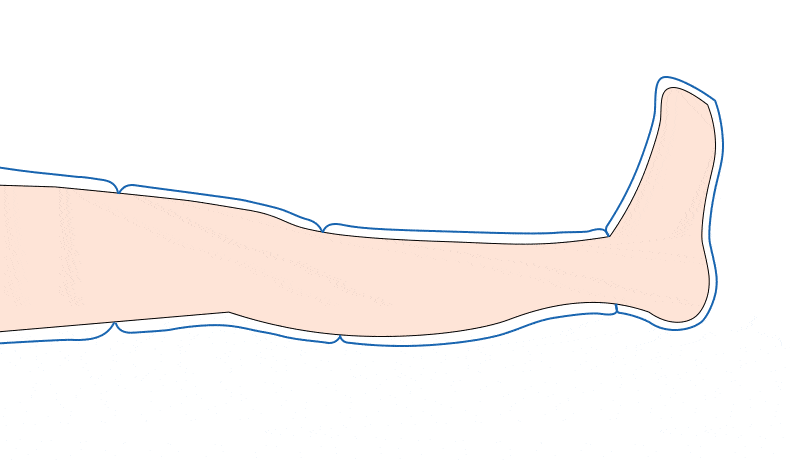

Pressure Sleeve
- Chambers in single Cuff/Sleeve : 1, 3 or 4 optional
- Type of Cuff/Sleeve : Reusable or single-patient use optional
- Cuff/Sleeve Positioning : Foot, calf, thigh
- Number of chamber：3 chambers
- Material：Inner lining: TC/Cotton；Outer layer: Nylon
- Airbag：TPU
- Length：23.6"
- Circumference：14.2"~16.9"~19.7"
- Waterproof：Yes
- Disinfection method：Inner lining: Boiling disinfection；Outer layer: wipe with 75% alcohol
- Storage：0℃ ～+40℃.
Foot cuff (Reusable)
- Material：Inner lining: TC/Cotton；Outer layer: Nylon；Airbag: TPU
- Dimensions：length-7.9"
- Circumference：9.8"-12.6"
- Waterproof：Yes
- Disinfection method：Inner lining: Boiling disinfection；Outer layer: wipe with 75% alcohol
- Storage：0℃ ～+40℃.
|
|
