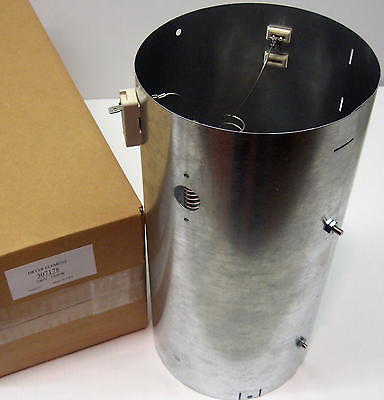

Dryer Heater Heating Element Assembly for Whirlpool part number WP307178 (308612).

The heat deflector shield mounted at the terminal end of the element is not included, simply remove it from yours & install it on ours.

Thermostat(s) not included.

This element measures 6-1/8" Diameter x 12" Length (excluding shield).

It is Rated at 5000 WATT / 240V.

2 porcelain receptacles are on the element housing & have 1/4" male terminal on them.

Replacement for numbers 3-7178, 307178, AP4038069, AP6007565, PS2030055, and PS11740682.

Designed to fit specific Whirlpool manufactured dryer models including Amana, Jenn Air, Kenmore, Magic Chef and Maytag.
