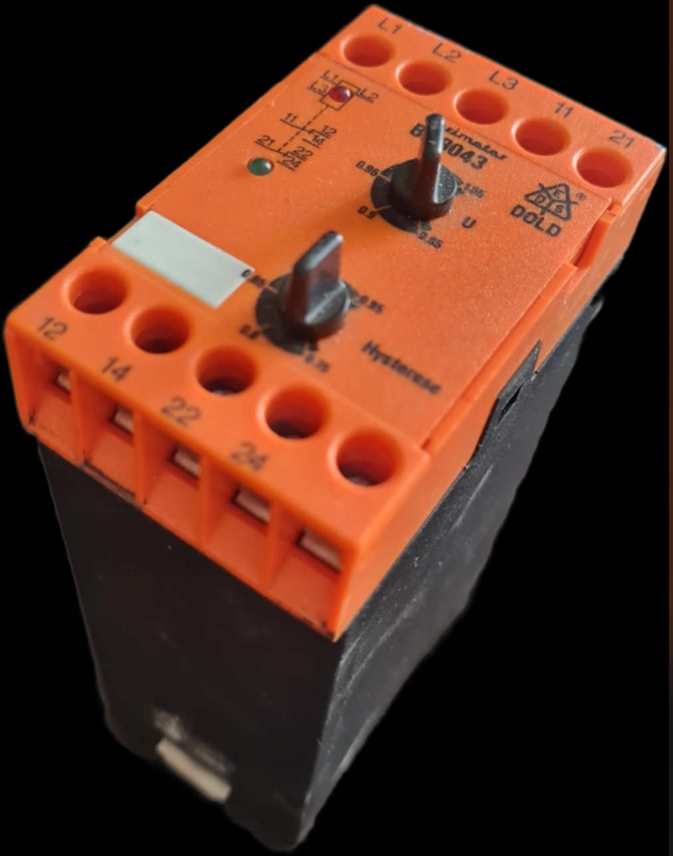

DOLD BA 9043/001 Three-Phase Monitoring Relay - Phase Sequence & Failure

The DOLD BA 9043 is a compact and reliable phase monitoring relay designed to protect three-phase motors and equipment from damage caused by mains faults. It continuously monitors for phase sequence and phase failure, ensuring the safe and correct operation of machinery. Its slim, DIN-rail mountable design allows for easy integration into control cabinets.

Technical Specifications:


• Brand: DOLD

• Model: BA 9043/001
• Type: Phase Monitoring Relay

• Nominal Voltage: 3/N AC 400V

• Frequency Range: 50/60 Hz

• Monitored Functions: Phase Sequence (Rotation), Phase Failure

• Output Contact: 1 Changeover Contact (SPDT)
• Mounting: DIN Rail
• Protection Rating: IP20


Key Features & Applications:


• Equipment Protection: Safeguards motors and systems against damage from incorrect phase sequence (reverse running) and phase loss (single-phasing).

• LED Status Indicator: A front-panel LED provides a clear visual indication of the supply status for quick and easy diagnostics.

• Compact Design: With a width of only 17.5 mm, it saves valuable space on the DIN rail.
• Essential for 3-Phase Systems: Ideal for protecting pumps, fans, compressors, elevators, conveyors, and other machinery with three-phase motors.


Important Notes:


• VAT invoices available upon request.

• Returns accepted within 30 days; buyer pays return shipping.
