Differential Probe 1X/10X/100X Oscilloscope Bandwidth to Amplify Weak Signals

*NEW ARRIVAL*

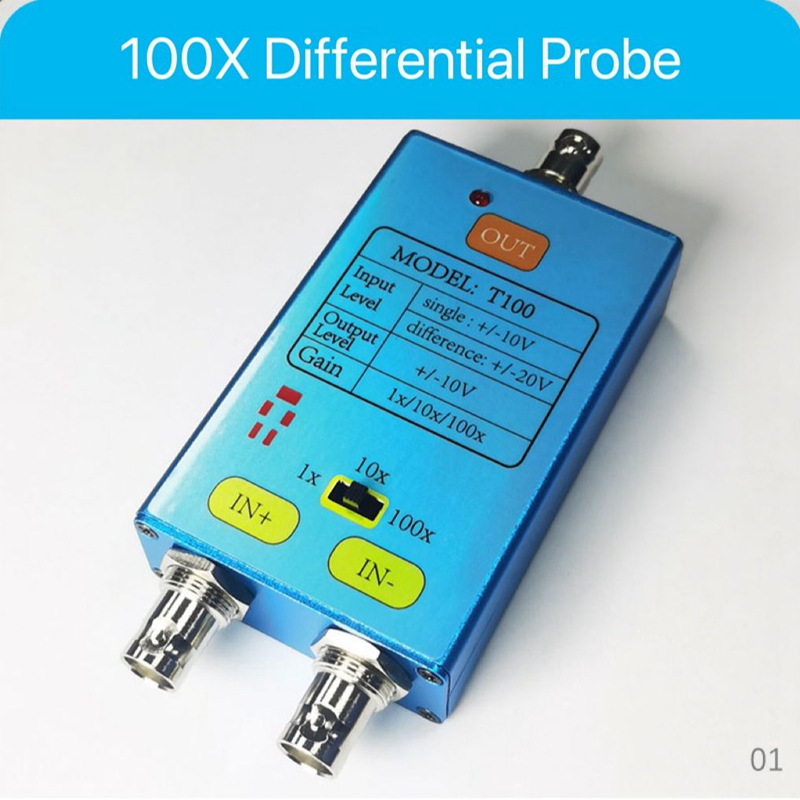

T100 Differential Probe 1X/10X/100X Oscilloscope Probe 10M Bandwidth to Amplify Weak Signals

Description:

This product is specially designed to amplify weak signals. For weak current, the noise is small, the precision is high, and the original signal is restored well.

Oscilloscopes are often unable to measure small signals, and the instrument needs to be amplified before measuring.

Application:

Electronic engineers, maintenance, R&D personnel, college students and other oscilloscope users.

It can also be used in industrial automation measurement and control, because the sensor signal is very weak and needs to be amplified before output.

Note: This product is not a high voltage probe. The high-voltage probe is for high-voltage operation. For strong electricity, it is generally used to measure high-voltage electricity, and the accuracy requirements are not high.

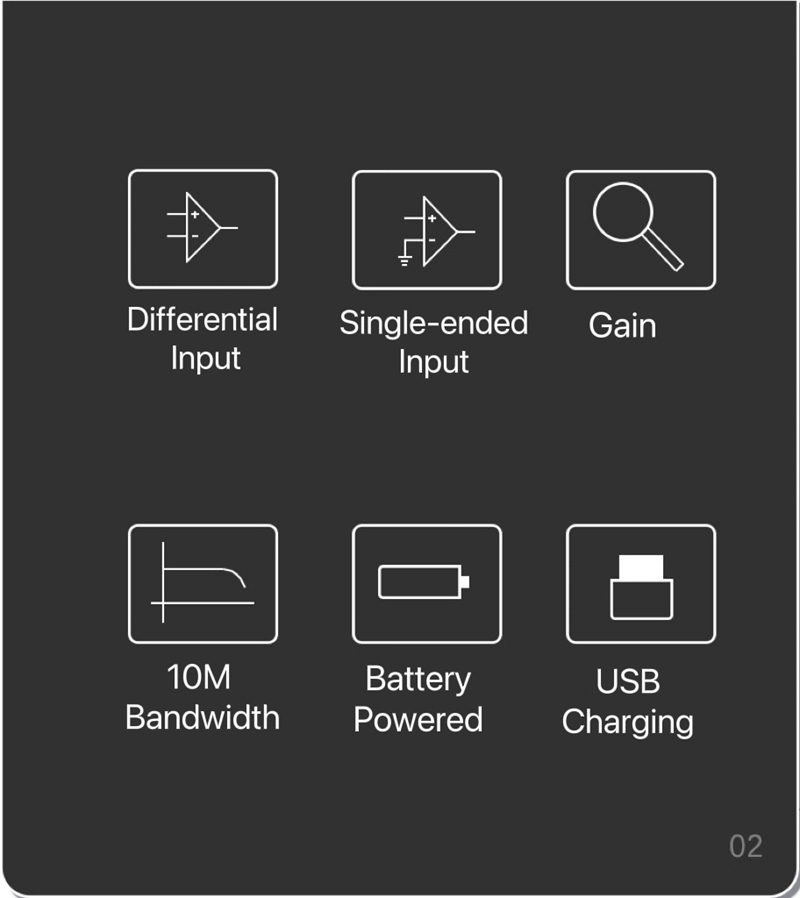

Features:

- Support differential input and single-ended input
- Wide input voltage range, up to +/-10V
- 1x/10x/100x magnification
- Up to 10M bandwidth
- Battery powered, support USB type-c interface charging

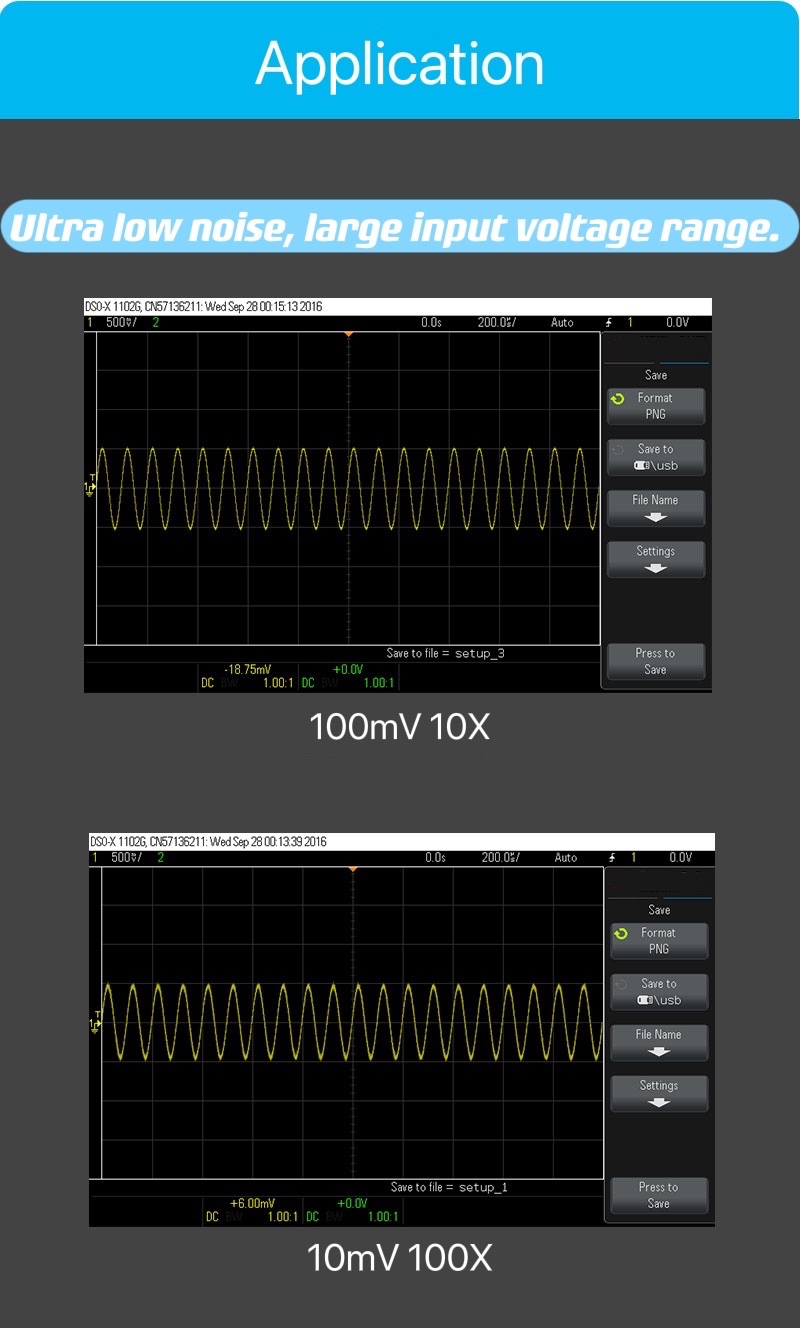

- Ultra low noise, high common mode rejection ratio
- Long battery life

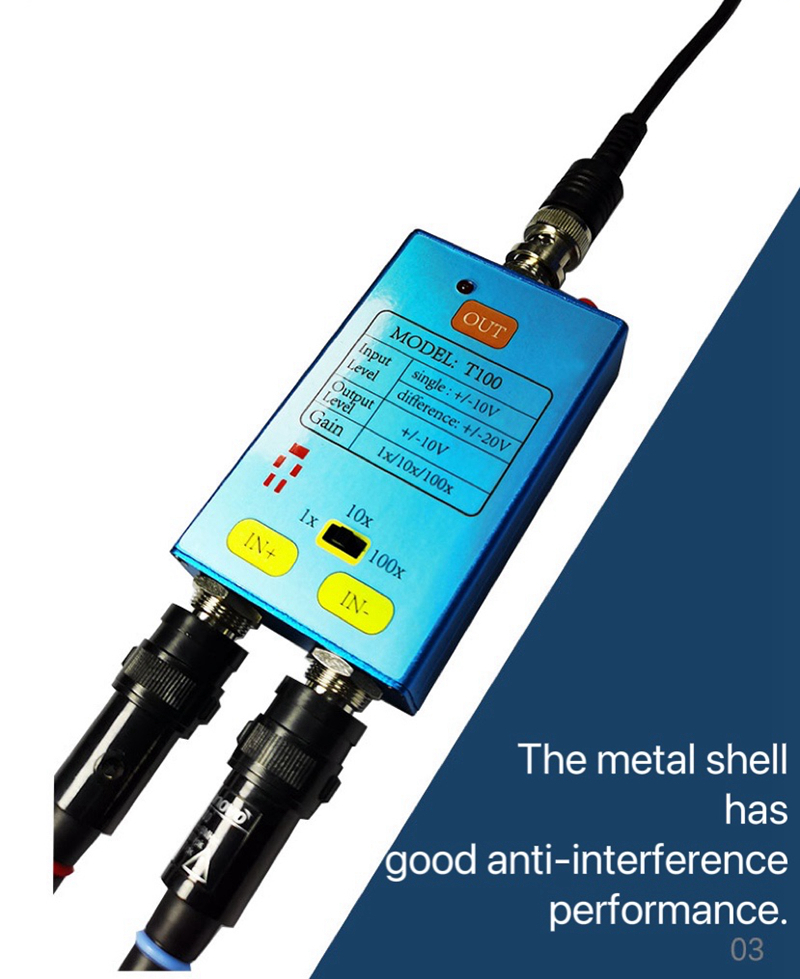

- Exquisite metal shell, strong anti-interference ability

Specifications:

- Single-ended input voltage: -10V to +10V
- Differential Input Voltage: -10V to +10V
- Single-ended input impedance: 2M
- Differential input impedance: 4M
- Output Voltage: -10V to +10V
- Magnification: 1X/10X/100X
- Bandwidth: G=1 10M; G=10 10M; G=100 2M
- Common mode rejection ratio: >80DB
- Noise : 5nV/√ at 1KHz
- Power supply: built-in rechargeable lithium battery
- Charging interface: USB TYPE-C
- Battery life: about 5 hours
- Working temperature: 0°C-40°C
- Working humidity: ≤ 90%RH
- Power consumption: ≤ 0.2W
- Volume (L x W x H): 115 x 50.5 x 21mm/4.5 x 2 x 0.8"
- Host weight: 150g/0.3lb

Package Included:

- 1 x Main Unit
- 1 x 0.5M/1.6FT BNC Cable
- 1 x BNC Cap
