| Maisutseb® | ||||

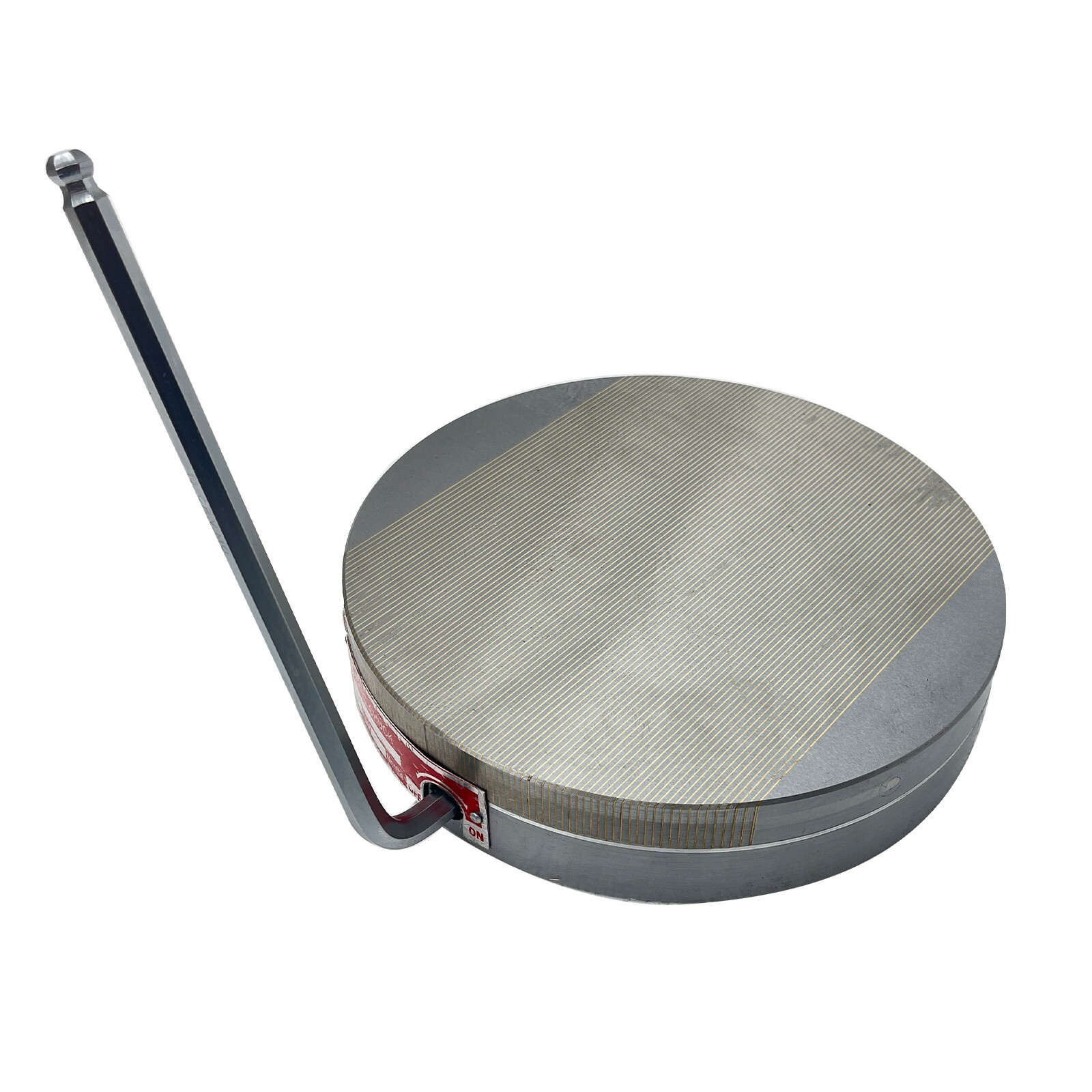

| Diameter 250mm Round Magnetic Chuck Strong Dense Pole Permanent Magnet Sucker | ||||
|
Magnetic Chuck is mainly used in a variety of surface grinding machines, tool grinding machines and used of workpiece positioning processing. It has the features of high precision, uniform suction and safety, so that it is a processing positioning sucker. |
||||
 |
||||
| Parameters: | ||||
|
1. Suction : 100-120 N / cm2 2. Diameter : 160mm (6.3 inch ) 3. Height :50mm (2 inch) |
||||
| Method of use： | ||||
Put the workpiece on the suction table, and then insert the wrench into the shaft hole to turn by 180 degrees clockwise, suck the workpiece to process. The workpiece is completed, the wrench can be inserted into the shaft hole to turn by 180 degrees counterclockwise, you can remove the workpiece. |
||||
 |
||||
| Maintenance： | ||||
|
Sucker should be
wiped clean before use to avoid scratching the surface, after using,
the surface should be coated with oil to prevent corrosion.
Ambient temperature
of use: -40 ℃ -50 ℃.
Do not knock, to
prevent magnetic reduction.
Strong dense pole
permanent magnet sucker is for surface grinders, spark machines and
WEDM.
Very fine spacing,
uniform magnetic distribution, particularly for processing small
thin parts.
Worktable precision
is not changed while magnetizing and demagnetizing.
Panel with special
treatment, no leakage, to prevent corrosion of cutting fluid. To
prolong service life of the disk, it can be placed on the cutting
fluid for storage. Six-surface fine grinding processing, the sucker
can be used for cutting operation of wire cutting machines in the
vertical direction.
High-performance magnetic steel disk, with suction, almost no
remanence.
|
||||
| Item Number(170433): 1 x Round magnetic chuck and accessories |
||||
| You can make order with no worry. Any concern just feel free to let us know, we'll reply in 24 hours in normal condition. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays. Warranty: 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost. |
||||
|
Diameter 250mm Round Magnetic Chuck Strong Dense Pole Permanent Magnet Sucker
$271.4
Brand
Maisutseb®
Shape
Round
MPN
170436
Magnet Type
Permanent
Item Type
Magnetic Chuck
Width/Diameter
250mm
condition
New
