DELPHI 3 Way Metri-Pack Sealed 280 Series 30 AMP Automotive Connector

Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide
$18.12
Brand
Unbranded
Male Terminal Part No.
12048159
Grey Wire Seal Part No.
15324980

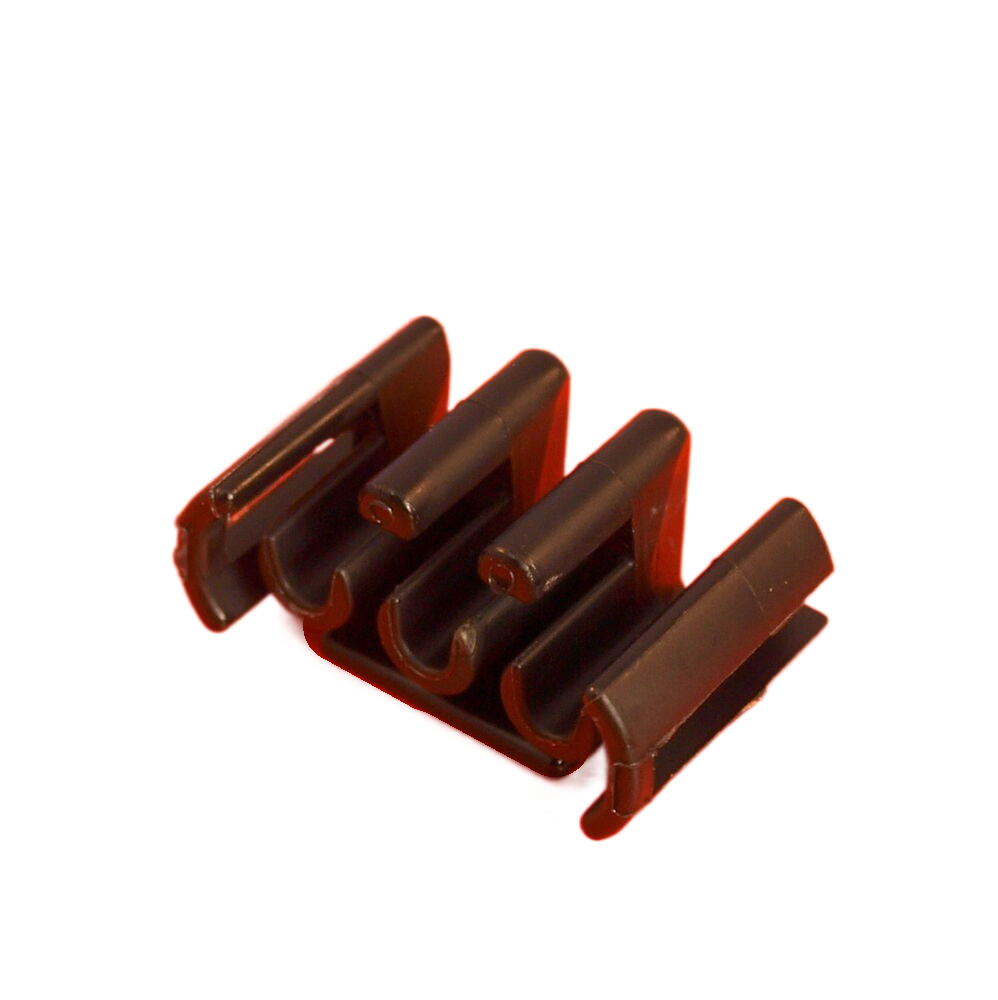

Black Secondary Lock Part No.
12034145

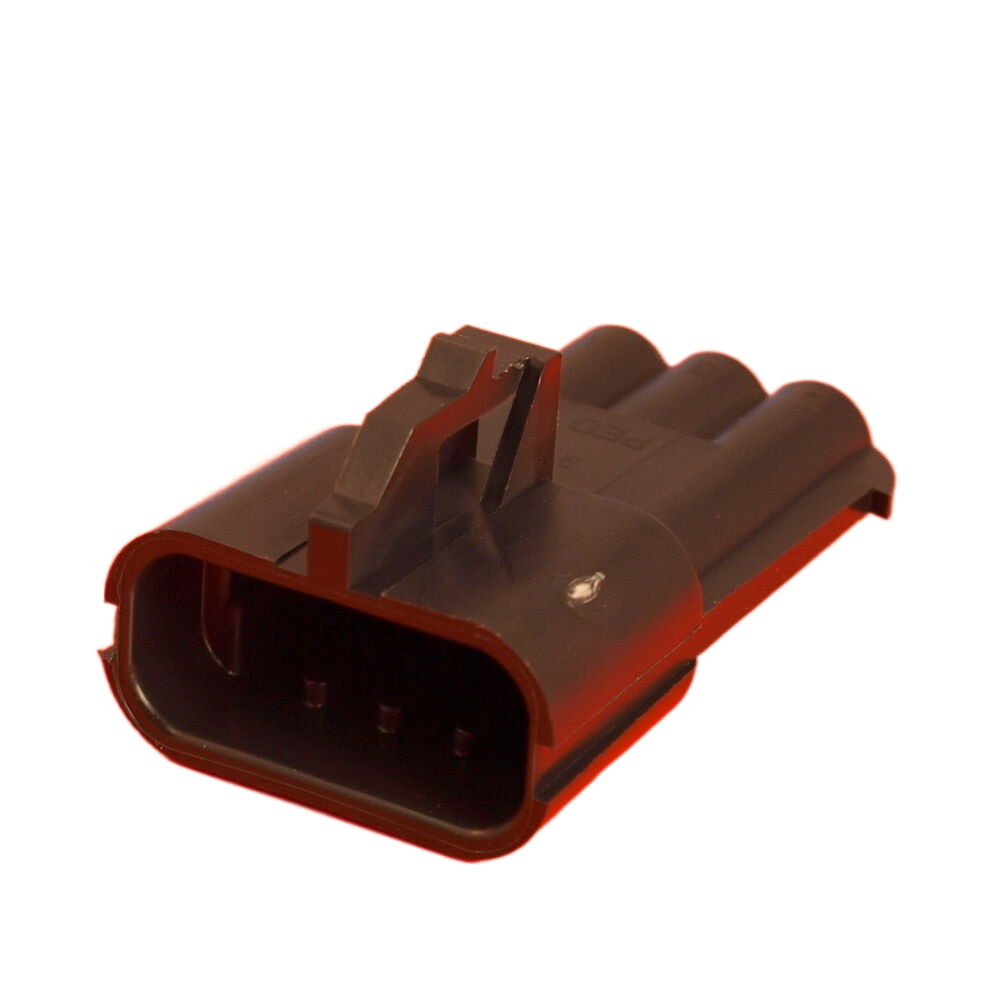

Plug Housing Part No.
15300003
Manufacturer Part Number
15300003
Country/Region of Manufacture
China
Female Terminal
12077411

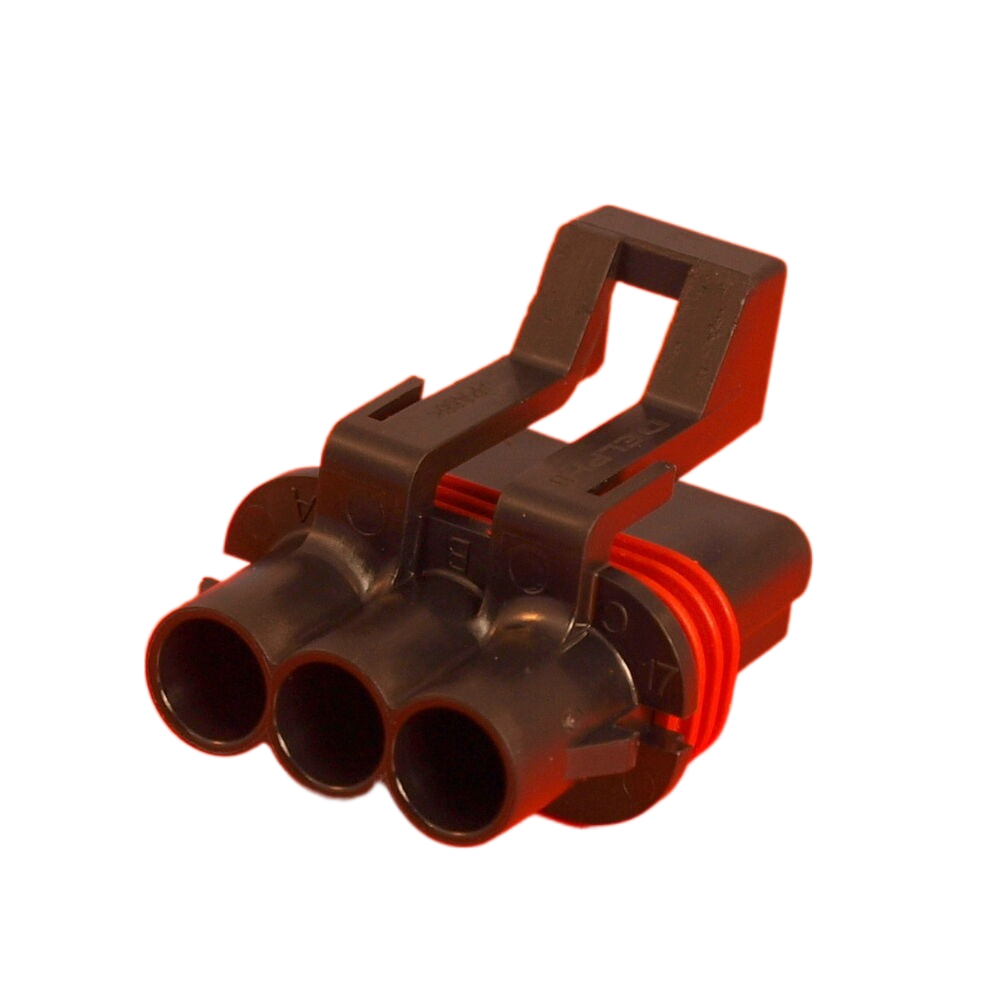

Socket Housing Part No.
12040977

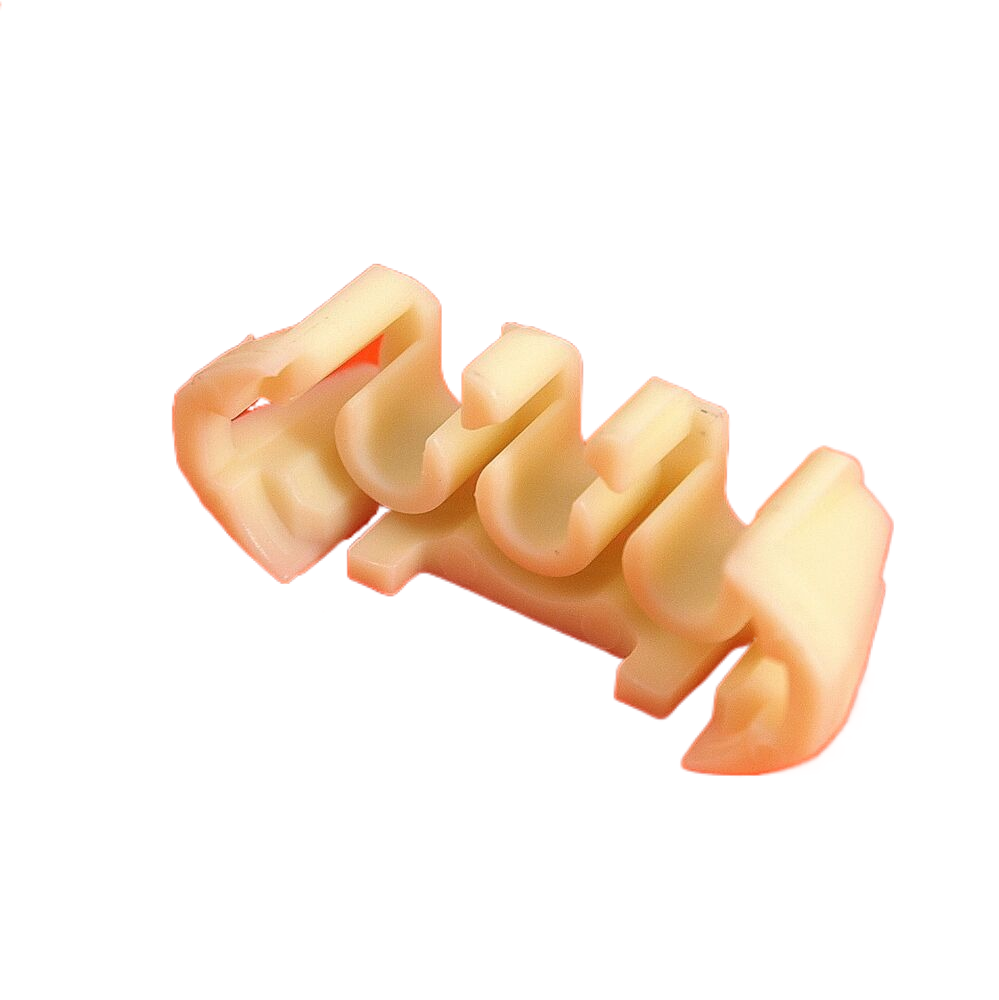

Cream Secondary Lock Part No.
15300015
condition
New other (see details)

Store Categories

DELPHI 3 Way Metri-Pack Sealed 280 Series 30 AMP Automotive Connector

Product Description

DELPHI 3 Way Metri-Pack Sealed 280 Series 30 AMP Automotive Connector

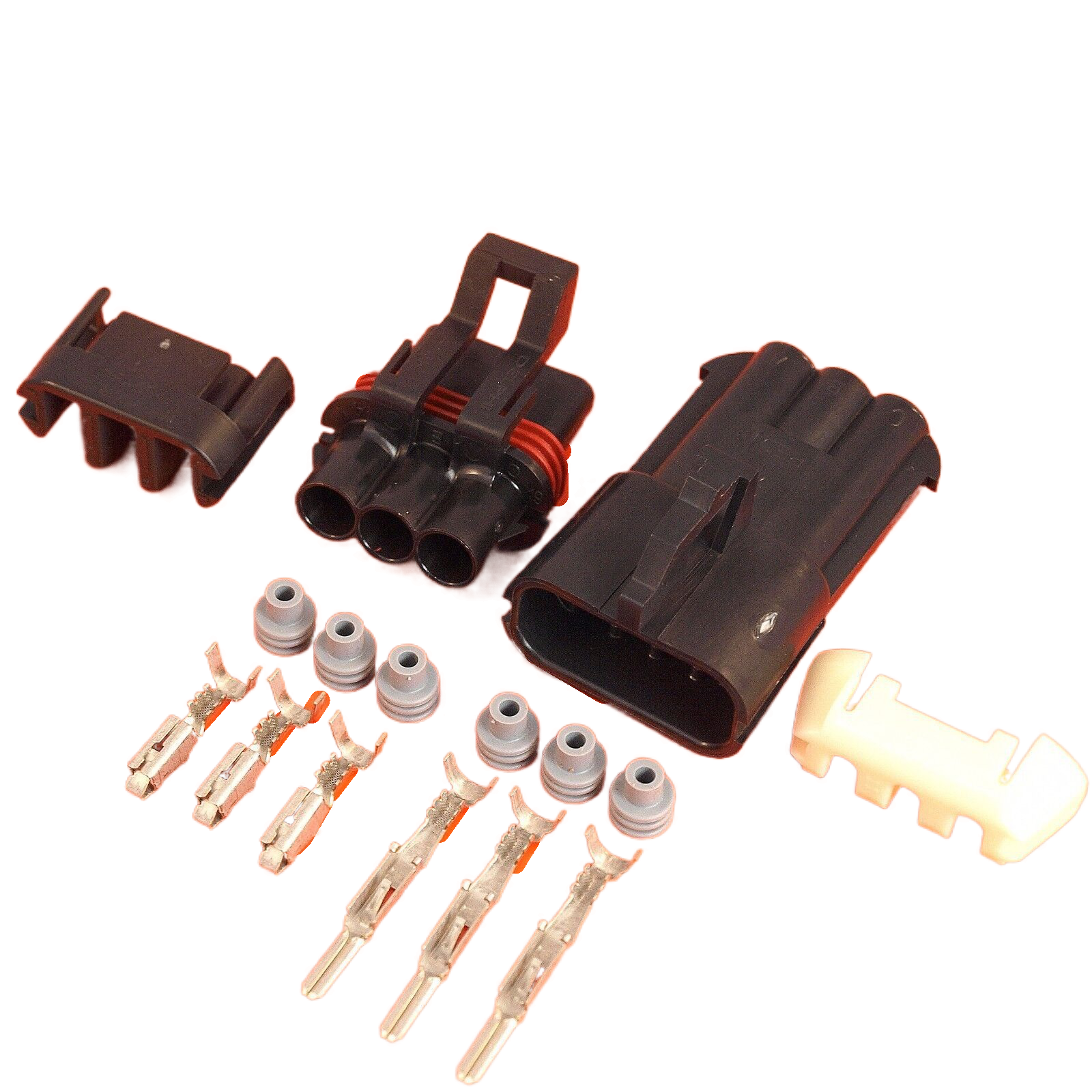

This item includes:



1 x Plug Housing

1 x Socket Housing

3 x Pin Terminals

3 x Receptacle Terminals

6 x Wire Seals

2 x Secondary Locks



Delphi Metri-Pack 280 Sealed Automotive Connectors



The METRI-PACK 280 Sealed Automotive Connector Series are complete with triple ribbed silicone rubber seals which enhance environmental protection and a standard ISO 2.8mm configuration. These connectors have low voltage & energy capability with a maximum continuous current of 30 AMPs. They offer a high resistance to abrasion & chemicals and are able to withstand a temperature range of -40 to 125°C. The critical low energy electronic underhood vehicle applications are typical uses for these connectors where environmental protection is essential.



Specifications:



Colour – Black
Current Rating – 30A
Housing Material – PA 66
Maximum Operating Temperature - +125°C
Minimum Operating Temperature - -40°C
Mounting Type – Cable Mount


Note:

 Photos Of The Actual Item. Please Confirm The Part On The Photos Is The Correct Item Which You Need. If You’re Not Sure, Please Contact Us To Confirm. Thanks!


Package Included :
1 X Prewired Connector with approx 18cm(7inch) Cable （Colour of cables will vary ）
