Features
- [Specification]: Solar Water Pump 48V DC，4 Inch Dia,6.7ft pure copper cable, Max head 48M/158ft,6m³/h 1585GPH Flow, PV open circuit voltage 42-100V with MPPT controller for farm, Garden, home, pool, Industrial
- [Solar Energy]: The 304 stainless steel deep well submersible pump can be supported by batteries if you need the flexibility of pumping on demand at any time. Moreover, it is suggested to be connected with solar panel, which is high energy conversion rate, environmental-friendly and lower consumption.
- [Intelligent Water Shortage Sensers]: This solar water pump has an intelligent water shortage sensor, so it has an intelligent water shortage protection function. When there is no water in the well, the pump will automatically stop working.
- [Pump Motor]: With permanent magnet brushless synchronous motor. So the pump has sufficient power and high efficiency.
- [High-quality controller]: The solar water pump controller utilizing MPPT technology to ensure maximum flow is delivered under all light conditions. It also protects the submersible pump from frequent start up in low light conditions, overheating & running dry with LED display to view working various condition. NOTE：If you have any questions after receiving the pump, please contact the seller in time, we will be responsible for our products.
- 【NOTICE】Additional copper check valve is included.Effectively prevent water backflow causing damage to the pump
| Specifications: |
|---|
| Power: 600W |
| Operating Voltage: DC 48V |
| Maximum Flow Rate: 1585 gph / 6m³/h |
| Maximum Head: 48M/158ft |
| Power Cable: 2m/6.7ft Pure Copper Wire |
| Outlet Diameter: 1 1/4 in |
| Max PV VOC: 100V |
| PV Power: 400WX2 |
| Pump Diameter: 4inch |
| Minimum Working Temperature: 32℉ |
| Maximum Working Temperature: 113 ℉ |
| Amp: 15A |
| Maximun Sand Content: 0.25% |
| Protection Grade: IP68 |
| Water PH: 6.5-8.5 |
| Size: 22inX4in（HXW） |
| Weight: 27lb |
| Pump Body Material:All Stainless Steel |
| Package included：1X Solar Well Pump 1 XMPPT controller 1x Manual 1x 1.25inch to 1inch NPT connector 1x Copper check valve 1xFloat switch 1xWrench 1xInstallation kit package |
Stainless Steel Body
- This solar well pump is built with rust-resistant 304 stainless steel, the pump is highly resistant to corrosion.
- The high-precision rotor and NSK bearing can reduce friction for long-time use.
Powerful Motor
- Pure brushless motor copper wire click, strong power, safe and durable1
- Copper wire coil,high Efficiency, better heat dissipation
- Providing you with efficient and stable pump work
High-Quality Motor & Rotor
- Stable
- Energy-saving
- Long-life
- High Efficiency
High Lift & Large Flow Rate
- Upgraded Stainless Steel Impeller
- High Pressure-resistant
- Prolong Pump Life
- Sand-resistant
- Wear-resistant

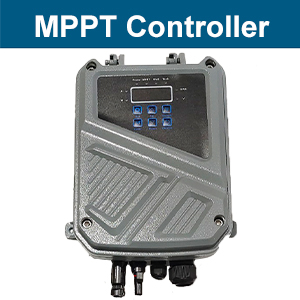

MPPT controller
- MPPT controller greatly improves the efficiency of the solar panel.
- The LED display screen makes it easy to check the operation of the water pump system.
- After connecting the water level sensor, it can automatically start and stop work.
- protects the submersible pump from frequent start up in low light conditions, overheating and running dry

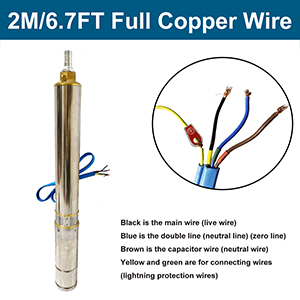

2M Pure Copper Wire
- 6.7ft Pure Copper Wire
- Srong conductivity
- Black -main wire (live wire)
- Blue - double line (neutral line) (zero line)
- Brown -capacitor wire (neutral wire)
- Yellow and green -connecting wires (lightning protection wires)
