Cooper Hart-Lock ML1 Midget Twist Locking Connector Plug NEMA ML1R 15A 125 7464N

Slide Slide Slide
$8.47
Brand
Cooper Wiring Devices
Number of Outlets
1
Type
Electrical Plug
Features
Locking Plug
Output Voltage
125 V
Input Voltage
125 V
Maximum Input Current
15 A
MPN
7464N
Color
Black
Material
Nylon
Recommended Environment
Indoor
Country/Region of Manufacture
Unknown
Custom Bundle
No
Resistance Properties
Impact Resistant
Condition Description
New (Old Stock)
Voltage
125V
Amperage
15A
Device Type
Locking Connector
Grade
Industrial Specification Grade
Ground
Non-Grounding
Lot Quantity
1
NEMA Number
ML1
Phase
1 Phase
Poles
2
Wires
2
Interchange Number
ML1-C (Leviton)
Interchange Number (2)
7464N, 7464N (Bryant)
Number of Outputs
1
Non-Domestic Product
No
Termination Type
Clamp
Interchange Number (4)
7427 (Pass & Seymour)
Interchange Number (6)
HBL7464V (Hubbell)
Style
Traditional
Number of Gangs
1
Quantity
1
Gender
Female
Installation Area
Indoor
Current Type
AC
Connection Type
Turn Locking
Current Rating
15 A
Mounting Style
Cable
Number of Poles
2
Warranty
60 Day
Number of Wires
2
UPC
040893031767
condition
New
Responsive image

Cooper Hart-Lock ML1 Midget Twist Locking Connector Plug Nema ML1R 15A 125 7464N

Product Details

Quantity in Lot: 1
Brand: Cooper Wiring Devices
Part Number: 7464N
Color: Black
Type: Locking Connector
Phase (if applicable) : 1 Phase
Poles: 2
Wires: 2
NEMA Number: ML1
Amperage: 15A
Voltage: 125V
Grade: Industrial Specification Grade
Ground: Non-Grounding

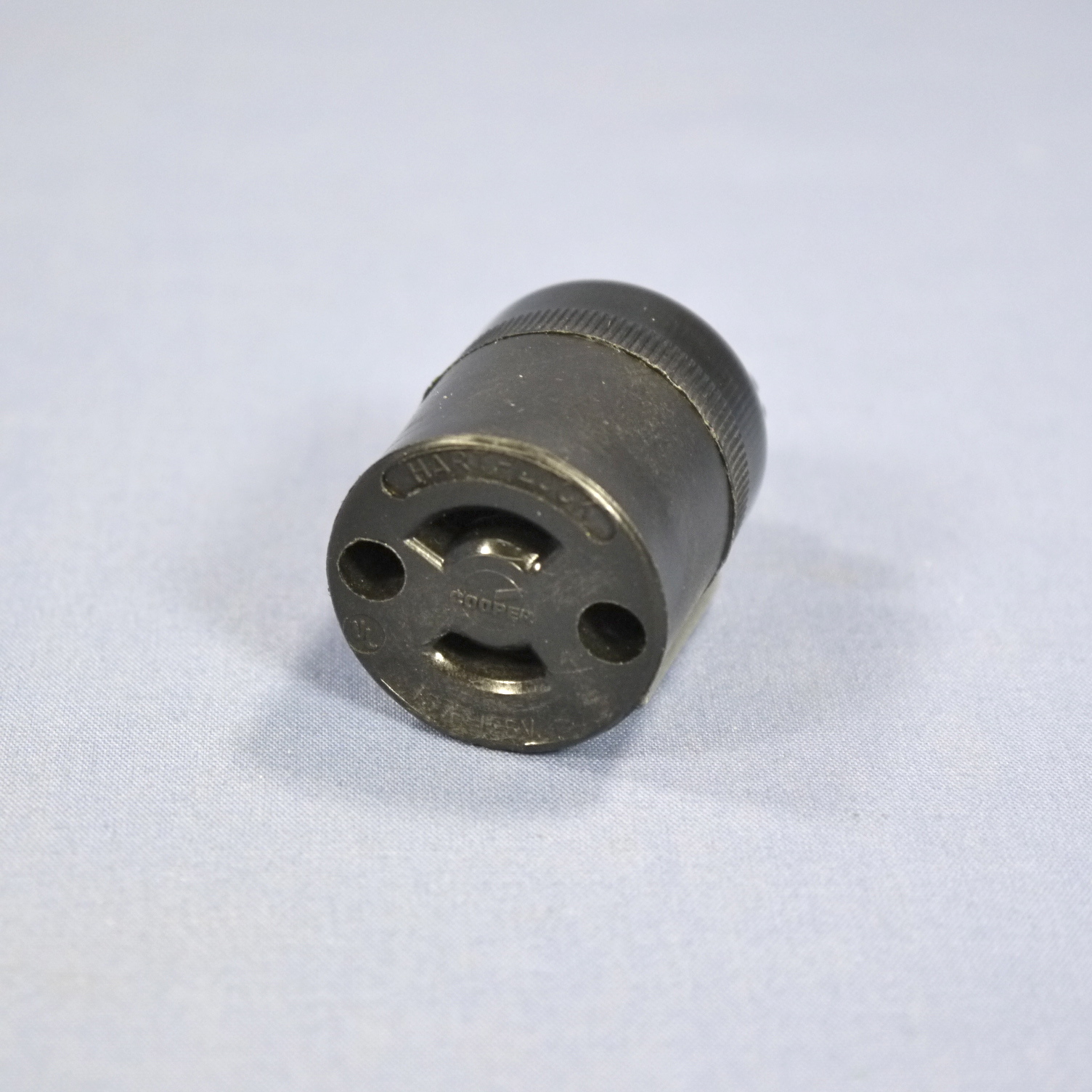

Cooper Hart-Lock 7464N midget locking connector. Midget size offers a smaller form factor for limited-space applications; approximately 1" in diameter. Industrial Specification Grade, NEMA ML1R, 2-pole, 2-wire, non-grounding, rated 15A 125V. Cord grip range: .22"-.31". Terminals accommodate #18-#14 AWG. Leviton's Industrial Grade locking plugs, connectors, and receptacles are definitely a step above the rest in quality. Each is individually packaged; packaging may differ from photo. Features include:

  • One-piece, rivetless, .035" thick brass contacts offer enlarged contact surface area, low heat, and long life
  • Cleat on contacts cuts oxidation when plug blade enter contact surface
  • Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
  • Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position
  • Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands
  • Color-coded terminal screws
  • Molded-in strip gage provides correct measurement for proper strip length of conductor
  • Captive terminal screws eliminate nuisance dropping and searching for missing screws
  • Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact
  • Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs.
  • Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
  • Wiring module keyed to body for easy assembly. Deep slotted/Phillips steel screws secure wiring module (12-14 in.-lbs.) to body
  • Ergonomically designed fluted body with radial gripping ridge creates an ideal surface for gripping, turning, and pulling
  • NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification
  • External cord clamp utilizes deep slotted/Phillips steel screws that are backed out and positioned inside shrouded pockets to prevent slippage of screwdriver blade when tightening cord clamp screws

This is New Old Stock and is returnable for any reason. (SKU # CWD7464N-EA; Weight: 0.1000 lbs.)
