Introduction
The monitor hasabundant functions that can be used for clinical monitoring with adult,
pediatric and neonate. Users may select different parameter configuration

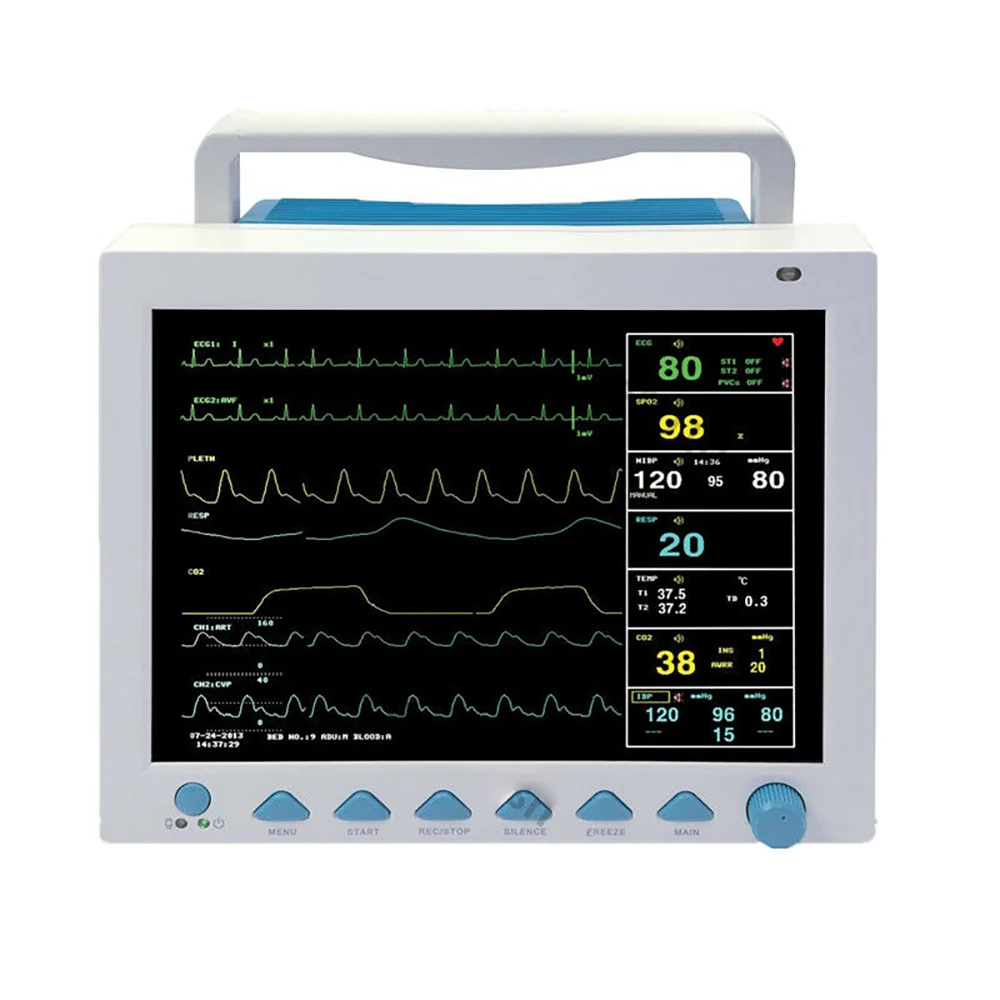

according to different requirements. The monitor, power supplied by
100-240V～,50/60Hz, adopts 12.1'' color TFT LCD displaying real-time date and
waveform. It can synchronously display eight-channel waveform and full
monitoring parameters equipped with an optional 48mm thermal recorder. The
monitor can be connected to the central monitoring system via wire or wireless
network to form a network monitoring system.
This device can monitor such
parameters as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc. It integrates
parameter measurement module, display and recorder in one device to form a
compact and portable equipment. Its replaceable internal battery brings lot of
convenient for patient moving.
Functions
Standard parameters: ECG, RESP,
SpO2, PR, NIBP, dual-channel TEMP
1)ECG Heart rate(HR)
ECG
waveform
Arrhythmia and ST-segment analysis
2)RESP Respiration
rate(RR)
Respiration waveform
3)SpO2 Oxygen
saturation(SpO2)
Plethysmogram(PLETH) waveform
Pulse
rate(PR)
Bar graph
4)NIBP Systolic pressure(SYS), Diastolic
pressure(DIA), Mean pressure(MEAN)
5)TEMP T1, T2, TD
6)IBP(optional)
CH1：SYS，DIA，MAP
CH2：SYS，DIA，MAP
IBP waveform
7)CO2(optional)
EtCO2
InsCO2:Inspired Minimum CO2
AwRR:Air Way Respiration
It has
abundant functions, such as audible and visual alarm, trend data storage and
output, NIBP measurement, alarm event marking and drug concentration
calculation, etc.
Features
1)12.1'' TFT color LCD,
multi-language
interface(English,French,German,Italian,Dutch,Russian,Portuguese,Turkish,Spanish(EU),Polish,Romania,Kazakh,Czech,Trad
Chinese,Spanish(MX),Bulgarian,Chinese,Ukraine)
2)Fanless design, quiet,
energy-saving and clean, which reduces the possibility of
cross-infection.
3)All-round monitor for adult, pediatric and
neonate.
4)With standard interface, oxygen graph, trend graph, big character
interface and view bed, convenient to observe.
5)Finish all operations by
keys and knobs.
6)Maximum 8-channel waveform synchronous
display.
7)Display 7-lead ECG waveform on one screen, cascade ECG waveform
display
8)Adopt digital SpO2 technology, anti-motion and anti-ambient light
interference, and measurement can be performed under the circumstance of weak
filling.
9)Heart rate variability (HRV) analysis function
10)NIBP
measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP
data.
11)Review for 71 alarm events of all parameters and 60 arrhythmia alarm
events.
12)Drug concentration calculation and titration table
functions.
13)One-touch printing of trend graph
14)Connect to Central
Monitoring System by 3G, Wi-Fi or wired mode.
15)AC/DC, built-in rechargeable
lithium battery achieve uninterrupted monitoring.
16)Anti-high frequency
surgical unit, defibrillation-proof (special leads are
necessary).
Performance
▲ECG
Lead mode: 3-lead or
5-lead
Lead selection: I, II, III, aVR, aVL, aVF, V
Waveform: 5-lead,
