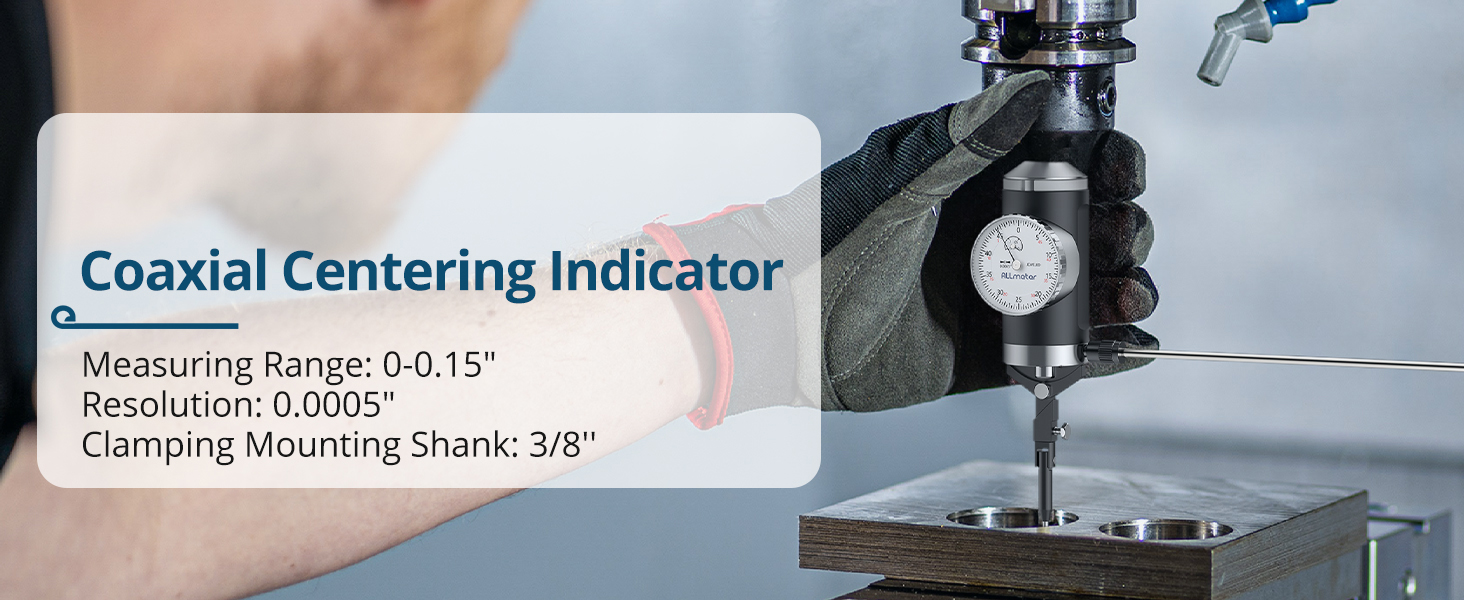

Coaxial Centering Dial Indicator Milling Machine 0-0.15'' 0.0005'' Graduations

Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide
$67.99

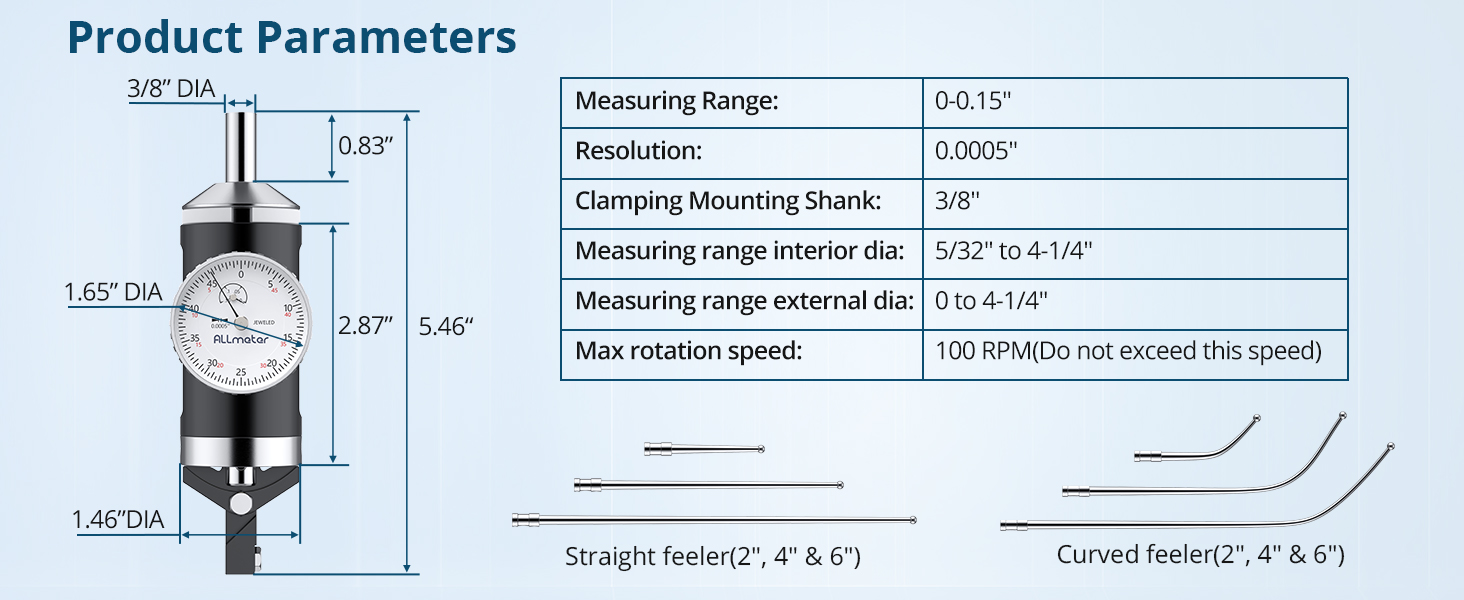

Measuring range
0-0.15"
Mounting Shank
3/8 ''
Resolution
0.0005"
Color
Black
Brand
Unbranded
Indicator Type
Centering Indicator
condition
New

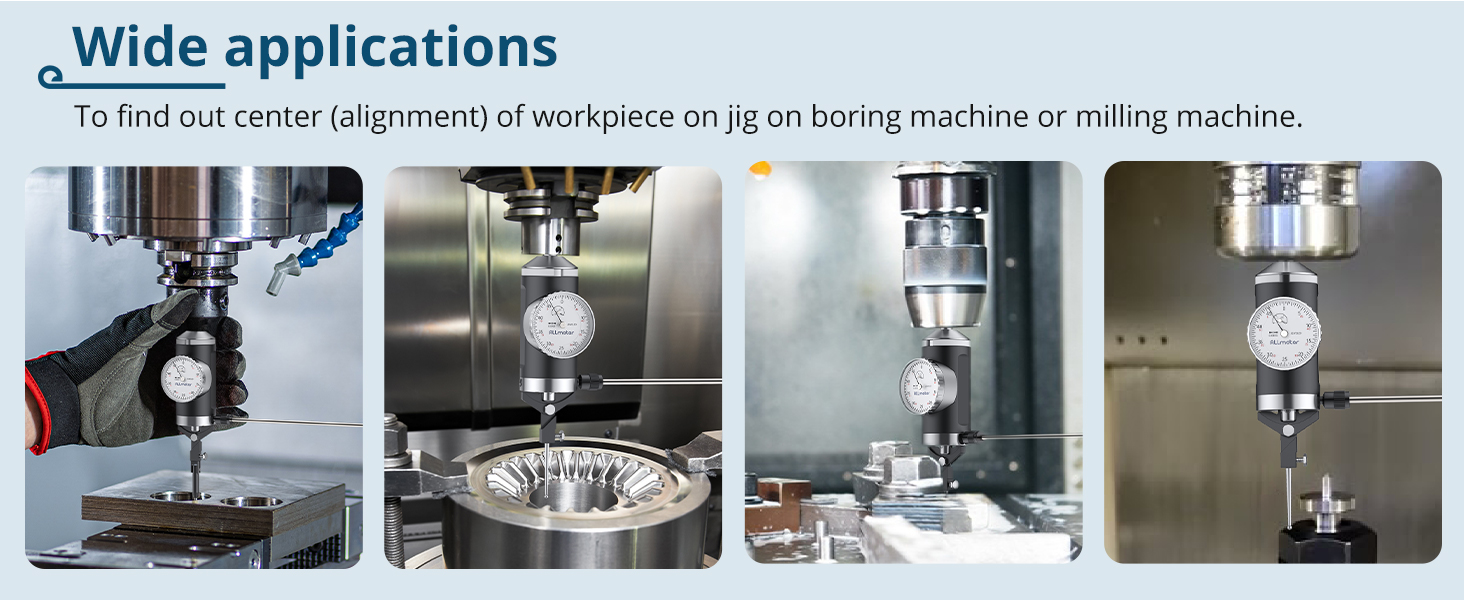

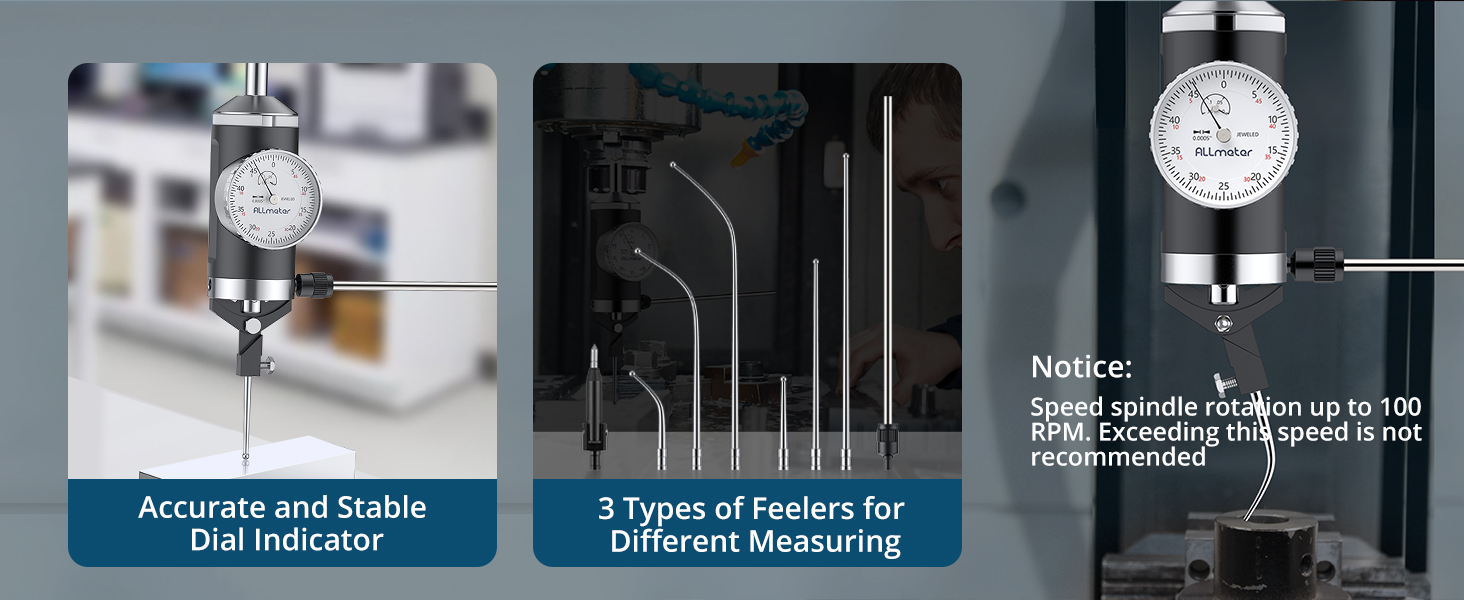

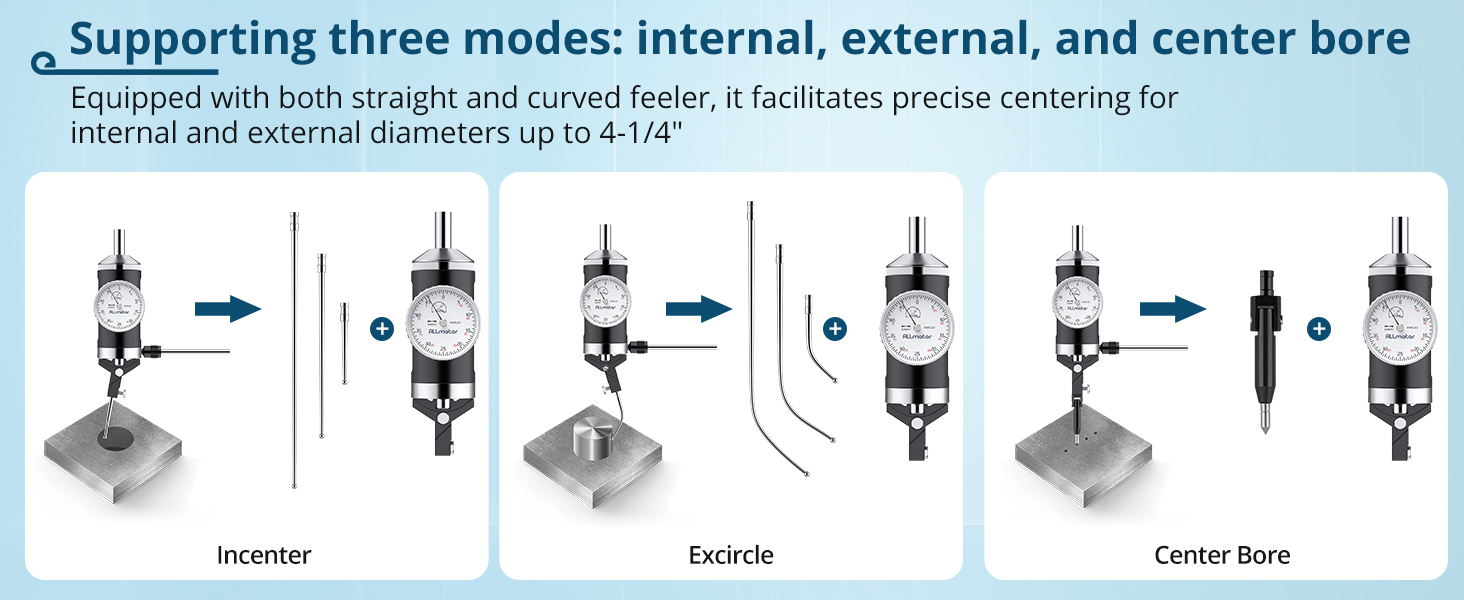

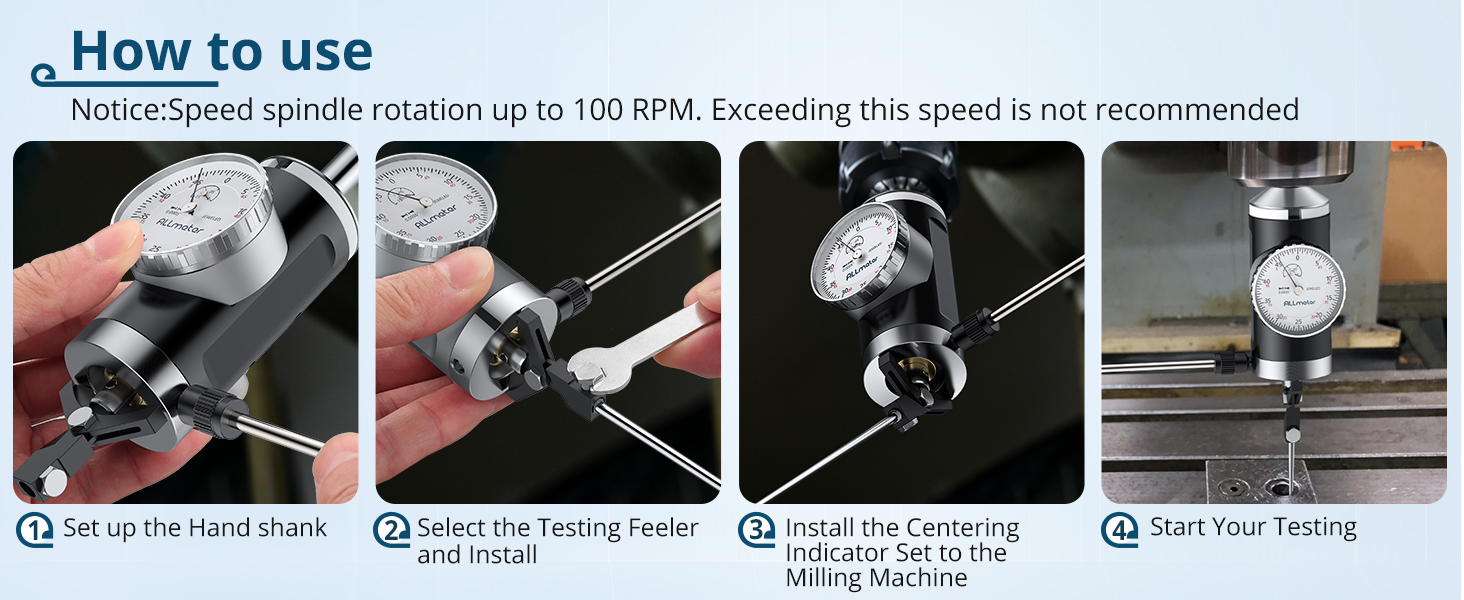

[Features]: - Quick, accurate, and easy centering in boring and milling setups on horizontal or vertical machines. Operate at angles from horizontal to vertical machines and from internal to external diameters without any changes by simply swapping the feeler. The face of the indicator remains stationary at any desired position while the machine spindle rotates, allowing the operator to have both hands free to accurately position the table. [Size]: - Shank: 3/8" Capacity: Internal 5/32" to 4-1/4" dia, or External 0 to 4-1/4" dia. [Speed]: - Spindle rotation up to 100 RPM. Exceeding this speed is not recommended. [Locating Accuracy]: 0.0005" or true center.
