Product Description
If you're looking for a more advanced security system than traditional security alarms and CCTVs, it's time to consider CO-Z's automatic swing gate opener kit as a crucial addition to your security measures.
Working with gates up to 1300 pounds and 20 feet in length, this automatic gate opener kit for swing gates is a must have for your property. Once opened, the gates will automatically close behind you after a custom set time, ranging from 0 to 90 seconds. The infrared sensors can detect obstacles in the gates' path and automatically trigger your gates to stop or reverse their movement. Compatible with up to 32 remotes, HomeLink, Bluetooth, and Wi-Fi controls (additional setup required), this electric gate opening system is perfect for meeting the needs of larger families or smaller businesses and communities.
Features

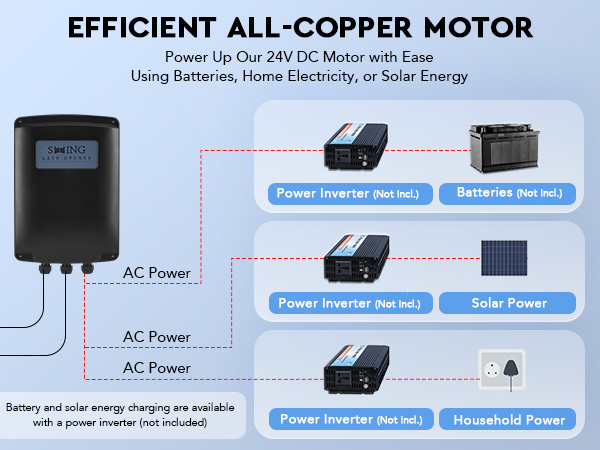

Open & Close Gates with Ease: With its energy-efficient 80W motors, this automatic swing gate opener kit from CO-Z smoothly opens driveway gates, villa gates, garage gates, or farm gates up to 1300 lb and 20 ft at 1 inch per second.
Customizable Closing Times: Tailor your gate operation with precision using our swing gate openers. Enjoy full control by setting personalized closing times of 15, 30, 60, or 90 seconds once the gates are open.

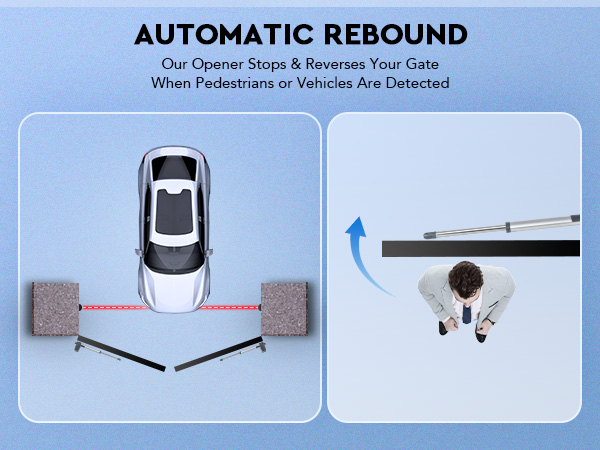

Infrared Sensors Equipped: This auto gate opener kit with remote responds by stopping and reversing gates if any obstacle is detected by its integrated infrared sensors. For added convenience, it features a pedestrian mode for efficient partial gate openings.

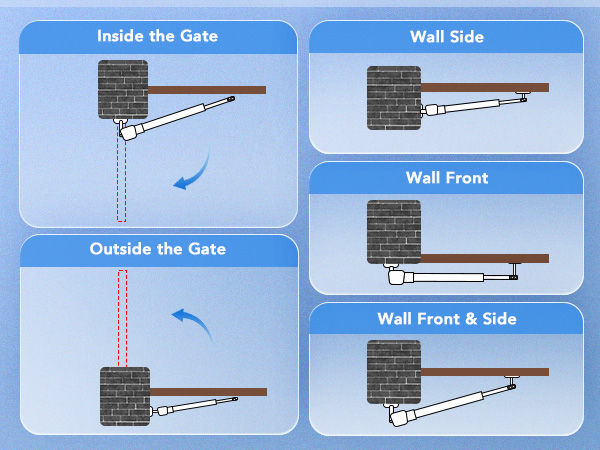

Multi Gate Control & Mounting Options: These electric gate openers come with 2 remotes but support up to 32, along with HomeLink, Bluetooth, and Wi-Fi functionality (interfaces reserved) for ease of use. They securely mount inside or outside your gate or at various sides of the gate column.

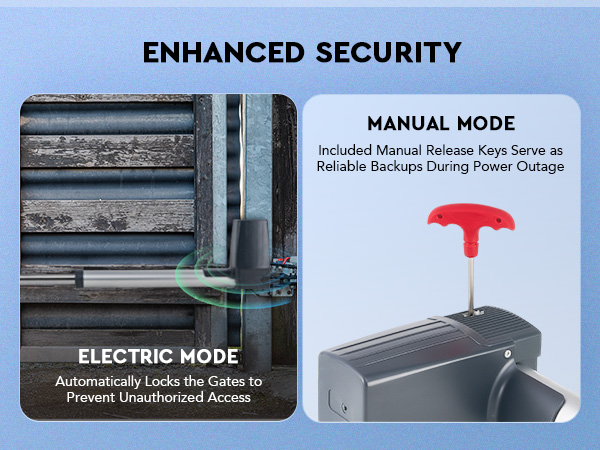

Dependable Safety: This electric gate openers with remote complete kit automatically locks your gates when they’re closed to prevent unauthorized access. The included manual release keys serve as a reliable backup in case of a power outage.
All-Weather Durability

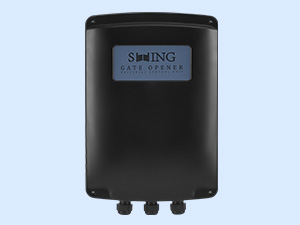

This hardy gate opener can reliably operate in temperatures from -4°F to 158°F, with its IP44 casing protecting against rain, dirt, and dust.
Failsafe Release
In the event of power outages, misplaced remotes, or other emergencies, our 2 backup keys allow manual control of the gates.

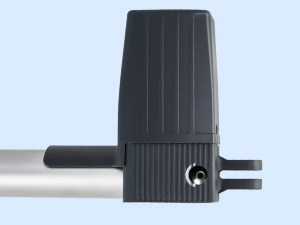

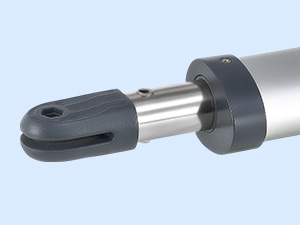

Rugged Actuators
The actuators are made of premium aluminum alloy to stay lightweight and corrosion resistant for long-lasting use.

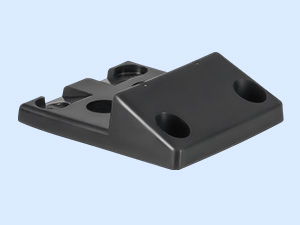

Convenient Limit Stop
Our included gate stop ensures proper gate positioning and prevents accidental damages for safe operation.
Specifications
Material
Copper, Aluminum Alloy, Steel, Plastic
Color
Gray
Rated Power
80W
Max. Single-Leaf Gate Weight
650 lb. (300 kg)
Gate Speed
1 ips (2.6 cm/s)
Max. Single-Leaf Gate Length
10 ft. (3 m)
Max. Noise
58 dB
Max. Torque
337.5 lbf (1500N) ea.
Operating Temp. Range
-4 to 158°F (-20 to 70°C)
Weatherproof Rating
IP44
Max. Remotes
32
Remote Range
98 ft. (30 m)
Remote Frequency
433.92 MHz
Gate Close Delay
0/15/30/60/90 sec.
Weight
37.7 lb. (17.1 kg)
