Product Photo
Description

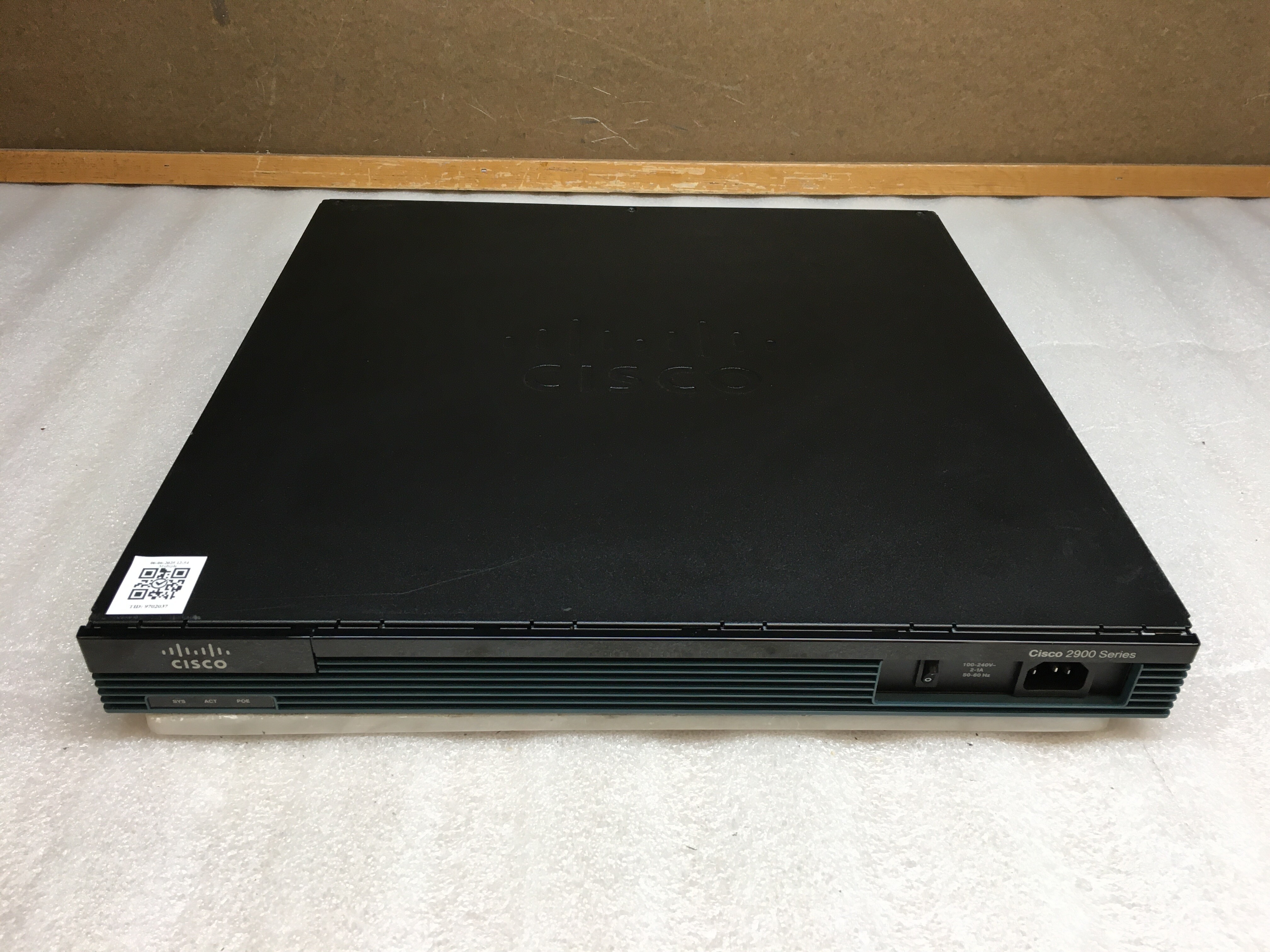

Cisco 2900 Series CISCO2901/K9 V04 Integrated Services Router
Cisco 2900 Series CISCO2901/K9 V04 Integrated Services Router
The Cisco 2900 Series CISCO2901/K9 V04 Integrated Services Router offers reliable and secure network connectivity for small to medium businesses. Known for its versatility and performance, this router supports a wide range of routing protocols and services, making it an ideal choice to enhance your network infrastructure.
Specifications
- Model Number: CISCO2901/K9 V04
- Router Type: Integrated Services Router (ISR)
- WAN Interface Options: Built-in Fast Ethernet, optional network interface cards
- LAN Ports: Multiple Ethernet ports for local connectivity
- Routing Protocols Supported: OSPF, EIGRP, RIP, BGP
- Firewall and Security: Built-in Cisco IOS firewall functionality
- Throughput: Up to 25 Mbps (depending on configuration)
- Voice Support: Supports Cisco Unified Communications
- Expandability: Supports additional interface modules and network modules
- Management: Cisco IOS command-line interface and web-based tools
Key Features
- Comprehensive WAN connectivity options including Gigabit Ethernet and serial interfaces
- Advanced security features such as VPN support, firewall, and intrusion prevention
- Modular design allows for flexible network expansion and upgrades
- Supports multiple integrated services including voice, video, and wireless
- Easy to manage with Cisco IOS software and extensive documentation
Important Notes
- Minor scratches, scuffs, and scrapes from previous use and storage
Included
- No Accessories Included
Not Included
- Power adapter/cable
- Console cable
- Rack mount kit
- Network interface modules
Router#sh ver
Cisco IOS Software, C2900 Software (C2900-UNIVERSALK9-M), Version 15.2(4)M5, RELEASE SOFTWARE (fc2)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2013 by Cisco Systems, Inc.
Compiled Fri 13-Sep-13 14:59 by prod_relteam
ROM: System Bootstrap, Version 15.0(1r)M15, RELEASE SOFTWARE (fc1)
Router uptime is 11 minutes
System returned to ROM by reload at 13:39:10 UTC Fri Jun 6 2025
System image file is "flash0:c2900-universalk9-mz.SPA.152-4.M5.bin"
Last reload type: Normal Reload
Last reload reason: Reload Command
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.
Cisco CISCO2901/K9 (revision 1.0) with 409600K/114688K bytes of memory.
Processor board ID FGL1627276P
3 Gigabit Ethernet interfaces
1 Serial interface
1 terminal line
1 Virtual Private Network (VPN) Module
DRAM configuration is 64 bits wide with parity enabled.
255K bytes of non-volatile configuration memory.
250880K bytes of ATA System CompactFlash 0 (Read/Write)
License Info:
License UDI:
-------------------------------------------------
Device# PID SN
-------------------------------------------------
*0 CISCO2901/K9
Technology Package License Information for Module:'c2900'
-----------------------------------------------------------------
Technology Technology-package Technology-package
Current Type Next reboot
------------------------------------------------------------------
ipbase ipbasek9 Permanent ipbasek9
security securityk9 Permanent securityk9
uc None None None
data None None None
Configuration register is 0x2142
Router#sh inv
NAME: "CISCO2901/K9", DESCR: "CISCO2901/K9 chassis, Hw Serial#: , Hw Revision: 1.0"
PID: CISCO2901/K9 , VID: V04 , SN:
NAME: "WAN Interface Card - HWIC CSU/DSU on Slot 0 SubSlot 0", DESCR: "WAN Interface Card - HWIC CSU/DSU"
PID: HWIC-1DSU-T1 , VID: V02 , SN:
NAME: "Enhanced High Speed WAN Interface Card-1 Port Gigabit Ethernet SFP/Cu on Slot 0 SubSlot 1", DESCR: "Enhanced High Speed WAN Interface Card-1 Port Gigabit Ethernet SFP/Cu"
PID: EHWIC-1GE-SFP-CU , VID: V01, SN:
NAME: "C1941/C2901 AC Power Supply", DESCR: "C1941/C2901 AC Power Supply"
PID: PWR-1941-2901-AC , VID: , SN:
Router#sh env all
SYSTEM POWER SUPPLY STATUS
==========================
Power Supply Type: AC
Power Supply 12V Output Status: Normal
SYSTEM FAN STATUS
=================
System Fan OK, Low speed setting
SYSTEM TEMPERATURE STATUS
=========================
Exhaust Fan temperature: 22 Celsius, Normal
Intake Right(Bezel) temperature: 14 Celsius, Normal
Intake Right temperature: 18 Celsius, Normal
CPU temperature: 55 Celsius, Normal
REAL TIME CLOCK BATTERY STATUS
==============================
Battery OK (checked at power up)
SYSTEM POWER
===============
Motherboard Components Power consumption = 33.2 W
Total System Power consumption is: 33.2 W
Environmental information last updated 00:00:00 ago
Router#sh users
Line User Host(s) Idle Location
* 0 con 0 idle 00:00:00
Interface User Mode Idle Peer Address
Router#sh memory
Head Total(b) Used(b) Free(b) Lowest(b) Largest(b)
I/O memory
Address Bytes Prev Next Ref PrevF NextF Alloc PC what
09000000 0000000032 00000000 09000050 000 9F92F50 0 32CD9CF0 (coalesced)
09000050 0000000848 09000000 090003D0 001 -------- -------- 3073D318 *Packet Data*
090003D0 0000000848 09000050 09000750 001 -------- -------- 3073D318 *Packet Data*
09000750 0000019664 090003D0 09005450 000 3ACF8EC4 0 3073D318 (fragment)
09005450 0000054864 09000750 09012AD0 001 -------- -------- 32CDFAD0 *Init*
09012AD0 0000524368 09005450 09092B50 001 -------- -------- 30364614 WQE Buffer Pool
09092B50 0000524368 09012AD0 09112BD0 001 -------- -------- 30364658 CF DMA pool
09112BD0 0000065616 09092B50 09122C50 001 -------- -------- 303647B4 Command Buffer Pool
09122C50 0000786512 09112BD0 091E2CD0 001 -------- -------- 30364930 Gather List Buffer Pool
091E2CD0 0000008272 09122C50 091E4D50 001 -------- -------- 3035E928 *Init*
Router#sh interface
Embedded-Service-Engine0/0 is administratively down, line protocol is down
Hardware is Embedded Service Engine, address is 0000.0000.0000 (bia 0000.0000.0000)
MTU 1500 bytes, BW 10000 Kbit/sec, DLY 1000 usec,
Specifications
F3 - Key Functions Working
Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.
C4 - Used Good
Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.
S3 - Data Clear
Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22
CISCO2901/K9 V04
Function Tests
Passed
Passed
Passed
Passed
