CH-60 Hydraulic Knockout Punch Hole Punching Machine 31T Max 10mm Thickness

Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide
$114.39
Aperture(4 pairs)
3/8aaaaaa,1/2aaaaaa,5/8aaaaaa,3/4aaaaaa
Brand
Unbranded
Punching force
310KN(31T)
Max. Thickness of copper bar
2/5aaaaaa
Model
CH-60
MPN
CH-60
Max. Thickness of stainless steel
1/5aaaaaa
Depth of throat
3.74aaaaaa/95 mm
Max. Thickness of iron plate
3/10aaaaaa
Max. Thickness of aluminum
2/5aaaaaa
condition
New
  • Excellent Punching: Punching force: 31T/310KN; Depth of throat: 3.74"/95 mm. The punch dies are made of high carbon tungsten steel and not easy to wear off. The max thickness of iron plate: 1/10" to 3/10" (3-8 mm), the max thickness of copper/aluminum bar: 1/10" to 2/5"(3-10 mm), the max thickness of stainless steel: 1/10" to 1/5"(3-6 mm).
  • 4 Pairs of Dies: The hydraulic puncher comes with four pairs of punching dies of 3/8"(ф10.5 mm), 1/2"(ф13.8 mm), 5/8"(ф17.5 mm), 3/4"(ф20.5 mm). Different dies are designed for precise hole punching. It also features accurate positioning without offset.
  • Durable Steel Structure: This hydraulic hole punching tool features high strength and good toughness with premium alloy steel construction. And the heavy-duty metal hole punch tool needs to connect with a hydraulic pump to get ideal performance (The pump is not included). The plastic cap protects the punching tool from dust.
  • Compact Size & Portable: our hole puncher with compact size is space-saving. A thickened and rubberized handle, increasing the friction, gives you a comfortable and anti-slip using experience. It is suitable for long-lasting use.
  • Wide Application: The split hole puncher is widely applied in punching metal plates, including iron, aluminum, copper, stainless steel, etc. It is popular in the electricity industry, construction, etc.

Key Features

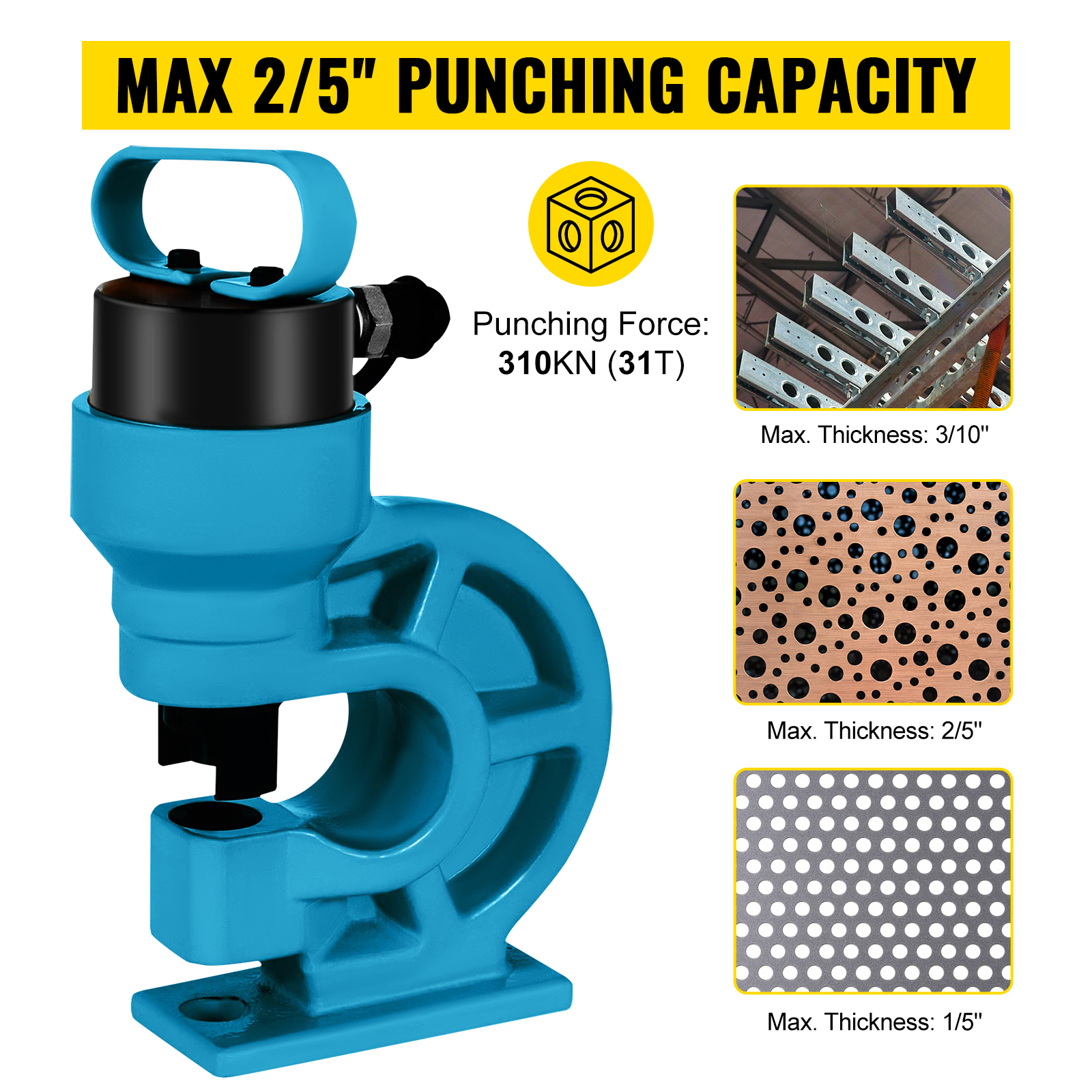

  • Max 2/5" Punching Capacity

    This hydraulic punch is suitable for an iron plate with a thickness of 1/10" to 3/10" (3-8 mm), copper/aluminum plates with a thickness of 1/10" to 2/5"(3-10 mm), stainless steel with a thickness of 1/10" to 1/5"(3-6 mm). Punching Force: 310KN(31T).

  • 3.74" Depth of Throat

    This hydraulic punch-down installation tool features a deep throat for convenient operation and excellent punching. A throat depth of 3.74"/95 mm allows you to put a wide plate in.

  • Puncher Aperture

    Our hydraulic hole punching tool could punch a hole of 3/8"(ф10.5 mm), 1/2"(ф13.8 mm), 5/8"(ф17.5 mm), 3/4"(ф20.5 mm). These punch dies are made of high carbon tungsten steel and are not easy to wear off.

  • Alloy Steel Material

    This knockout punch set is made of premium alloy steel with high strength and excellent toughness. It has a flat and sturdy base, ensuring not easy to fall. The male connector is designed to connect with your hydraulic pump (prepare by yourself).

  • Great Portability

    The thickened and insulated handle gives you a comfortable and secure user experience, suitable for long-lasting use. It makes the tool easy to carry.

  • For Various Scenarios

    This hole punching tool can be applied to L and H style flat copper, busbar, etc. It is commonly used in the electricity industry, construction, and bridge construction, indoor decoration.


CH-60 Hydraulic Hole Puncher

There is a superior CH-60 hydraulic hole puncher. It is used to punch metal plates, such as copper, aluminum, iron, and steel, perfect for L and H style flat copper, busbarthe in the electricity industry, construction, etc. A great punching force of 310KN/31T allows you to get easy work done. It is durable and solid with high hardness and strength.

  • Excellent Punching
  • 4 Pairs of Dies
  • Durable Steel Structure
  • Compact Size & Portable

Specifications

  • Punching force:310KN(31T)
  • Depth of throat: 3.74"/95 mm
  • Aperture(4 pairs): 3/8"(ф10.5 mm), 1/2"(ф13.8 mm), 5/8"(ф17.5 mm), 3/4"(ф20.5 mm)
  • Max. Thickness of iron plate: 3-8 mm(1/10" to 3/10")
  • Max. Thickness of copper bar: 3-10 mm(1/10" to 2/5")
  • Max. Thickness of aluminum: 3-10 mm(1/10" to 2/5")
  • Max. Thickness of stainless steel: 3-6 mm(1/10" to 1/5")
  • Weight: 38.7 LB

Package Content

  • 1 x Hole Puncher
  • 1 x Concave Pressing Plate
  • 4 x Dies (one of them in the puncher)
