CAT40 10mm Hydraulic Chuck (Slim), 4.33" Gage Length

Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide
$363.06
Brand
YG-1 TOOL CO.
MPN
WK070
Adapter/Holder Type
Hydraulic Tool Holder
Taper Size
CAT40
Shank Type
Taper Shank
Inside Diameter
0.3937" 10.00mm
Gage Length
4.33"
Style
Slim
Coolant Supply
AD/B Coolant Supply
Quantity
1
Custom Bundle
No
Modified Item
No
Country/Region of Manufacture
Korea, Republic of
condition
New
item description




Suncoast Precision Tools, Inc. is an Authorized Distributor of YG-1 TOOL CO.
Part #WK070

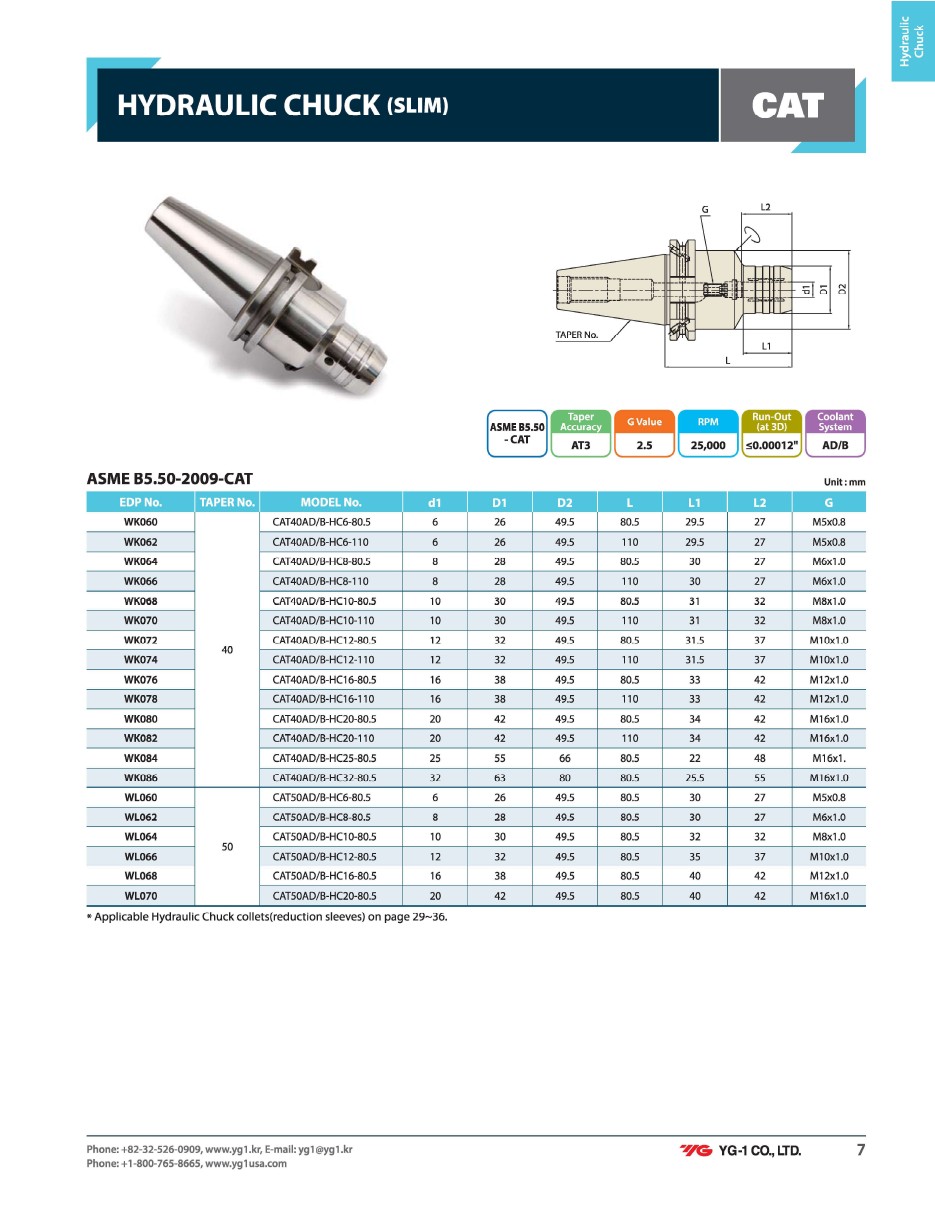

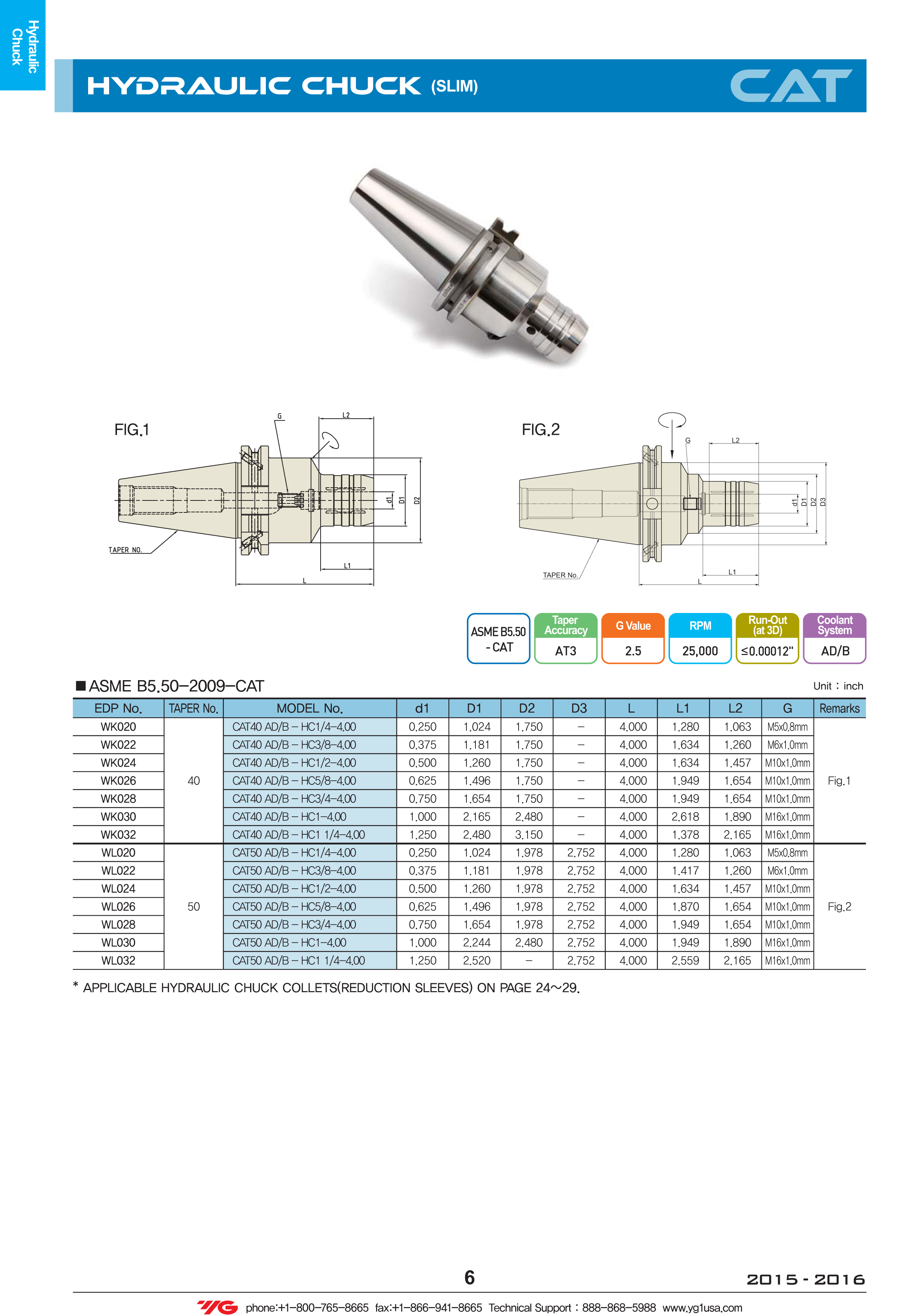

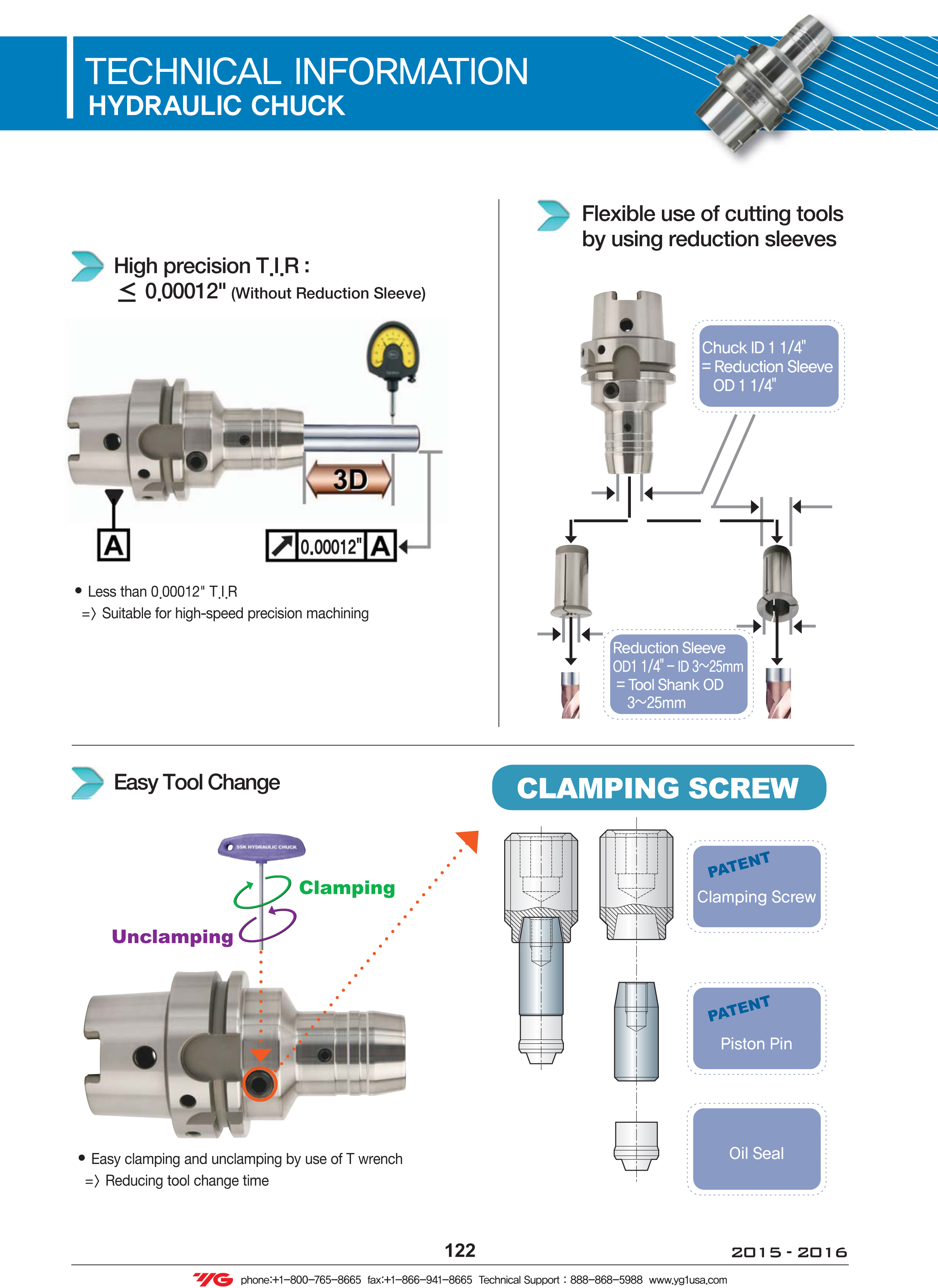

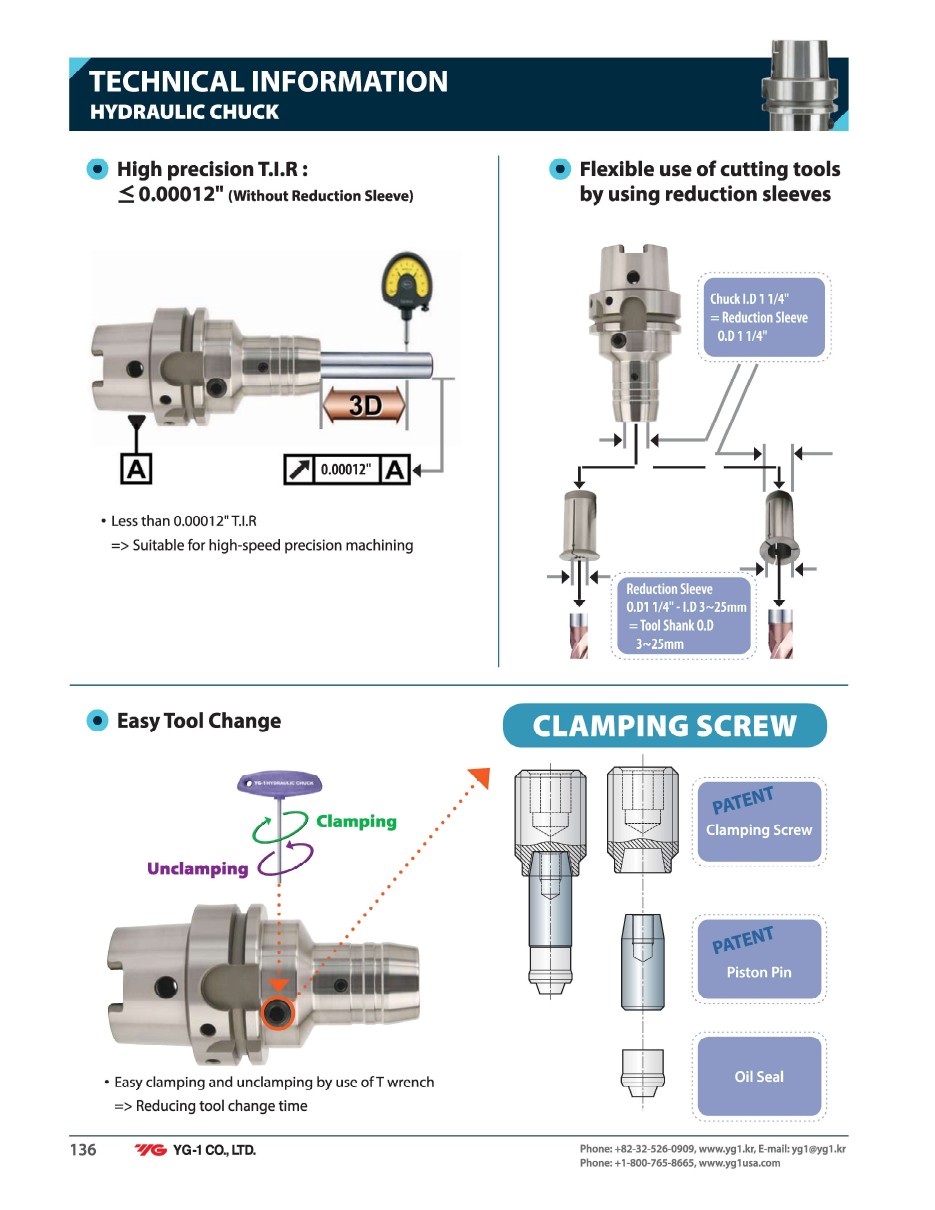

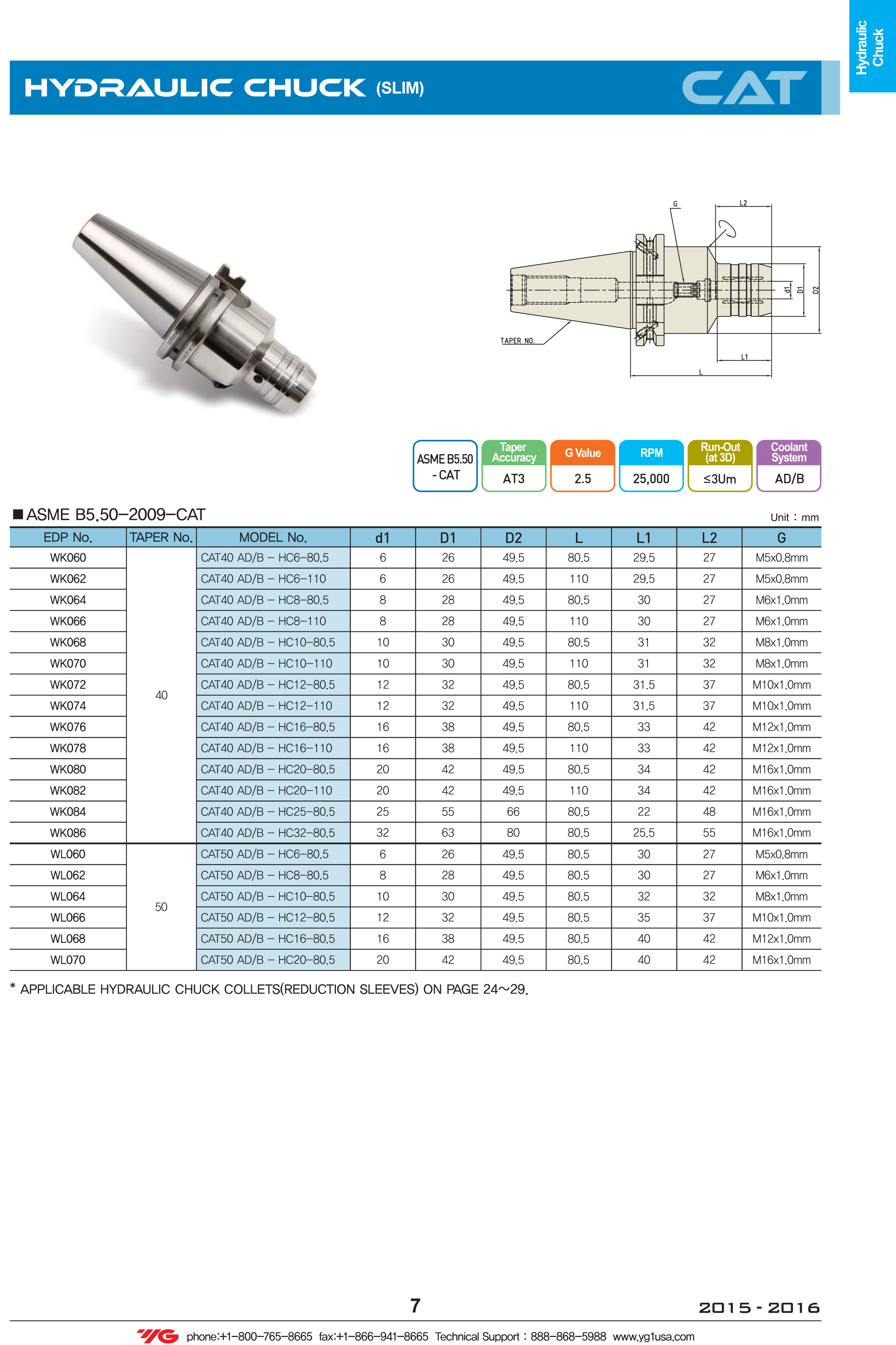

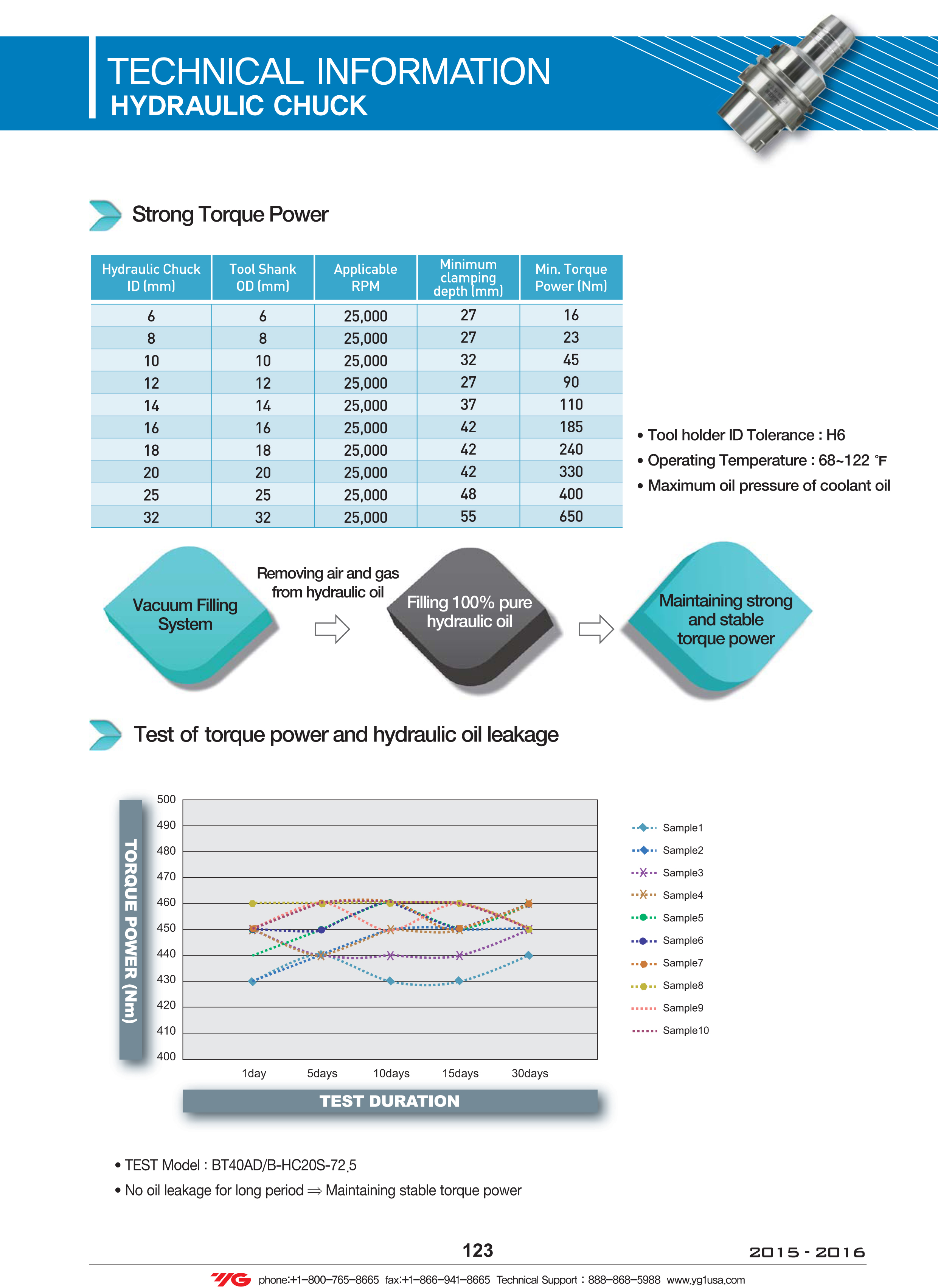

CAT40 10mm Hydraulic Chuck (Slim), 4.33" Gage Length, 25,000 RPM Balanced With AD/B Coolant Supply. YG1 Part # WK070. The Use Of Reduction Sleeves Greatly Improves The Usefulness Of A Hydraulic Chuck. Clamp Directly On The Cutting Tool Shank Or Use A Reduction Sleeve To Hold A Different Diameter Tool Shank And Increase Transferable Torque By Approximately 25%. The Reduction Sleeve Outside Diameter Must Match Your Hydraulic Chuck's Nominal Inside Diameter. Reduction Sleeves Are Available In 6 Different O.D.S; 1/2", 3/4", 1-1/4", 12mm, 20mm & 32mm For Clamping Tool Shanks From 1/8" To 1" & 3mm To 25mm.
  • CAT Taper Shank Per ASME B5.50-2009-CAT
  • AT3 Or Better Accuracy On Shank Tapers

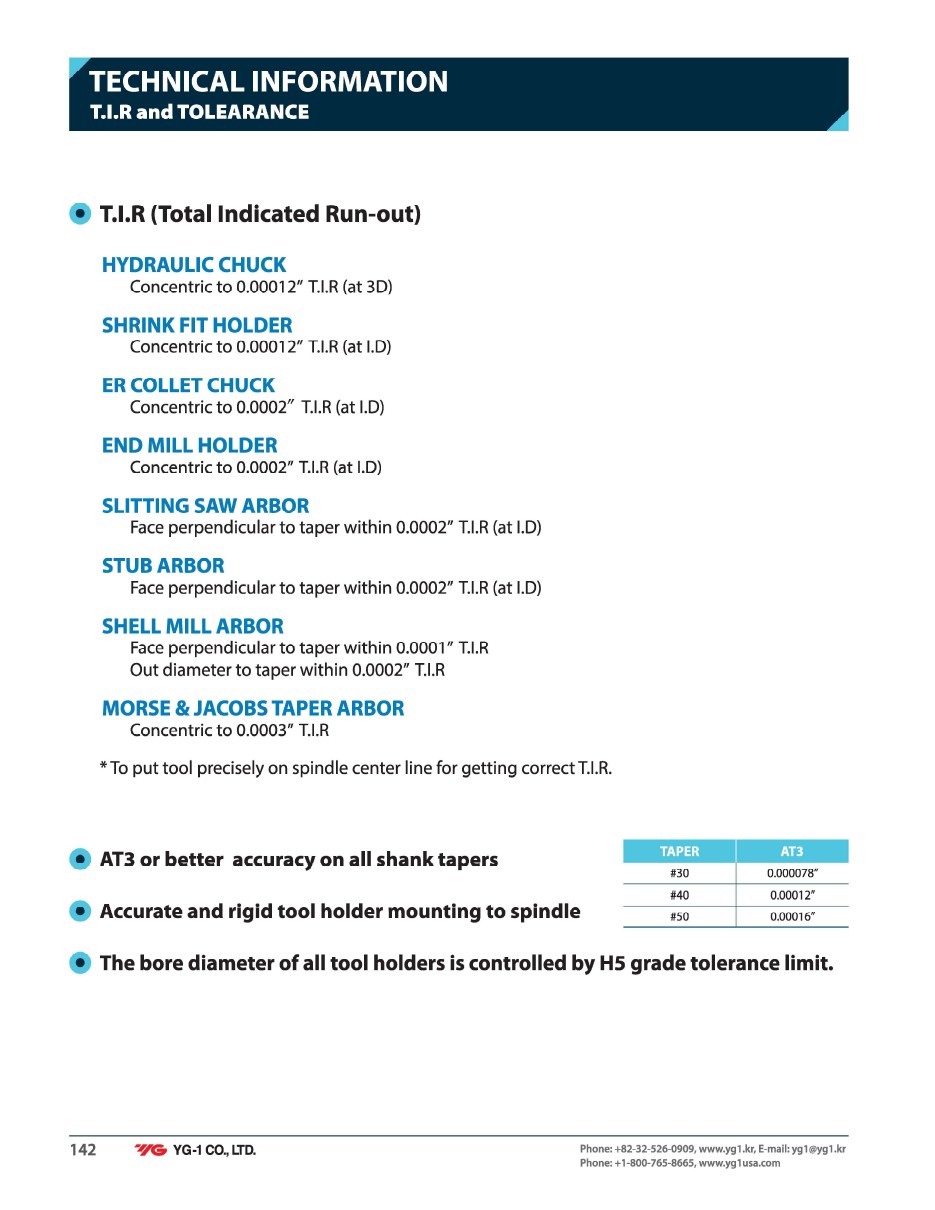

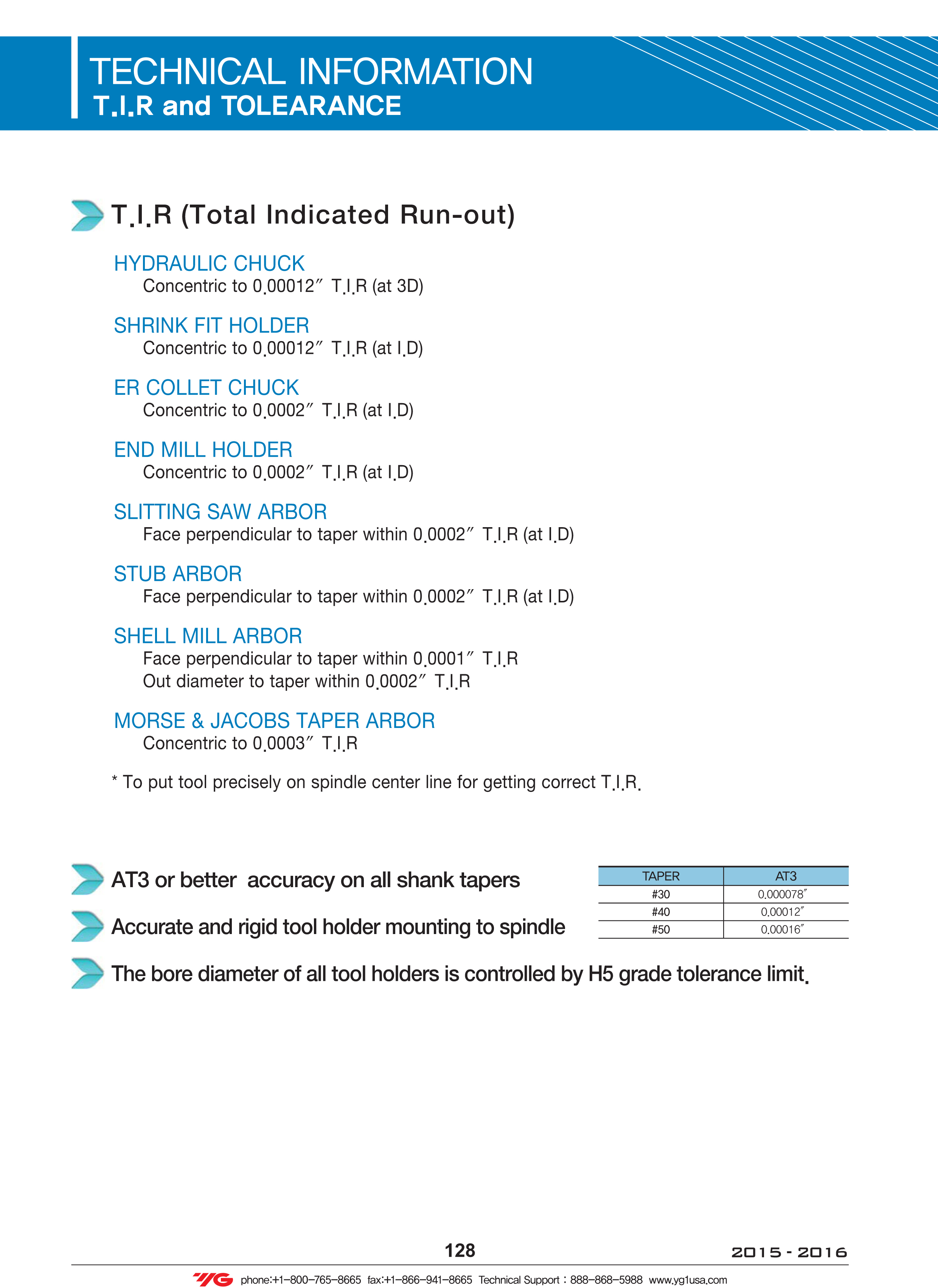

  • Concentric To 0.00012" T.I.R (At 3XD)
  • AD/B Coolant Supply: Coolant Thru The Spindle & DIN Coolant Thru The Flange.
  • Balanced At G2.5 To 25,000 RPM
