Model 1617EVSPKRT

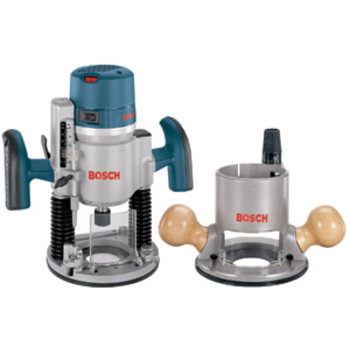

Bosch 12 Amp 2.25 HP Combination Plunge and Fixed-Base Router Kit
Includes
- Motor - 16176
- Plunge-Base - RA1166
- Fixed-Base - RA1160
- 1/4 in. Self-Releasing Collet Chuck - 2 610 906 283
- 16mm Shaft Wrench - 2 610 991 388
- 24mm Collet Nut Wrench - 2 610 992 417
- 1/2 in. Self-Releasing Collet Chuck - 2 610 906 284
- Fixed-Base Chip Shield - 2 610 991 389
- Plunge-Base Chip Shield - 2 610 912 599
- Carrying Case - 2 610 913 367
DETAILS & SPECIFICATIONS
Features
- 2.25 HP 12 amp motor delivers 8000 - 25,000 RPM
- Variable-speed dial for matching speed to work piece and task
- Soft start reduces start-up torque
- Constant Response Circuitry maintains constant speed under load, providing overload protection
- Move motor from base to base with ease with the quick clamp system on both bases that allows fast tool-free conversion
- Precision centering design makes it easy to keep bit on intended cut line when using jigs, templates, dovetail fixtures and similar guidance devices
- Microfine bit depth adjustment system on both bases for fast, precise bit depth adjustment
- Right or left switch location for user preference and consistency (motor does not rotate during depth adjustment)
- Tool-free template guide adapter system for fast and easy template guide changes
- Accepts larger bits and provides better visibility with wide base openings and 2 in. sub-base openings
- Plunge-base has contoured soft grip handles for enhanced control and comfort at all plunge depths
- Aluminum motor housing and bases and dust-sealed power switch for durability
Specifications
| Power Source | Corded |
| Shank Size | 0.25 in / 0.50 in / 0.38 in / 0.31 in |
| Case Type | Hard |
| Bluetooth Compatibility | No |
| Base Opening | 3-3/4 in |
| Depth Adjustment Range | 1-5/8 in |
| Base Type | Fixed/Plunge |
| Horsepower | 2.25 |
| Motor Type | Brushed |
| Voltage | 120V |
| Amperage | 12 |
| UL Safety | Yes |
| Height | 11.625 in. |
| Base Dimensions | 6 in x 6 in / 6.68 in x 6.68 in |
| No-Load Speed (RPM) | 8000 - 25000 |
| Width | 11.5 in. |
| Depth Adjustment System | Micro-Fine Depth Adjustment |
| CSA Safety | No |
| Wifi compatibility | No |
| Handle Style | Side Handles |
| Switch Type | Toggle |
| Weight | 10 lbs. |
| Collet Capacity | 1/4 in / 1/2 in / 3/8 in / 8 mm |
| Cord Length | 10 in |
| Case Included | Yes |
| Length | 6 in. |
| Speed Controls | Yes |
| Plunge Depth | 2-1/4 in |
| Charger Included | No |
| Speed Settings | Variable |
| ETL Safety | No |
| No-Load Speeds (RPM) | 8000 - 25000 |
