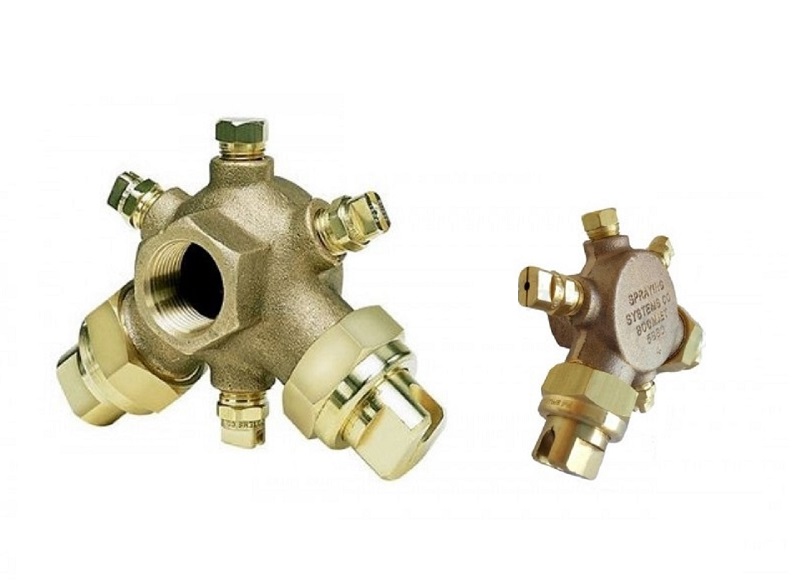

Boomless Nozzle Extra-wide Flat Spray Projection TeeJet BoomJet 5880-3/4-2TOC20

Slide
$250.24
Brand
Farmer Bob's Parts
MPN
5880-3/4-2TOC20
Country/Region of Manufacture
United States
Modified Item
No
Type
Boomless Nozzle
NumberOfItems
1
Item
Boomless Nozzle
Series
5880 Series
Material
Brass
Color
Gold
Interchange Part Number
58802TOC20, 58803/42TOC20, 5880342TOC20, SS58803/42TOC20, SS58803
Size
5880 Series
Style
Double Nozzle
UPC
808224320962
condition
New
(2) - Off-center tips (Part # OC20)
(2) - VeeJet nozzles (Part # H1/4U-0520HE)
(1) - VeeJet nozzle (Part # H1/4VVL-9506 with 50 mesh strainer)
(1) - ¼” NPT pipe plug
(1) - Blank tip for setting BoomJet to one side only
(1) - ¼” NPT pressure gauge port
(1) - ¾” NPT female back inlet thread connection
Capacity Range of 1 Nozzle in GPM: 6.08-8.60
Maximum Range of Effective Coverage at 36” Height: 47-52 feet
GPA Range at 4-15 MPH: 4.3-20
Gallons per 1000 Sq. Ft. Range at 2-5 MPH: 0.29-0.94
Responsive image

Boomless Nozzle Extra-wide Flat Spray Projection TeeJet BoomJet

250.24

Type 5880 BoomJet nozzle is used for spraying areas not easily accessed with a boom sprayer. It combines two off-center tips and three VeeJet nozzles to produce an overall wide swath flat spray. The nozzle assembly provides good distribution considering the wide pattern coverage obtained; however, the uniformity is not as good as with a properly operated boom sprayer. Supplied with one additional 1/4" NPT pipe plug and one blank tip for setting BoomJet to one side only. Also has a 1/4" NPT pressure gauge port.
