PRODUCT DETAIL:
1. Tachometer:
0-3000RPM/4000RPM/6000RPM/8000RPM
85mm Tachometer
Backlight: 7 Color Light
2).Fuel Level Gauge
Name: Fuel Level Meter
Material: 316 stainless steel
Working voltage: 9-32V(12V/24V)
Waterproof level: IP67
Application range: 0-190ohms
Mounting hole: 52mm
Color: 7 color
3). Water Temperature Gauge
- Diameter: 52mm/2.05inch
- Measuring range: 40-120℃
- Item Color: Black Silver
- Working voltage:9~32V DC
- Input signal:301~22ohms
- Backlight: 7 color
- Working current:≤60mA
4). Oil Pressure Gauge
Dial: Black
Material: 316 Stainless Steel, PC
Size: 8x8x7cm / 3.1x3.1x2.75 inch
Working Temperature: -40~85℃
Protection Level: IP67
Working Voltage: DC 8~16V, DC 18~32V
Output Signal: 10~184 ohms
Working Current:<100mA
Display Accuracy:<3°
Indicating Range: 0~10bar/0~145psi
52mm (2") mounting hole
Oil Pressure Gauge:0~10bar (0~145psi)
5). Voltage
Diameter: 52mm/2.05inch
Measuring range:16-32V, 8-16V
Color: Black
Backlight: 7 color light
Package:

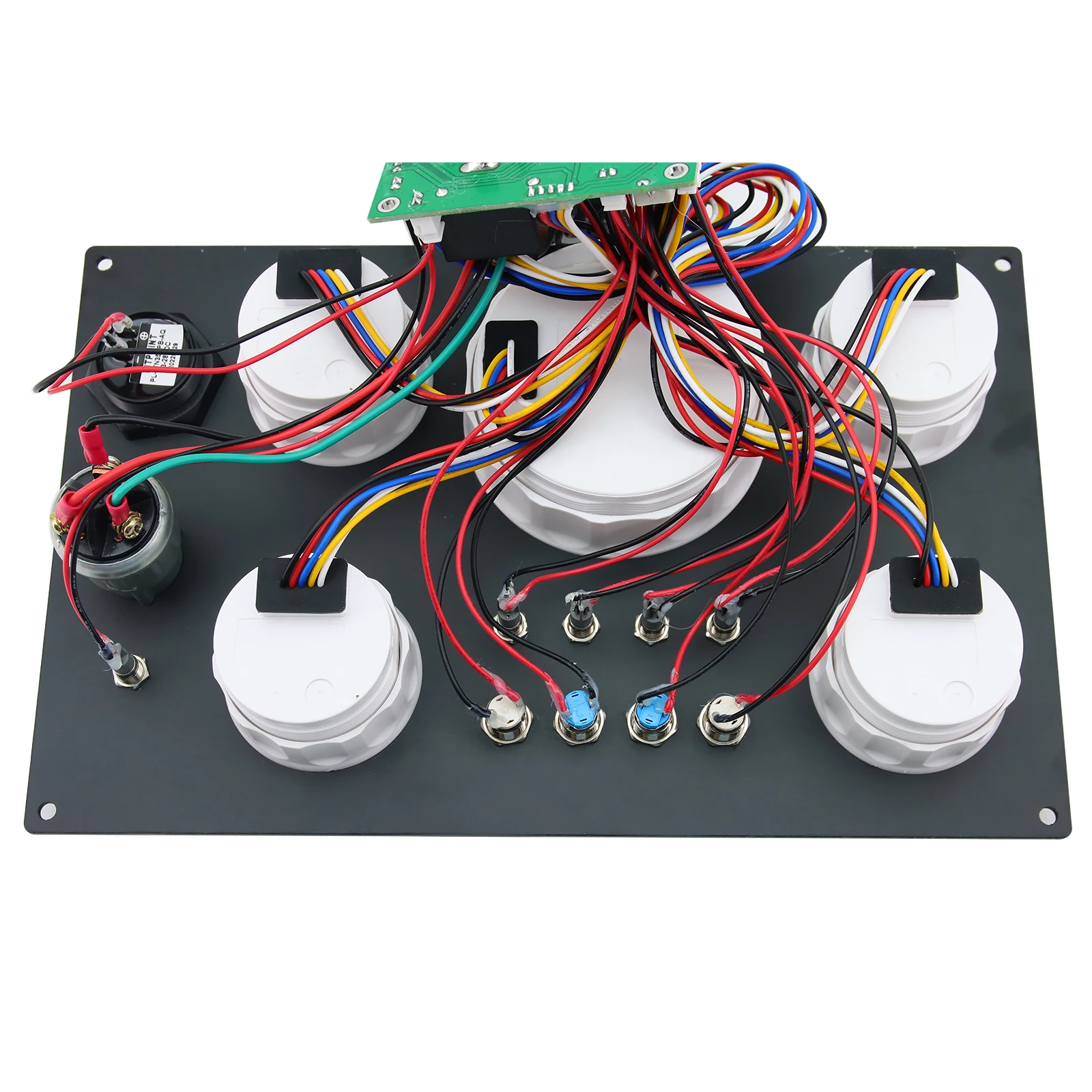

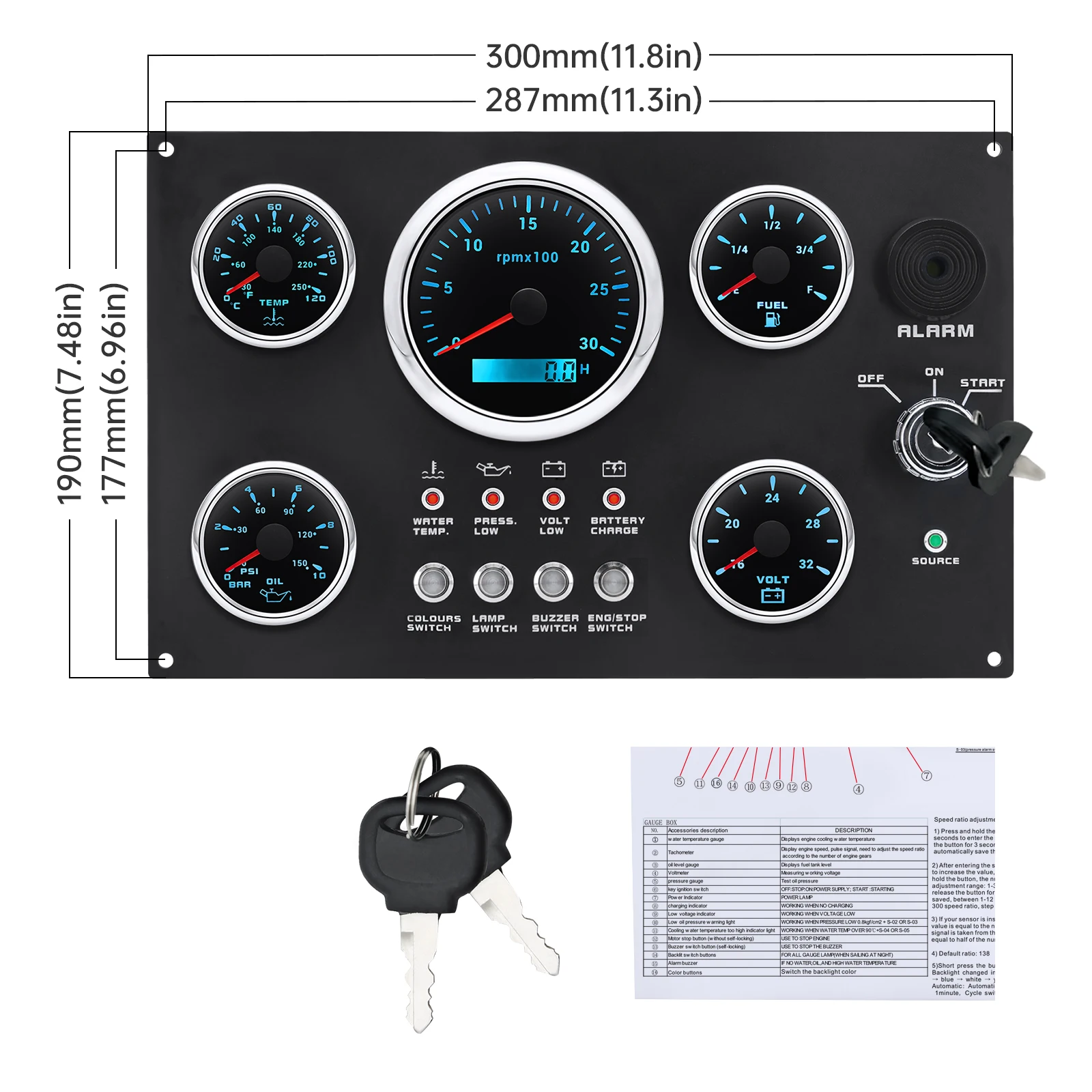

1 Set X 5 Gauge Set with Instrument Panel
Features:
-Analog Display Tachometer & Digital Display Hour Meter.
-Clear Lens, 316 Stainless Steel Bezel with ABS Plastic Housing.
-Black Faceplate, Red Needle with RED LED Illumination.
-With IP67 Waterproof, Rustproof, Anti-Fog & UV-Resistant.
-Hour Meter Records to 99999.9 Hours & --Automatic Roll Over Resolution 0.1 Hour.
-Volt Gauge, Fuel Level Gauge, Water Temperature Gauge & Oil Pressure Gauge with Warning Function.
-Gauge Set (Except Volt Gauge) Requires 12 / 24 -Volt Negative Ground Systems.
-Volt Gauge Requires 12 Volt Negative Ground Systems.
-One Year Limited Warranty for Non-Human -Factor Damage & Free Lifetime Technical Support.
