Description

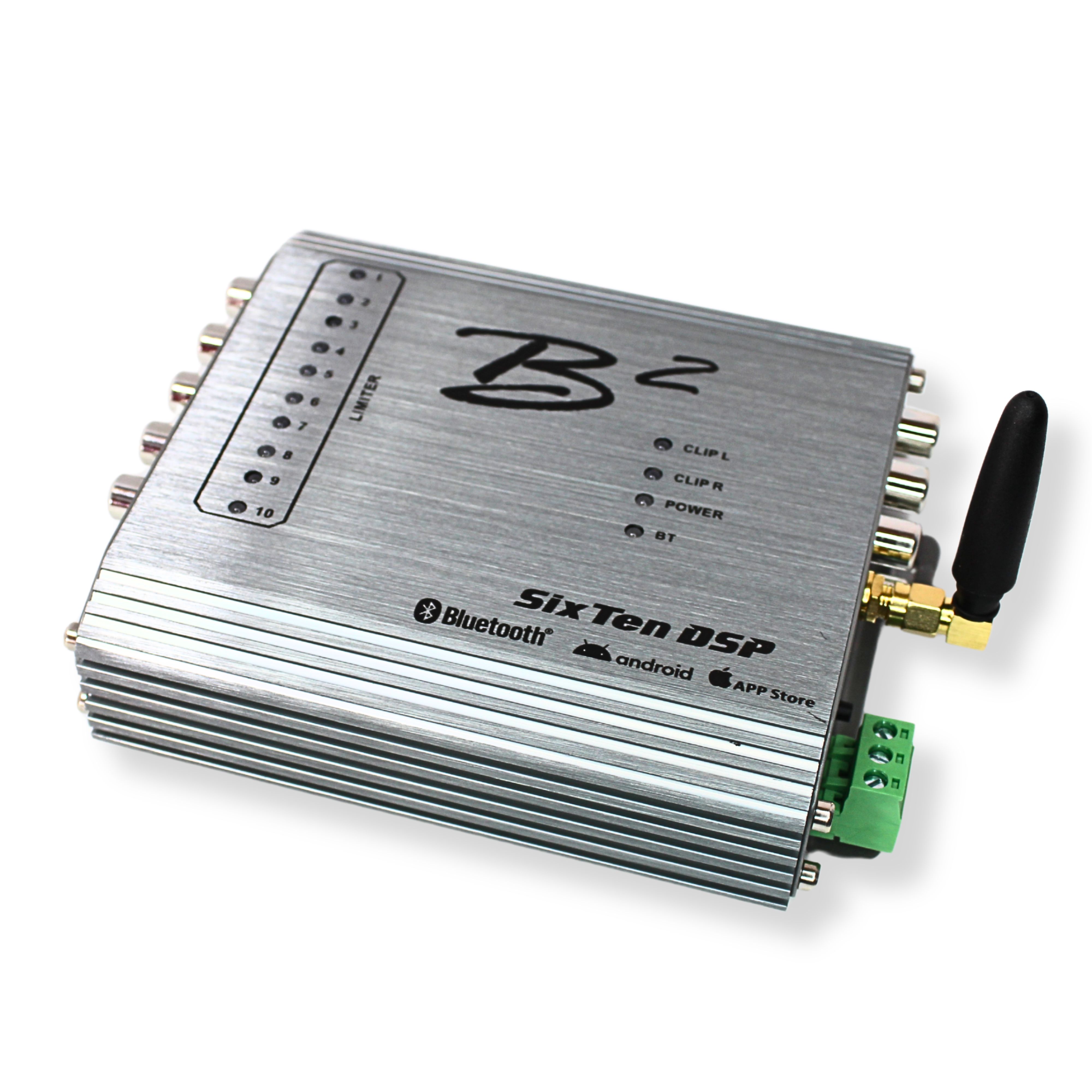

B2 Audio 4v 10 Channel DSP with Bluetooth IOS/Android App 96 KHz - 32 Bit
This listing includes:
- (1) B2 Audio SIXTEN, 6 Input - 10 Output 4v DSP
The B2 Audio SixTen DSP is a cutting-edge 6-input, 10-output digital signal processor designed for unmatched audio customization. With Bluetooth connectivity and an intuitive iOS/Android app, it delivers precise tuning through its 96 kHz, 32-bit resolution. Each of the 10 output channels provides a strong 4-volt signal, ensuring optimal performance for high-quality car audio setups.
Technical Specifications:
- Inputs: 6 (3 Left/3 Right)
- Connectors: RCA
- Input Level Max: 4.00 Vrms (+ 14dBu)
- Outputs: 10
- Output Max Level: 3.50 Vrms (+ 13dBu)
- Frequency Response: 10Hz to 24KHz (-1dB)
- THD+N: <0.01%
- Signal Latency: <0.6 ms
- Bit Rate: 32-Bit
- Sampling Frequency: 96khz
- Voltage DC: 9.5 - 15v DC
- Maximum consumption: 350mA
Processing Technical Documents:
Channel Routing:
- Routing Option: A/B/C/D/A+B/A+C/B+C
Gain:
- General Gain: -53 to 0dB
- Channel Gain: -33 to +9dB
Frequency Cut:
- Cut-Off Frequency: 20Hz - 20KHz
- Type of Cuts: Linkwitz-Riley / Butterworth / Bessel
- Attenuations: 6/12/18/24/36/48 dB/8 degrees
Input Equalizer (EQ in):
- Equalization Band: 31 Bands
- Gain: -12 to +12dB
Channel Equalizer (EQ Channel):
- Equalization bands: 8 parameter per channel
- Gain: -12 to +12 dB
- Q Factor: 0.6 - 9.9
Time Alignment (delay):
- Time: 0 to 18.95 ms
- Distance: 0 to 6500mm
Limiter:
- Threshold: -53 to +6dB
- Attack: 1 to 200ms
- Release: 1 to 988ms
Polarity Inversion (Polarity):
- Inversion: 0 or 180 Degrees
Memory (Preset):
- Memories: 3-100% Configurable
Product Dimensions:
- Length: 4.5"
- Width: 5.75"
- Height: 1.5"
- Weight: 13.6 oz
App Instructions:
If you are downloading the Android App, your phone may require additional permissions to install this file. Search "How to install apk files on my ____ android phone" online, fill in the blank with your phones model.
- Download the app from the QR Codes in the owners manual or from the download links on the manufacturer website.
- The default password for the DSP is 000000 - to set a new password, just enter any password other than 000000. If you forget your own password, press and hold the reset button for 15 seconds to reset the device to factory settings. (This will also reset all of your settings saved in the app.)
