AZDOME Dash Cam 3" Car Camera, FHD 1080P WiFi App Video DVR Recorder, G-Sensor ADAS 150° Wide Angle, 24H Parking Mode Loop Recording Time-Lapse, Night Vision Fatigue Driving Reminder, Simple Installation, M17
About this item

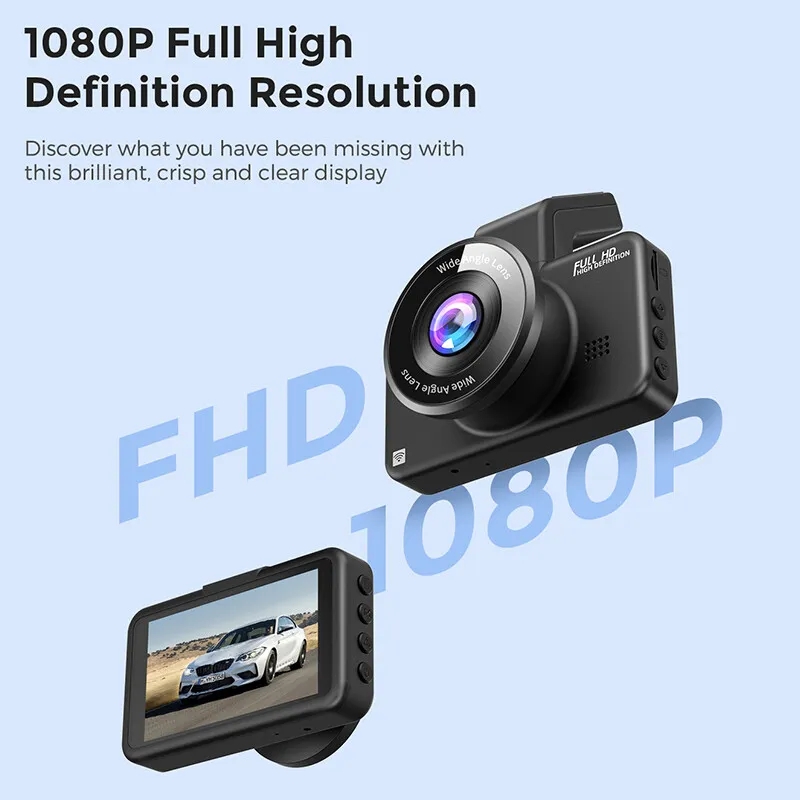

【1080P Full High Definition Resolution & 150° Wide Angle】
1080P resolution provides more pixels to make the recording video screen clearer and delicate. Small elements such as details and text can be displayed more clearly, which is very important for us to capture the license plate or event details. 1080P can also provide better picture quality at night or low light conditions. 150° Wide Angle View allows you to see every corner of the lane and learn about the situation around the car, reduces blind zone and captures virtually everything in front of your car, providing you and your vehicle with all round protection.
 |  |
【Built‒In WiFi With Free AZDOME App】
With the AZDOME APP, you can: View Live Video streaming within 10-ft of the camera, View your previously recorded videos, Download any recorded videos, Play the video and watch the video as the tracker on google maps simultaneously. Share any of those videos with friends and family on social media such as YouTube, Facebook, Instagram, Twitter, Pinterest, TikTok, and many more. You can even change settings easily from the AZDOME App.
【ADAS】
System detects line marking on the road surface and warns the driver of unintentional lane departures; when the car gets close enough that there is a risk of collision, sounds an alarm and displays a visual alert.
*ADAS may not perform as expected due to factors such as bad weather and road conditions.
*ADAS System has its limitations, and no safety system can prevent all accidents. Please drive carefully at all times.
 |  |
【24-Hour Parking Monitoring】
AZDOME M17 dash cam offers 2 parking modes:
1. Collision Detection Parking Mode:If the dashboard camera's G-Sensor detects a collision or a hard hit to the vehicle, and the impact force reaches the set G-Sensor level, the camera turns on > then starts recording 15-20s minute of continuous video, and saves and locks the video in the EMR folder > then the camera turns off.
2. Time-Lapse Parking Mode:If someone hits your car, and the impact force reaches the set G-Sensor level, the camera starts locking the current loop of the time-lapse video clip, and saves and locks the video in the EMR folder > then returns to the time-lapse 1fps recording mode.
(To avoid fire, our product does not install a large capacity battery, so if you want it to work for you when the car is parked, you need to install a hard wiring kit. If you need it, you can buy it from this link: https://www.ebay.com/itm/256487988715)
【Loop recording/G-sensor】
When the SD card is full, it will cover the previous video file to continue the recording. Built-in G-sensor detects a sudden shock or collision, the camera will automatically lock video, which will not be covered by the loop recording.
 |  |
【Super Night Vision】

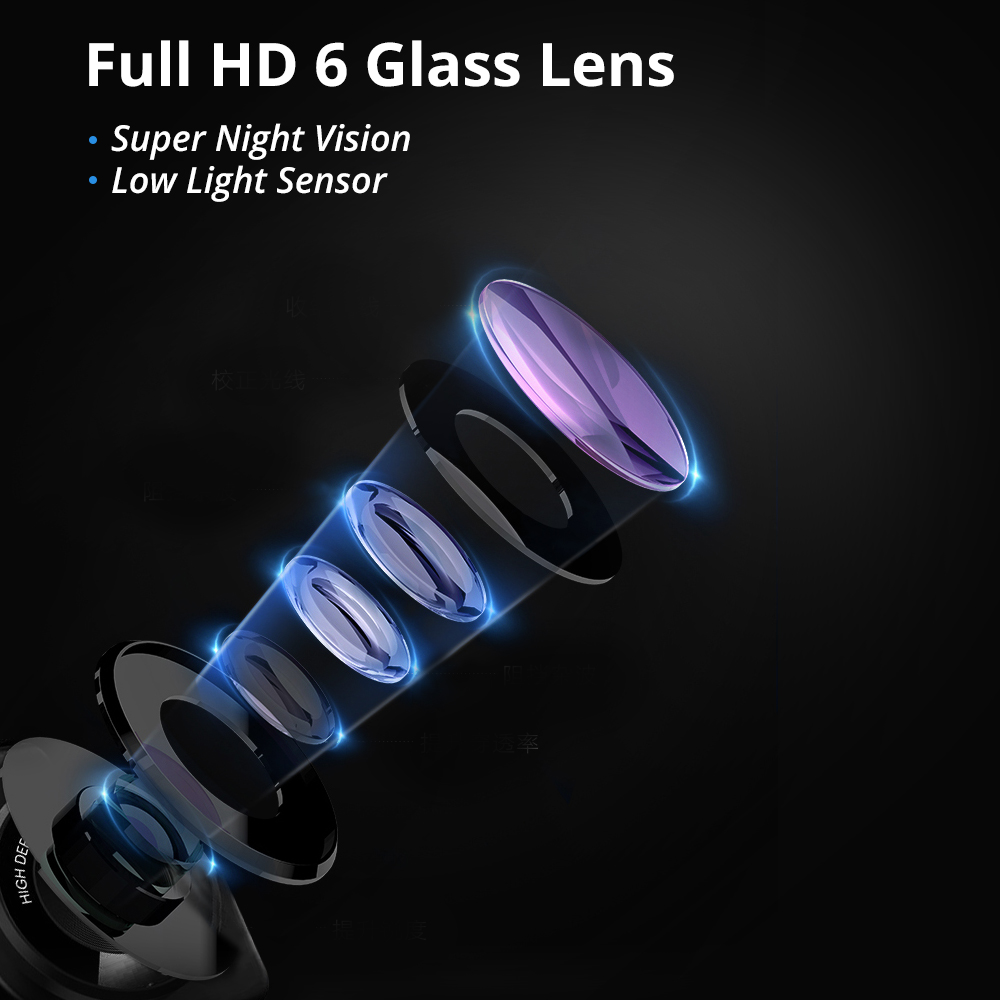

Equipped with a 6-element glass lens with an F2.0 aperture, the M17 observes the road and automatically increases exposure to capture clear video footage in dark environments. It is a reliable guardian of your car, day or night.
 |  |
Specifications:
| Model | M17 | View Angle | 150° |
| Hersteller | AZDOME | Video Resolution | 1080P |
| Number of Cameras | 1 | Power Interface | 5V/1.5A |
| WiFi | Support | Voice Control | Support |
| Aperture | F=2.0 | Memory card | Max support 128GB (Class10,U3 Speed. Not included) |
| G-Sensor | Support | Microphone | Support |
| Color | Black | Speaker | Support |
| Language | English/日本語/ Deutsch /Français/EspaÃol / Italiano/ Pyccknn.etc | Battery pack | Built in Super Capacitor |
| File Format | MP4/JPG | Working temperature | -20°C to 70°C (-4°F to 158°F) |
| Product Dimensions | 3.54 x 2.17 x 0.59 inches | Item Weight | 12.3 ounces |
1. Be sure to format your SD card with your dash cam for the first time use, Recommend to reformat it Monthly. Max Support: 128GB (Not included). Avoid fake memory card.You can buy SD card from this link: https://www.ebay.com/itm/256057831845 .
2. Battery is mainly used to save files in emergency. Please always connect Dash Cam to external power while it is in use.
3. At AZDOME, our goal is to continue working hard to provide you with innovative hardware & software for the camera to give you that personalized experience. We offer updates for camera firmware, software, iOS & Android app improvements regularly for FREE.
4. This dash camera for cars is backed by full 1-YEAR WARRANTY. You can text us for (Faster Response) or Email our customer service and we will answer all your questions and resolve any issues quickly. If you are having any doubts, it comes with a FULL REFUND within 30 DAYS.
5. You can install it yourself according to the instructions in the manual without hiring a professional, which can save you installation costs.

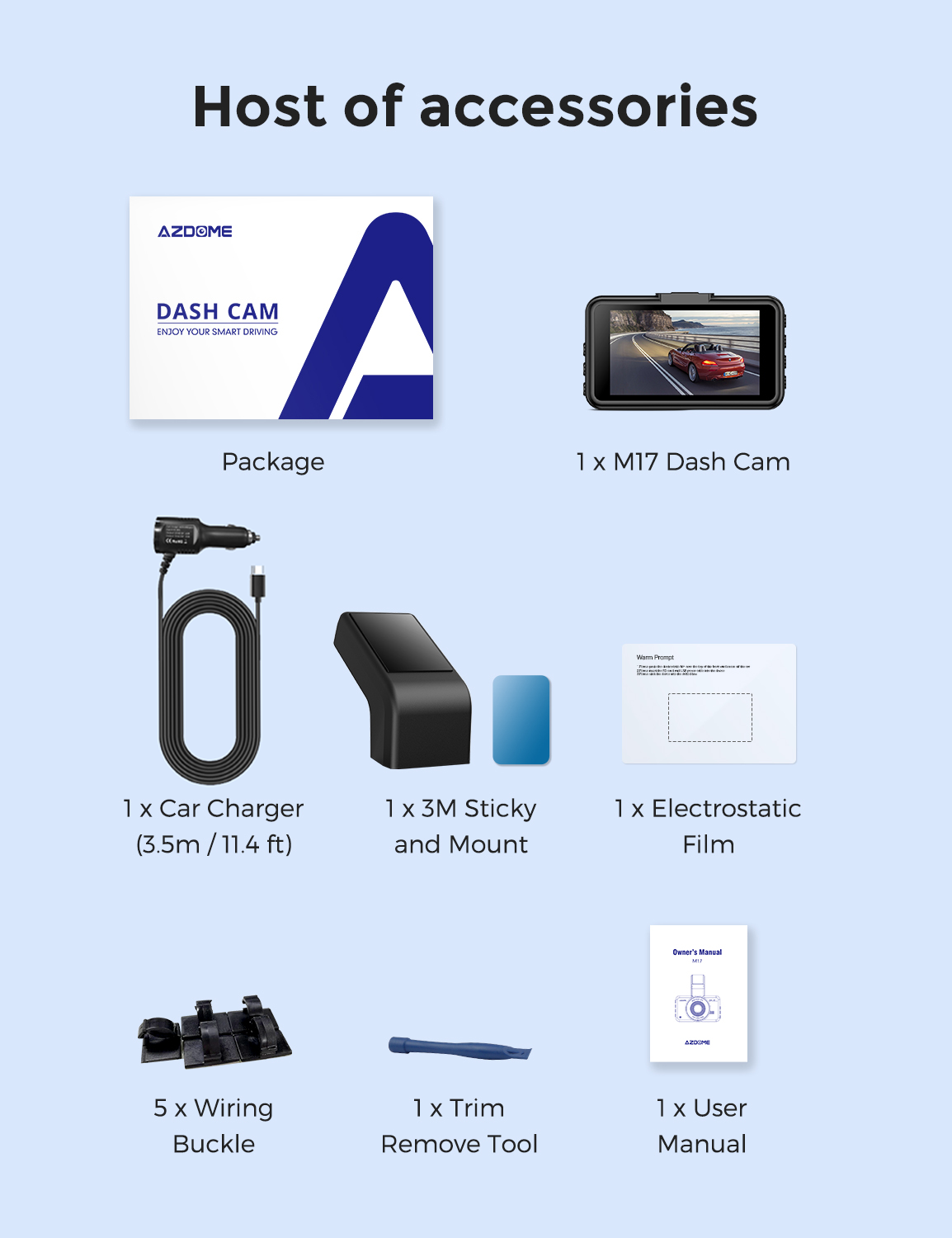

M17 Standard Packaging List:
M17 Dash Cam x1
Mount x1
Car Charger x1
USB Power Cable (3.5m/12ft) x1
Cable Clips x5
Pry Tool x1
Adhesive x1
Electrostatic Sticker x1
User Manual x1

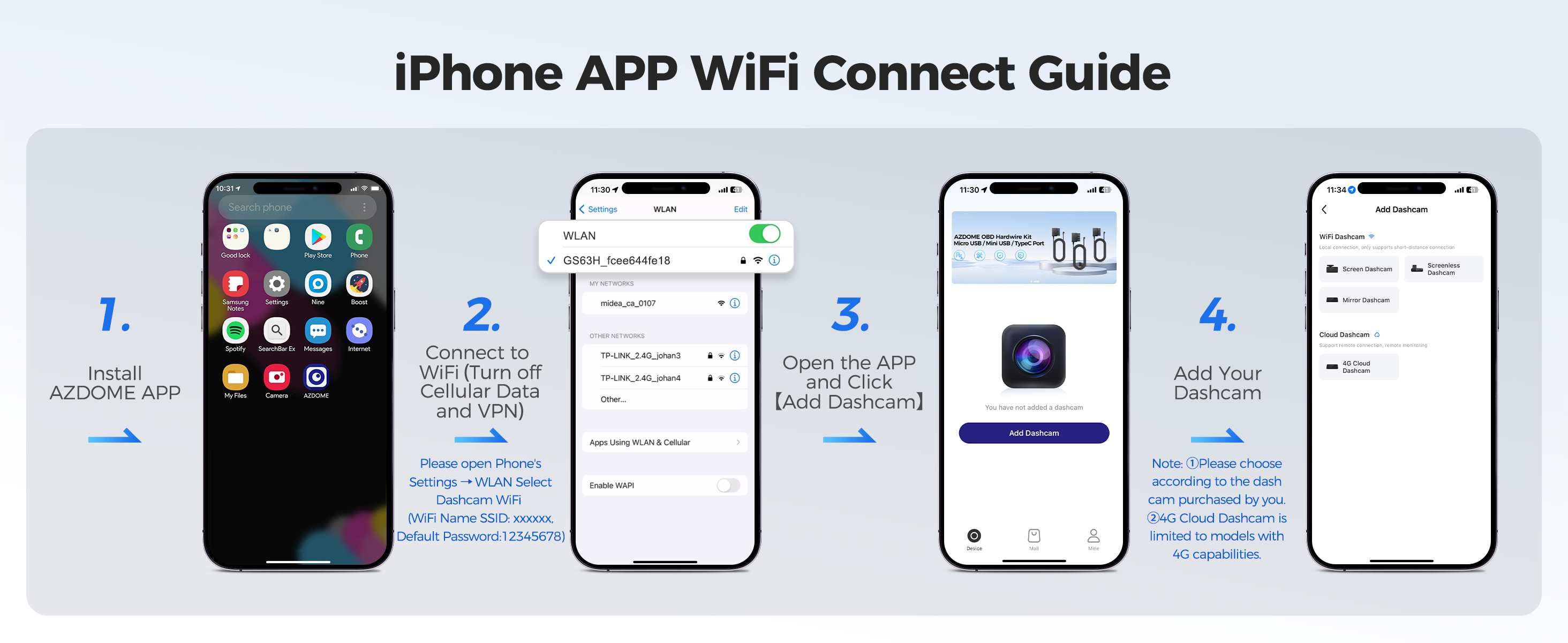

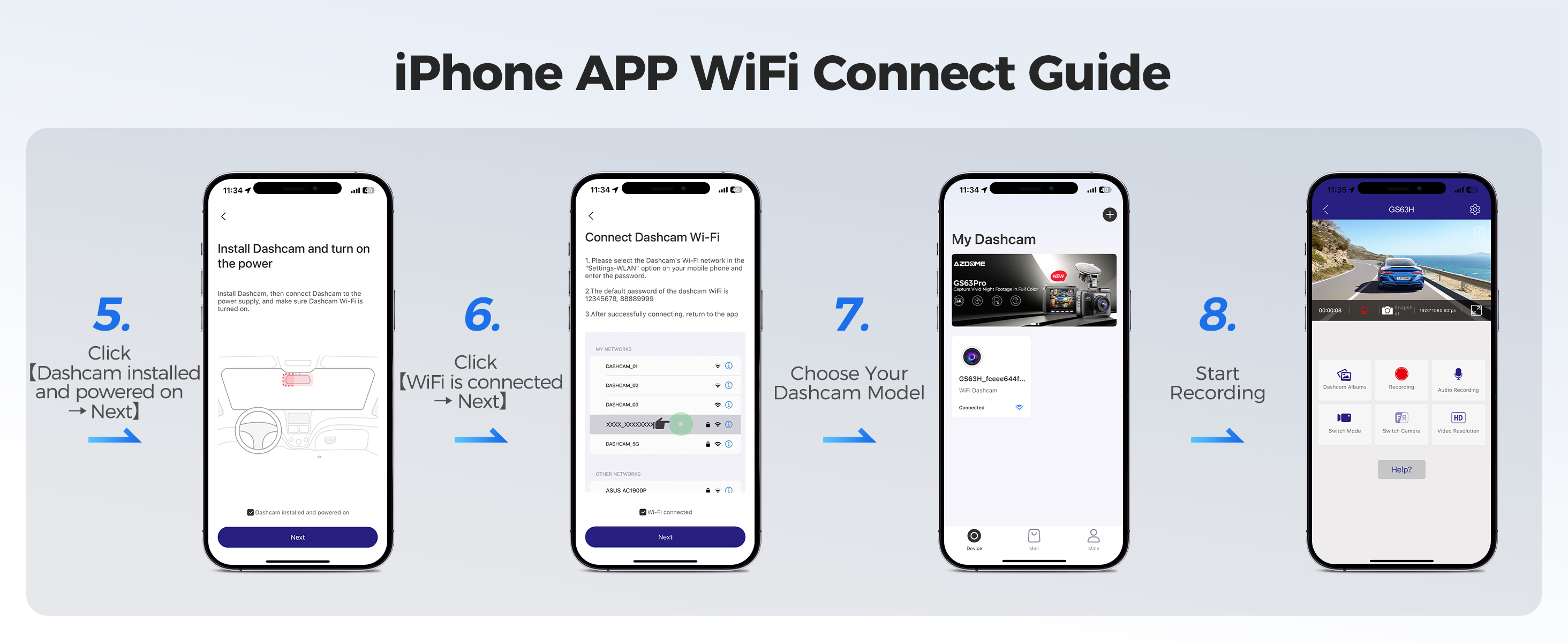

How to connect to WiFi？
The content of the following two pictures and videos can help you to connect the WIFI of the car recorder, if there are more questions about this step, please contact customer service, thank you!
Questions and Answers
Q1: Camera does not turn ON?
A:1.Use the Mini USB Cable and your smart phone's USB charger. Now plug it into your home's 110V wall outlet.
2. When you plug it in, the camera should turn ON. If NOT, then press the Power Button Once to see if it turns ON? If it still does NOT turn ON, then remove the memory card.
3. Keep the camera plugged in. Now Press the RESET bution (Located at the botiom) ONCE with a pen's tip or a paper clip. Now the camera should turn ON. If it still doesn't turn ON, then please CONTACT US.
Q2: Camera turns ON / OFF frequently automatically?
Please reset your camera. Try updating the firmware again to see if this fixes the issue. If still having issue, please reach out to customer care.
Q3: Error/Message“Card Full”
A:Format card by going into system setings> format>0K> Select Format> 0K. Then Go to Video Mode setings>Loop Recording>Choose either l-min, 3-min, 5-min. This will allow loop cycle function to be turn ON and it will keep recording over and over. NOTE: Formating will delete all the data from the memory card.
Q4: My oldest video files are missing?
A:Your AZDOME Dash Cam has Loop Cycle Recording.When it is set to either 1, 3 or 5-mins, it will delete oldest files and record newer files over and over when the memory card is full. To test again: Set the date and time correctly, then FORMAT the memory card, then do the continuous recording test again and check if all videos are present.
Q5: Camera gets HOT?
A:It is normal for your camera to run slightly hot. Due to it is recording video at high speed, the dash cam may be hot during using. (no more than 158°F/70°C).
Q6: Video is fuzzy?
A:Please make sure the lens of the camera is clean and there is no dirt or grease on the windshield also. If the lens is out of focus, we are extremely sorry in advance. This can be a manufacturing defect. Please send us an email with a screenshot or a sample video so we can get this resolved for you ASAP.
Q7: Camera Locks many videos automatically?
A:Please make sure you change your G-sensor setting. If you choose higher setting then it can trigger even with smaller bump. This setting depends on type of car or truck you are driving and how much vibration your car/truck is creating based on suspensions and road condition.
