Note:
The machine we including the tax fee and delivery fee together(USA stock),So this is the price directly to your address price to USA.
Others country we would paid the delivery fee,there is no delivery fee too.
1.Video Show
YouTube
Video will open in a new window
Using the eBay App? Paste link into a browser window:
2.Introduce

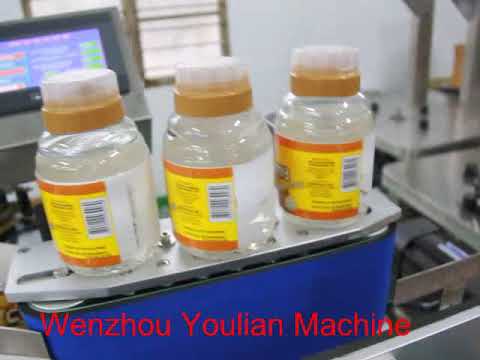

MT-200 model vertical round bottle non-dry tape marking machine, in order to achieve rationalization of production target and design. Labeling process automation, simple operation, the production speed is quick, labeling position, beautiful, neat, For foodstuff trades etc circular vessels labeling.
Second, working principle and structural features
Will different packing objects into labeling machine belt conveyor, by driving a bottle into the bottle conveying institutions, continuous motion by depending on fiber detected after bottle, photoelectric signal transmission to PLC, by PLC output signal processing will lose to the stepping motor, the standard of stepping motor, through the rolling institutions will stick son, tag labeling of objects by labeling machine conveyor belt into the next procedure or containers.
3.Specifications
|
Model |
MT-200 |
|
Power Supply |
220V 50HZ（110V For US With transformer） |
|
Label Length |
0.78"-7.8"（20-200mm） |
|
Label width |
0.39"-4.33"（10-110mm） |
|
Conveyor width |
4"(101.6mm) |
|
Round bottle diameter |
0.98"-3.93" (25mm-100mm) |
|
Bottle height |
2.95"-11.8 (75mm-300mm) |
|
Paper roll diameter (maximum) |
11.8"( φ300mm) |
|
Inside of paper roll |
2.99"（φ76mm） |
|
Labeling speed (maximum) |
80-100PCS /min |
|
Labeling precision |
±1mm |
|
Machine size (L *W* H) |
78.74" X 35.43" X 56.3" (2000*900*1430 mm) |
|
Packing size (L *W* H) |
82.67" X 39.37" X61" (2100*1000*1550mm) |
|
Machine Weight |
330Ib(150kg) |
|
Packing Weight |
440Ib(200kg) |
|
Package |
|
