ASI120MM Mini/120MC-S color/120MM-SGuide Star Astronomy Camera 1/3 inch USB2.0

 Camera Sensor

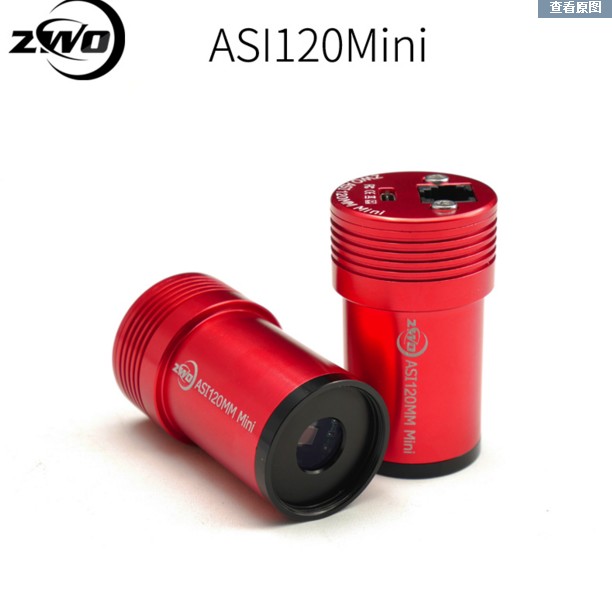

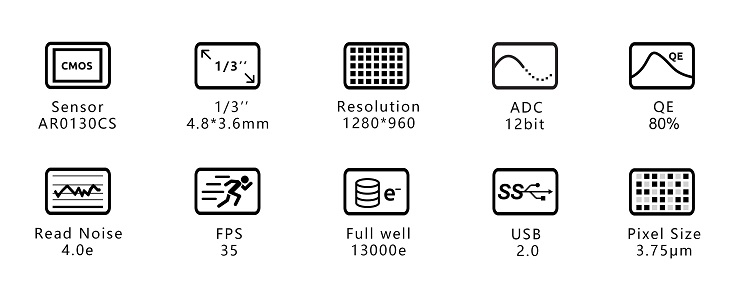

ASI120MM Mini camera integrates AR0130CS 1/3″ sensor (4.8 mm x 3.6 mm). It is ZWO new mini camera. This camera has 1280 x 960 pixels. The pixel size is 3.75 μm x 3.75 μm.  This camera provides 12bit ADC and its QE peak is about 80%.

Astrophotography Performance

ASI120 mini camera offers you very good performance for planetary imaging and guiding. Low read noise, high dynamic range, QE peak 80%, AR protective window and much more.

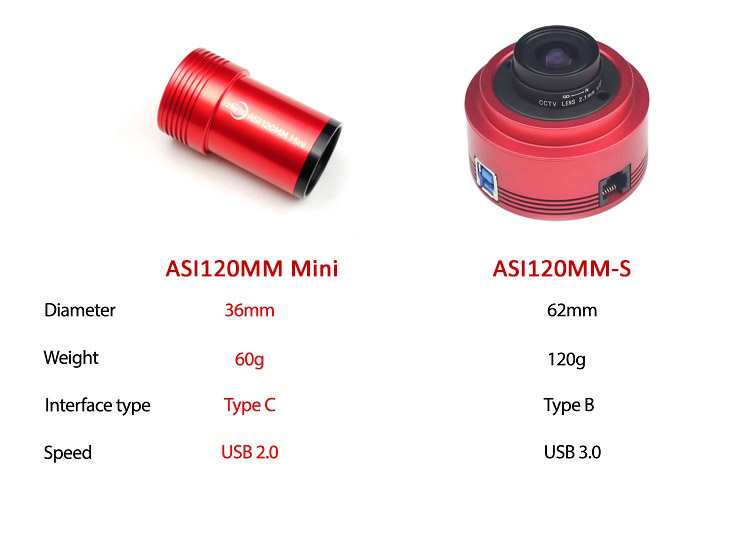

120Mini VS 120MM-with eyepiece.S

Compared with ASI120MM-S camera, 120mini have smaller outlook, lighter weight, and it can reach focus at same position

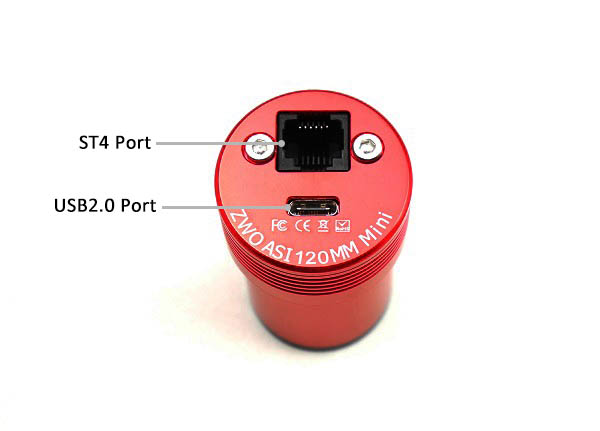

USB2.0Port & ST4 Port

USB 2.0 Port: Mini camera has one USB2.0 type C port. Type C port is very popular in mobile phones, it will not care about positive side and negetive side of the adapter.

ST4 Port: Can connect mini camera direct connect to auto guide port of mount.

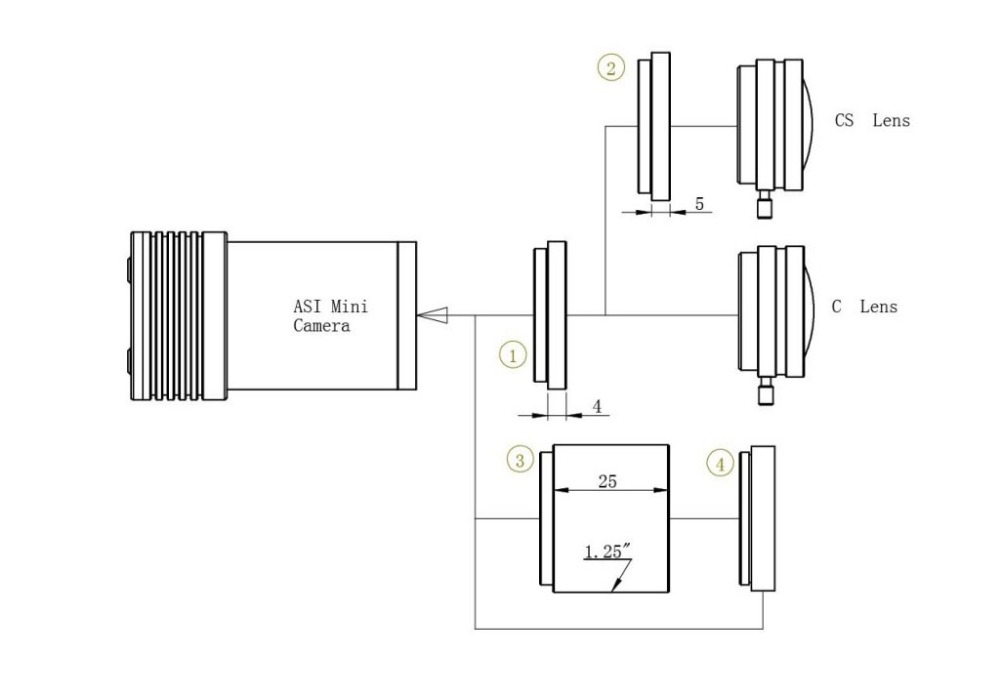

Connecting Diagram

  1.M28.5-CS adapter

  2. CS-C adapter

  3.1.25″ extender

  4.1.25″ filter

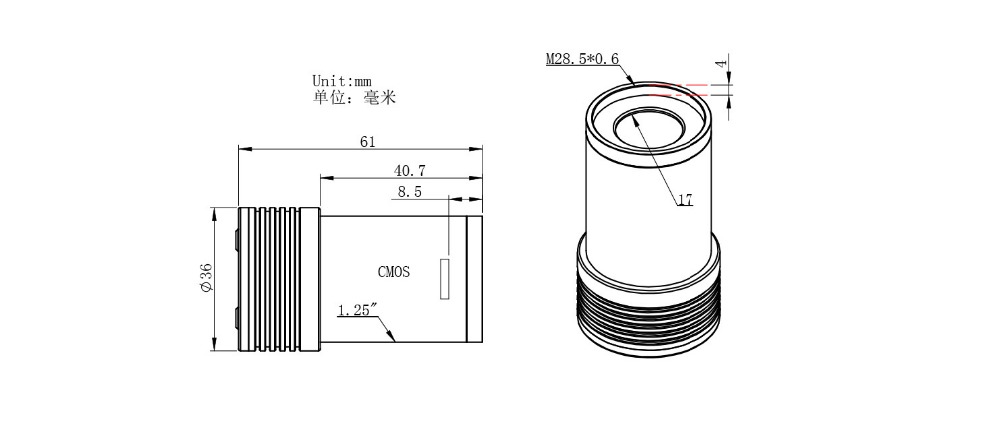

Mechanical Diagram

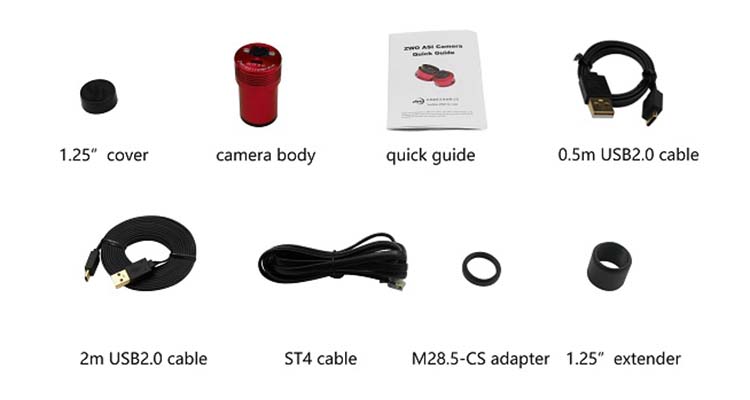

Factory accessories
