- Network to DMX controller.
- Six DMX ports.
- Art-Net III support (unicast and broadcast).
- E1.31(sACN) multicast network protocol.
- Works with all Art-Net and sACN compatible software, both free & commercial. (FreeStyler, Madrix, Jinx, LoR(E1.31) ..........)
- Up to 6 output or up to 6 input DMX 512 ports.
- Management web server for the controller settings.
- 10/100 Ethernet port.
- 7V-24V or 5V power supply. Note: check the voltage of your strip!
- Size: 145 x 90 x 50 mm. Weight: 170 grams. Installation on DIN rail 35 mm.
- Art-Net, E1.31 compatible software. FreeStyler, Madrix, Jinx,...
- miniNET5V sACN,ART-NET9 universe to SPI and DMX controller
- Art-Net to 6 DMX controller.
- Art-Net to 12U spi led controller.
- Art-Net to 9520 led controller.
Video: how connect to the FreeStyler.
Video: how connect to the Madrix and creation of the LED display 25 x 20 pixels..
Art-Net controller input test (DMX-WorkShop).
Art-Net input test for Madrix.
Art-Net and sACN (E1.31) to WS2812, WS2812B, WS2801 chip
This controller can be used together with:
DMX to SPI controller for chips WS2812, WS2812B, WS2801
DMX 3 channels decoder + to WS2812, WS2812B chips
DMX to SPI RGB RGBW pixels combination controller

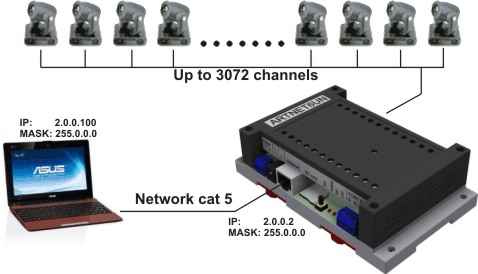

Examples one controller.

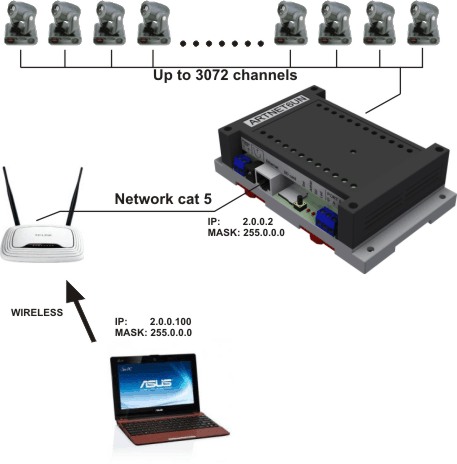

Examples Wireless.

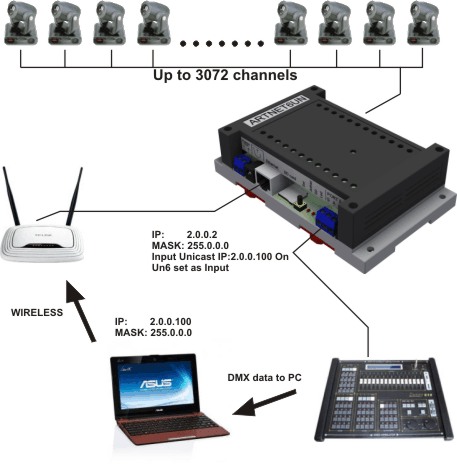

Examples output-input.

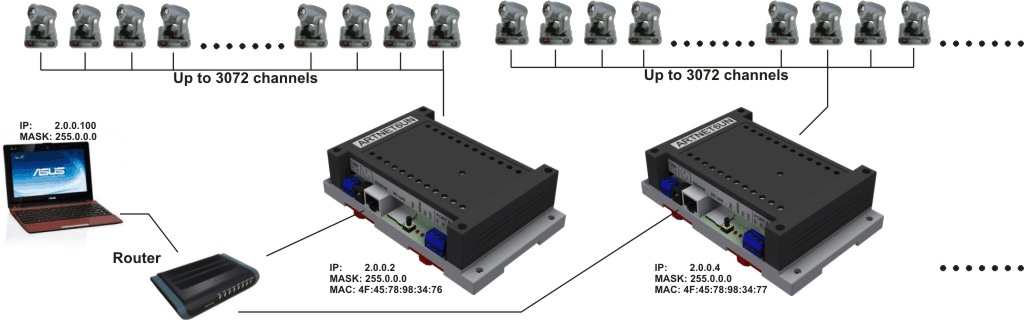

Examples one or more controller.

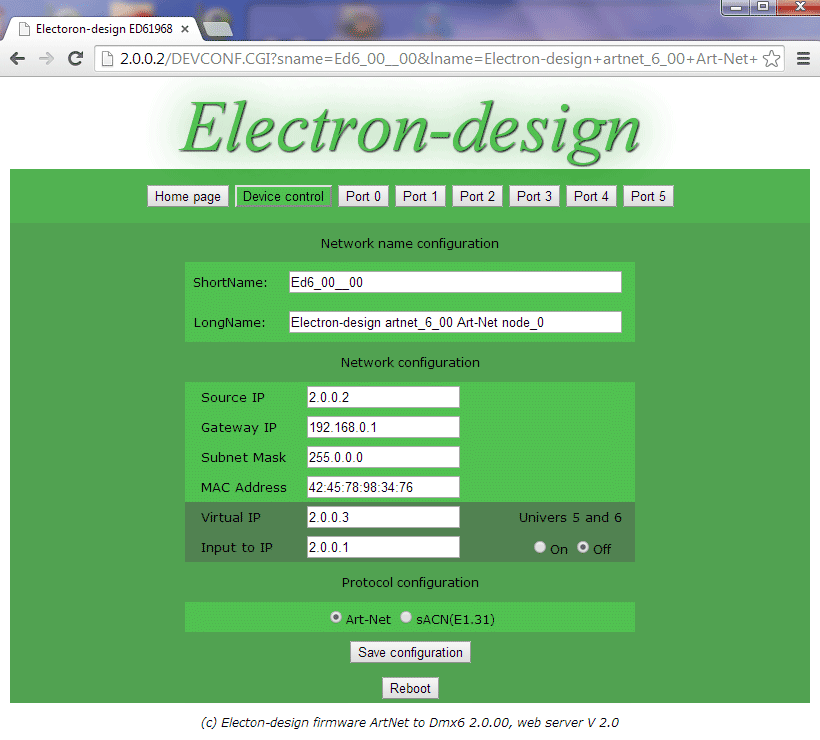

Device configuration page.

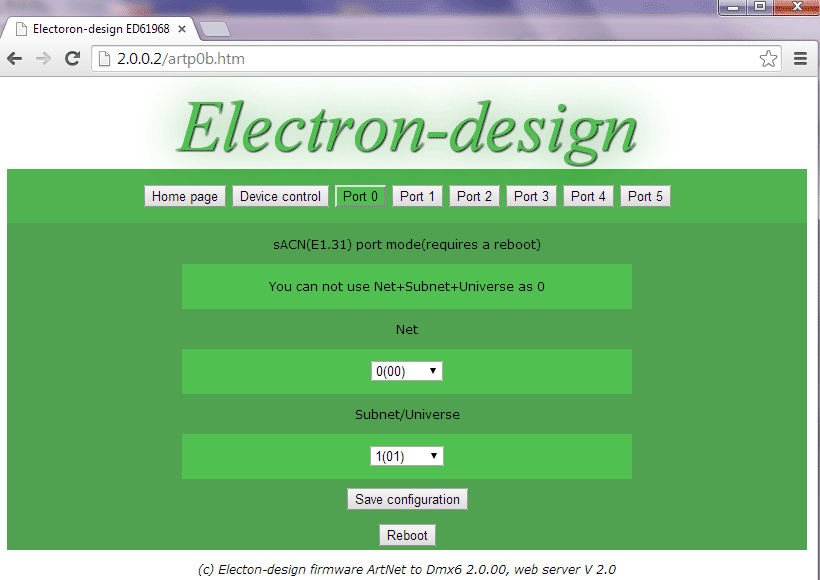

Port configuration page.

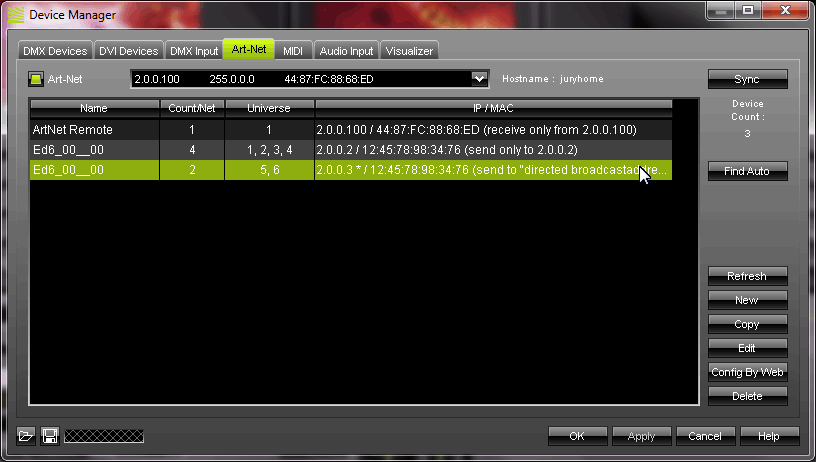

Madrix ArtNet device manager.

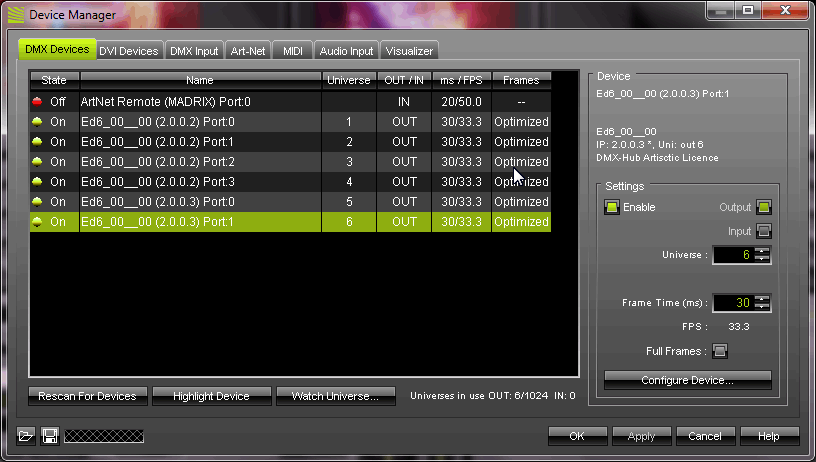

Madrix DMX device manager.
Madrix and ACN (E1.31).
Package included :
1x Controller
Shipping
Our shipping cost includes the cost of the packaging box, the materials used to protect the product and/or all other materials used during the processing of the product, residential shipping fee, and handling fee.
The package will arrive in 3 work days generally after your payment received.
PaymentBefore you bid, we want to let you know that we accept Paypal Only. Please pay for it as soon as possible after you win the bid. We would send it out in the 3 work days.
Return Policy
We guarantee refund cash in 7 days. But the buyer should afford the shipping charges.
Our Guarantee
100% brand new
100% speed shipment
100% customer satisfaction
I can create any controller for you!
