This Item Has A Current Calibration!
|
|
|
|

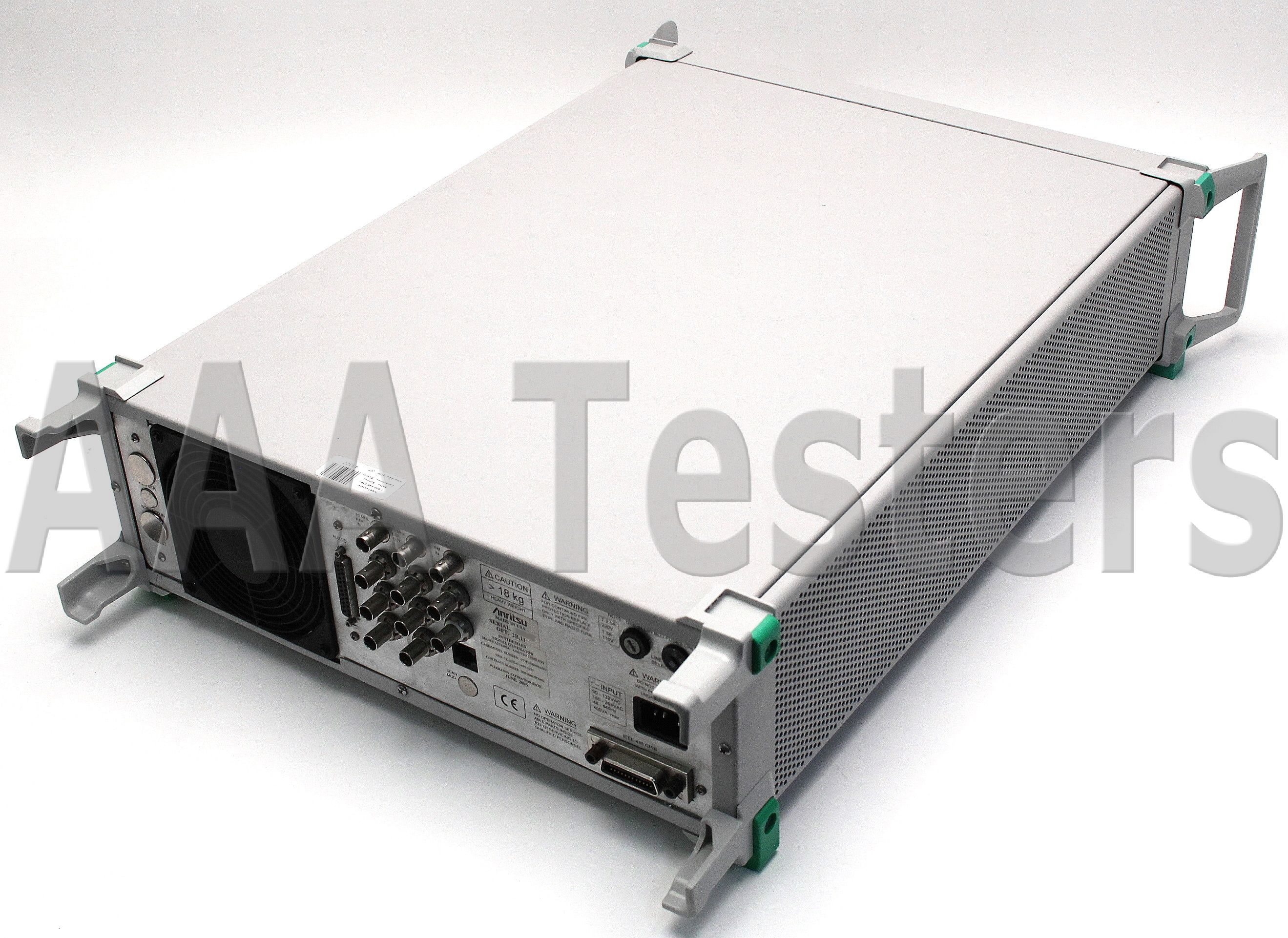

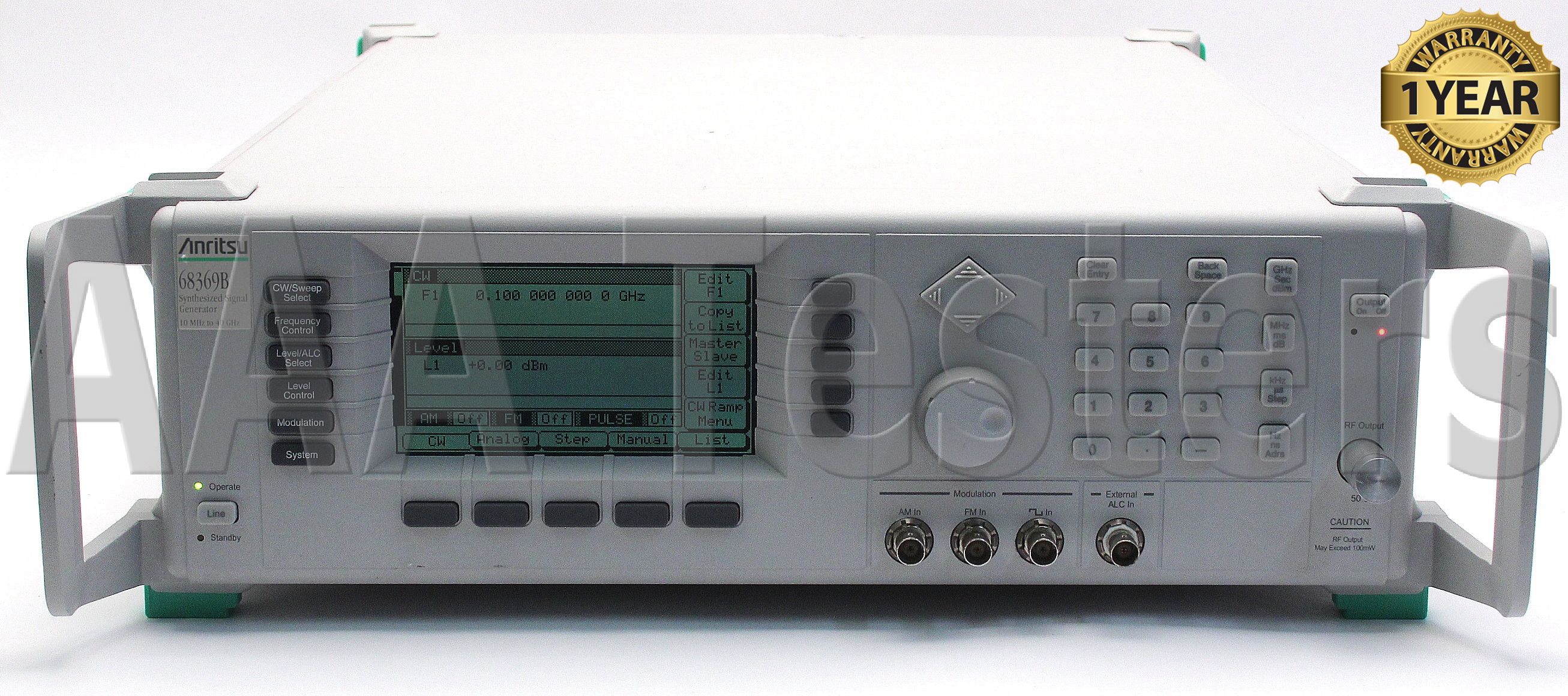

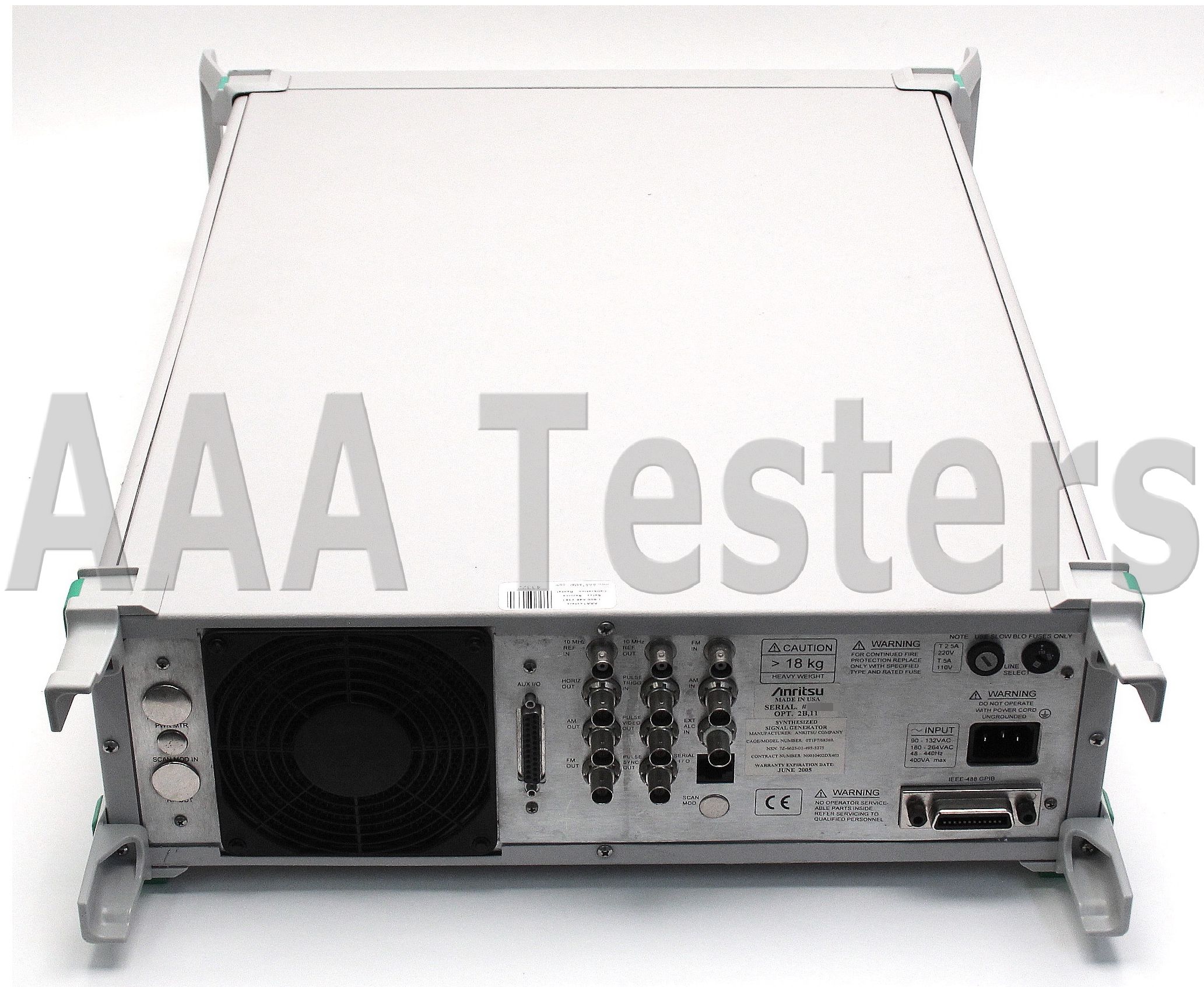

Anritsu 68369B Signal Generator
Installed Options:
- Option 2B: Step Attenuator
- Option 11: 0.1 Hz Frequency Resolution
Frequency Range: 10 MHz to 40 GHz
Includes Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY
Anritsu 68369B Signal Generator
A microwave synthesizer for any application
Anritsu Wiltron’s El Toro microwave synthesizers present 80 models, providing you the right synthesizer for your LO duty, component analysis, signal simulation, or A.T.E. applications. The 69A family, with the lowest Single Sideband (SSB) phase noise available, provides the ultimate performance at moderate cost, and includes models with unprecedented 0.01 to 65 GHz frequency coverage.
Features
- 120 models for perfect fit to any application
- Ultra-low SSB phase noise; –100 dBc at 10 kHz offset from 10 GHz
- Waveguide extensions to 110 GHz
- Economical upgrades
- +17 dBm maximum power, –125 dBm minimum power
- Internal AM, FM, øM, pulse modulation
- User down-loaded complex modulation
Applications:
- CW stimulus
- The 69000A/68000B Synthesized CW Generators feature 10 MHz to 65 GHz frequency coverage. CW or step sweep, low SSB phase noise and spurious signals, output levels to +17 dBm, and optional 0.1 Hz resolution combine to make these sources ideal for local oscillator replacement applications. To meet requirements that expand over time, economical upgrades are available to any higher performing model. For the most demanding CW requirements, the 69000A and 68000B provide the ultimate in performance.
- Swept measurements
- The 69100A/68000B Synthesized Sweep Generators feature 10 MHz to 65 GHz analog, step, and manual sweep capability. Output levels to +17 dBm and optional 0.1 Hz resolution are available at prices comparable to CW only sources. To meet requirements that expand over time, economical upgrades are available to any higher performing model. Features, performance, and value combine to make the 69100A and 68100B the optimum sources for your network analysis and swept A.T.E. source applications.
- High performance modulation for signal simulation requirements
- The 69200A/68200B Synthesized Signal Generators provide AM and FM via external modulating signals or internal arbitrary waveform generators. The internal generators offer 7 modulating waveforms, including Gaussian noise, as well as user-defined arbitrary waveforms. Pulse modulation parameters can be set externally or by the internal pulse generator. Doublet, triplet, or quadruplet pulses make RADAR blind spot testing easy. Simultaneous synchronized modulations let you set complex signal scenarios across the entire 10 MHz to 65 GHz frequency range.
- Complete synthesized modulation and sweep capabilities for any signal requirement
- The 69300A/68300B Synthesized Sweep/Signal Generators provide all the capabilities of our CW generators, sweep generators, and signal generators in a single package. The 69300A is the highest performance universal synthesized signal generator available today.
Specifications:
| Frequency |
| CW mode |
Output: Twenty independent, presettable CW frequencies (F0 to F9 and M0 to M9)
Accuracy: Same as internal or external 10 MHz time base
Internal time base: With aging: <2 x 10–8/day (<5 x 10–10/day with Option 16)
stability With temperature: <2 x 10–8/˚C over 0˚C(<2 x 10–10/˚C with Option 16)
Resolution 1 kHz (0.1 Hz with Option 11)
Switching time <40 ms to be within 1 kHz of final frequency (typical maximum) |
| Phase-locked step sweep mode |
Sweep width: Independently selected, 1 kHz (0.1 Hz with Option 11) to full range. Every frequency step in sweep range is phase-locked.
Accuracy: Same as internal or external 10 MHz time base
Resolution: (Min. step size) 1 kHz (0.1 Hz with Option 11)
Steps Number of steps: Variable from 1 to 10000 Step size: 1 kHz (0.1 Hz with Option 11) to the full frequency range of the instrument. (If the step size does not divide into the selected frequency range, the last step is truncated.)
Dwell time per step Variable from 1 ms to 99 seconds
Switching time <15 ms +1 ms/GHz step size or <40 ms, whichever is less (typical max.) |
| Alternate sweep mode |
Sweeps alternately between any two sweep ranges. Each sweep range may be associated with a different power level. |
| Manual sweep mode |
Provides stepped, phase-locked adjustment of frequency between sweep limits. User-selectable number of steps or step size |
| Programmable frequency agility |
Under GPIB control, up to 1000 non-sequential frequencies can be stored and then addressed as a phase-locked step sweep. Data is stored in volatile memory |
| Markers |
Setting Up to 20 independent, settable markers (F0 to F9 and M0 to M9)
Video markers +5 V or –5 V marker output, selectable. AUX I/O connector, rear panel
Intensity markers Produces an intensified dot on trace, obtained by momentary dwell in RF sweep |
| Output power |
| Frequency range |
≥0.01 to <2 GHz
≥2 to ≤20 GHz
>20 to ≤40 GHz |
| Output power |
+13 dBm
+9 dBm
+6 dBm |
| Output power with step attenuator |
+11 dBm
+7 dBm
+3 dBm |
| General |
| Stored setups |
Stores front panel settings and nine additional front-panel setups in a non-volatile RAM. A system menu allows saving and recalling of instrument setups. Whenever the instrument is turned on, control settings come on at the same functions and values existing when the instrument was turned off. |
| Memory sequencing input |
Accepts a TTL low-level signal to sequence through nine stored setups. AUX I/O connector, rear panel |
| Self-test |
Instrument self-test is performed when SELF TEST soft-key is selected. If an error is detected, an error message is displayed in a window on the LCD identifying the probable cause. |
| Secure mode |
Disables all frequency, power level, and modulation state displays. Stored setups saved in secure mode remain secured when recalled. Mode selectable from a system menu and GPIB |
| Reset |
Returns instrument parameters to predefined default states or values. Any pending GPIB I/O is aborted. Selectable from the system menu |
| Master/slave operation |
Allows two 68X00B output signals to be swept with a user-selected frequency offset. One 68X00B unit controls the other via AUX I/O and SERIAL I/O connections. Requires MASTER/SAVE interface cable set (part no. ND36329) |
| User level flatness correction |
Allows user to calibrate out path loss due to external switching and cables via entered power table from a GPIB power meter or calculated data. When user level correction is activated, entered power levels are delivered at the point where calibration was performed. Supported power meters are Anritsu ML4803A and HP437B, 438A, and 70100A. Five user tables are available at up to 801 points/table |
| Warm up time (standard time base) |
From standby: 30 minutes From cold start (0<): 120 hours to achieve <2 x 10–8/day frequency stability |
| Warm up time (option 16 time base) |
From standby: 30 minutes From cold start (0<): 72 hours to achieve <5 x 10–10/day frequency stability |
| Power |
90 to 132 Vac or 180 to 264 Vac, 49 to 440 Hz, ≤400 VA |
| Standby |
With ac line power connected, unit is placed in standby when front panel power switch is released from the OPERATE position |
| Dimensions and mass |
429 (W) x 133 (H) x 597 (D) mm [5.25 (H) x 16.875 (W) x 23.5 (D) in.], ≤23 kg (50 lb) |
| RF output connector |
Type K female (≤40 GHz models), Type V female (>40 GHz models) |
For full Anritsu 68369B Signal Generator product specifications, please click here: 68369B
|
|
|
|
