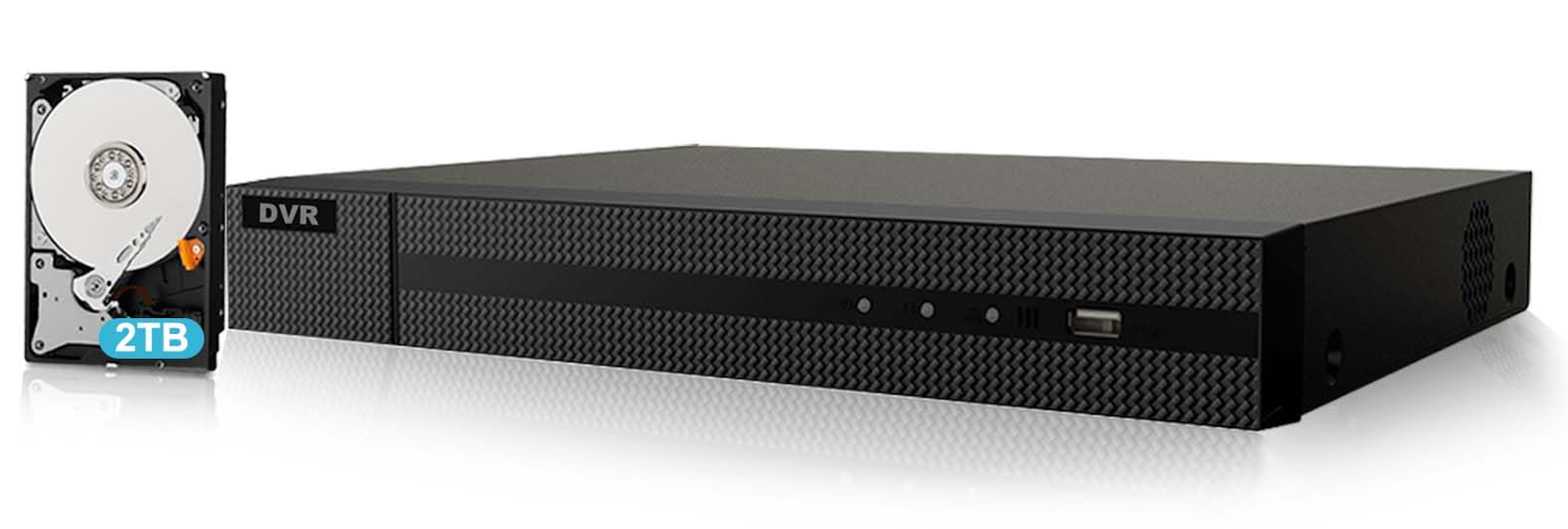

Anpviz H.265+ 8CH DVR AI 5-in-1(Analog/AHD/TVI/CVI/IPC) HIKVISION OEM W/2TB HDD

Slide Slide Slide Slide Slide Slide
$179.9
Brand
Hikvision
Type
Audio Intercom
Number of Zones
8
Maximum Resolution
2048x1536
Model
DVR208Q-M1-N-2TB
Connectivity
BNC
Storage Capacity
2TB
Surveillance Technology
AHD
condition
New



Key Features of this DVR


  • AI-Powered Human/Vehicle Detection：Utilizes deep learning-based Motion Detection 2.0 to accurately classify humans and vehicles, minimizing false alarms from non-critical movements (e.g., leaves, lighting changes). Supports smart event search for rapid playback.
  •

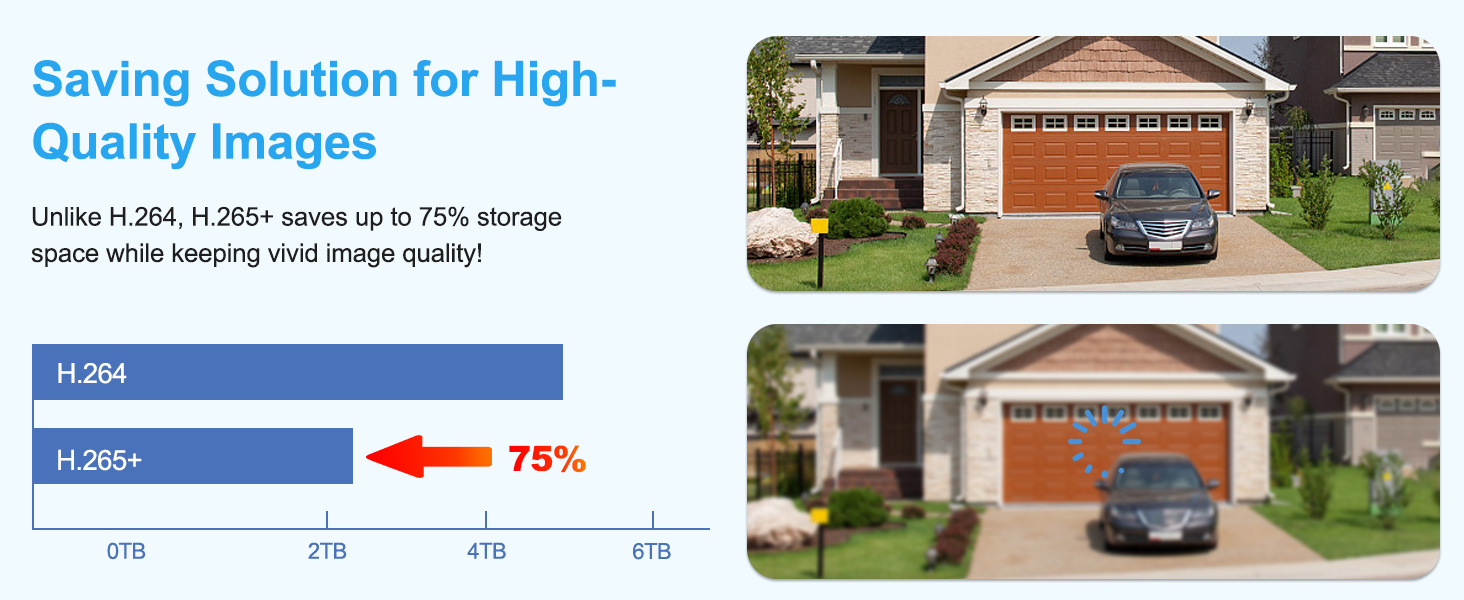

  • Ultra-Efficient H.265 Pro+ Compression：Reduces storage costs by 50%+ compared to H.264 while maintaining 1080p@15fps clarity. Compatible withH.265+/H.265/H.264+/H.264 formats for seamless integration with existing cameras.
  •

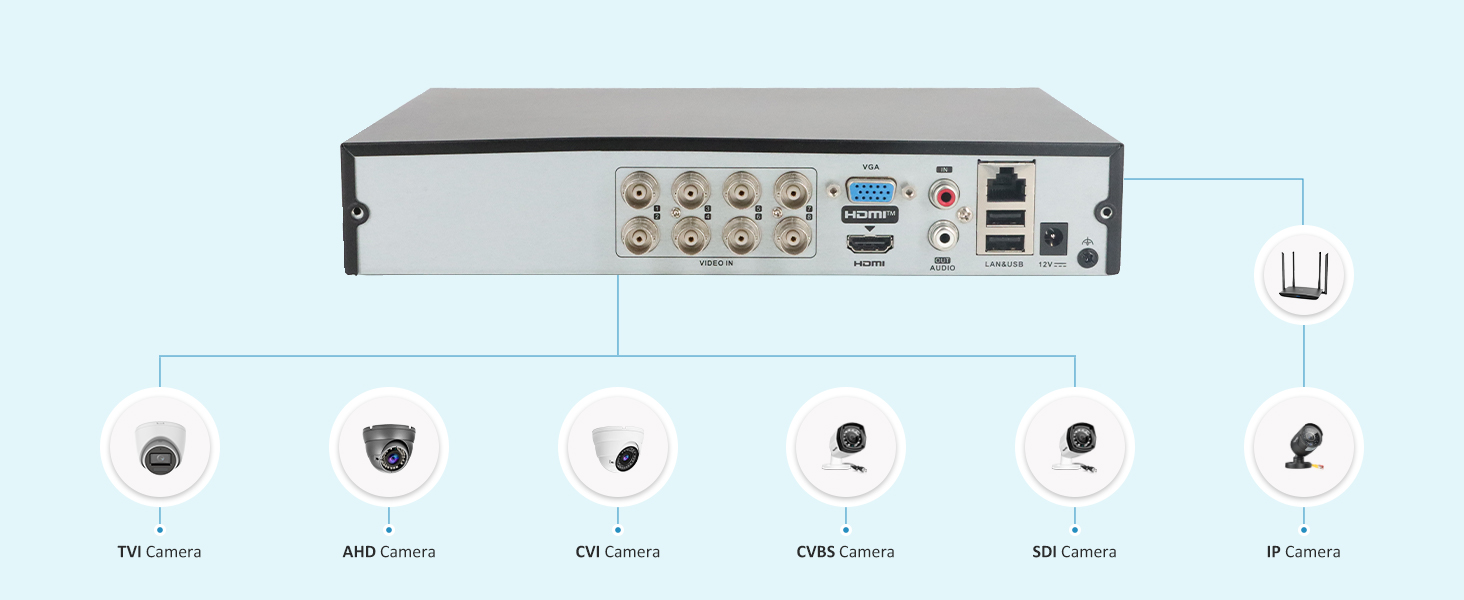

  • Hybrid 12CH Input & 6MP Resolution Support：Connects up to 12 IP cameras (6MP max) and 8 analog cameras (HDTVI/AHD/CVI/CVBS). Enhanced IP mode enables 4–12 channels at 4 Mbps bandwidth each, ideal for high-resolution surveillance.
  •
  • 10TB HDD Storage & Smart Playback：Expandable storage via 1 SATA interface (supports 10TB HDD). Features smart search by time, event type, or object for efficient forensic review.
  •

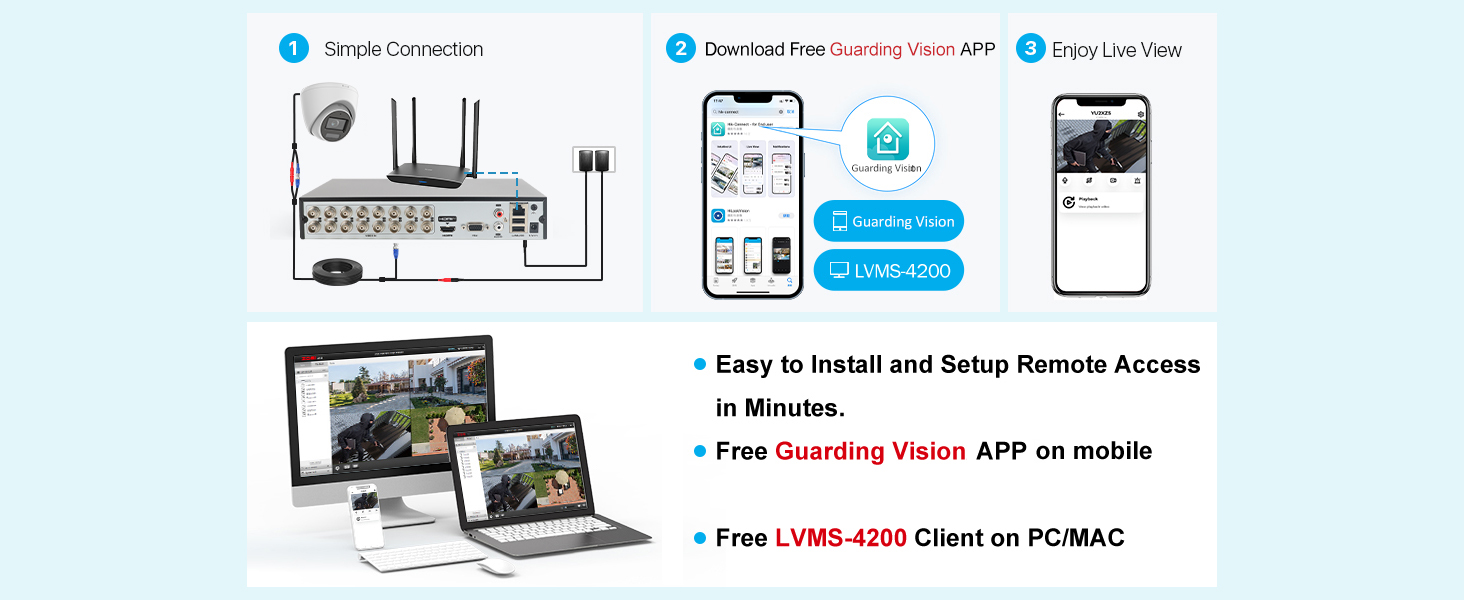

  • Remote Access with All Devices ： Link the DVR to a router and download Anpviz Viewer App to control it remotely. Access the DVR via 3G/4G/5G or smartphones, tablets, computers and browsers (Google Chrome, Firefox, Microsoft Edge, Internet Explorer, etc.)












 Specifications

NVR
Video & Audio Video Compression H.264+/H.264/H.265/H.265+ IP Video Input 8CH PoE
Video Output HDMI up to 4K, VGA up to 1080p Audio Input/Output 1/1 RCA
Incoming/outgoing Bandwidth 80/80 Mbps ON-VIF Protocols Support
Max Recording Resolution Up to 12MP(4096 X 3072) Max Playback Resolution Up to 12MP(4096 X 3072)
Max Playback Channel 8CH Max Playback Capacity 1-ch@12 MP,3-ch@4 MP,6-ch@1080p
Hard Drive HDD 1 SATA Interface HDD Capacity Up to 8TB Capacity

External Interface		 Network Interface 1, RJ-45 10/100Mbps self-adaptive Ethernet interface PoE 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at
USB USB 2.0X 2
Smart Function Deep learning 8-ch Human and vehicle targets detection(Need IP camera support) Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting
detection(Need IP camera support)
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP)
General Operating Power DC 48 V Power Consumption ≤10 W (Without HDD and PoE)
Working Temperature 14 °F ~ 131 °F/-10 °C ~+55 °C PoE: Max 25.5 W for Single Port
Dimensions (W X H X D) 12.4” X 9.4” X 1.9”/315 X 240 X 48 mm Weight (Without Hard Disk)  2.2 lbs/1 kg
