Air-Operated Double Diaphragm Pump 2" Inlet Outlet Petroleum Fluid 140GPM

$475.99
Brand
Unbranded
MPN
YBGMBQBY4-50L0001
Type
Diaphragm pump
Suction
0-10 m (0-32.8 ft)
Outlet Port
2 inch (50 mm)
Ball Material
Acetal
Inlet Port
2 inch (50 mm)
Air Inlet Size
NPT 1/2 inch (12.7 mm)
Manifold Connection
Single
Diaphragm Material
Nitrile
Max Flow Rate
75 GPM
Self-Priming Dry
3 m (10 ft)
Body Material
Aluminum Alloy
Max Suspended Solids
3 mm (1/8 inch)
Valve Type
Ball
Model
QBY4-50L
Self-Priming Wet
4.6 m (15 ft)
Check Seat Material
Polypropylene
Max PSI
120 psi
Average Air Consumption
38 CFM
Max Head
84 m (275.59 ft)
condition
New
Document
Product Description
Double Diaphragm Pump, Air-Operated, 140 GPM
Double Diaphragm Pump, Air-Operated, 140 GPM
Double Diaphragm Pump, Air-Operated, 140 GPM

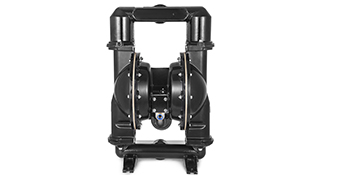

Air-Operated Double Diaphragm Pump
Aluminum Alloy Construction & Nitrile Diaphragm & 158.4 GPM Flow Rate
Our self-priming diaphragm pump features an all-bolted aluminum alloy body and double nitrile diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly.
  • Premium Double Nitrile Diaphragms
  • Sturdy & Leak-proof Construction
  • Excellent Air-operated Performance
  • Unique & Professional Designs
élévateur magnétique,100kg,jaune
Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

Key Features

  • Double Diaphragm Pump, Air-Operated, 140 GPM


    Sturdy Aluminum Alloy Body


    The shell of the air-operated diaphragm pump adopts aluminum alloy construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi.

  • Double Diaphragm Pump, Air-Operated, 140 GPM


    Nitrile Double Diaphragm


    The self-priming pump features double nitrile diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate:158.4 GPM; Max Head Lift:275.6 ft/84 m.

  • Double Diaphragm Pump, Air-Operated, 140 GPM


    Professional Air-Operated Designs


    Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 2 inch; Air Inlet Size: FNPT 1/2 inch.

  • Double Diaphragm Pump, Air-Operated, 140 GPM


    Sealed Ball Valve


    It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An “Unbalanced" air valve ensures no-stalling during operation.

  • Double Diaphragm Pump, Air-Operated, 140 GPM


    Handle Various Material


    This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on.

  • Double Diaphragm Pump, Air-Operated, 140 GPM

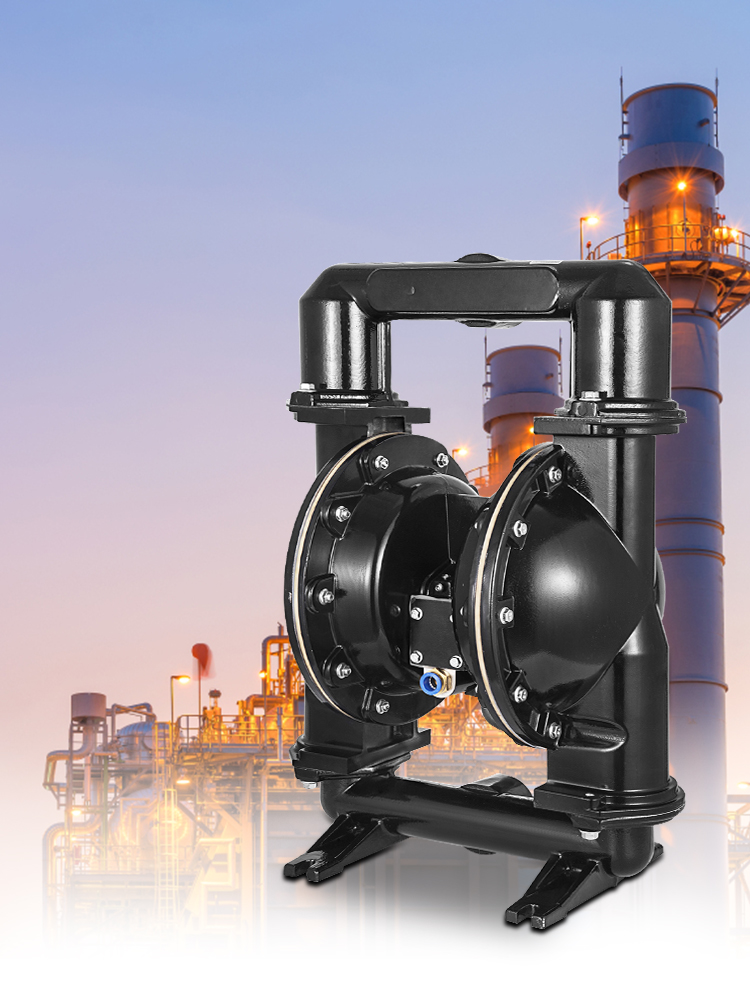

    Versatile Uses


    The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc.

Double Diaphragm Pump, Air-Operated, 140 GPM

Specification

  • Model: QBY4-50L
  • Type: Air-operated Double diaphragm
  • Diaphragm Material: Nitrile
  • Body Material: Aluminum Alloy
  • Inlet/Outlet Port: 2 inch (50 mm)
  • Air Inlet Size: NPT 1/2 inch (12.7 mm)
  • Max Flow Rate: 158.4 GPM
  • Max Head: 84 m (275.59 ft)
  • Valve Type: Ball
  • Suction: 0-5 m (0-16.4 ft)
  • Max Suspended Solids: 3 mm (1/8 inch)
  • Average Air Consumption: 38 CFM
  • Self-Priming Dry: 3 m (10 ft)
  • Self-Priming Wet: 4.6 m (15 ft)
Double Diaphragm Pump, Air-Operated, 140 GPM

Package & Content

  • 1 x Air-Operated Double Diaphragm Pump
  • 1 x Product Manual


Features & Details


  • Premium Double Nitrile Diaphragms: Our air-operated double diaphragm pump adopts nitrile diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi; Max. Flow Rate:158.4 GPM; Max Head Lift:275.6 ft/84 m.
  • Sturdy & Leak-proof Construction: The diaphragm pump housing is made of aluminum alloy material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
  • Excellent Air-operated Performance: Inlet/Outlet Port Size: 2 inch; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
  • Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
  • Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries,  such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
