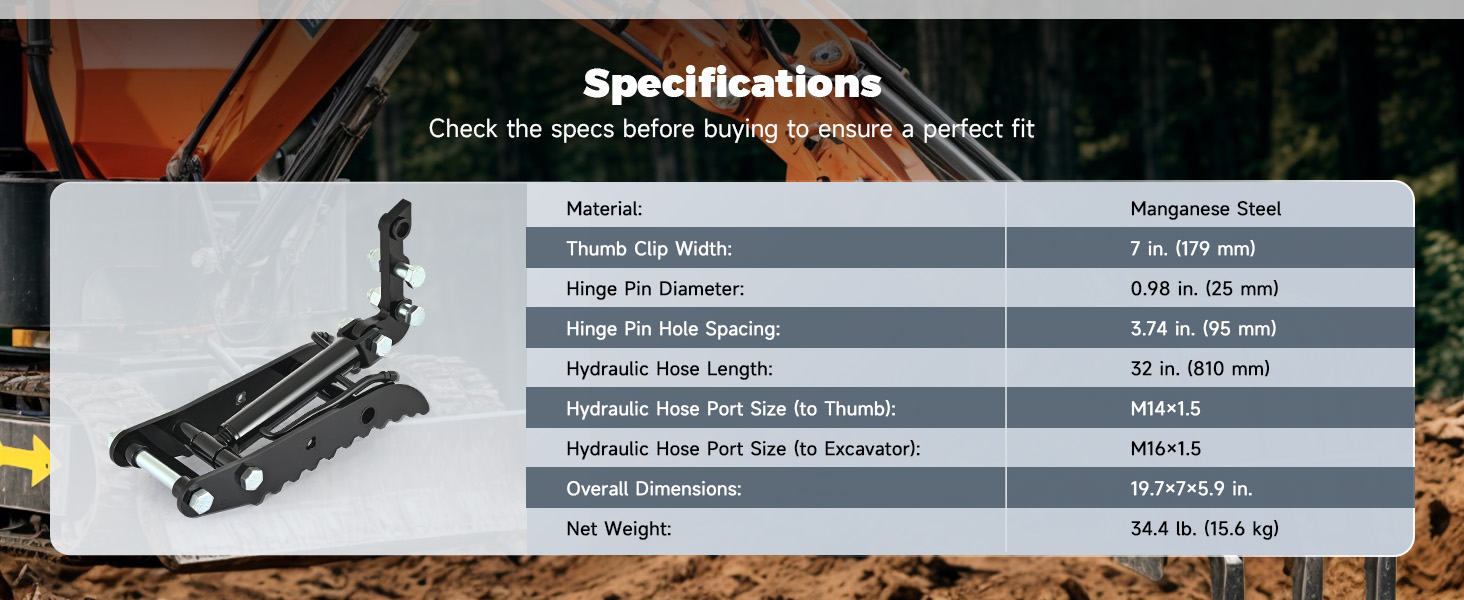

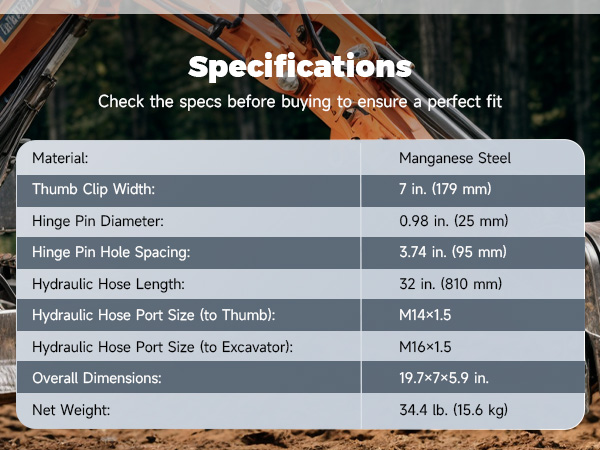

Specifications

Packing List

Material: Manganese Steel

Thumb Clip Width: 7 in. (179 mm)

Arm Pin Housing Distance: 0.98 in. (25 mm)

Span: 3.74 in. (95 mm)

Hydraulic Hose Length: 32 in. (810 mm)

Hydraulic Hose Port Size (to Thumb): M14 x 1.5

Hydraulic Hose Port Size (to Excavator): M16 x 1.5

Hinge Pin Length: 8.2 in. (208 mm)

Cylinder Pin Length: 3.3 in. (83 mm)

Locking Pin Length: 3.7 in. (93 mm)

Product Dimensions: 19.7 x 7 x 5.9 in. (500x179x150 mm)

Net Weight: 34.4 lb. (15.6 kg

1x Hydraulic Thumb

2x Hydraulic Hoses

2x M14 x 1.5 Male to M16 x 1.5 Male Thread Adapters

2x M14 x 1.5 Male to M14 x 1.5 Male Thread Adapters

1x Instructions

Features

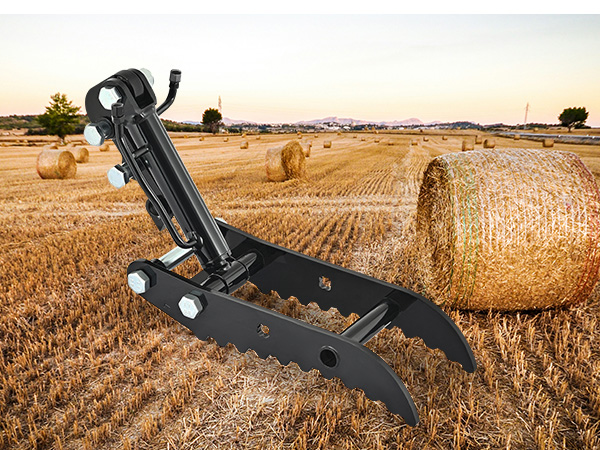

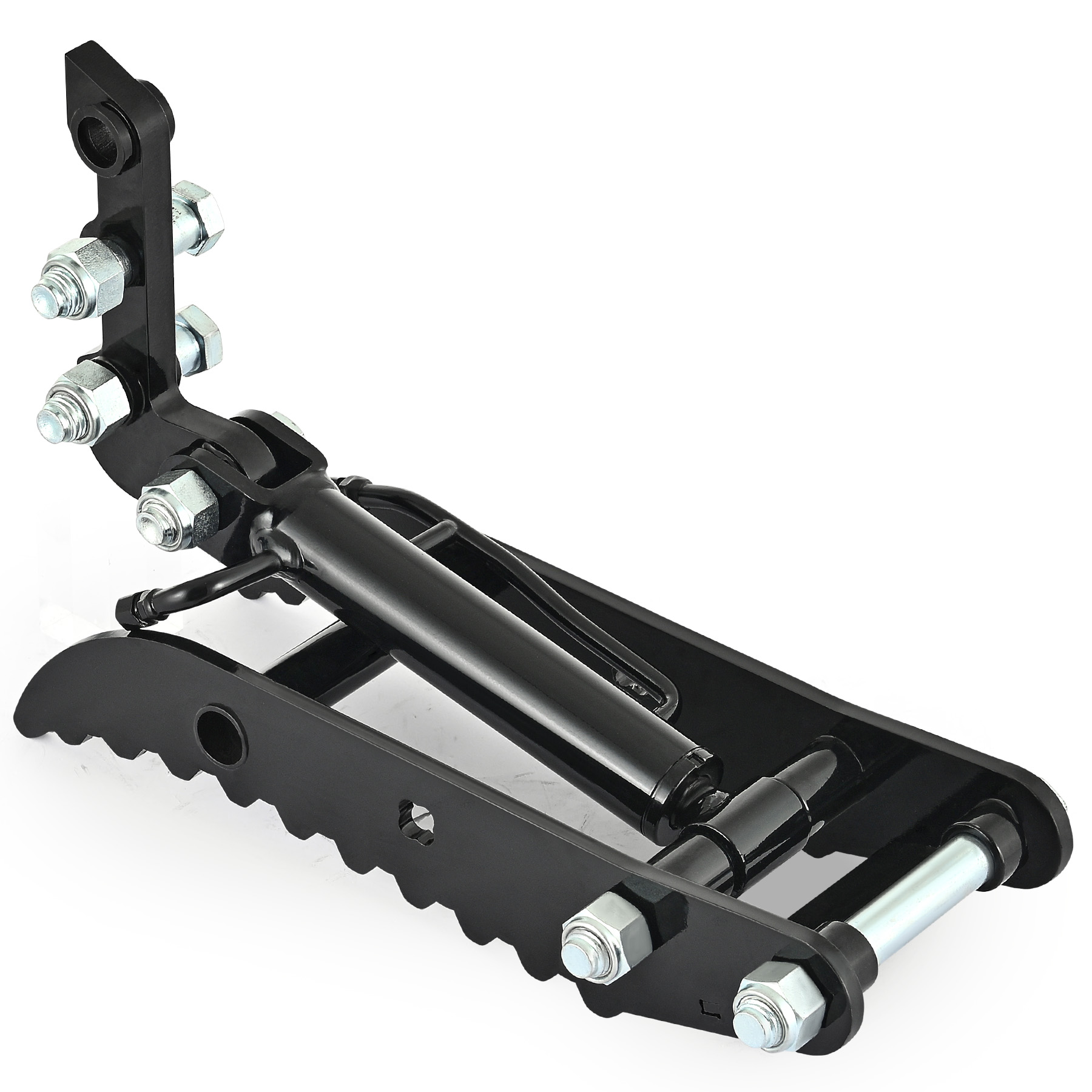

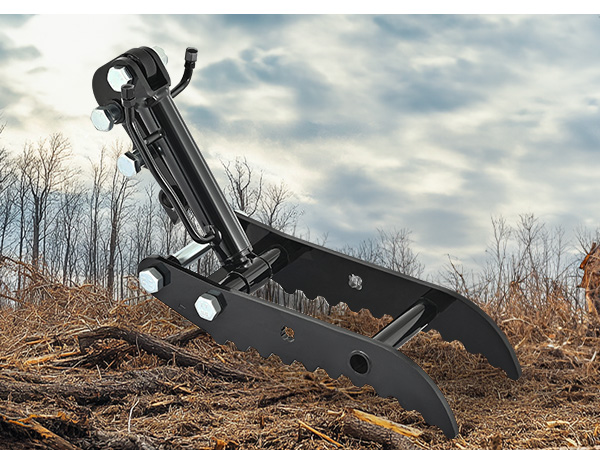

Strong Gripping Ability: This AHM hydraulic thumb clip attachment for mini excavator delivers a firm grip, securely handling heavier items and effectively maneuvering materials such as logs, rocks and debris with ease

Ideal for Mini Excavators: Our hydraulic thumb features a 3.74 in. (95 mm) span, a 0.98 in. (25 mm) arm pin housing distance, and comes with two 32 in. (810 mm) hydraulic hoses. It fits mini excavators with three locking pin holes on the arm

Built for Tough Jobs: Made from high-hardness manganese steel, this hydraulic thumb clip attachment boasts a sturdy structure, ensuring exceptional durability and wear resistance, even in demanding conditions

Wide Applications: This hydraulic thumb clip significantly enhances your machine's gripping capabilities, making it perfect for tasks such as scrap handling, debris sorting, and loading or unloading logs and rocks

Complete Attachment Kit: Everything you need for your material handling project is included in this attachment kit, from a hydraulic thumb clip attachment to hydraulic hoses, mounting screws, and thread adapters for hassle-free installation
