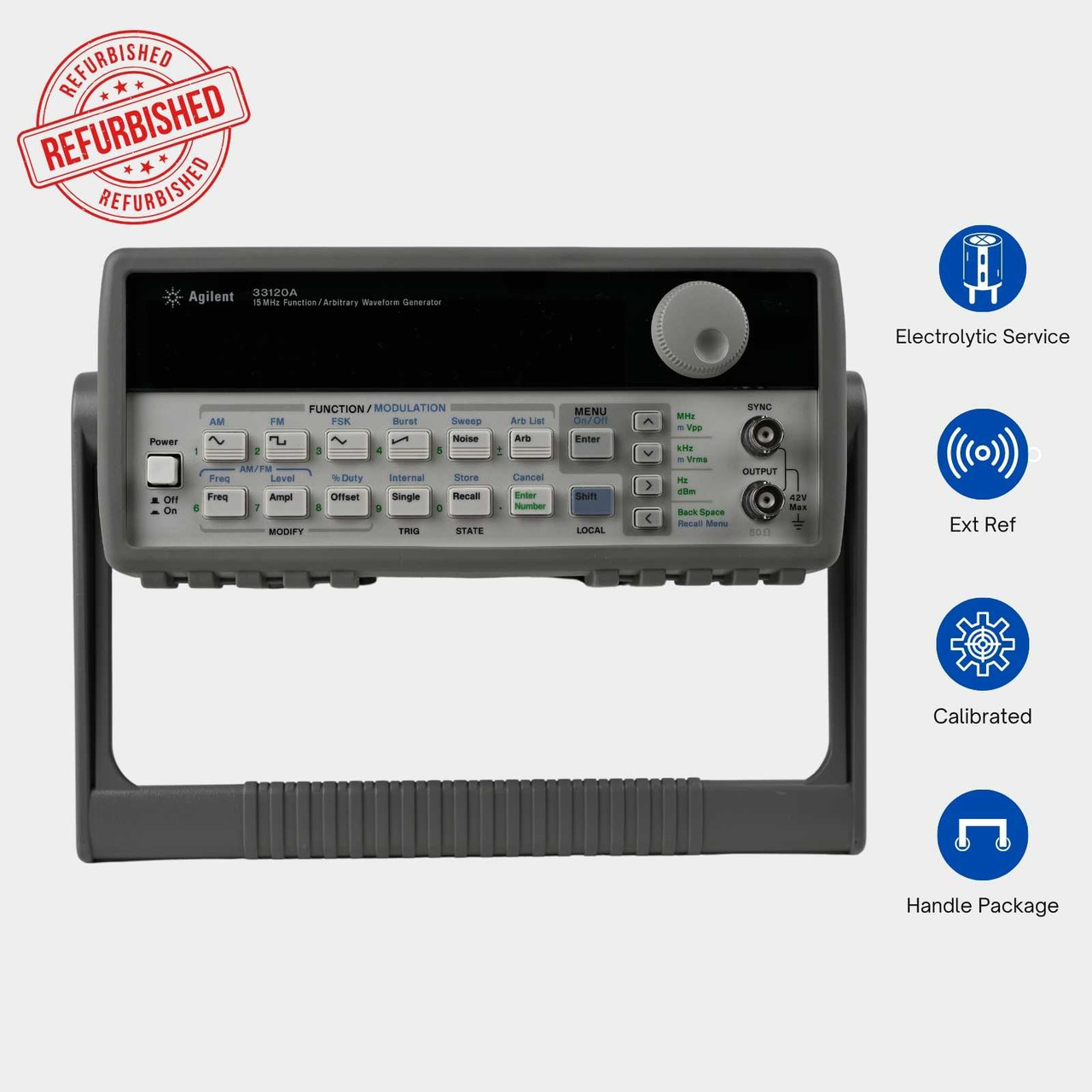

Like NEW Agilent 33120A 15 MHz Function Arbitrary Waveform Generator with OPT 001. Fully Refurbished, Calibrated, Bumper Package w/handle. Very nice unit setup for another decade of service!
Functional Condition
EXCELLENT condition. The unit has been fully tested and calibrated.
- Option 001 External 10 MHz Reference/Phase-Lock Assembly (OEM)
- The display brightness is EXCELLENT.
- All keys operational. GPIB fully tested.
- Full calibration completed and performance measurements verified. Unit is spot on to specifications.
- Includes Front and Rear bumper package, handle, power cord.
Cosmetic Condition
EXCELLENT cosmetic condition. Minor blemish on front lens. Minor scuffs and scratches on case. Refer to pictures for full cosmetic details.
Like NEW Refurbished Agilent 33120A 15 MHz Function Arbitrary Waveform Generator.
- Capacitor service completed (radial electrolytics) with high quality replacements from Mouser
- Full calibration against our NIST traceable equipment
- Front and Rear bumpers, Handle - See Product Details tab
Ready for decades more service!
Description
The Keysight Technologies, Inc. 33120A Function/Arbitrary Waveform Generator uses direct digital synthesis techniques to create a stable, accurate output signal for clean, low distortion sine waves. It also gives you fast rise- and fall-time square wave, and linear ramp waveforms down to 100 μHz.
Custom waveform generation
Use the 33120A to generate complex custom waveforms such as a heartbeat or the output of a mechanical transducer. With 12-bit resolution, and a sampling rate of 40 MSa/s, the 33120A gives you the flexibility to create any waveform you need. It also lets you store up to four 16,000-deep waveforms in nonvolatile memory.
Front-panel operation of the 33120A is straightforward and intuitive. You can access any of ten major functions with a single key press or two, then use a simple knob to adjust frequency, amplitude and offset. To save time, you can enter voltage values directly in Vp-p, Vrms or dBm. Internal AM, FM, FSK and burst modulation make it easy to modulate waveforms without the need for a separate modulation source. Linear and log sweeps are also built in, with sweep rates selectable from 1ms to 500 s. GPIB and RS-232 interfaces are both standard, plus you get full programmability using SCPI commands.
Features
- 15 MHz sine and square wave outputs
- Sine, triangle, square, ramp, noise and more
- 12-bit, 40MSa/s, 16,000-point deep arbitrary waveforms
- Direct digital synthesis for excellent stability
Items Included
33120A as pictured, Power cord (All cables and test equipment pictured not included).
See our other precision products and components at our eBay store . Also visit our online store at Castletronics.com for a wide selection of products and great prices!
3004.2
TERMS
Return Policy: Returns allowed within 30 days. The item must be returned within this timeframe and be in the same condition as it was when shipped, in its original packaging along with all accessories, manuals, etc. If the return is due to no fault by us, a restocking and shipping fee may apply. Void tags may be added prior to shipment. No refunds or returns if void tags are broken or tampered with.
Shipping Details: Castletronics ships worldwide, adhering strictly to all international laws and export regulations to ensure that our products reach you safely and legally. All precision equipment is shipped in heavy duty boxes with expanding foam packing (when available) for maximum protection of your purchase. In most cases we ship same or next day. We Ship to Confirmed Addresses ONLY. You will receive tracking information as soon as the item is shipped. eBay Signature Confirmation policy is followed for all shipments.
Auction Payments (if applicable): Payments must be made within 1 day of auction end or auction may be cancelled.
Condition Definitions
Refurbished: Full technical evaluation performed, any failed components and other service items are identified. All are professionally replaced with high quality components. We may proactively perform an electrolytic service. A full cleaning, acrylic lens replacement or full buffing performed. All functions and ranges are verified to manufacturer specifications. In most cases, calibration will be performed.
Used: Full technical evaluation performed, any failed components and other service items are identified. Replacements are professionally completed with high quality components. All functions and ranges are verified to manufacturer specifications. If calibration is performed, it will be stated in the listing. Any known issues will be stated in the listing.
All calibrations performed after >1 hour warm up period. All equipment is calibrated to a high performance GPSDO 10 MHz oscillator after 24+ hours of operation. Additional calibration equipment used (if applicable)
- NIST traceable calibrated Agilent 3458A 8.5 Digit DMM
- HP J06-59992A Time Interval Calibrator
- Keysight 33500B Trueform Waveform Generator
If NIST calibration certificate is needed, contact us for a quote prior to purchase.
