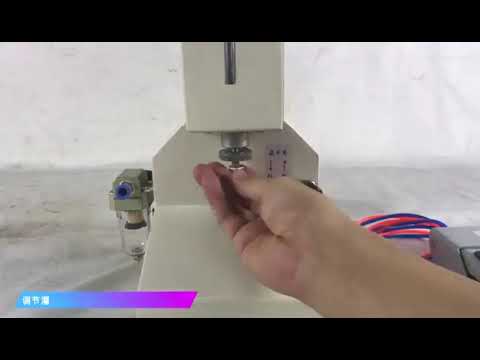

Video:

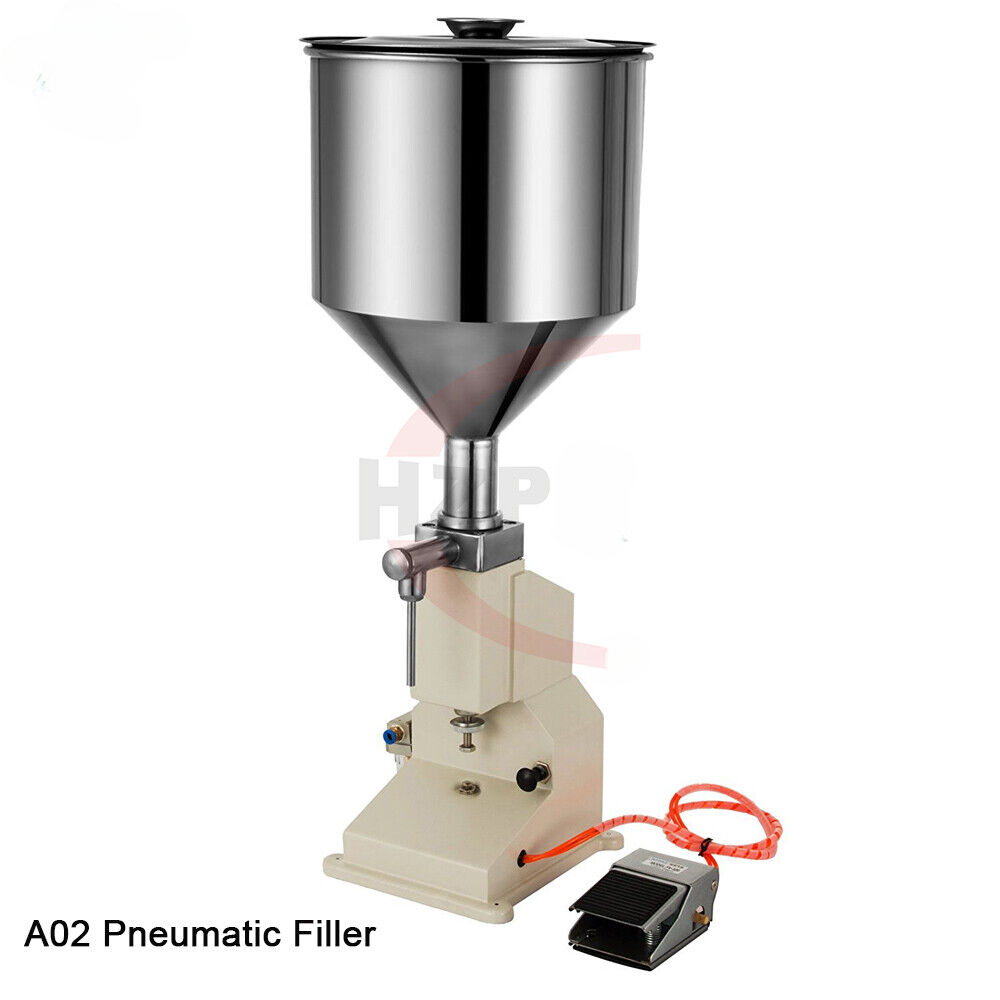

A02 Pneumatic Paste Liquid Filling Machine
Video will open in a new window
Using the eBay App? Paste link into a browser window:
Introduction:
A02 Pneumatic paste/liquid filling machine uses a piston-type structure, pneumatic filling, suitable for small doses filling of paste and liquid in laboratory, hospital, etc.
Feature:
1. All parts in contact with filling material are made of 304 stainless steel and PTFE, food grade standards.
2. 20 - 30 bottles/min (Depending on operating speed, product density, draw length, etc.)
3. Rugged rotary valve system design.
4. Piston feed adjustment.
5. Easy to operate.
6. Easy to clean and maintain.
7. Suitable for use under acidic medium, meet the food and pharmaceutical standards.
Parameters:
1. Operation Method: Pneumatic
2. Filling range: 0.17 - 1.7 oz (5 - 50mL);0.34-3.4 oz(10-100ml)
3. Capacity of hopper: 2.64 gal (10L).
4. Filling accuracy: ±1%.
5. Air pressure: 58 - 87 psi (0.4 - 0.8 MPa)
6. Food grade standards filling machine.
|
Filling Volume Range |
5 - 50 mL (0.17 – 1.7oz)
10-100ml (0.34-3.4 oz) |
|
Filling Accuracy |
±1% |
|
Capacity of Hopper |
10L (2.64 gal) |
|
Filling Nozzle Diameter |
6mm & 8mm |
|
Filling Speed |
20 - 30 bottles/min |
|
Inline Air Hose |
6mm (15/64") |
Packed size:
|
Machine Size (L × W × H) |
13" × 13" × 30" (330 × 330 × 770mm) |
|
Machine Weight |
26.5 lb (12kg) |
