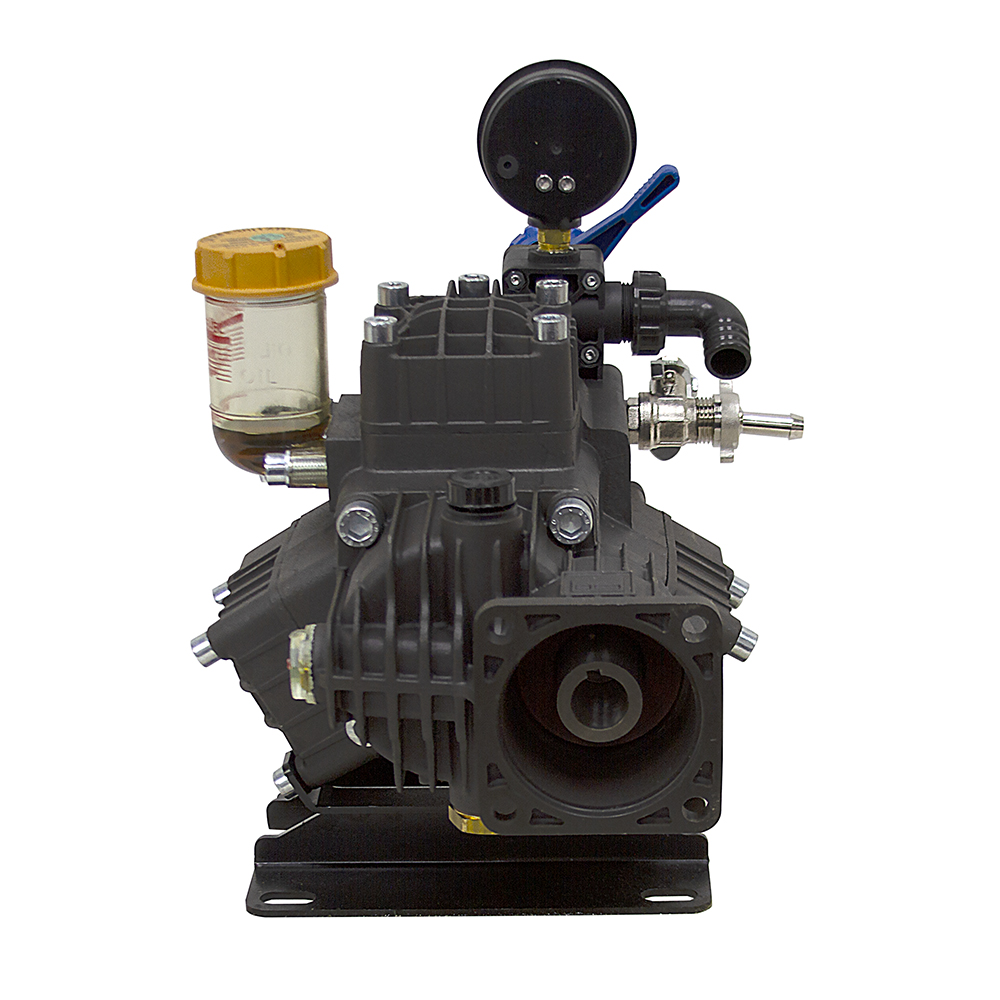

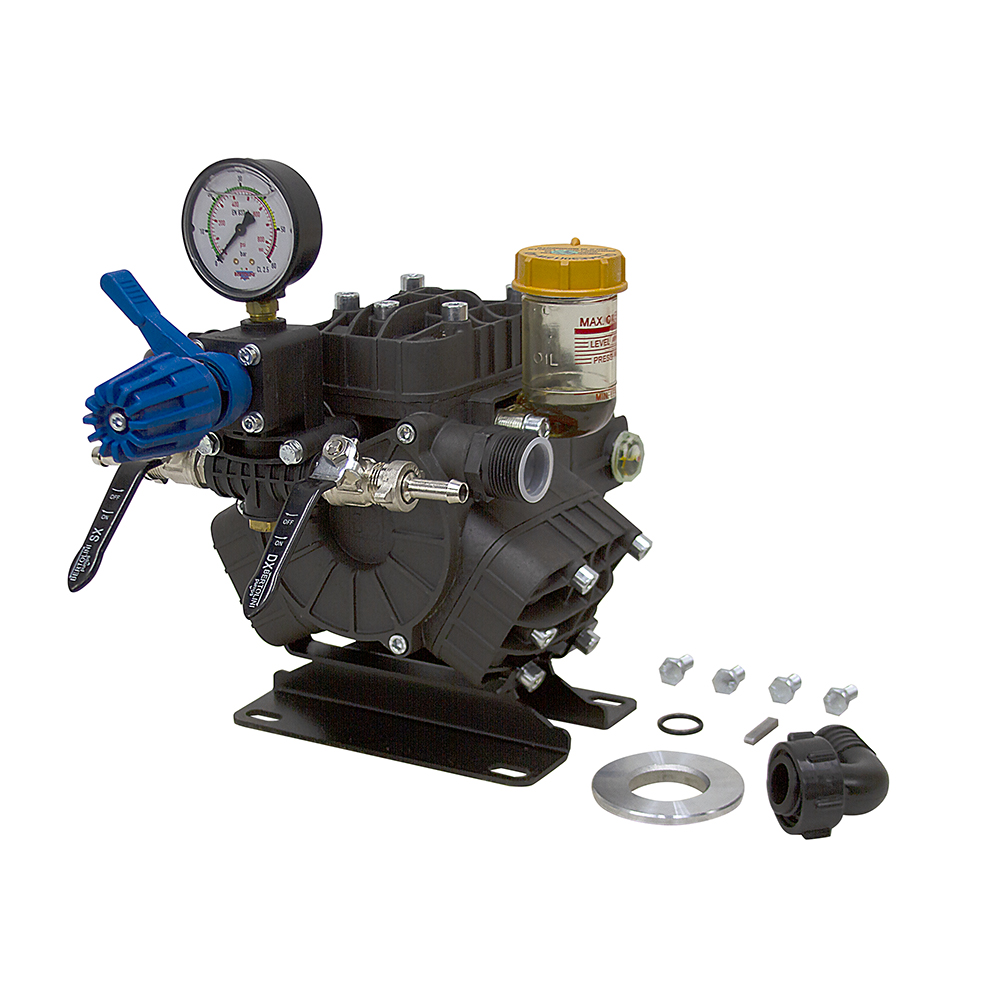

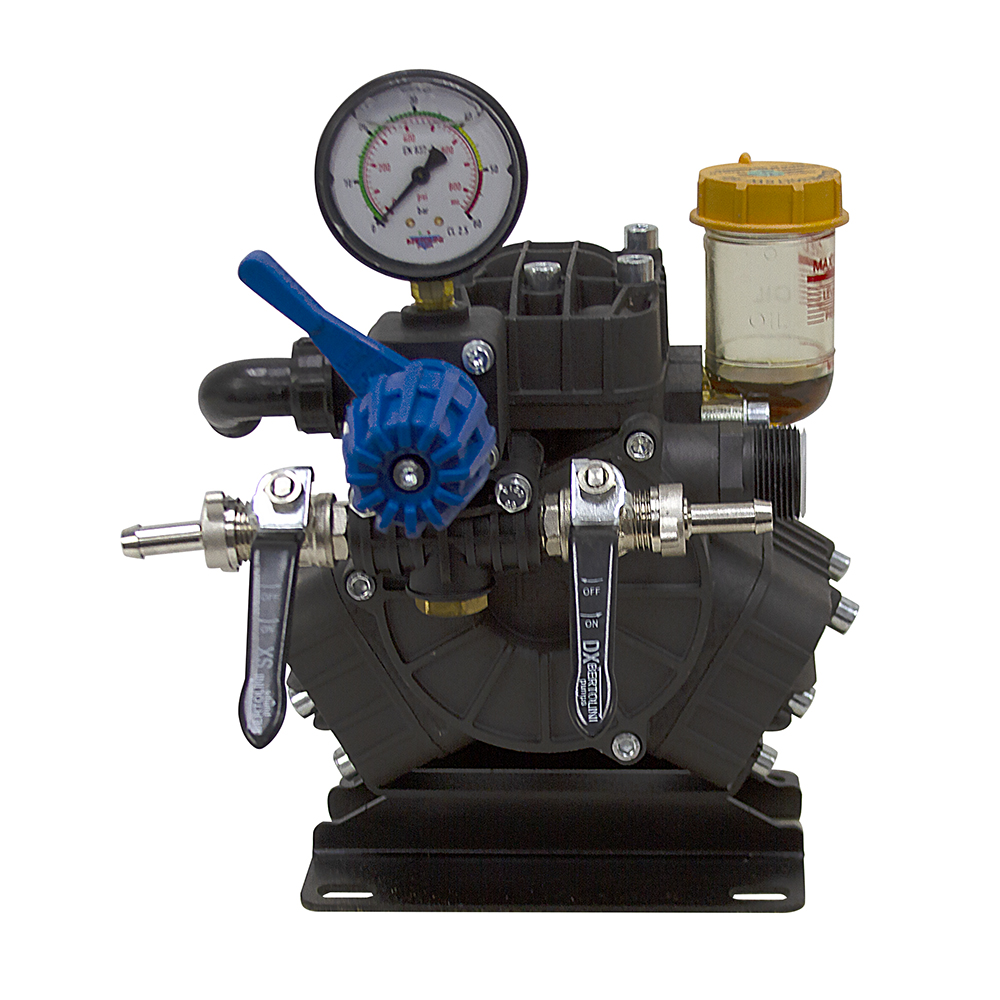

8.1 GPM 580 PSI Medium Pressure Diaphragm Pump PENTAIR HYPRO 9915-D303GRGI 2-1486
DESCRIPTION
MEDIUM PRESSURE 3 DIAPHRAGM PUMP
New, PENTAIR HYPRO 9915-D303GRGI medium pressure 3 diaphragm pump with a 6:1 gear reducer for attaching to a 5 HP gas engine with 3/4" keyed shaft. Diaphragm pump design offers compatability with many chemicals, smooth mechanical operation, longer operational pump life and consistant performance. The 9915 series diaphragm pumps have additional diaphragms to produce smoother flow with little to no pressure loss, producing more consistant and efficient spray coverage. Hardened black oxide aluminum heads, manifold, and case. Duramax diaphragm, crown shaped pistons, and double piston rings. 316 Stainless steel spherical profiled valve poppet.
SPECIFICATIONS
New, PENTAIR HYPRO 9915-D303GRGI medium pressure 3 diaphragm pump with a 6:1 gear reducer for attaching to a 5 HP gas engine with 3/4" keyed shaft. Diaphragm pump design offers compatability with many chemicals, smooth mechanical operation, longer operational pump life and consistant performance. The 9915 series diaphragm pumps have additional diaphragms to produce smoother flow with little to no pressure loss, producing more consistant and efficient spray coverage. Hardened black oxide aluminum heads, manifold, and case. Duramax diaphragm, crown shaped pistons, and double piston rings. 316 Stainless steel spherical profiled valve poppet.
SPECIFICATIONS
- Model Number 9915-D303GRGI
- Number of Diaphragms 3
- Max. Flow 8.1 GPM
- Max. Pressure 580 PSI
- Max. RPM 3450
- Required HP 3.2
- Max. Fluid Temperature 140°F/60°C
- Inlet Port 1"(25mm) Hose Barb
- Outlet Port 1/2" NPT
- Rotation CW for Direct Drive to Engine
- Input Shaft Gear Reducer w/ 3/4" dia. Keyed Hollow Bore
- Gearbox Mount Four, 0.353" dia. holes on 3-5/8" bolt circle
- Mount Four, 0.431" slotted holes on 4.3" x 6.4" centers
- Size 16" x 10.9" x 10.8"
- Shpg 32 lbs.
| Pressure PSI |
RPM | |||||||
|---|---|---|---|---|---|---|---|---|
| 400 | 450 | 500 | 550 | |||||
| GPM | HP | GPM | HP | GPM | HP | GPM | HP | |
| 30 | 6.9 | 0.1 | 7.6 | 0.2 | 8.3 | 0.2 | 9.0 | 0.2 |
| 290 | 6.5 | 1.3 | 7.2 | 1.4 | 7.9 | 1.5 | 8.5 | 1.7 |
| 435 | 6.4 | 1.9 | 7.0 | 2.1 | 7.7 | 2.3 | 8.3 | 2.5 |
| 580 | 6.3 | 2.5 | 6.9 | 2.8 | 7.6 | 3.0 | 8.2 | 3.3 |
