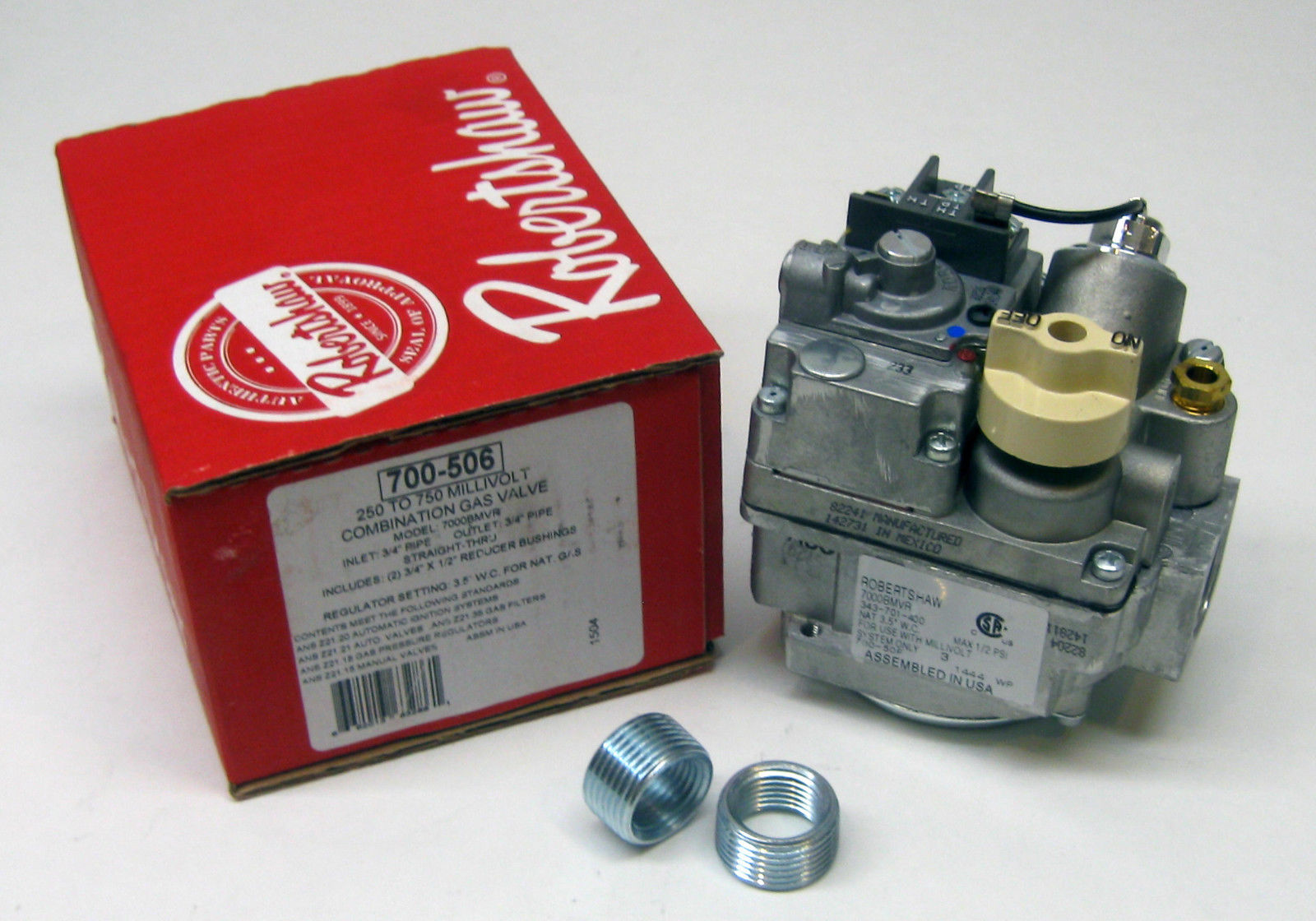

Robertshaw Part number 700-506

This is a commercial cooking bleed gas diaphram valve.

Inlet 3/4" Pipe

Outlet 3/4" Pipe

Straight Thru

Pressure regulated 3.5" W.C.

Natural Gas

250 to 750 MilliVolts

(2) 3/4" x 1/2" Reducers Included

The 700 millivolt gas valves are wall thermostat actuated combination  gas valves. These controls combine a manual gas cock, automatic pilot  safety valve and a millivolt operator. The automatic pilot safety is  separate from the gas cock and provides gas shutoff in case of pilot  outage. Regulated and non-regulated models are available. Standard  features include: pilot outlet, pilot gas filter and pilot adjusting  key. VALVES CAN BE MOUNTED IN ANY POSITION EXCEPT UPSIDE DOWN. Consult  ordering chart for individual control specifications.

Will only work with two-lead thermopiles (Unless otherwise noted)



Pressure regulator conversion from natural to LP (1751-013). LP to Natural (1751-003).

• Series Application  Millivolt Diaphragm/Solenoid Gas Valve


• Factory Part Number  7000BMVR


• Pressure Regulation  3.5" WC Natural Gas


• Capacity                          300,000 BTU


• Reducer Bushing (NPT)  2


• Inlet Size                   3/4"


• Electrical Rating           250mV to 750mV


• Comment Coaxial thermopile and 2 lead thermopile can be used


• 3 Position Outlet Straight-Thru (FPT)  3/4"


• 3 Position Outlet Side (FPT) with Plug Straight-Thru

2552, KEATING/KKO INC., 4044, 7675, FRYMASTER, 10P36, LENNOX INDUSTRIES, 1182152, SOUTH BEND RANGE, 1481, FARLEYS, 1896, DEAN, 199087, CLARKE/SYLVANIA, 2022-142, REPCO, 2146, 22117,CLEVELAND/RANGE, 2552, 2719, 300188,TRI-STAR INC., 300225, 303811402, PORTLAND WILLAMETTE, 3153-L, VULCAN HART/P M I, 341811400, 342701400,HAYWARD COMFORTZONE,

342701404, NOVA CONTROLS, KXP-149-60, 342701404A, 342701417, 342811400, 342811400A, CECILWARE/COMMODORE, 342811404, 343701400, 343-701-400, ROBERTSHAW, 343701400A, 343-701-400A, 343701404, BRADFORD-WHITE, 343-701-404, 343-701-409, 3437014B0, 343811400, FARLEYS, 343-811-400, 343811404, AMERICAN RANGE, 343811404A, IMPERIAL, 345701404, 345811402, 348392-00001, HOBART CORP, 348392-1, PMI, 359701404,BIG DUTCHMAN, 359-701-404, 359701491, 359811400, MARKET FORGE, 359811404A, 359811491, 359811491A,

PRE-MARK INTL(P M I FOOD EQUIP), 359811497,BAKERS PRIDE, 365, IMPERIAL, 36C03U400,WHITE-RODGERS, 36C03U-400, 36C03U-409, 36C03U-433, 36C0OU-400, 402701460, 4038114A0, 4044, 41084122, 410841-22, HOBART CORP, 424785-1, 4394, 449-701-407, 449-701-442, 451107508, MID-TEXAS MFG.CO., 4511-07508, PVI IND.INC., 4B1701404, 4.00E+128, GRAINGER, 4.00E+128, W.W. GRAINGER, 4F7701400,

506311, 511-044-238, WEIL MCLAIN, 5353, 63286, UNI-LINE, 7000BMVR, 700-508, 7675, 8072428, 807-2428, 8073645, 8100014, 810-0014, 8261579, 8261580, 8261645, 8261646, A09-079, FALCON FABRICATORS, A80102, AMERICAN RANGE, B107RF02, ITT/GENERAL CONTROL, B67AA, B69R16, B69R28, CS5134A1028, F810-0014N, GARLAND, G-121,CONSOLIDATED COMM.CO, H00300H,KEATING/KKO INC., L347A, CECILWARE/COMMODORE, L347A, L37-846, JOHNSTONE SUPPLY, L37-851, MR57RB23, P06066L, P8903-42, ANETSBERGER, R3104A, BAKERS PRIDE, VS8002A1055, HONEYWELL, VS810A1054, VS8138A1024, VS8138A1115, VS8138B1007, VS8138B1015, VS8138B1023, VS8138B1031, VS8138B1049, VS8138C1006, VS8138C1014, VS8138C1022, VS8138C1030, VS8138C1048, VS8138C1055, VS8138G1002, VS8154A1005, VS8154A1013, VS8154A1021, VS8154A1039, VS8167B1006, VS8178A1020, VS8178A1111, VS8178A1137, VS8178B1003,

VS8178B1011, VS8178C1036, VS8178D1019, VS8178E1000, VS8178E1042, VS8178G1008, VS817901025, VS8179A1010, VS8179A1069, VS8179A1101, VS8179A1127, VS8179A1325, VS8179A1358, VS8179A1424, S8179A1457, VS8179B1001, VS8179B1019, VS8179B1027, VS8179B1035, VS8179B1043, VS8179B1050, VS8179B1068, VS8179B1076, VS8179B1084, VS8179B1092, VS8179B1100, VS8179B1118, VS8179B1126, VS8179B1134, VS8179B1142, VS8179C1026, VS8179D1025, VS8179D1033, VS8179D1074, VS8179F1031, VS8179F1064, VS8179F1098, VS8179F1122, VS8179F1130, VS8179F1148, VS8179F1163, VS8179G1006, VS8179G1030, VS8179G1048, VS8194A1054, VS8194D1009, VS8194D1017, VS8194D1041, VS8194D1058, VS8194D1066, VS8194D1082, VS8194E1008, VS8194E1016, VS820A1021, VS820A1047, VS820A1054, VS820A1054/U, VS820A1096, VS820A1120, VS820A1153, VS820A1195, VS820A1211, VS820A1260, VS820A1286,

VS820A1294, VS820A1302, VS820B1003, VS820B1011, VS820B1029, VS820B1037, VS820B1045, VS820B1078, VS820B1086, VS820B1102, VS820C1019, VS820C1076, VS820C1084, VS820C1092, VS820C1183, VS820C1282, VS820C1290, VS820H1117, VS820M1309/U, VS820Q1034, VS820Q1042, VS820Q1059, VS820R1032, VS820R1040, VS821A1020, VS821A1053, VS8233B1006, VS8233B1014, VS8233B1022, VS8233B1030, VS8233B1048, VS8233B1055, VS8233B1063, VS8233B1071, VS8233B1089, VS8233B1097, VS8233B1105, VS8233B1113, VS8233B1121, VS8233B2X21, VS8233B2X4,VS8233B3X4, VS8233B4X21, VS8233B4X4, VS8279B1009, VS8279B1025, VS8279B1033, VS8279B1041, VS8279C1024, VS8279C1032, VS8279C1057, VS8279C1081, VS8279C1099, VS8279C1107, VS8279D1015, VS8291A1005, VS8291A1013, VS8291A1021, VS8291A1039, VS8291A1047, VS8291B1004, VS8291C1003, VS8291C1011, VS8291C1029, VS8291C1037, VS8291C1045, VS8291D1002, VS8291E1001,

Excellent replacements for
