Description

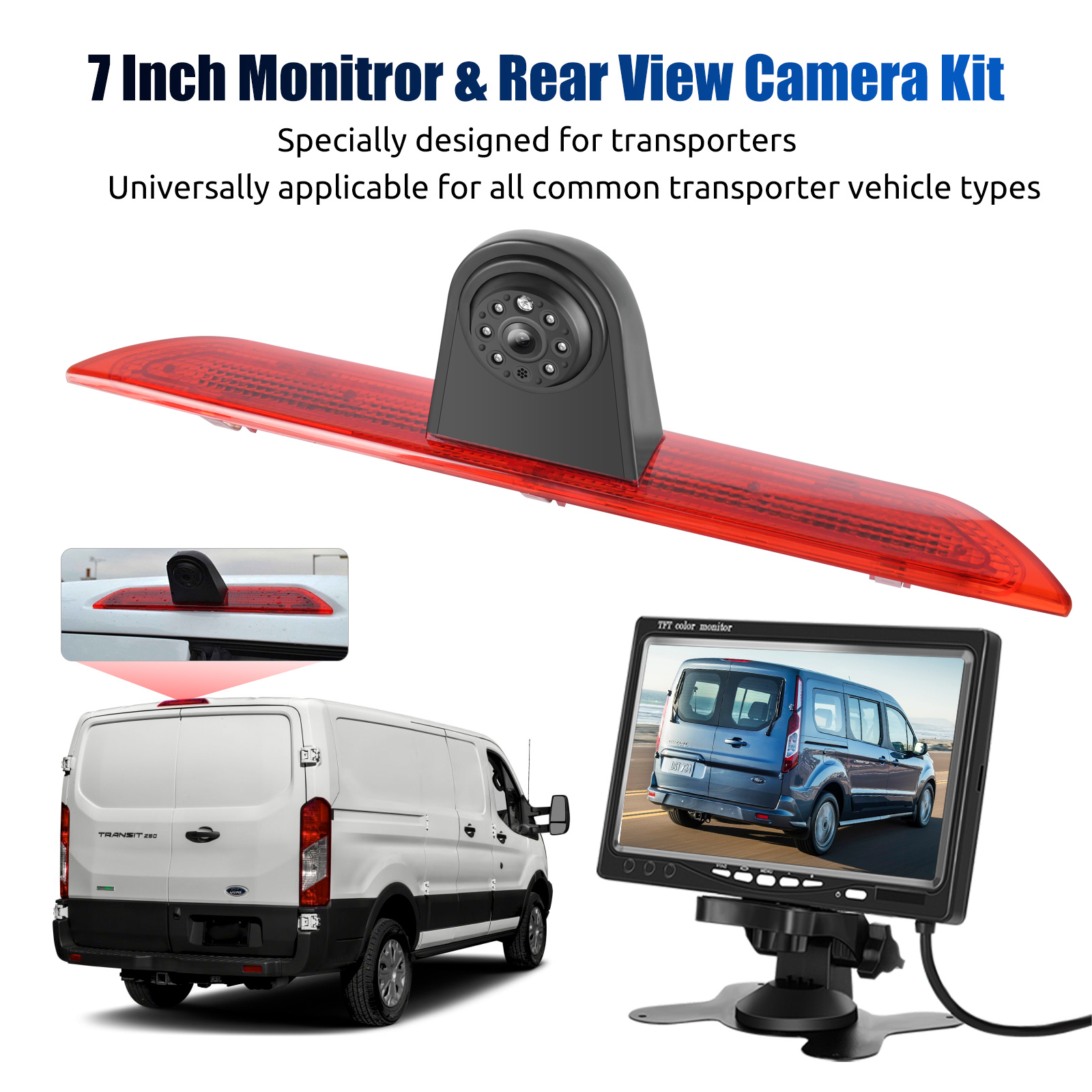

Vehicle-specific reversing camera brake light for:
Ford Transit V363 2014-2019
Ford Transit MK8
Ford Transit F150/F250/F350
Ford Transit transporter Truck Vans 2014-2019
Ford Transit Jumbo 2014-2019
Ford Transit V636 2014-2019
Ford Transit MK7 2014-2019

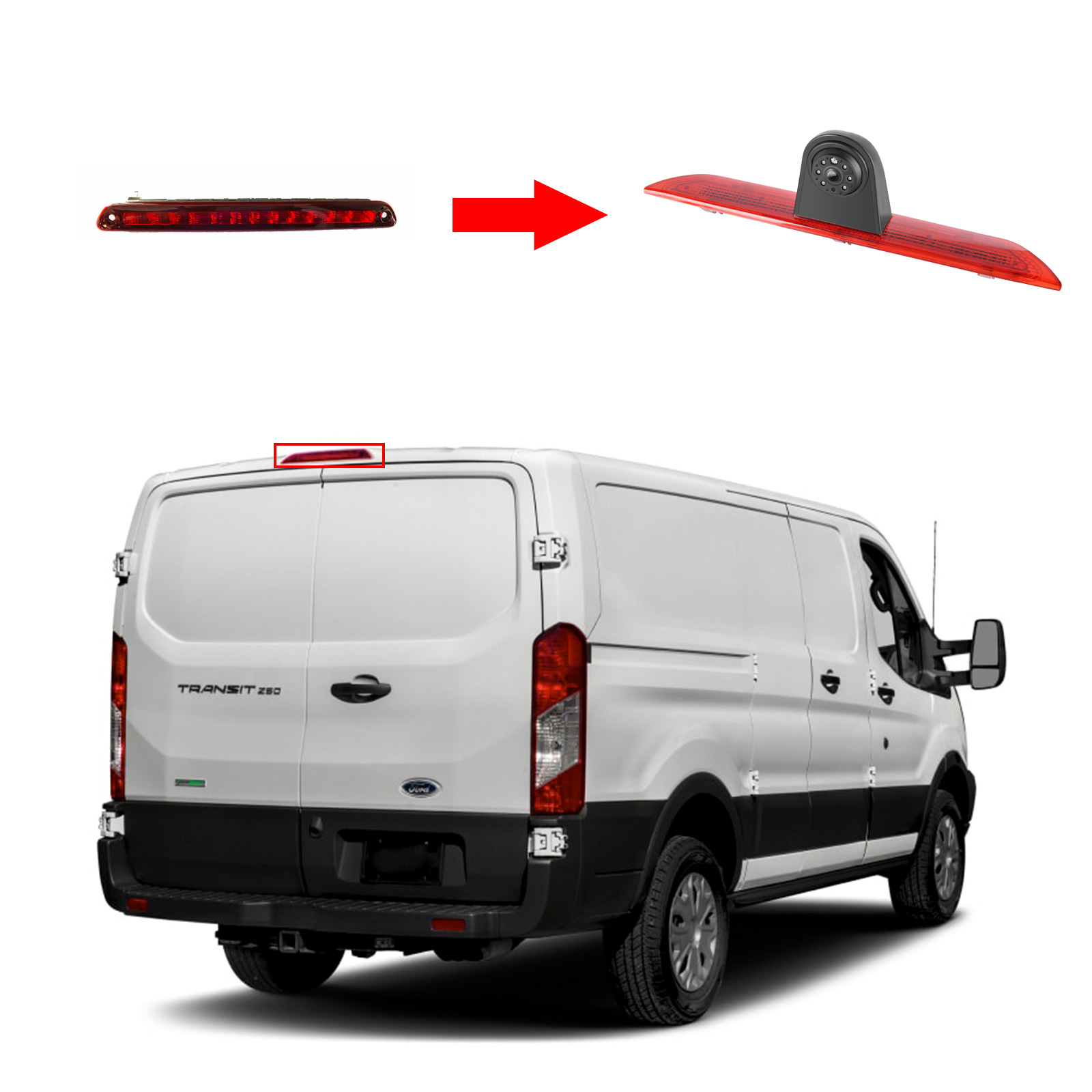

1. Easy assembly, the third brake light on the edge of the roof is replaced

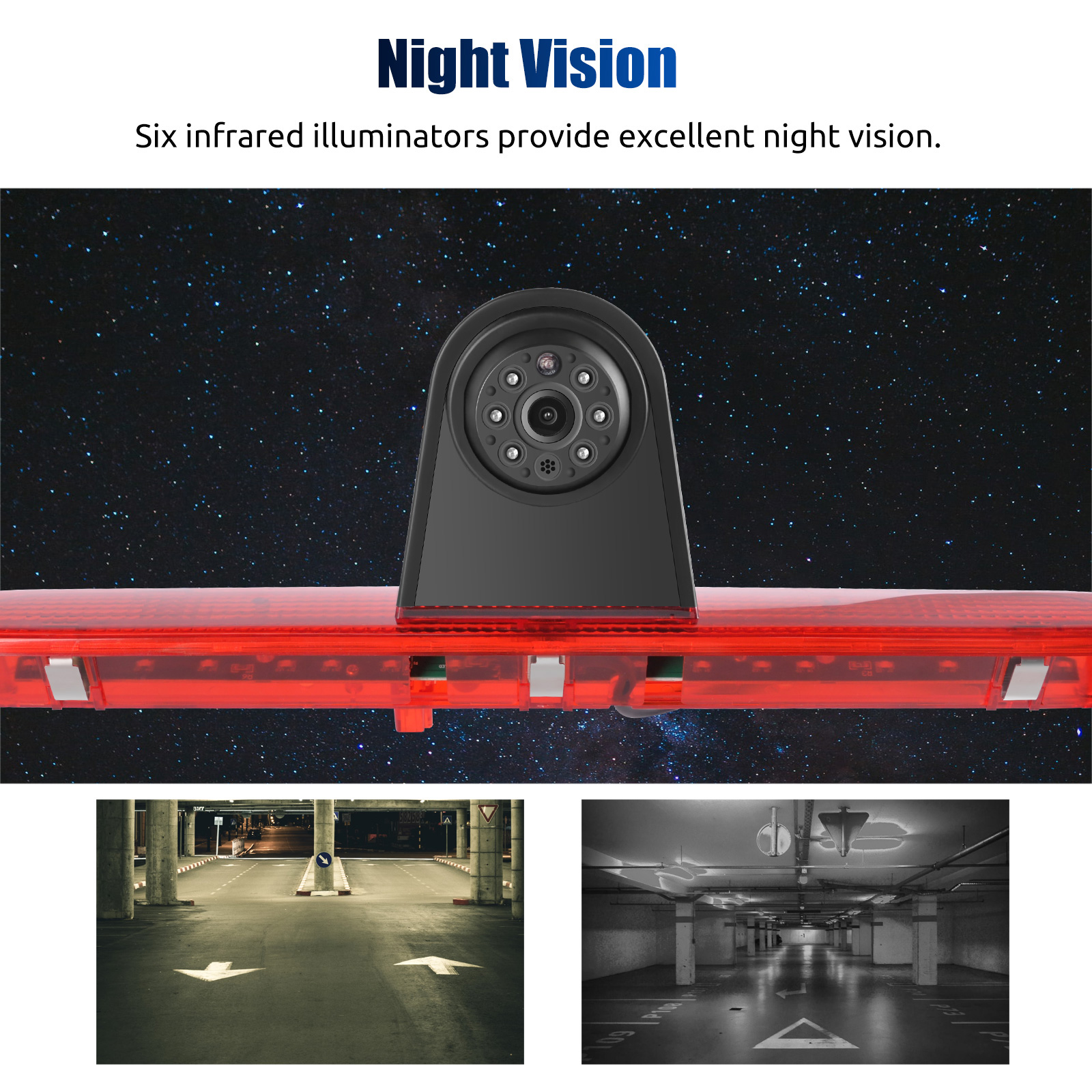

2. Good night vision thanks to 6x strong infrared diode sensors
3. 8m special cable

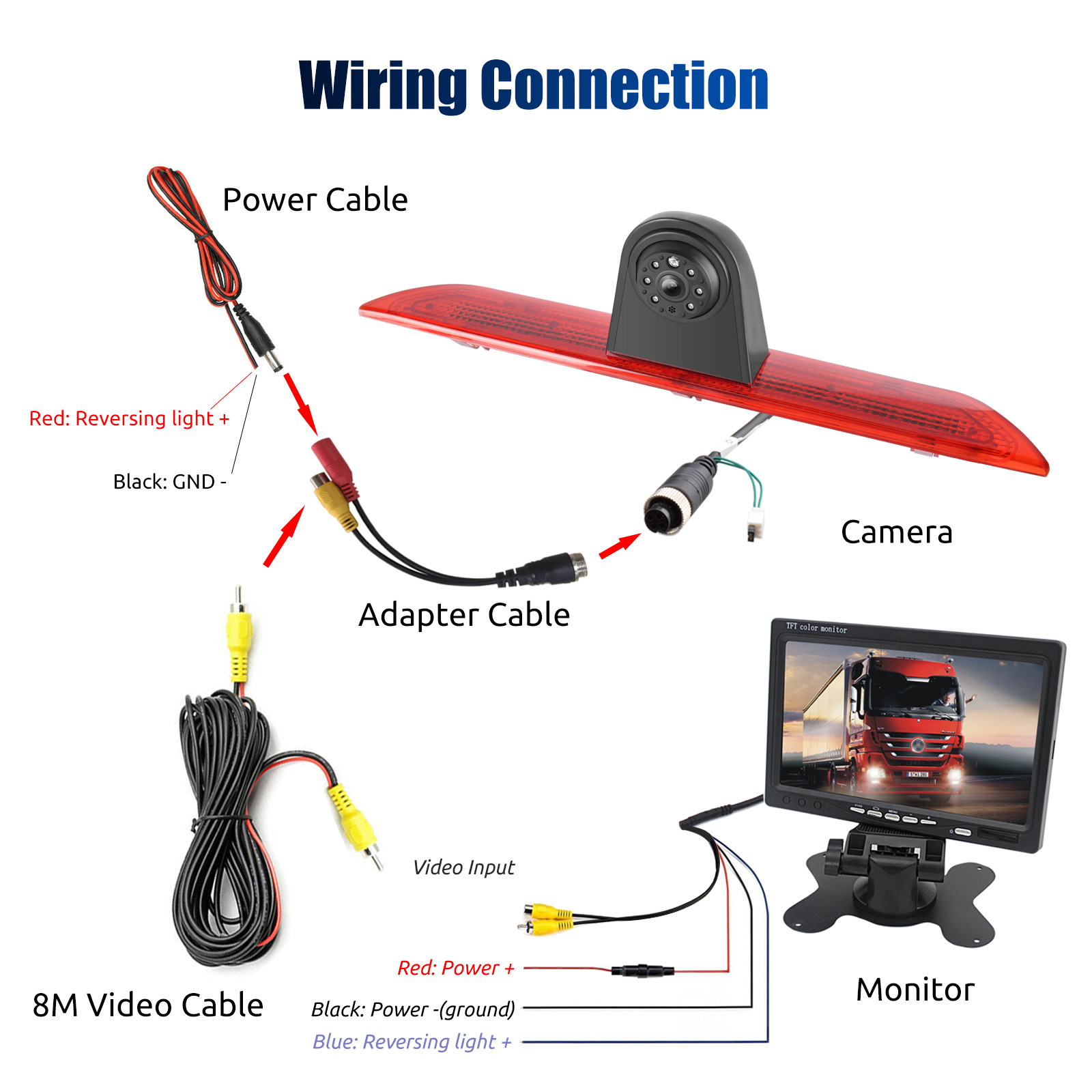

Camera connector: 4-pin with anti-vibration screw thread
Connection monitor: RCA connector
4. Continuous operation and shifting with reverse gear possible
5. Color Camera

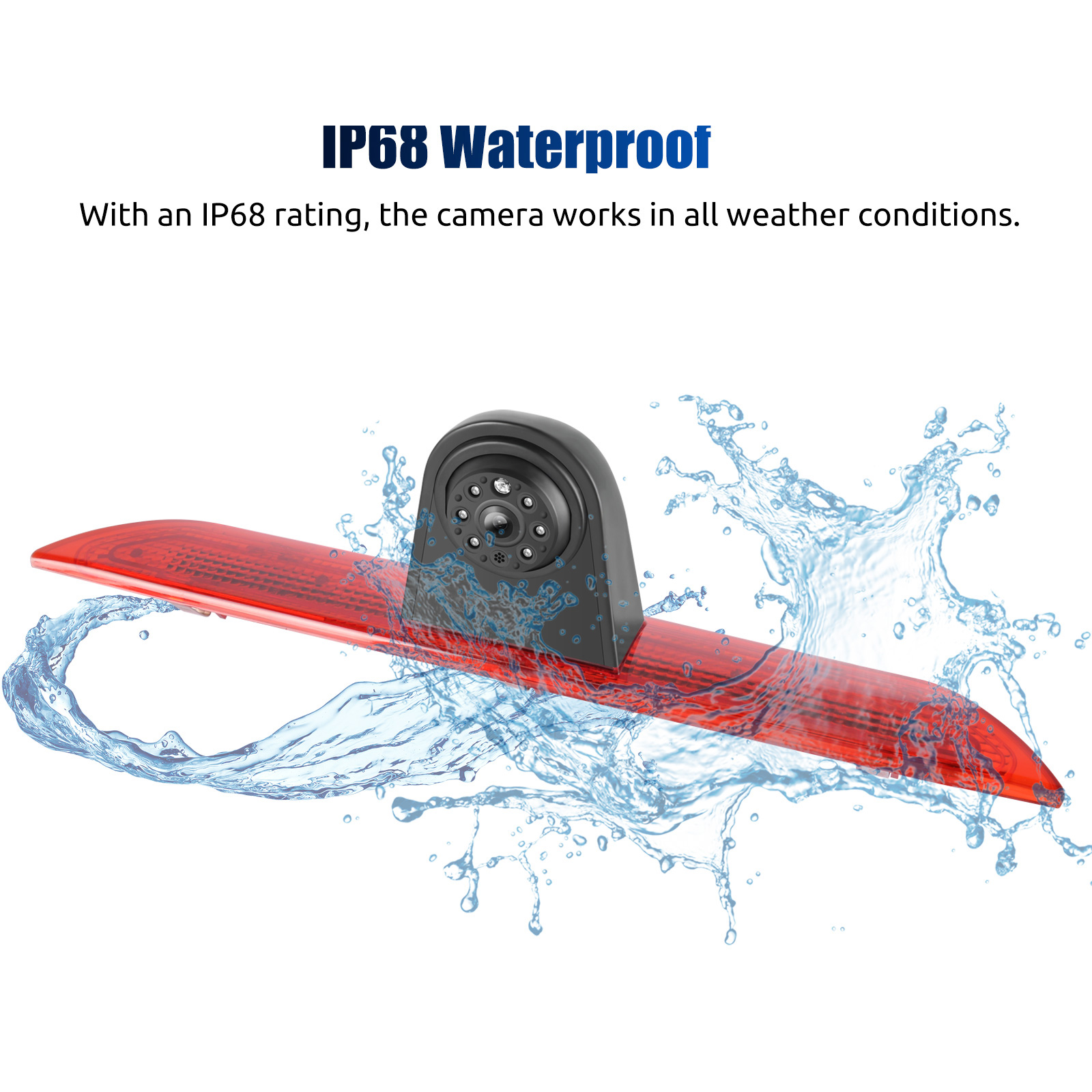

6. IP68 waterproof!

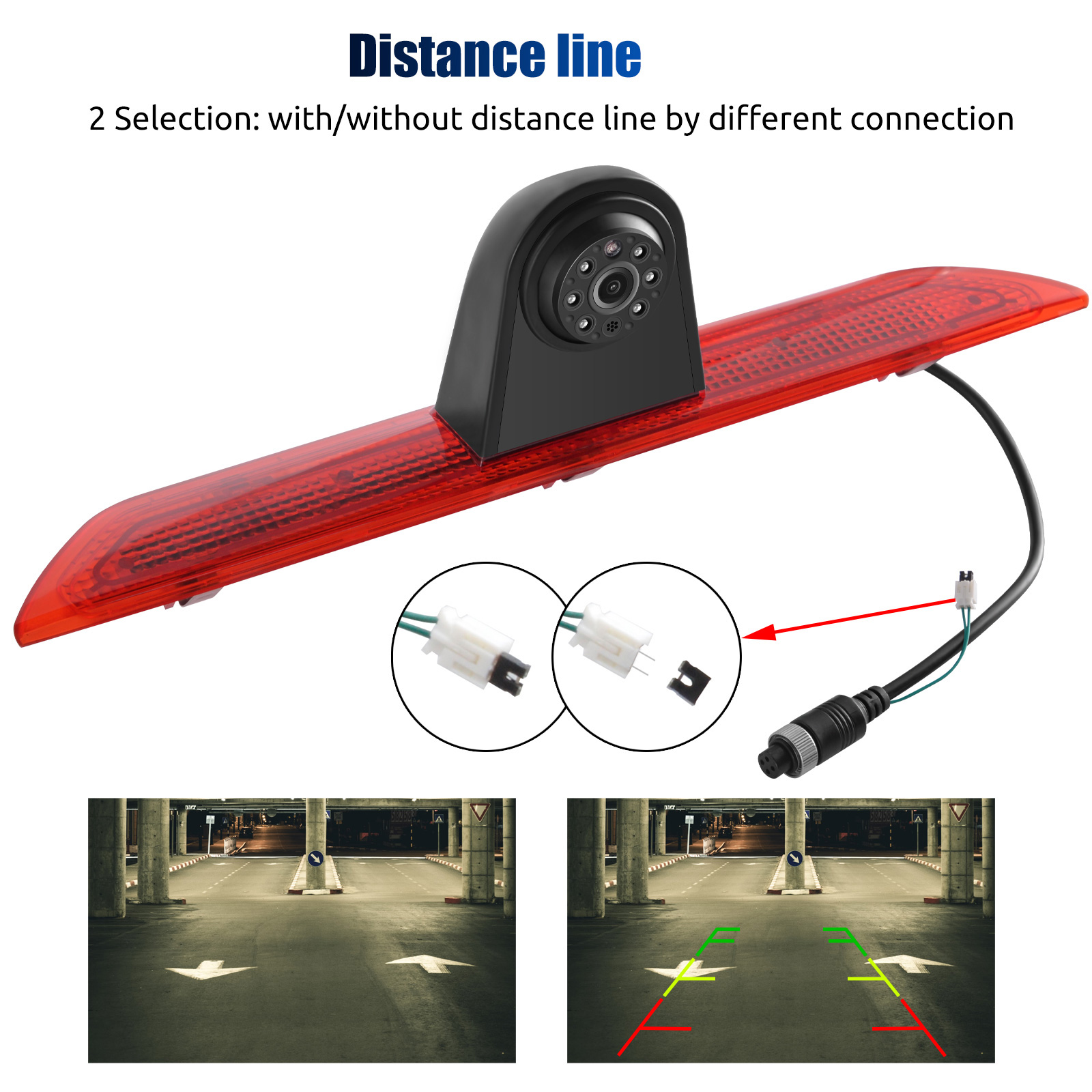

7. Distance line: optional
TFT Color Monitor:

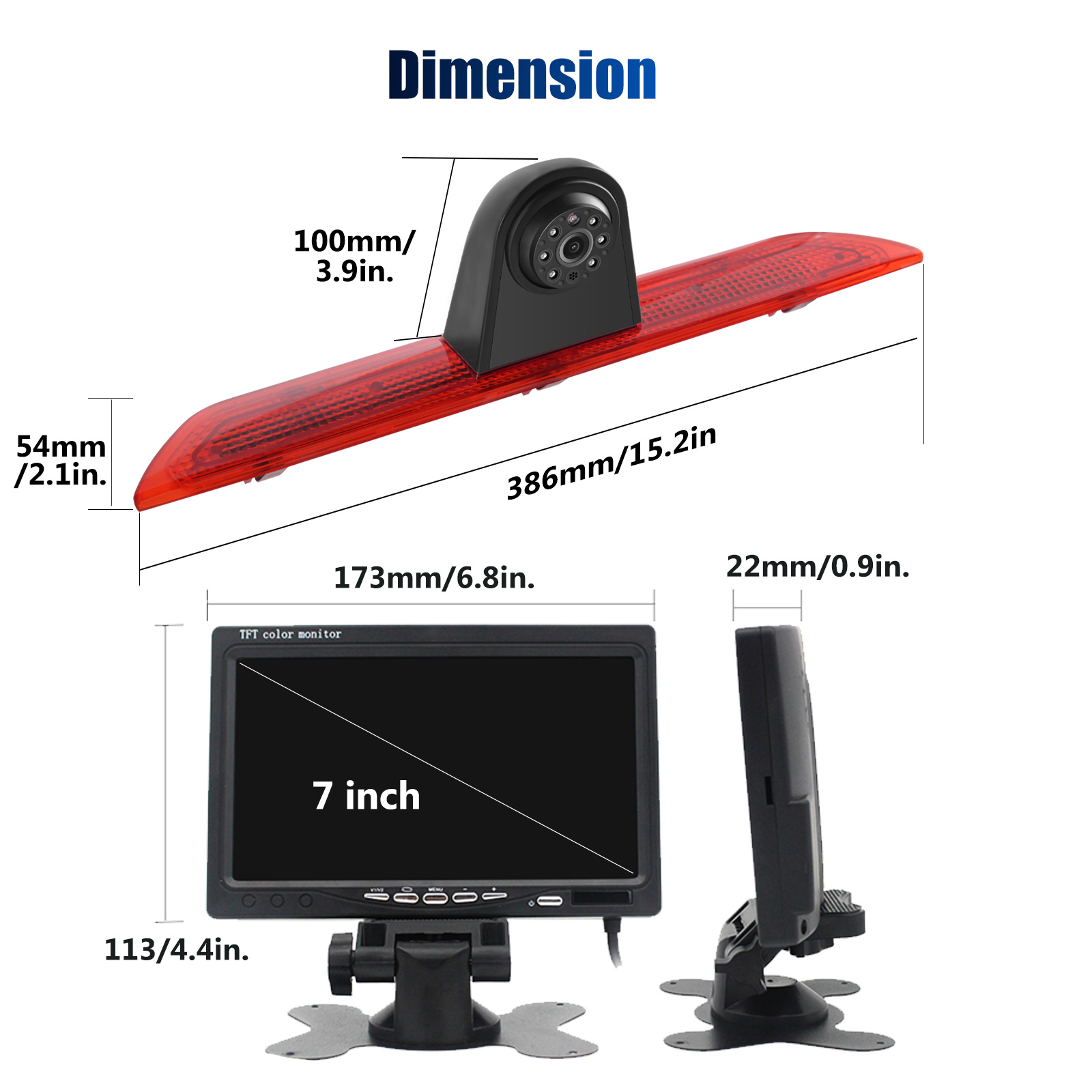

Screen Size: 7inch Fitment
Display Mode: 16:9 / 4:3
Video System: PAL / NTSC dual system automatically switches
Pixel: 800 x 480
Imput Power: 24V
Rated power: 6W
2AV input reversing automatic display
Contrast: 350:1
Display Size: 4:3 / 16:9
Working temperature: -4℉ to 140℉ (-20℃ to 60℃ )
Storage temperature: -40℉ to 185℉ (-40℃ to 85℃ )
Brake Light Camera:
Image sensor: 1/4 7440H CMOS
Resolution: 733493Pixel
TV lines: 600TVL

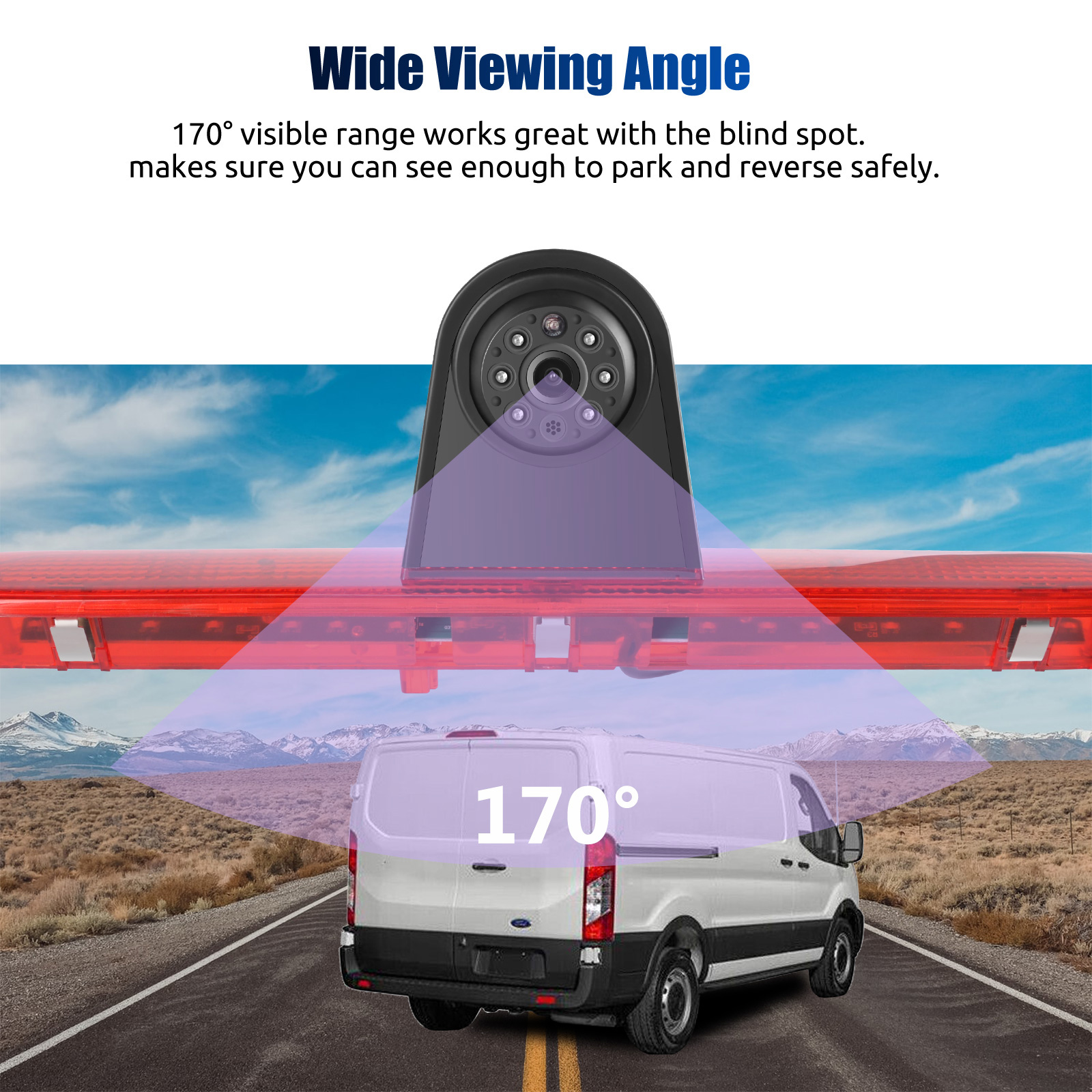

Detection angle: 170 °
Material Camera housing: plastic
Minimal lighting: 0,1 Lux
Video standard: PAL/NTSC
Voltage: 12V
Ambient temperature range: -20°C ~ +70°C
Power consumption: <2 W

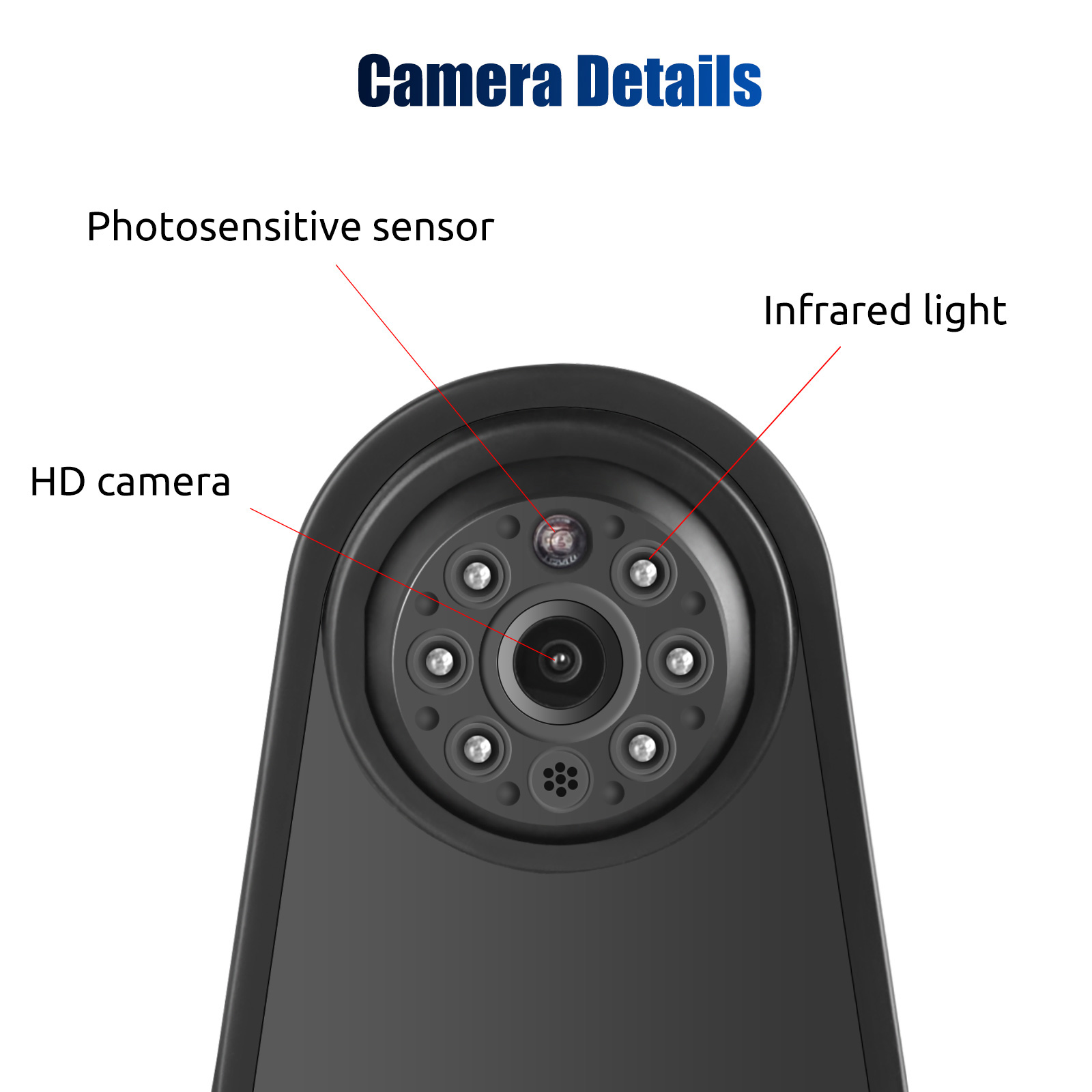

Night vision: 6 infrared diodes with brightness sensor
IP68 waterproof
Spacing lines: optional
including 8m cable

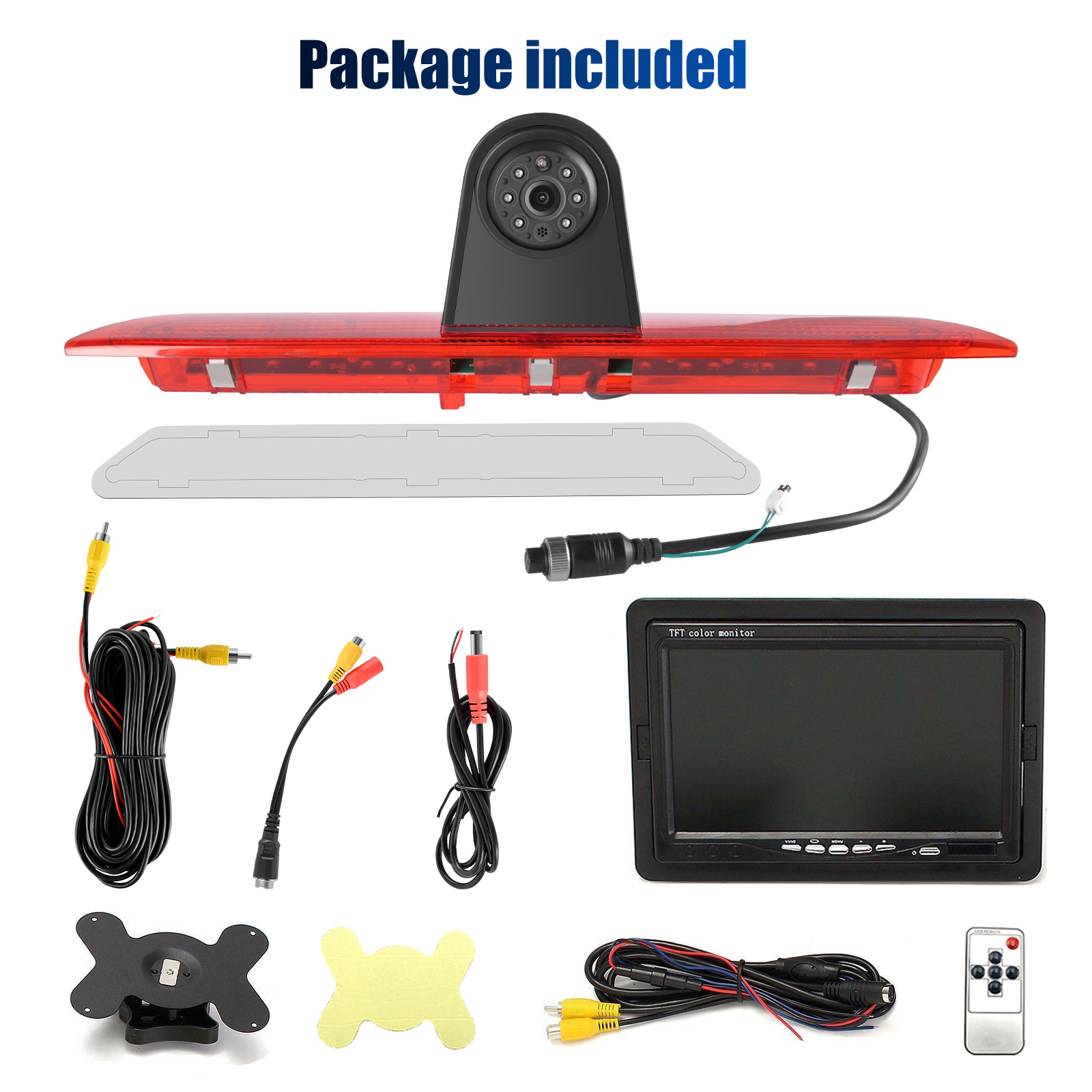

Package Content:
1 x 7" TFTT LCD Monitor
1 x Mounting Plate
1 x Remote Controller(Not include Battery)
1 x Manual
1x reversing camera integrated in brake light housing
1x 8m/26.ft Cable
1x Adapter Cable
1x Power Cable
