7 Decade Resistance Resistor Substitution Board Box 1% (0 Ohm-10 Meg Ohm)

Slide Slide Slide Slide Slide Slide Slide Slide
$50.0
Decade Box Type
Resistance
condition
New
7 Decade Resistance Board 1% Accuracy (0 Ohm-10 Meg Ohm)
  • 1/4 Watt power capable
  • All resistors are 1% tolerance
  • 1Ω step resolution from 0Ω to 10 MΩ

    Stop wasting your time & space with big workbench hogging decade/substitution boxes. You need to leave space on your workbench for your projects!

    Decade/substitution board fits in your pocket. NO reason for it to be so BIG like others.

    There are 3 unique ways to connect to this board that will save you time:

    1)     Use banana plugs

    2)     Use 0.1” pitch Male Headers

    3)     Use terminal block

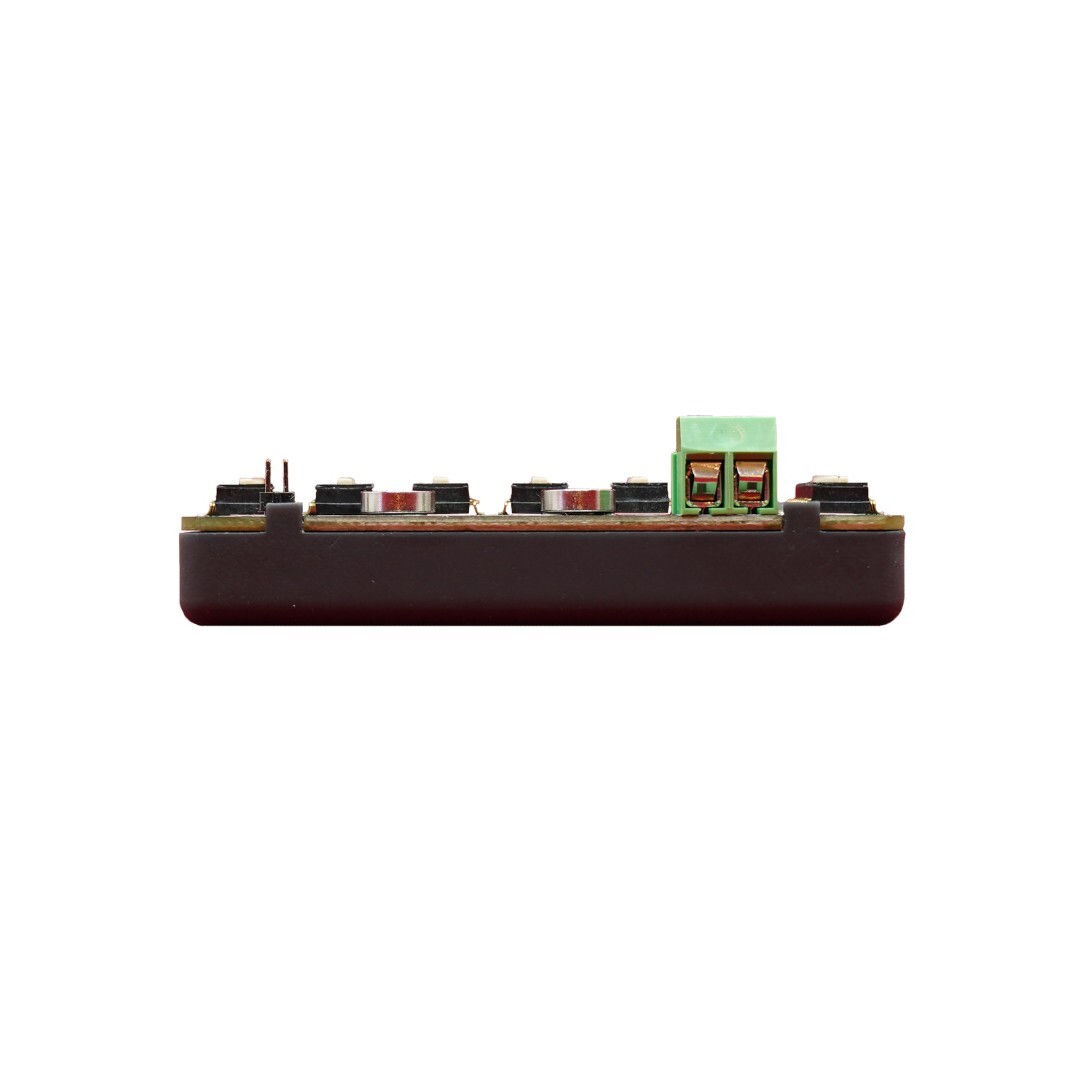

    Comes with a cover for more ergonomic grab and to protect the under board exposure.

               Switch Contact Rating

    24V 25mA (turning switch on/off)

    100mA (not turning switch on/off)

    Initial Resistance: ≤ 50mΩ

    End of Life Resistance ≤ 100mΩ
