67mm Cylinder Jug Top End Piston Gaskets Kit for Yamaha TW200 Trailway 87-24 V1

67mm Cylinder Piston Gasket Top End Rebuild Kit For Yamaha TW 200 Trail Way 200 1987 - 2024

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

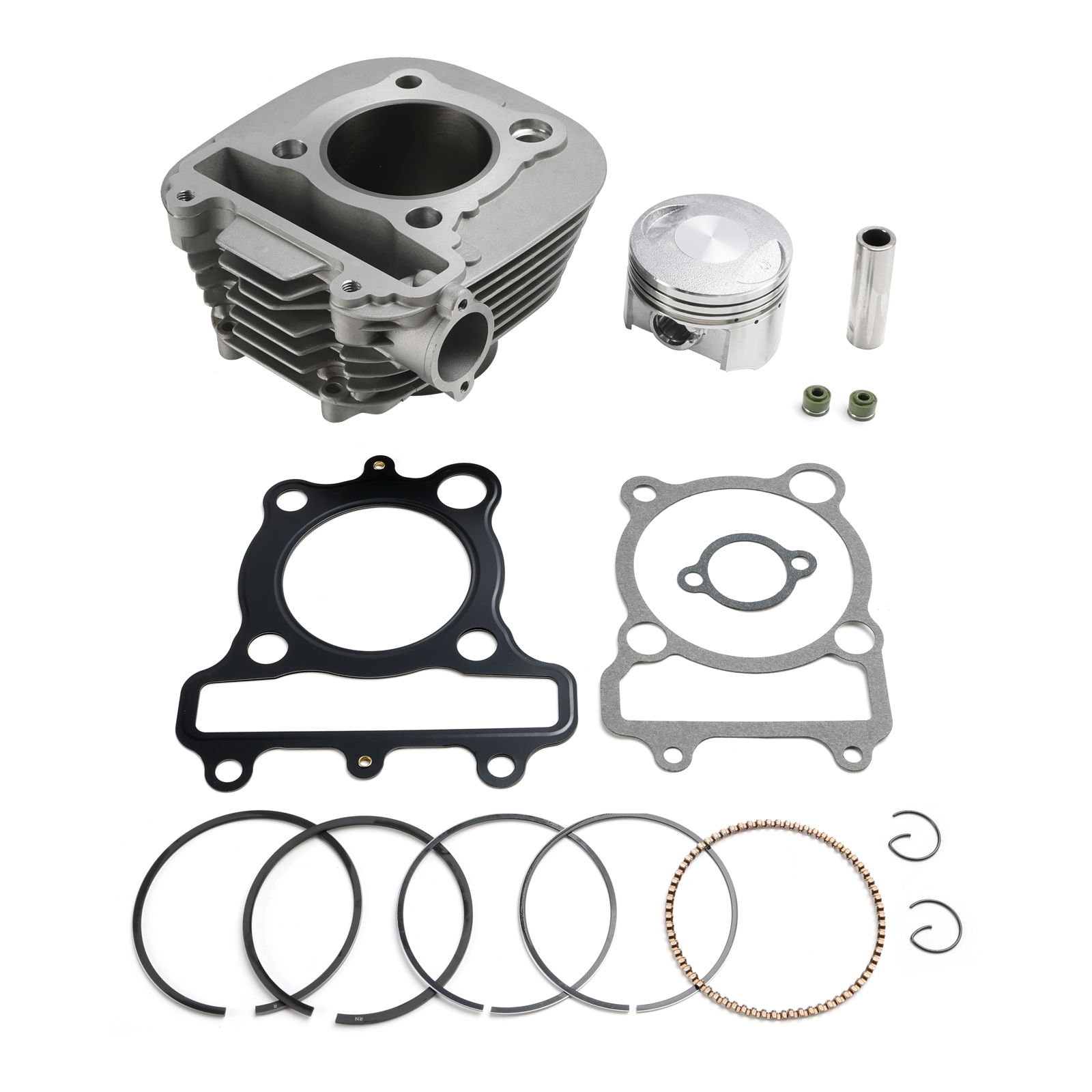

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
This cylinder requires the automatic timing chain tensioner(not inlcluded).
In order to use the cylinder, the gearbox housing may need to be machined.
Kit is for standard bore size - 67.0 mm x 55.7 mm stroke, 16mm steel piston pin.
Compression Ratio: 9.5:1.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 196cc
Engine type: 4-Stroke
Bore Type: Standard Bore
Bore diameter: STD 67mm
Stroke: 55.7mm
Pin diameter: 16mm

Replacement Part Number:
Cylinder: 21V-11310-00, 47J-11310-00
Cylinder Base Gasket: 5VC-11351-02
Cylinder Head Gasket: 1NU-11181-00
Piston (Std): 36X-11631-00-A0
Pin, Piston: 58L-11633-00
Piston Ring Set (Std): 15A-11603-00
Circlips, piston (2): 93450-17044
Valve Stem Seal (2): 5H0-12119-00

Fits Make/Model/Year:
Fit for Yamaha YFM200 Moto-4 200 1985 - 1989
Fit for Yamaha YTM200 Tri-Moto 200 1983 - 1985
Fit for Yamaha YTM200E Yamahauler 200 1983 - 1985
Fit for Yamaha BW200/E Big Wheel 200 1985 - 1988 (require an automatic chain tensioner)
Fit for Yamaha TW200 Trailway 200 1987 - 2024

This cylinder requires the automatic timing chain tensioner.
Need to upgrade to auto tensioner if your original cylinder uses a screw in type manual tensioner.
In order to use the cylinder, the gearbox housing may need to be machined.
Please do NOT purchase if this beyond your modification skills.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:

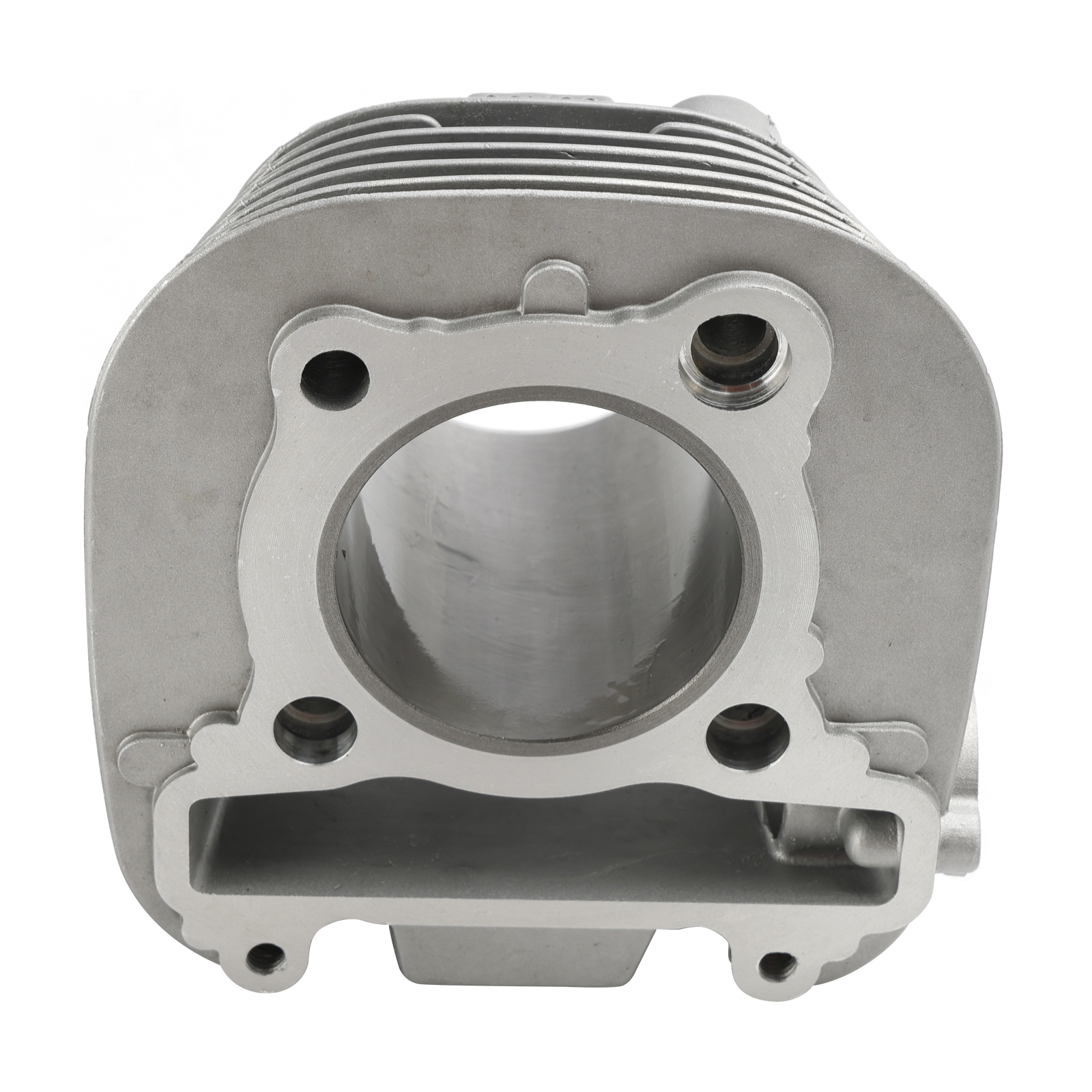

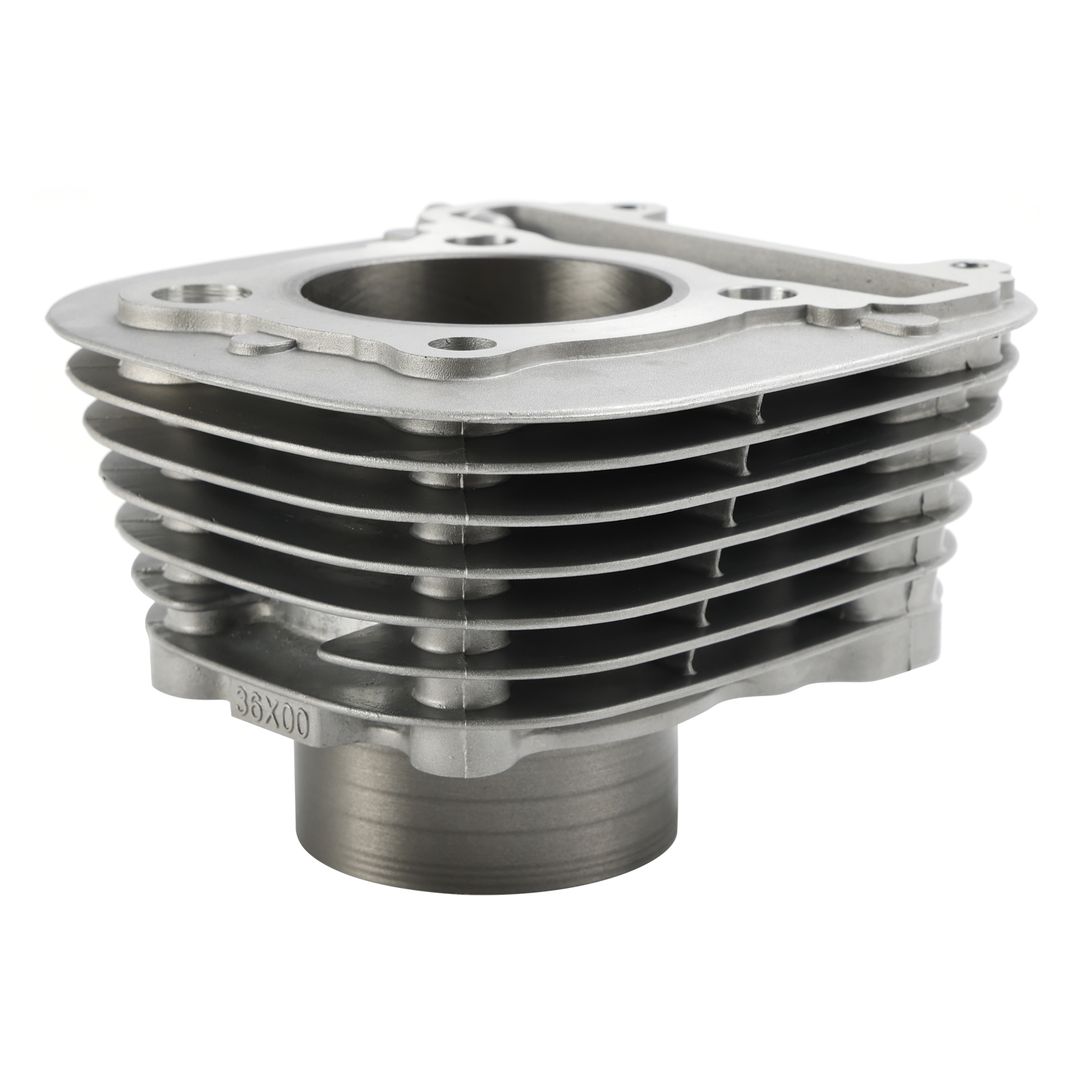

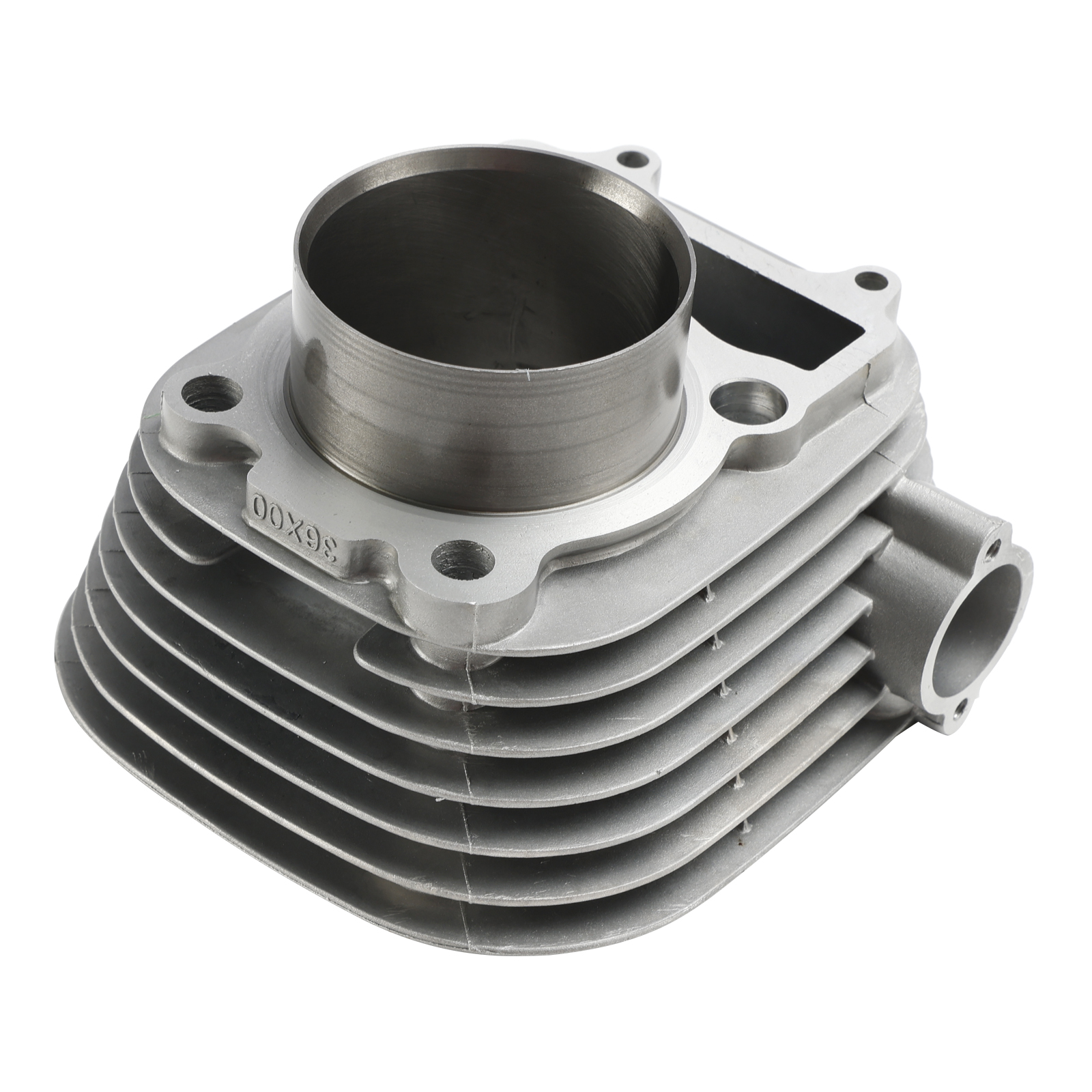

1x Cylinder

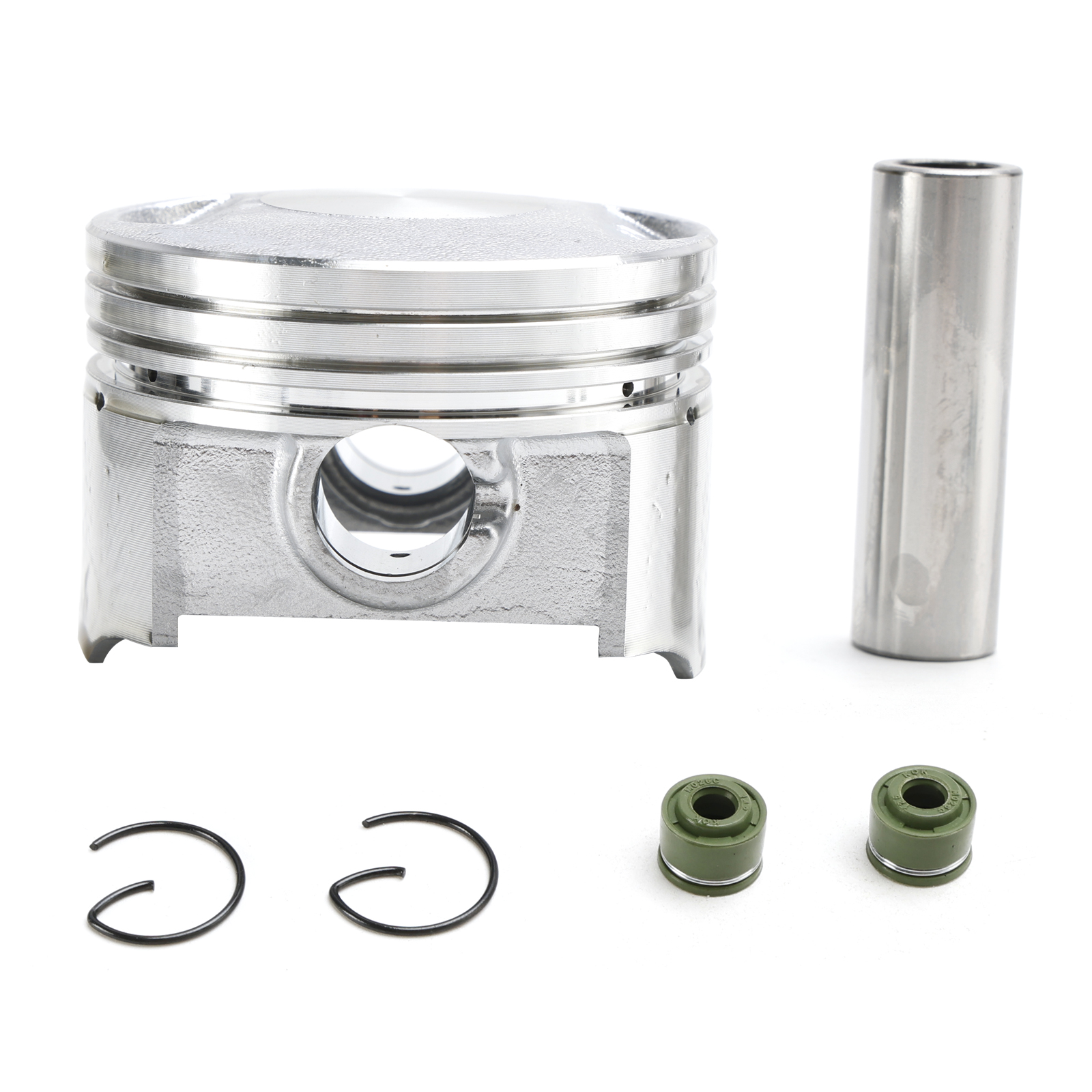

1x Piston

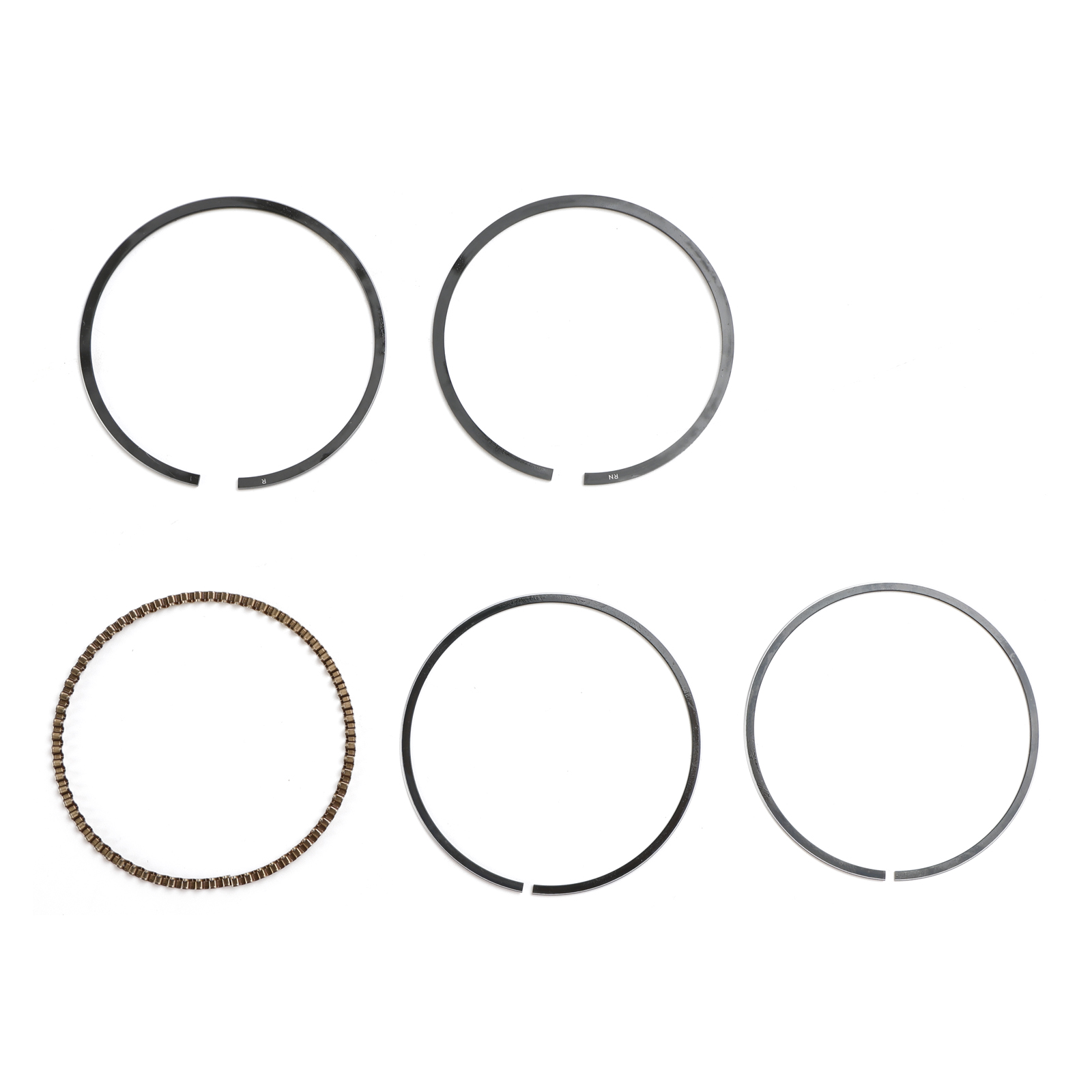

1x Piston Ring Set
1x 16mm Wristpin
1x Circlip(2)

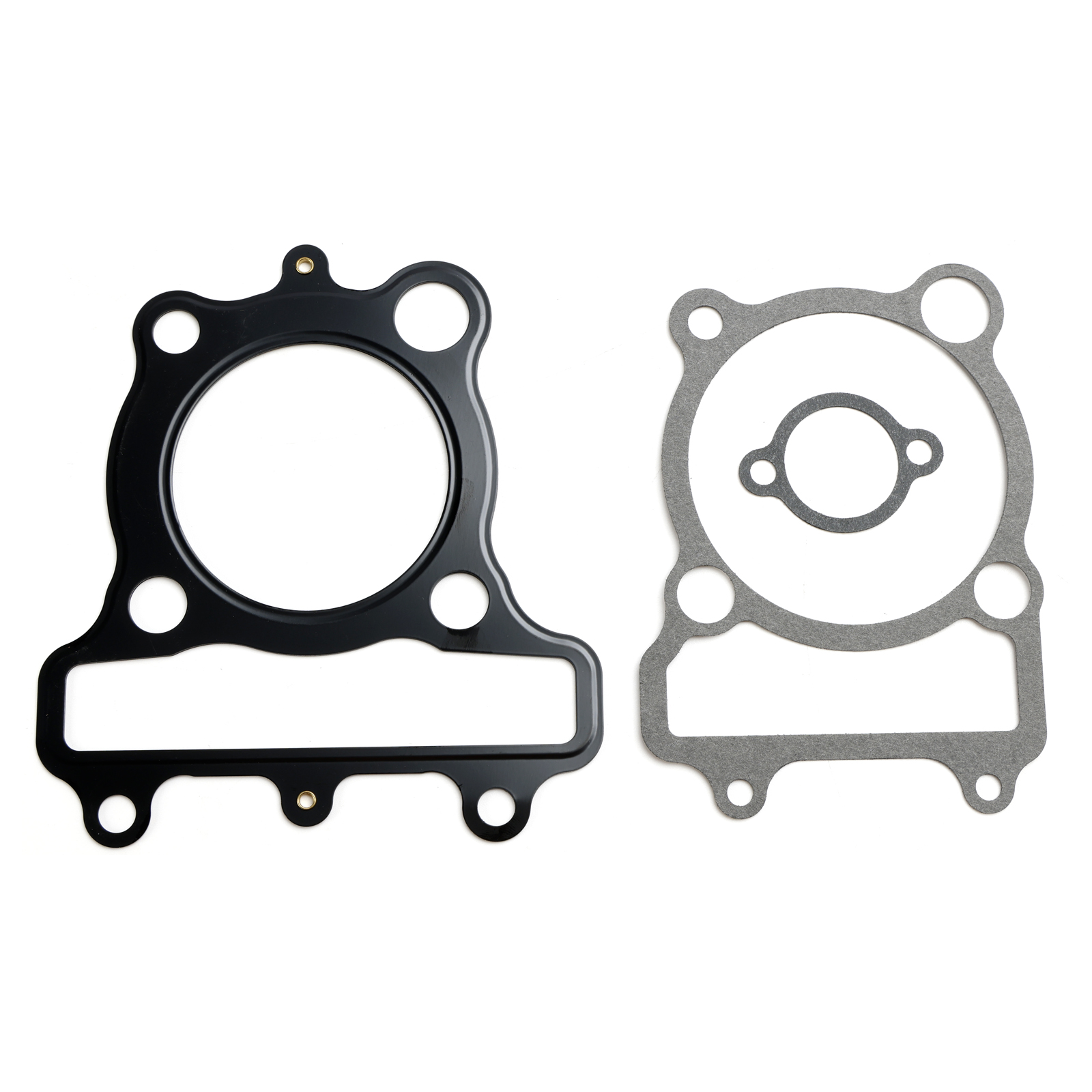

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Exhaust Gasket
2x Valve Stem Seals

(Comes exactly as pictured.)

Note:
Need to upgrade to auto tensioner if your original cylinder uses a screw in type manual tensioner.
In order to use the cylinder, the gearbox housing may need to be machined.
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
