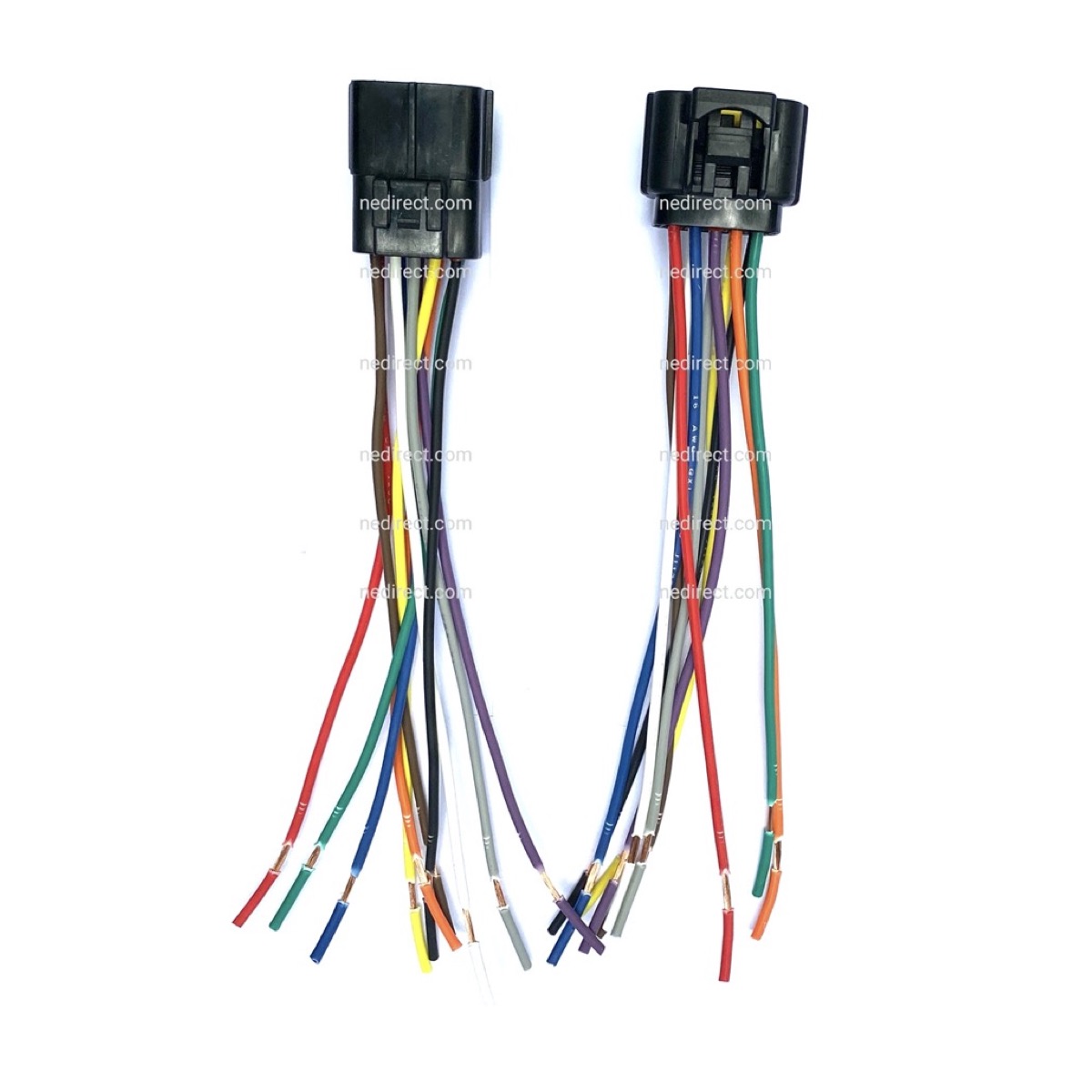

6" ASSEMBLED WATERPROOF 10 PIN ELECTRICAL 1.8MM AWG WIRE CONNECTOR PLUG

$18.99
Brand
Northeast Direct
Connector Style
10-pin
Number of Pins
10
Number of Ports
10
Number of Poles
2
Compatible Mounting Type
Wire
Type
Connectors
Compatible Wire Gauge (AWG)
16
UPC
NA
condition
New

6" ASSEMBLED WATERPROOF 10 PIN ELECTRICAL 1.8MM AWG WIRE CONNECTOR PLUG

Description:

10 Way sealed waterproof connector kit 1.8mm terminal heat shrink come as shown!!!
These will work great for many different like motorcycle, scooter, car, truck, quad, ATV, UTV, kart, golf cart, trike, caravan, marine, Jet ski, boats,etc.

Specifications

Connections: 10 - per plug/socket pair
Wire Gauge: 16 AWG
Wire Size: 6"
Current Rating: 10 A - per pin
Housing Material: Thermoplastic
Gasket and Insulating Material: Silicone
IP Rating: IP67
Insulation: 1000 MOhm
Dialectric Rating: <2 mA at 1500 VAC
Operating Temperature: -55 to 125 deg C
Mating Cycles: 100 - minimum

Included:

1x 6" ASSEMBLED WATERPROOF 10 PIN ELECTRICAL 1.8MM AWG WIRE CONNECTOR PLUG
