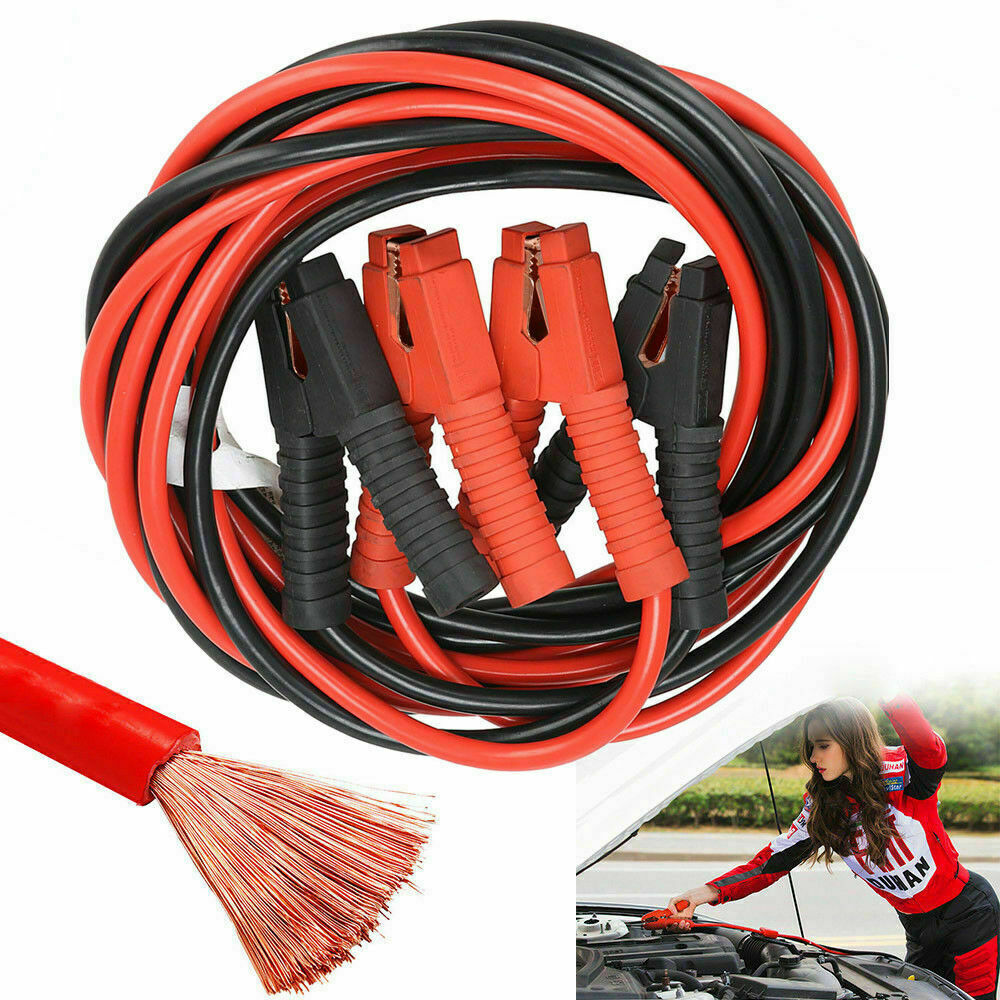

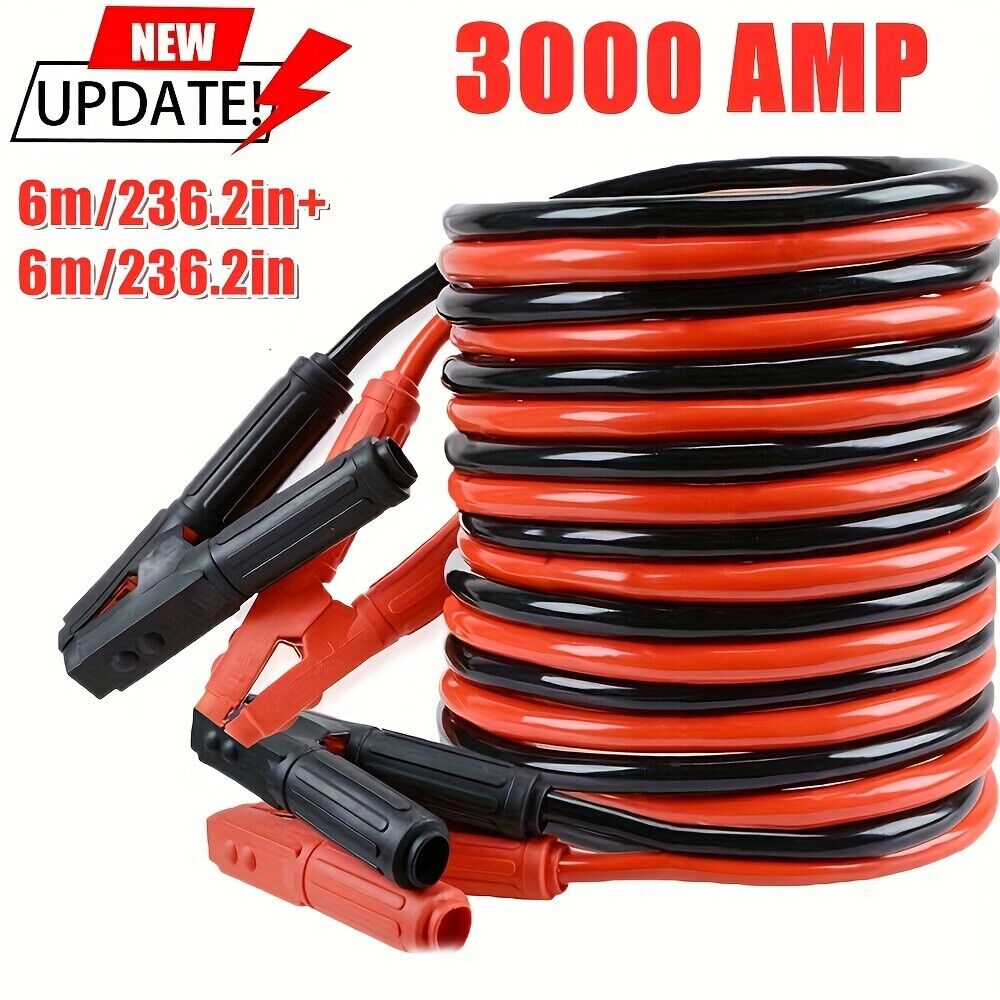

6+6M Heavy Duty Jump Leads 3000AMP Car Van Battery Starter Booster Cables Jumper

Description:

1. The fully encapsulated rubber insulation design, with insulated handles at the clips and handles, is safer and more reassuring.

2. The super strong clamping force never comes off, and the super strong and powerful battery clamp makes it difficult to fall off when clamped.

3. Suitable for 6V, 12V, and 24V applications, suitable for all gasoline and diesel engines up to 4500cc (displacement 4.5L).

4. PVC insulation material, heat resistant, oil resistant, and acid resistant.

Vehicle emergency ignition line/6M ignition line;

Color: Red black;

Quantity: 1 set;

Parameters: 15 square millimetre (the size of the wire's cross sectional area), the outer diameter of the cable is about 12mm, and the wire length is about 6m;

Current virtual label 3000A (packaging wire without marked A number);

Thread: 0.30 threads; Number of pieces: 200 pieces;

Fully insulated metal clip, copper clad aluminum wire, PVC (plastic) shell

Material: PVC (plastic)+copper;

Instructions:

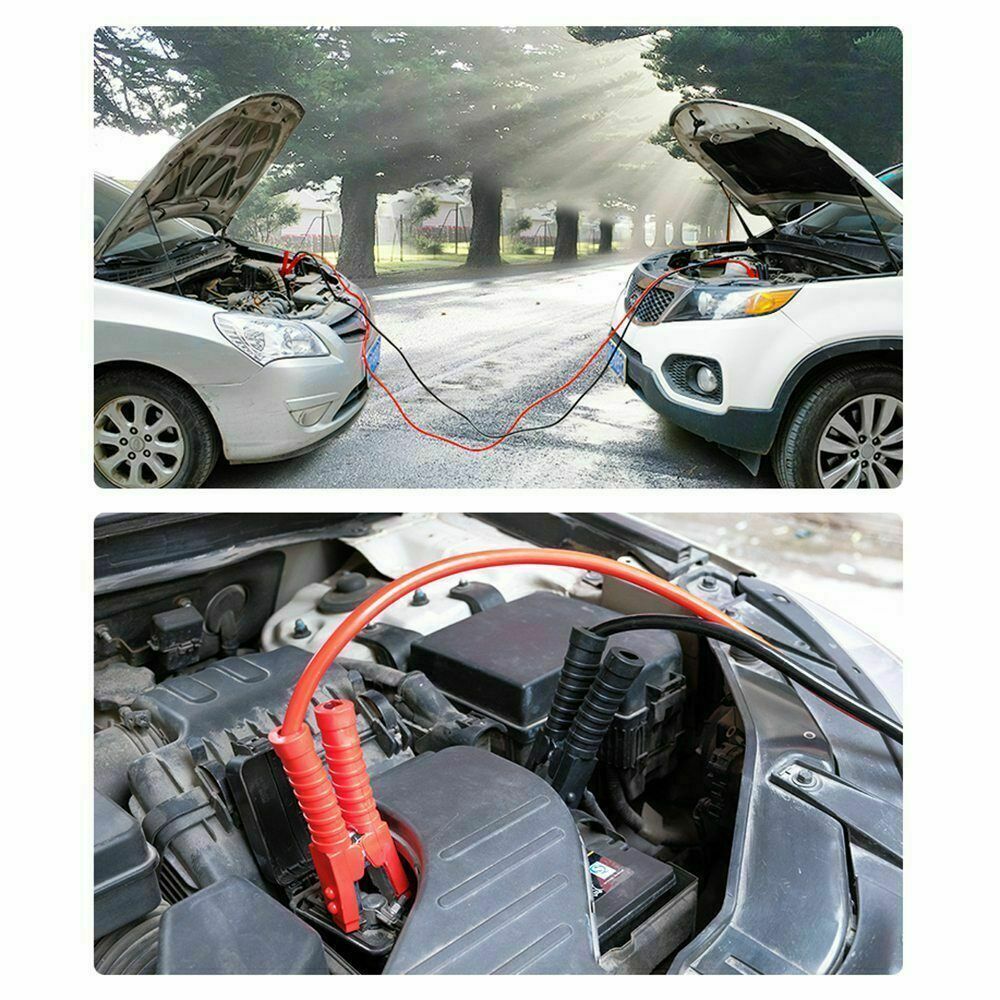

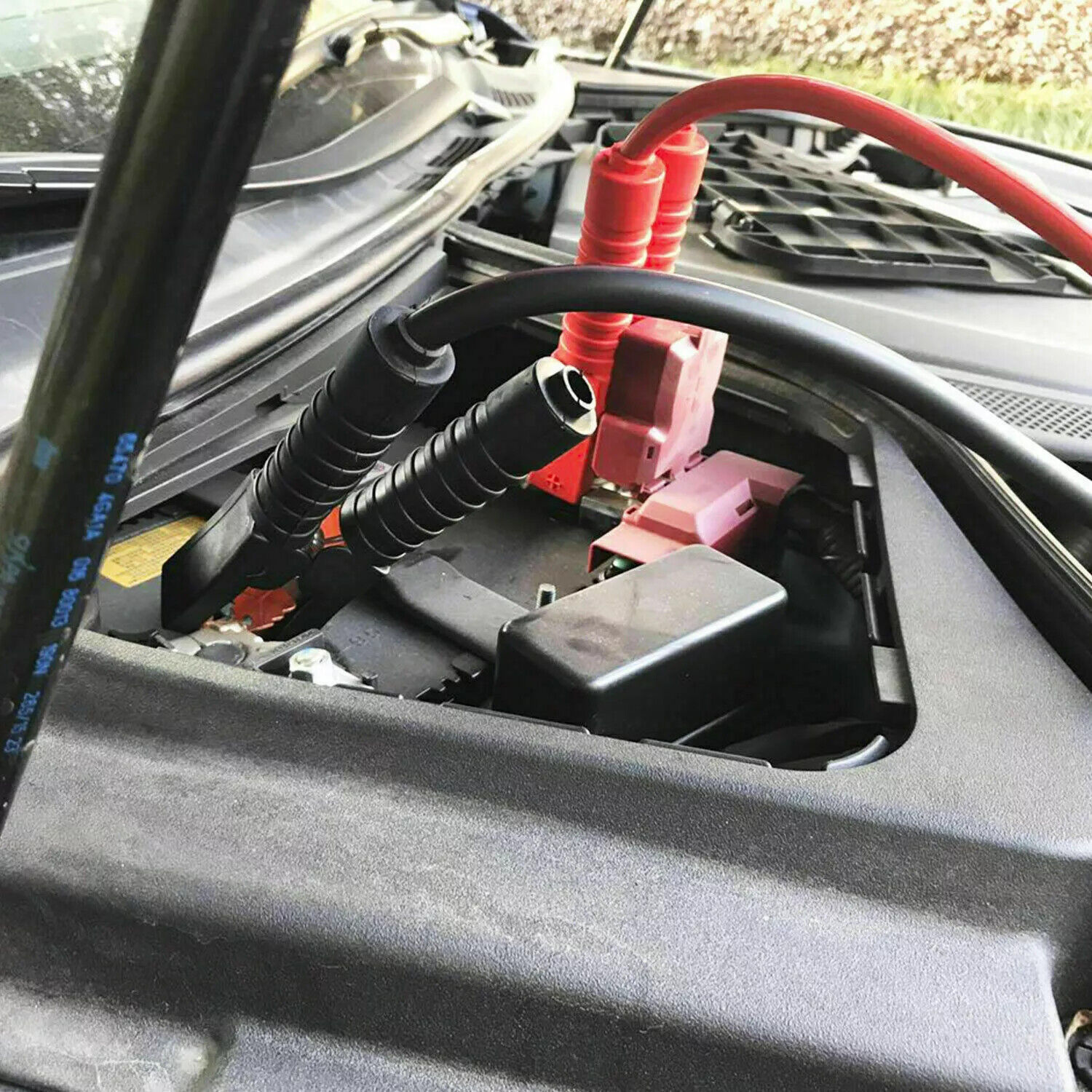

The procedure for connecting a live wire is as follows:

Step 1: Clamp the red wire of the starting wire onto the positive electrode of the red battery of the "rescued vehicle".

Step 2: Clamp the red wire at the other end onto the positive electrode of the red battery of the "rescue vehicle".

Step 3: Place the black wire clamp on the metal next to the battery of the "rescued vehicle" and do not directly clip it onto the negative electrode.

Step 4: Next, clamp the black wire onto the black negative electrode battery of the "rescue vehicle".

Step 5: Start the engine of the "rescue vehicle" first, and then start the engine of the "rescued vehicle".

Attention: If the rescued vehicle is still unable to start, please check if the metal contact part has poor contact. After completing the engine start, it is still necessary to remove the starting grounding wires in sequence, otherwise it may cause a short circuit.

The procedure for removing the line is as follows:

Step 1: Lift the black wires of the "rescued vehicle" from the vehicle body or ground.

Step 2: Remove the black wires from the "rescue vehicle".

Step 3: Remove the red wire of the "rescue vehicle".

Step 4: Remove the red wire of the "rescued vehicle".

Attention: If any residue of electrolyte is found near the positive and negative poles of the rescued vehicle's battery, please connect the black clip of the battery cable to the metal shell near the engine of the rescued vehicle (equivalent to a grounding wire)

(It is prohibited to connect the black clip to the negative electrode of residual substances flowing out of the electrolyte, as it may cause sparks and other issues

Package Included:

2 x Car Booster Cable(Red and Black)
