| Feature |

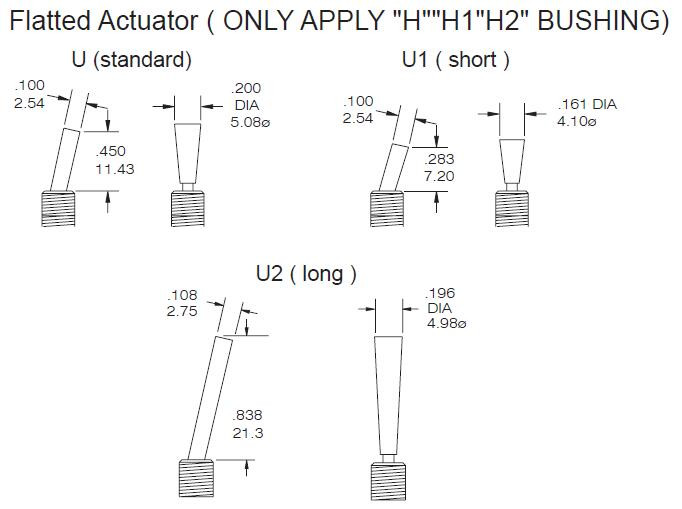

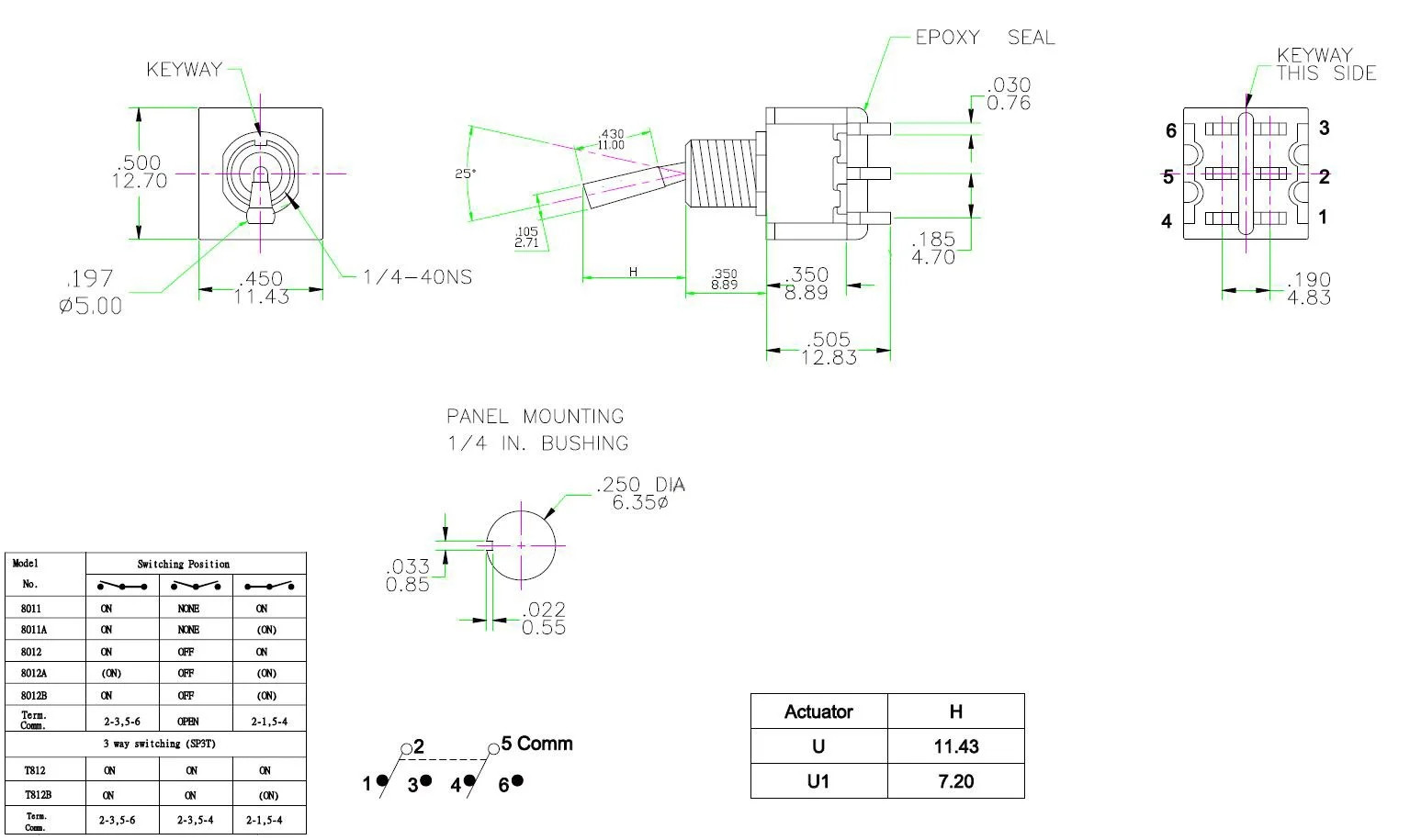

Model:T8011-U Handle Length:11.43mm (Standard Length Flatted Lever) Mounting Diameter:6.35mm Switch Action: Function:ON-ON Contact Rating: 5A @125 VAC or 28 VDC Electrical Life: 50,000 make and break
cycles at full load Contact Resistance: 10 mΩ max. initial @2-4
VDC,100 mA Insulation Resistance: 1,000 MΩ min. Dielectric Strength: 1,500 V RMS @ sea
level. Operating Temperature: -30°C to 85°C
Weight:6.2g |
| Package Includes |
| T8011-U 6Pin DPDT ON-ON Flat Handle Mini Toggle Switch * 5 |
| Shipping |
(1)We only accept ebay address as the shipping
address, please make sure your ebay address is correct. (2)Items are generally send out within 1
working day after your payment has been cleared(Sat.&Sun. excluded) (3)There is no tracking number for the
Economy Int'l Shipping, usually the delivery time is 25-45 days, ship to
Russia,Brazil,Chile will longer,sometimes will over 50 days, If cannot wait for
so long, please choose other shipping thank you (4)The item send to the United States we use ePacket shipping as the default method (5)If need a tracking number please select
the standard Int'l Shipping,most countries can arrived within 20-40
days(Australia ,Canada ,United Kingdom ,Netherlands ,Germany can not be
tracked, We will choose ePacket shipping according to the order situation) (6)If you select the Expedited International Shipping,we will send your order via DHL EMS or other express,but please contact me before you select this Shipping (Except the United States),we need check your shipping address first,and you may need to pay the tariffs when package arrives. |
| Payment |
|
| Return&Contact us |
We have always been trying to provide the best service and reliable products for every customer,however,accident may happen sometimes,please contact us to resolve any issue before leaving a negative feedback,thanks! (1)We accept return,Please contact us
by ebay message first before return,item
should be return within 14 days and
return shipping will be paid by buyers. (2)If your package more than 30 days
have not been received, please contact
us as soon as possible.(Russia and other
country will take much longer than other country so please be patient,if
more than 50 days have not been
received,please concact us) (3)we are do our best to ensure items
' quality and our service. We greatly
appreciate your POSITIVE feedback, so
please contact us before you leave a negative feedback and general
feedback，Thank you
for your support！ |
5Pcs SH T8011-U Flat Handle 6Pin ON-ON DPDT 2-Position Mini Toggle Switch
$10.99
Maximum Amperage
5A
Actuator Type
Flatted
Color
Red
Current Rating
5A @125 VAC or 28 VDC
Fuse Type
Switch
Switch Style
Toggle/Joystick
Brand
Salecom
Operation Method
ON-ON
Current Type
AC/DC
Type
Miniature Toggle Switch
Contact Configuration
Double Pole, Double Throw (DPDT)
Termination Type
Solder
Model
T8011-U
Contact Material
Brass
Features
Remote Control
Country/Region of Manufacture
China
Finish
Nylon+Copper Alloy+Stainless Steel
Application
Electronics
Mounting Diameter
6.35mm
condition
New
