5pcs 8-32 H3 3 Spiral Flutes Bottom Standard Tap HSSE-V3 Steam Oxide YG1

Slide Slide Slide
$30.2
Brand
YG1 Tool Company
MPN
C2283
EDP
C2283
Tap Thread Size
8-32 0.1640
Type of Tap
Standard Tap
Pitch Diameter Limit
H3
Material
HSS-E (5% Cobalt HSS)
Thread Chamfer
1.5-2 Pitch Lead
Tool Coating
Steam Oxide Finish
Quantity
5
Custom Bundle
No
Modified Item
No
Country/Region of Manufacture
India or Korea, Republic of
condition
New
item description




Suncoast Precision Tools, Inc. is an Authorized Distributor of YG-1 TOOL CO.
Part #C2283

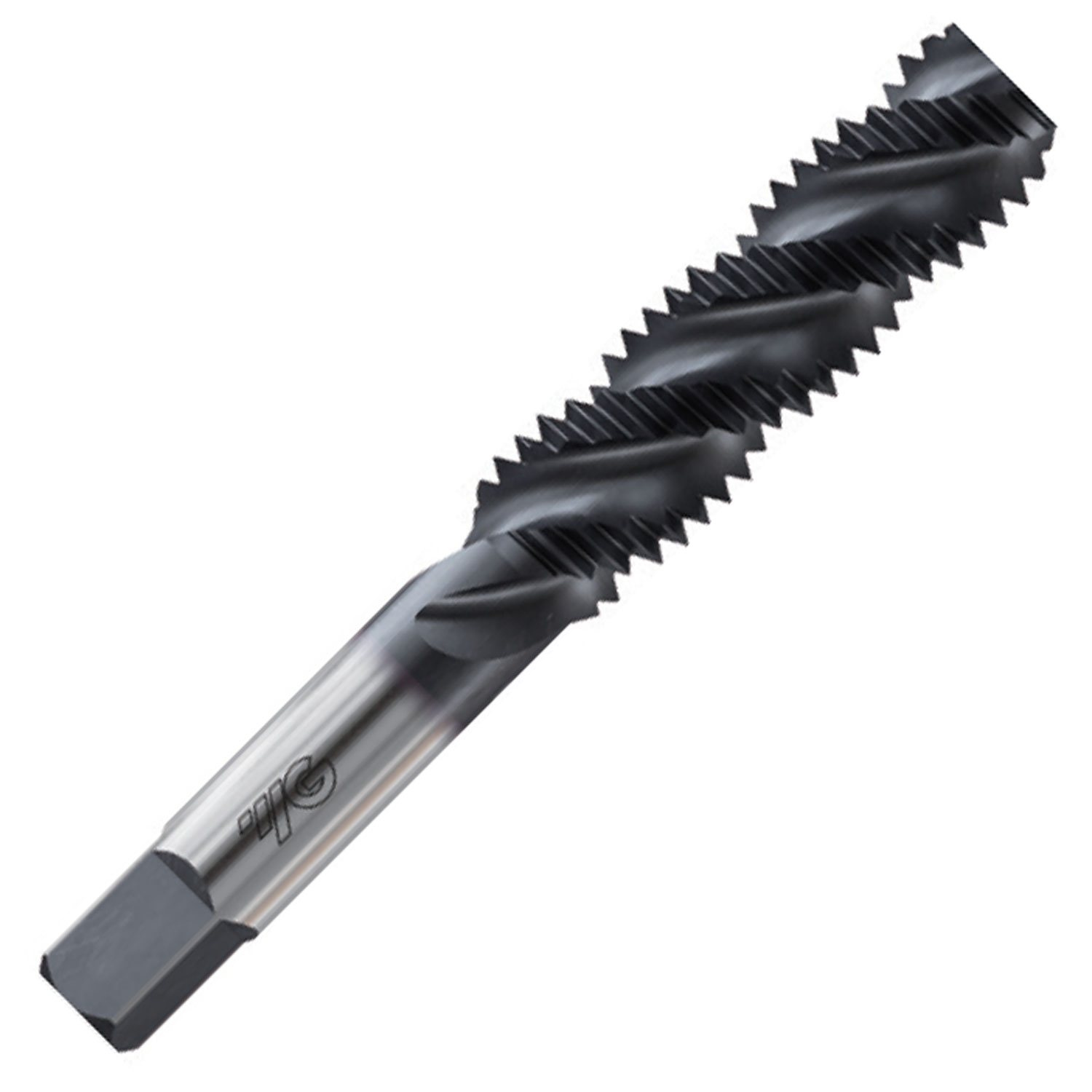

YG-1 YG TAP GENERAL Series C2: Standard Tap For General Purpose Use. Taps are produced from Premium HSS-E (5% Cobalt HSS) and come with Steam Oxide Finish. Taps are right hand cut, Right Hand Thread with 45Deg Right Hand Spiral, Spiral Flute Bottoming style taps with 1.5-2 Pitch Lead threads are primarily applicable for tapping Blind Holes at depths to 2.5xD. USCTI Shank Standard Tap With No Coolant Hole.
  • YG-1 YG TAP GENERAL Series C2: Standard Tap For General Purpose Use
  • Made from Premium HSS-E (5% Cobalt HSS) With Steam Oxide Finish
  • Right Hand Cut, Right Hand Thread with 45Deg Right Hand Spiral Flute
  • Spiral Flute Bottoming Style with 1.5-2 Pitch Lead threads
  • Primarily applicable for tapping Blind Holes at depths to 2.5xD
  • USCTI Shank Standard Tap With No Coolant Hole
