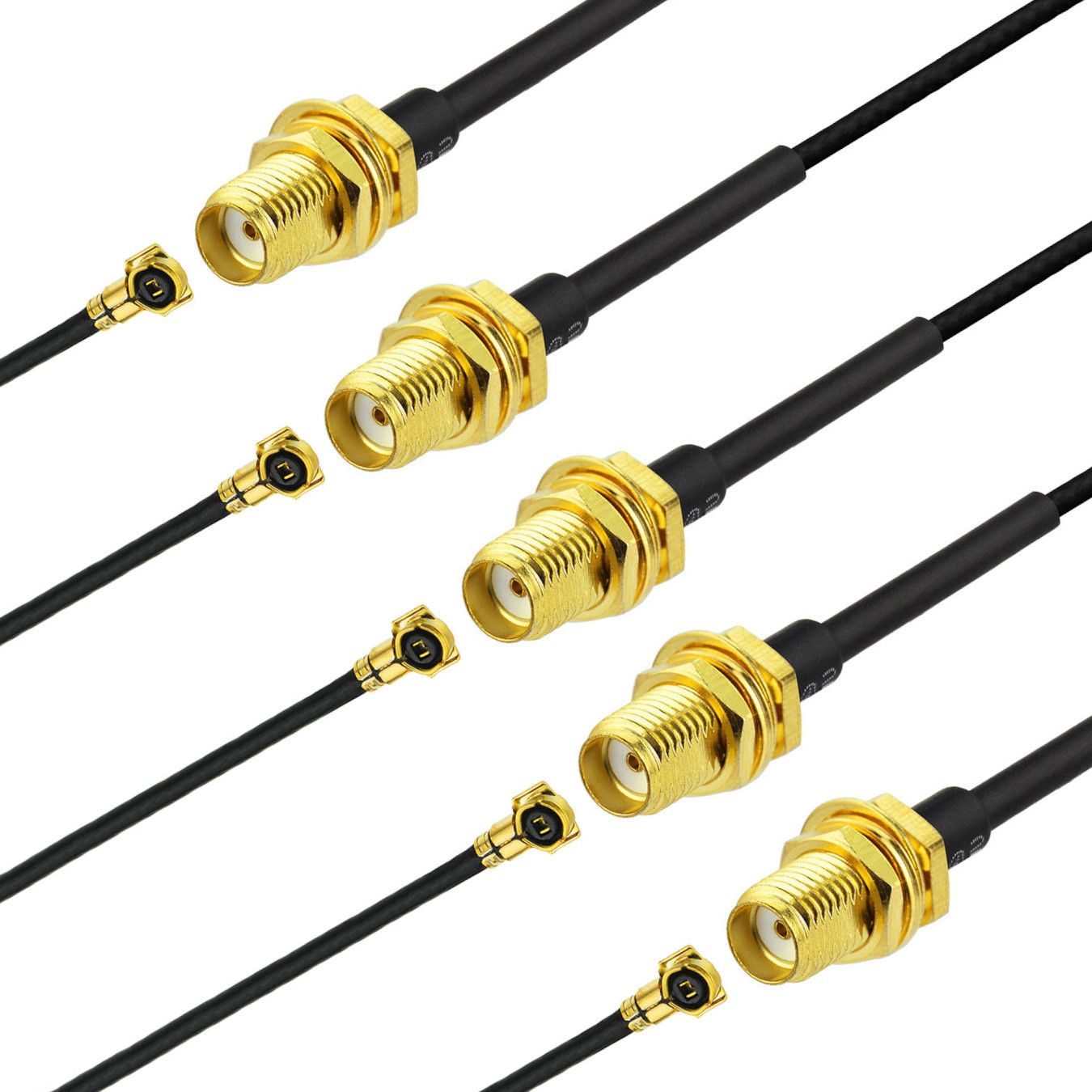

5pcs 6" U.FL / IPX to SMA Female Antenna WiFi Pigtail Cable ufl ipex Mini PCI
IPEX/IPX/U.FL to SMA female coaxial cable
Cable length: 6 inches / 15cm • Impedance 50 Ohm • 1.13mm wire
For use with wireless antennas, for WIFI, WLAN, GPS, Bluetooth, Zigbee, etc.
The device side connector is known as an IPX or U.FL connector. IPEX is a brand name for a type of micro coaxial connector, which is also compatible with our product. The standard size of the U.FL connector is approximately 2.5mm in height and 3mm in width. These connectors are designed to work with a micro coaxial cable that has an outer conductor diameter of approximately 1.13mm. Please note that the size "1.13mm" refers to the diameter of the outer conductor of the micro coaxial cable. If your cable uses a smaller connector, then an MHF connector may be required instead.
Cable length: 6 inches / 15cm • Impedance 50 Ohm • 1.13mm wire
For use with wireless antennas, for WIFI, WLAN, GPS, Bluetooth, Zigbee, etc.
The device side connector is known as an IPX or U.FL connector. IPEX is a brand name for a type of micro coaxial connector, which is also compatible with our product. The standard size of the U.FL connector is approximately 2.5mm in height and 3mm in width. These connectors are designed to work with a micro coaxial cable that has an outer conductor diameter of approximately 1.13mm. Please note that the size "1.13mm" refers to the diameter of the outer conductor of the micro coaxial cable. If your cable uses a smaller connector, then an MHF connector may be required instead.
Product Guarantee
We offer a 30 day return policy and a one year warranty. Buy with confidence!
