PLEASE NOTE: Carefully review the options you need to purchase.
Only the option of the 2PCS is included with the ENGINE and BITS!
Do you want to drill more easily? This gas powered post hole digger made of high-quality aluminum alloy and PP material is very suitable for you. Its engine has been tested for 60 hours of continuous operation, which fully guarantees its stable operation. It is ideal for fast drilling into the soil. It allows you to easily set fence posts, trees, shrubs, etc. on the ground.
Key Features
Compact Design: The lightweight, compact design of this digger allows the unit to be handled by operators of nearly any size.
Easy to Operate: It has an easy start system that allows quick cord start. And it is ergonomically designed to be easier to operate and save you time.
Sturdy and Durable: It is made of aluminum alloy and PP material, which is hard and has good corrosion resistance so it can be used for a long time. And its straight-through gearbox also makes the whole machine more solid, so you can use it with ease.
Perfect Function: It is equipped with a 52cc gasoline engine, centrifugal clutch, carburetor with pump, etc. making it a fully functional post hole digger. with it, you can perform professional quality work.
Fuel-saving and Money-saving: It adopts a stable carburetor, which can fully burn the fuel, reduce fuel consumption and save your gasoline cost.
Stable Operation: The post hole digger's engine has undergone a 60-hour continuous duty endurance test to enable it to work consistently.
High Efficiency: This Gas Auger has a Standard Power of 1.7kW, a Max Rotating Power of 8500RPMs. This allows for fast and efficient work to be accomplished whether in the field of work or on your land.
Customer Service: We aim to provide quality products and services. If you have any problems, please free to contact us. We will reply and solve the problem for you as soon as possible.
Good Heat Dissipation: The post-hole digger has large cooling holes to ensure continuous work without stalling while extending its service life.
High Adaptability: This digger can be equipped with augers that are 2.36", 3.15", 4", 6", 8" and 10" in diameter, together with the supplied auger bits of 4", 6", and 8", the auger can drill holes of different diameters. With this tool, you will be able to perform professional quality work.
Safe to Use: The digger adopts a centrifugal clutch, which does not require another set of control mechanisms, and can provide safety protection in case of overload, making it very safe to use.
Customer Service: We aim to provide quality products and services. If you have any problems, please free to contact us. We will reply and solve the problem for you as soon as possible.
Details
Cord Starter: It has an easy-to-start system such as a cord starter, which is convenient for your daily use.
Comfortable Handle: This post-hole digger features two anti-skid, vibration-proof grips, providing maximum leverage and stability while working.
Translucent Tank: The convenient built-in translucent fuel tank can help you easily check when you need to refill the fuel.
Goggles: This product is equipped with goggles to protect your eyes from flying dust.
Switch Button: The machine is equipped with a switch button that allows for easy operation of on/off.
Straight-through Gearbox: It has a straight-through gearbox. Unlike the model of a side-mounted engine, the straight-through design is more robust and is unlikely to cut the gear.
Application
The post hole digger is ideal for fast drilling into the soil. It allows easy setting of fence posts, trees, shrubs, etc. on the ground.
How to Start
1. Please remember to close the air door and then pull the starter. (don’t forget this step, otherwise, you will not be able to ignite when you deadlift.)
2. Pull the rope starter 3-5 times, the total length of the rope is 70 cm, and the safety distance is 30-50 cm. If the safety distance is exceeded, the rope will break, not the longer the rope is, the better.
3. After starting successfully, remember to open the damper.
Specification
Model No: DZ520
Engine Model: 1E44F-5
Material: Aluminum Alloy, PP
Engine: Single Cylinder, 2-stroke
Cooling System: Air-cooling
Starting System: Cord Starter
Clutch Type: Centrifugal Clutch
Safety: Bit Lock
Whether the Carburetor With Pump: Yes
Horsepower: 2.3HP
Cylinder Capacity: 52cc
Fuel Mix: 25/1
Power:1.7kw/8500rpm
Host Size: 51*27*32cm/ 20.08*10.63*12.60in
Weight: 11.6 kg/ 35.27lbs (Without Bit)
Fuel Tank Capacity: 1.2L/ 0.264Gal
Bits Diameter: 10cm/4inch, 15cm/6inch, 20cm/8inch
Drill Length: 80cm/31.49inch
Extension Rod Length: 30cm/11.8inch
Matchable Drill Diameter: 2.4inch, 3inch, 4inch, 6inch, 8inch, 10inch
Package Included
1* Extension Bar

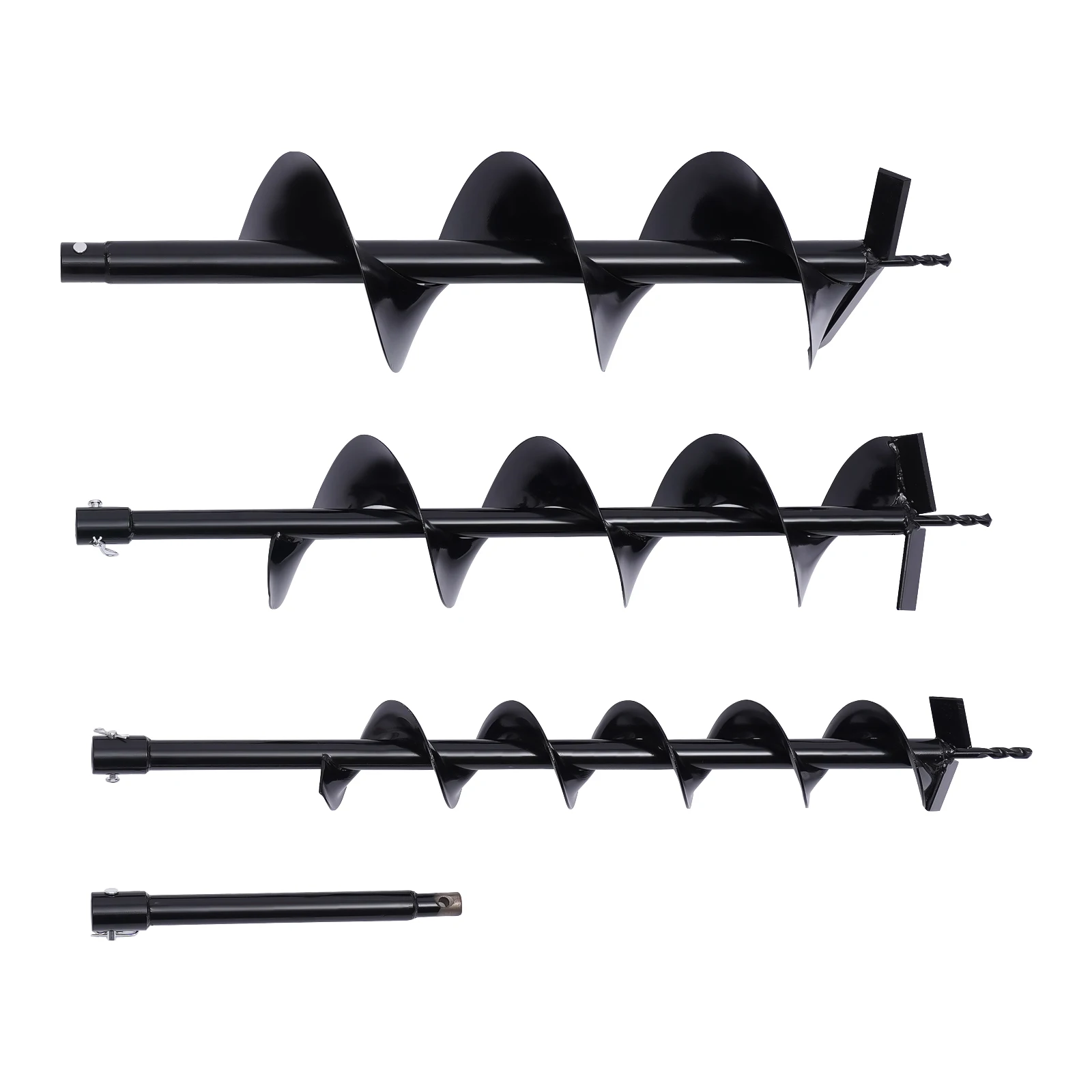

1* 4" Dia. Auger
1* 6" Dia. Auger
1* 8" Dia. Auger
1* Fuel Mixing Bottle

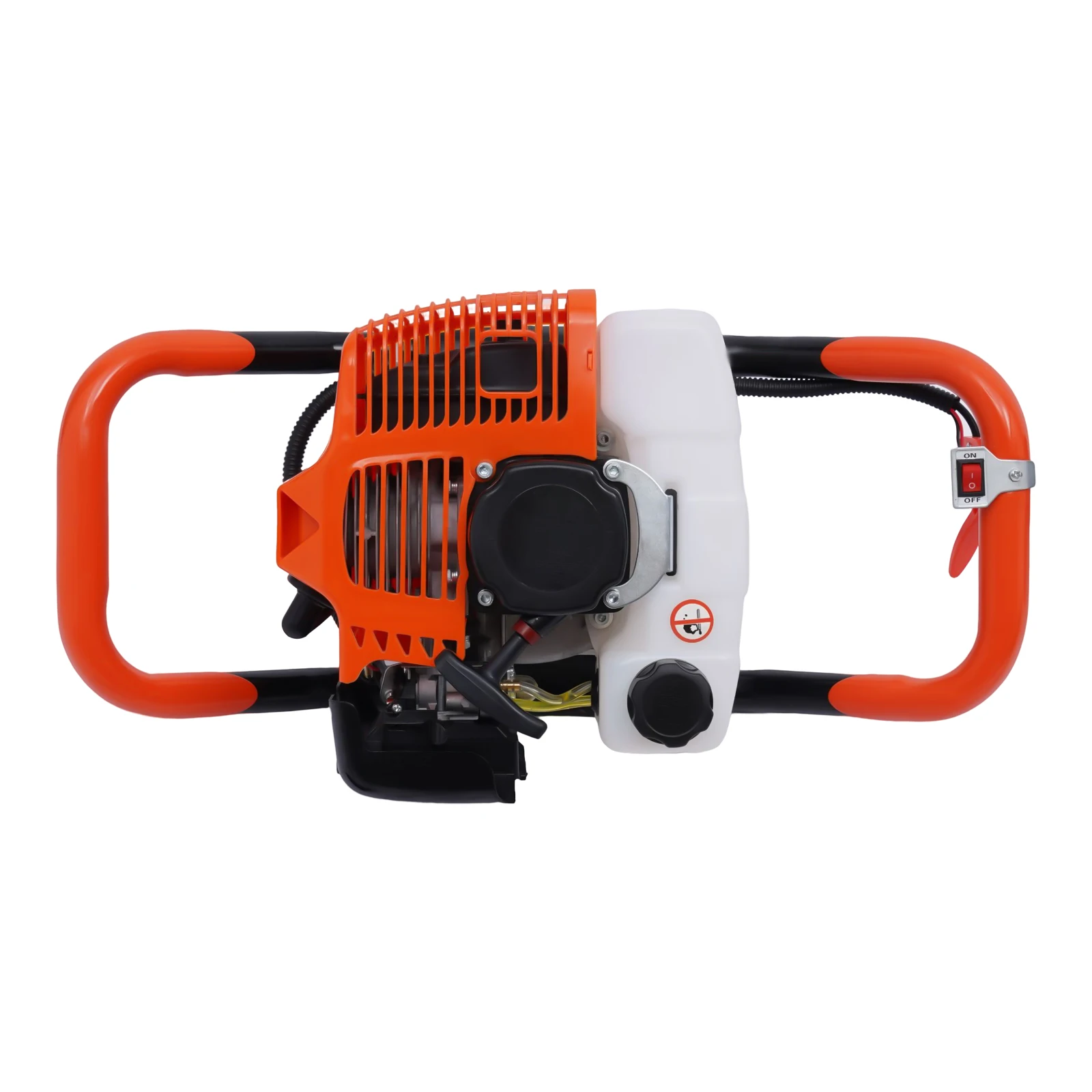

1* Post Hole Digger
1* English Instruction
1* Tool Kit for Assembly
Notes
1. Please be careful not to pull the starter when the dampers are open. Because when the dampers are open, too much air enters and too little oxygen, it is hard to start, so pull the starter when the dampers are closed.
2. Please note that if you pull the starter to the end of 70cm it will break the rope, its safe distance is 30-50cm, pulling the rope hard will cause it to break. If it breaks, you will need to buy the starter again.
3. Please keep the choke in the open position when the machine is in use.
4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
