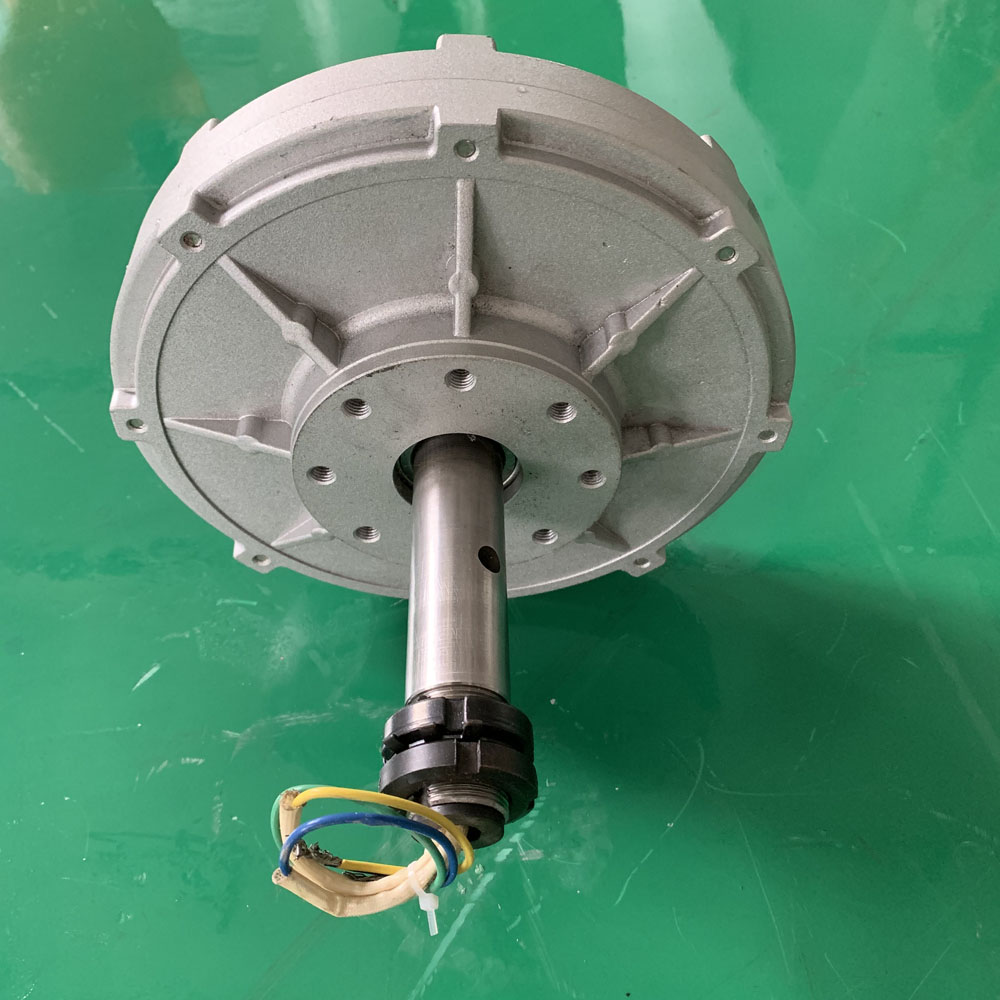

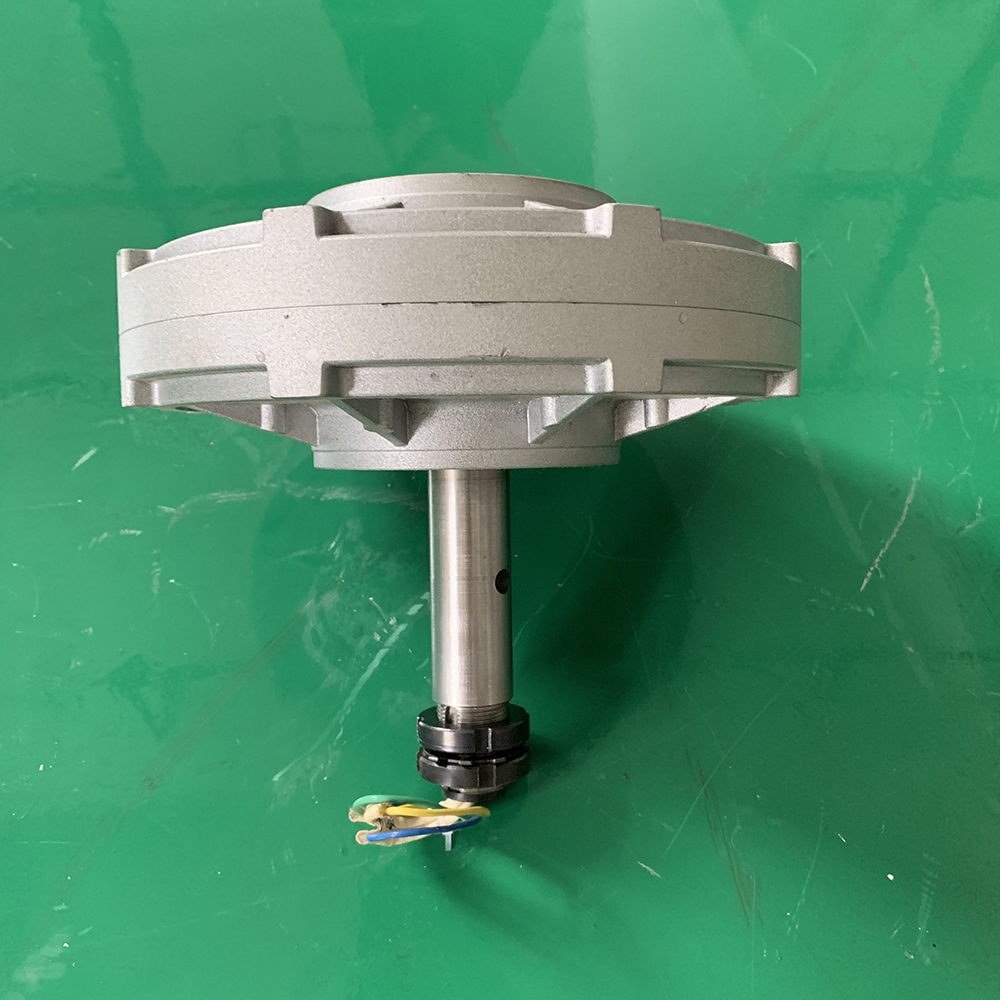

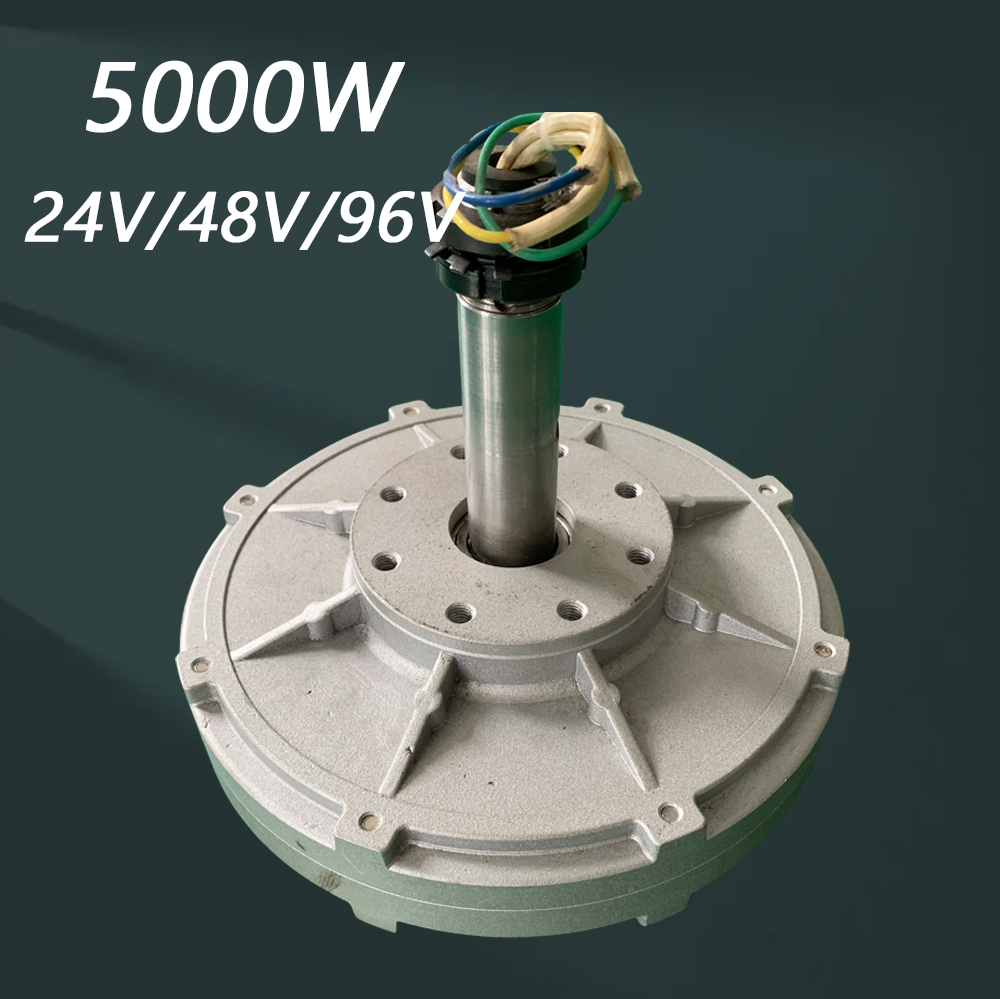

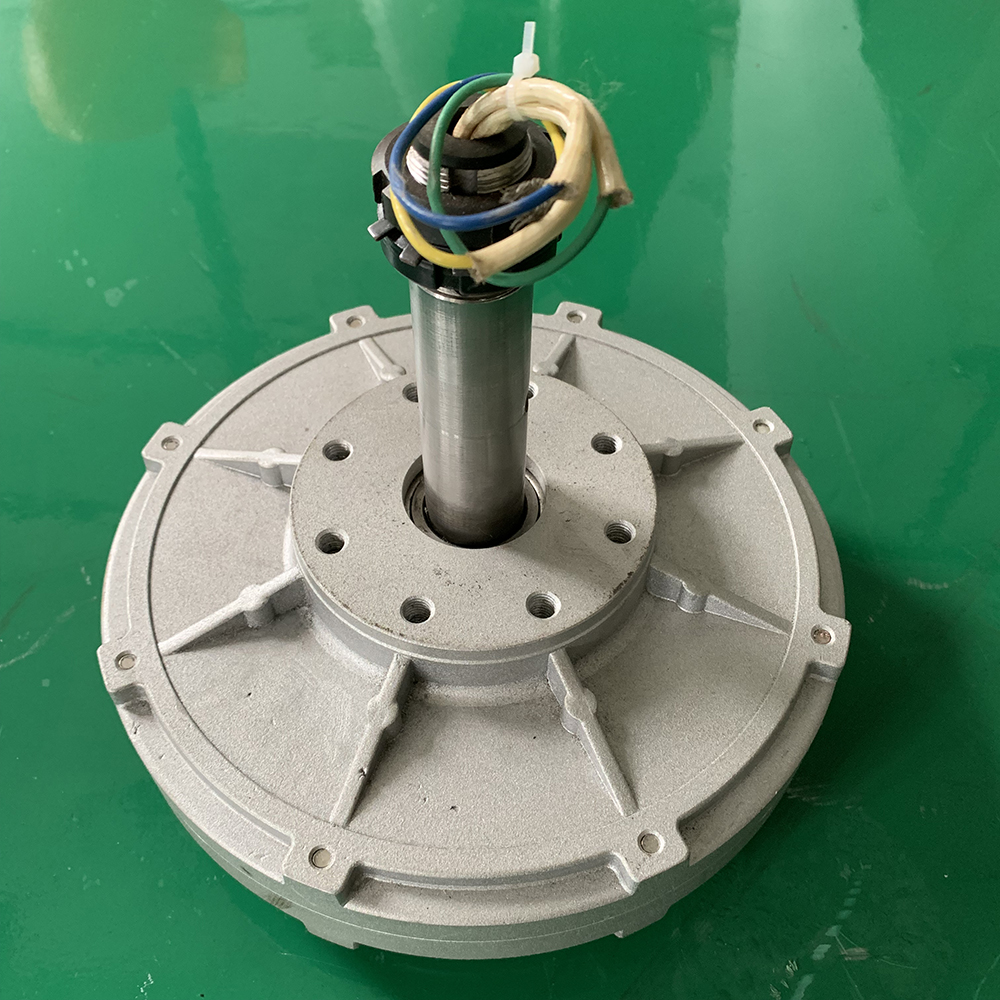

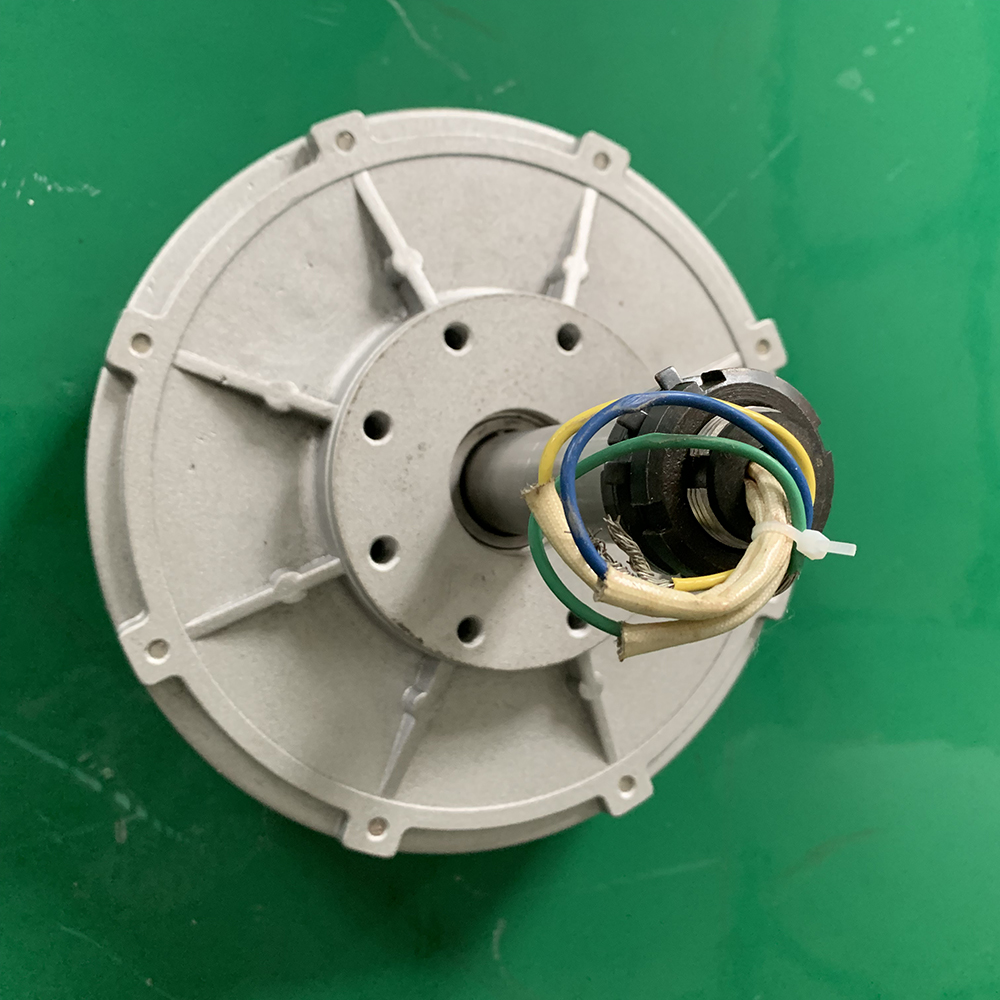

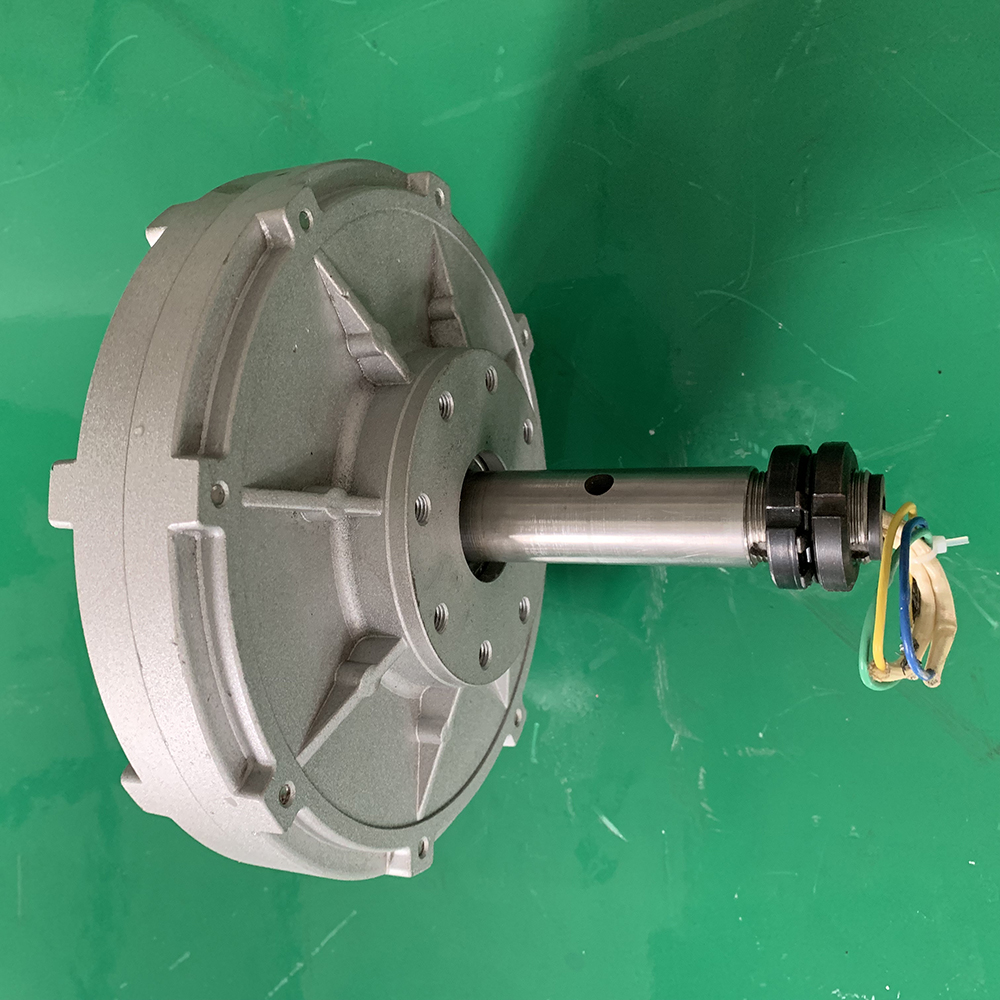

5000W 24V/48V/96V Coreless Maglev Permanent Magnet Wind Generator Low RPM 300rpm

Slide Slide Slide Slide Slide Slide Slide Slide Slide
$750.99
Output Volt
24V
Current Output
20-29 A
System Configuration
Off-Grid
Power Source
Wind
Wattage
4500-4999 W
Rated Wind Speed
12m/s
Current Type
AC
Voltage
24V 48V 96V
Axis Orientation
Vertical
Features
All Daylight Conditions, Automatic Voltage Detection, Brushless Motor, Corrosion Resistant, Daylight Operation, Fixed Guyed, Flexible, Foldable, Freestanding
Protection Properties
Anti-island Protection, Black Current Protection, Discharge Protection, Freeze Protection, Frost Protection, Lightning Protection, Low Voltage Protection, Open Circuit Protection, Overcharge Protection, Overcurrent Protection
Maximum Input Power
4999W
Maximum Input Voltage
181-200 V
Inverter Technology
Hybrid
Color
Silver
Current Rating
21-30 A
Material
Aluminum alloy
Brand
Bayoung
Type
Wind Turbine Generator
Resistance Properties
Abrasion Resistant, Acid Resistant, Antimicrobial Resistant, Chemical Resistant, Childproof, Child Resistant, Corrosion Resistant, Dustproof, Dust Resistant, Fade Resistant
Charging Mode
MPPT (Maximum Power Point Tracking)
Country/Region of Manufacture
China
Application
Agriculture/Farming, Aquaculture, Automotive, Back-up Power, Camping/Hiking, Commercial, Electronics, Home/Garden, Irrigation, Marine
Power
5000W
condition
New
5000W 24V/48V/96V Coreless Maglev Permanent Magnet Wind Generator Low RPM 300rpm

Product Description

Feture：

Our disc coreless PMG have advantage in low Rated speed, Low starting wind speed, Small volume, Energy Small, Light weight, Compact structure,High efficiency etc. 1) Coreless, anhysteresis, slotless, have low starting torque. 2) No iron loss, have high efficiency 3) Adopt unique coreless precision winding technology design precision coil 4) Adopt the rare earth permanent magnet, which is multipole, high power density and high output power. 5) Low speed direct driving, no torque fluctuations 6) Compact structure, high ratio of power to volume 7) No iron loss, low calorific value,small temperature rise 8) Simple structure, easy to install 9) The brushless structure, free maintenance

Specifications

Rated power:5000W

Rated speed:300rpm

Rated voltage:24V 48V 96V

Rated current: 30A/20A/15A/10A

Efficiency:>75%

Resistance (Line-Line):<1.60Ω

Winding type:Y

Insulation Resistance:10OMohm Min(500v DC)

Leakage level:<5 ma

Start torque:<0.1

Phase:3 phase

Structure:outer Rotor

Stator:Coreless

Rotor:Permenent Magnet Generator (Outer Rotor)

Gen. Diameter:260mm

Gen. Length:192mm

Gen. Weight:13KG

Shaft. Diameter:30mm

Housing Material:Aluminum(Alloy)

shaft Material:stainless Steel

Packing List：

1) 1 PC Generator （Excludes wind turbine blades and other accessories）
