40A 6in1 Plasma Cutter, 250A HF-TIG SPOT MIG CUT STICK Aluminum Welding Machine

$393.29
Brand
HZXVOGEN
Welded Material
Iron, stainless steel
Welding Process
MIG
Voltage
220 V
Feed
Automatic Feed
Item Type
MIG TIG MMA CUTTING MACHINE
Features
Gasless, With Gas
Model
HVM270
Type
MIG TIG MMA CUTTING MACHINE
Rated input voltage
220V
Multi-process

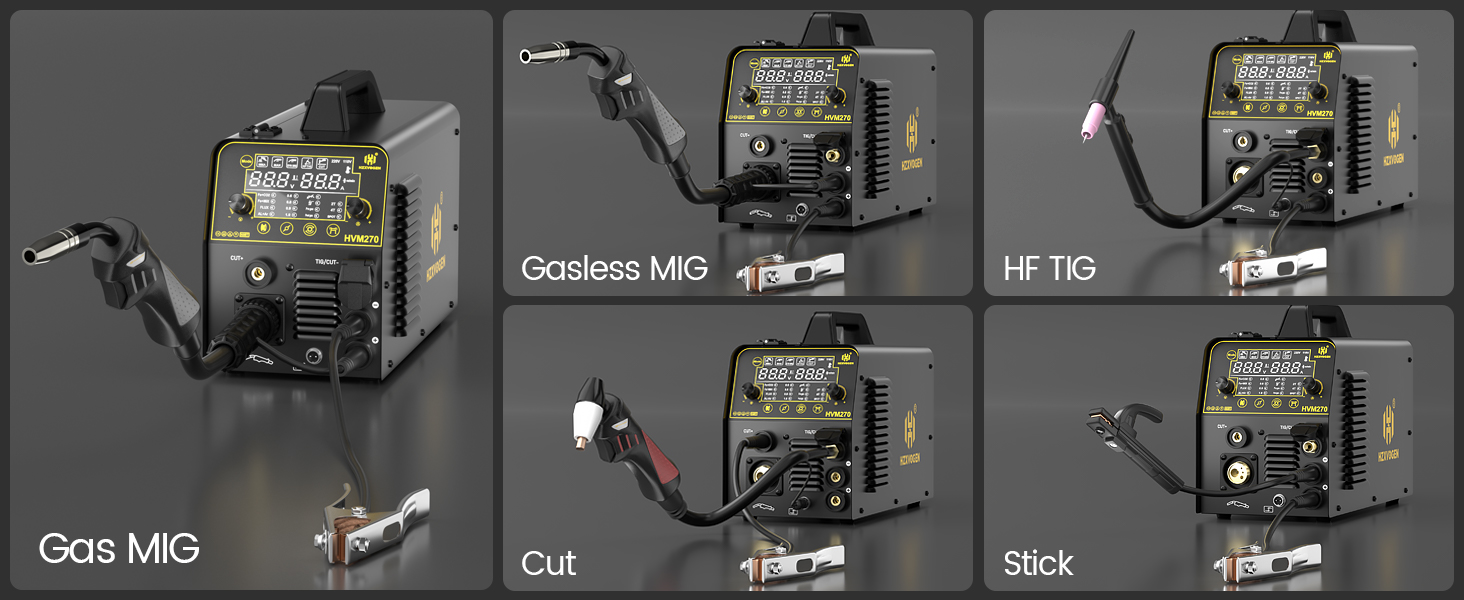

Gas MIG/Gasless MIG/Lift TIG/MMA/CUT
MMA welding current range ( A )
20-250
MIG welding current range ( A )
60-250
CUT welding current range ( A )
15-40
Nohoad voltage ( V )
MIG : 55 MMA : 55 CUT : 290
Wire feed speed range ( m / min )
0.5 ~ 13
Efficiency
≥85%
Rated duty cycle
60%@250A
Manufacturer Warranty
2 years
Color
Black
Item Weight
14KG
Marke
HZXVOGEN
condition
New





6in1 MIG CUT TIG MMA Welder 220V Gas/Gasless Welding Machine Plasma Cutter 250A

Why you choose HVM270?

The reason is:

1. Flux Core MIG,Gas MIG ,MMA,CUT ,HF TIG ,and gasless self-shielded welding are available for the machine.

2. IGBT power device with unique control mode improves the reliability of welding machine.

3. High duty cycle ensures long time welding.

4. Closed loop feedback control,constant voltage output,workable under mains voltage fluctuation within士10%.

5. Adjustable welding voltage and current,excellent welding characteristics.

6. Adopting unique welding dynamic characteristic control circuit in MlG,stable arc,little spatter,beautiful weld bead,high welding efficiency.

7. Removing tip ball after welding,high no-load voltage,slow wire feeding,high successful rate of arc ignition.

8. Stable welding current in MMA,excellent arc ignition,various electrodes applicable.

9. High inverter frequency greatly reduces the volume and weight of the welder.

10. Great reduction in magnetic and resistance loss obviously enhances the welding efficiency and energy saving effect.

11. Switching frequency is beyond audiorange,which almost eliminates noise pollution.

Product Description:

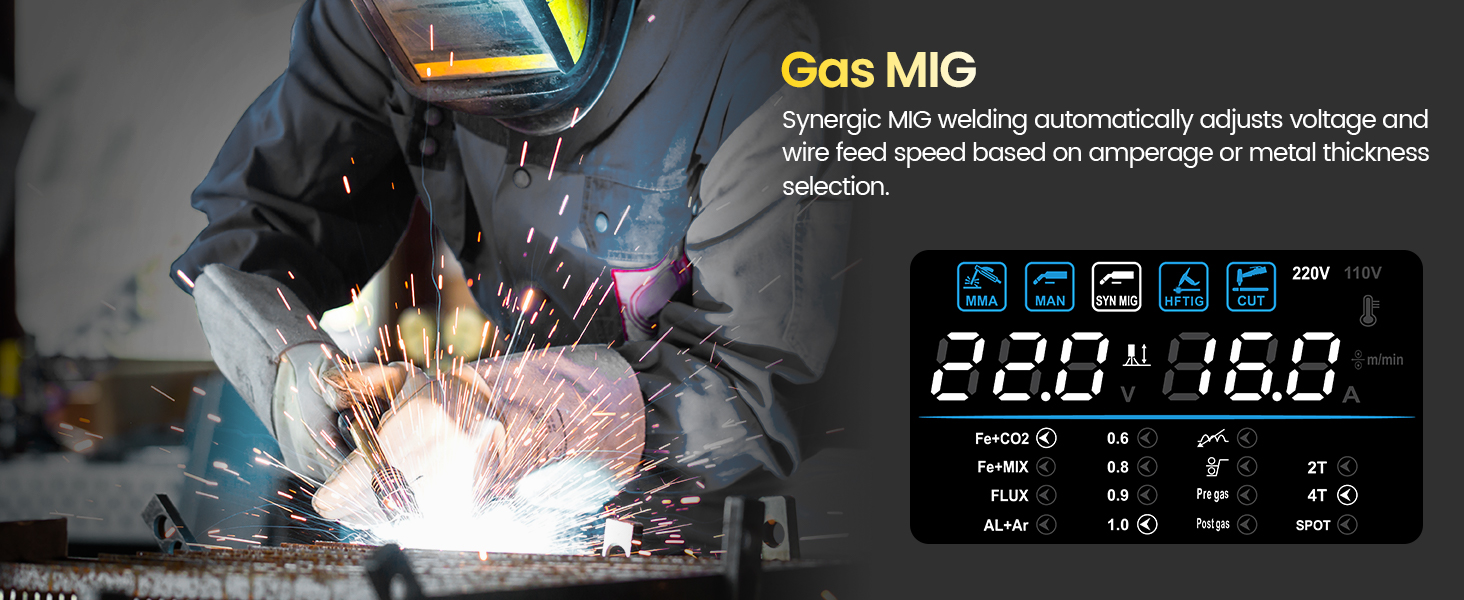

1.Synergic MIG (60-250Amp)

Full Synergic Option: with automatic change of the voltage & wire feeding speed by choosing different thicknesses or amperage.

The wire feed speed will be well fit with the amperage with micro-adjust voltage.

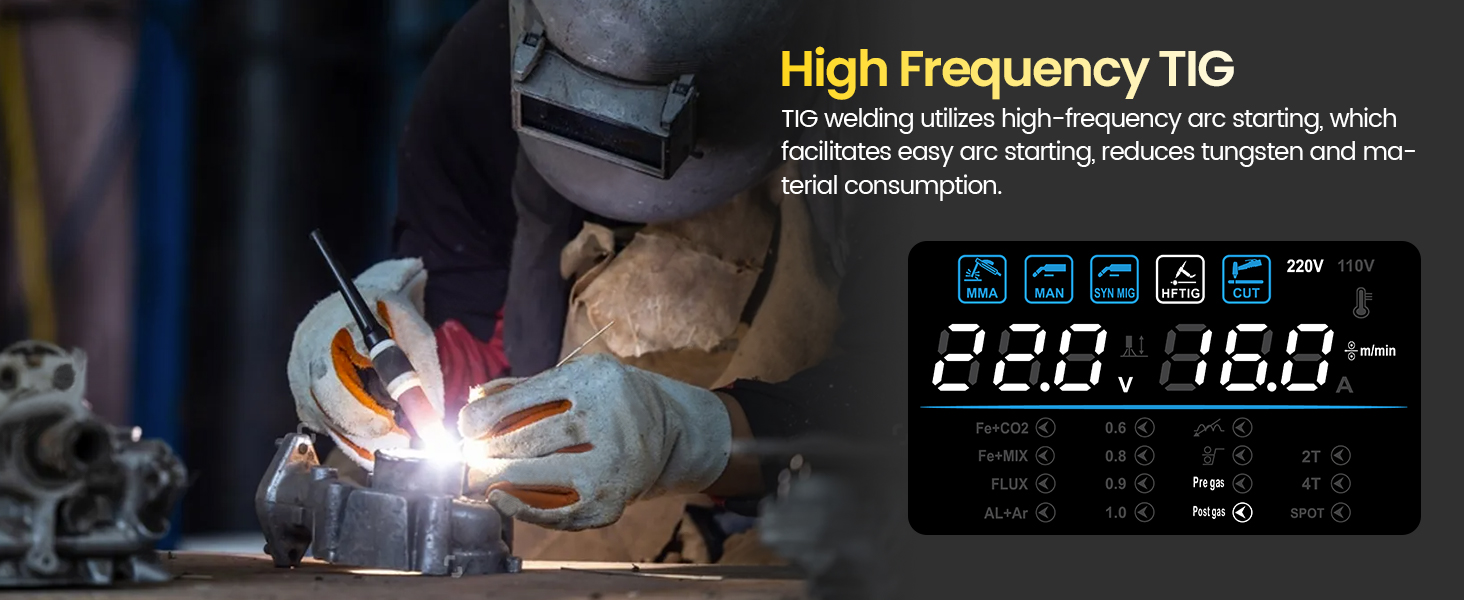

2.HF TIG (60-250Amp)

Work with a WP-17V TIG torch and easy to initiate arc ignition.

Supplying stable controllable consistent arc, suitable for small or intricate welding projects.

Allowing clean and quiet, virtually smoke-free welding with 100% Argon.


3.Plasma Cutting (15-40Amp)

The preflow is a purge feature to insure there is airflow at the tip to become a charged plasma stream and benefit for blowing clean cuts.

Postflow is primarily for cooling.the longer the cut at high amp on thick metal, the more post flow need to dissipate the heat.

Recommend air pressure: 50-60 PSI.

Max Severance Thickness: 15/32"(12mm)@220V@40A, 5/16"(8mm)@220V@30A.

Max Clean Cut Thickness: 25/64"(10mm)@220V@40A, 15/64"(6mm)@220V@30A.

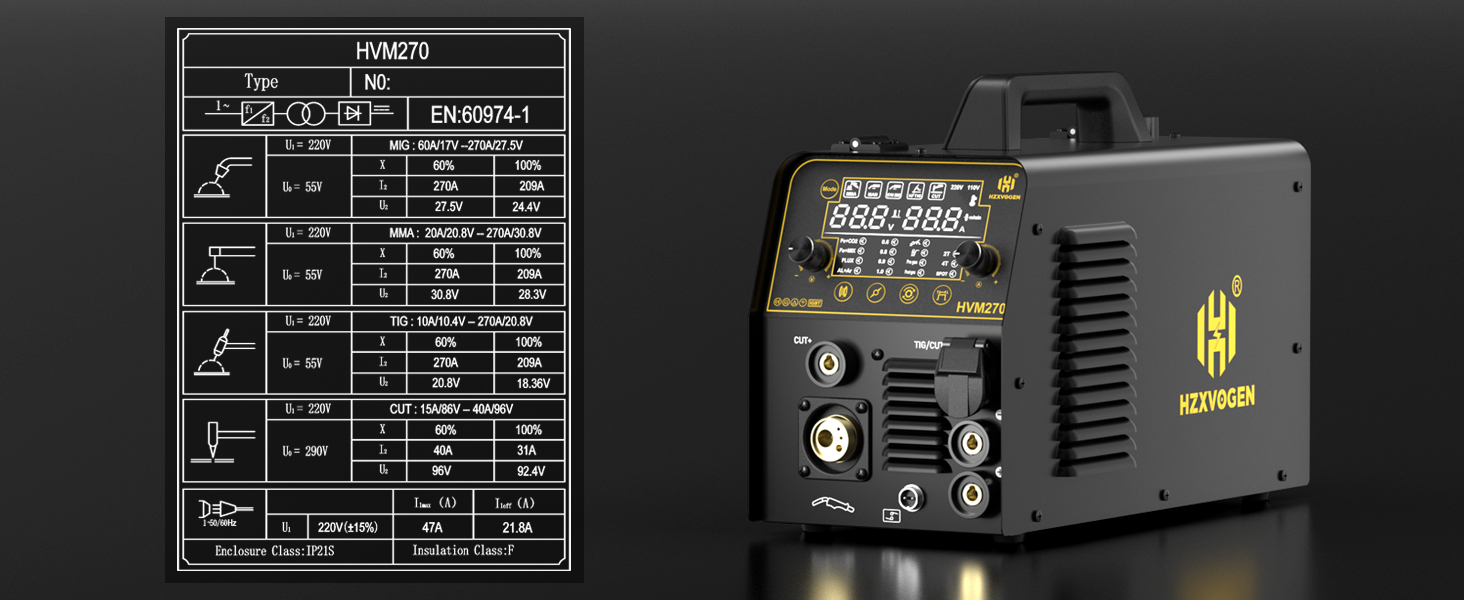

Product Details:

- Model: HVM270
- Single-pnput voltage ( V ):AC220V + 10 % 0 , 50 / 60H
- MMA welding current range ( A ):20-250
- MIG current range ( A ):60-250
- CUT current range ( A ):
- Voltage range ( V )17-26.5
- Nohoad voltage ( V)MIG : 55 MMA : 55 CUT : 290
- Wire feed speed range ( m / min ):0.5-13
- lectrode diameter applicable ( mm ):0.8 / 1.0
- Rated duty cycle:60%
- Manufacturer Warranty:2 years
- Efficiency(%) - ≥85%
- Protection class - IP23
- Insulation class - F

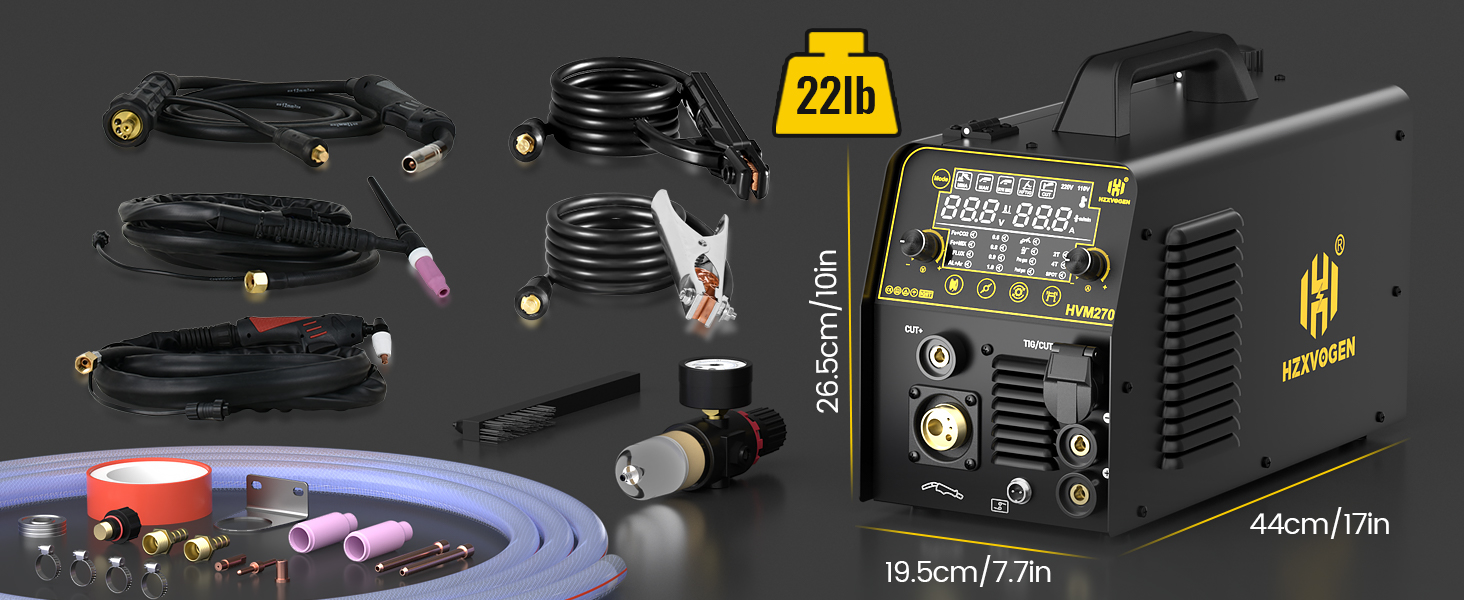

What You Get?

1 X Plasma Cutter Welder Combo
1 X Mig Torch
1 X TIG Torch
1 X Cut Torch
1 X Electrode Holder
1 X Earth Clamp
1 X Gas Tube
1 X Pressure Reducing Valve
